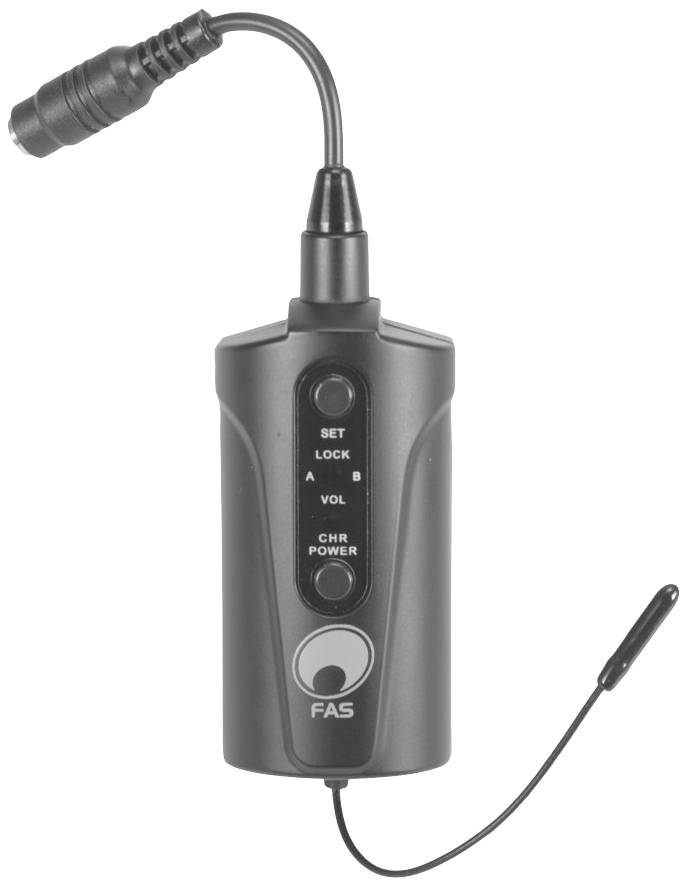

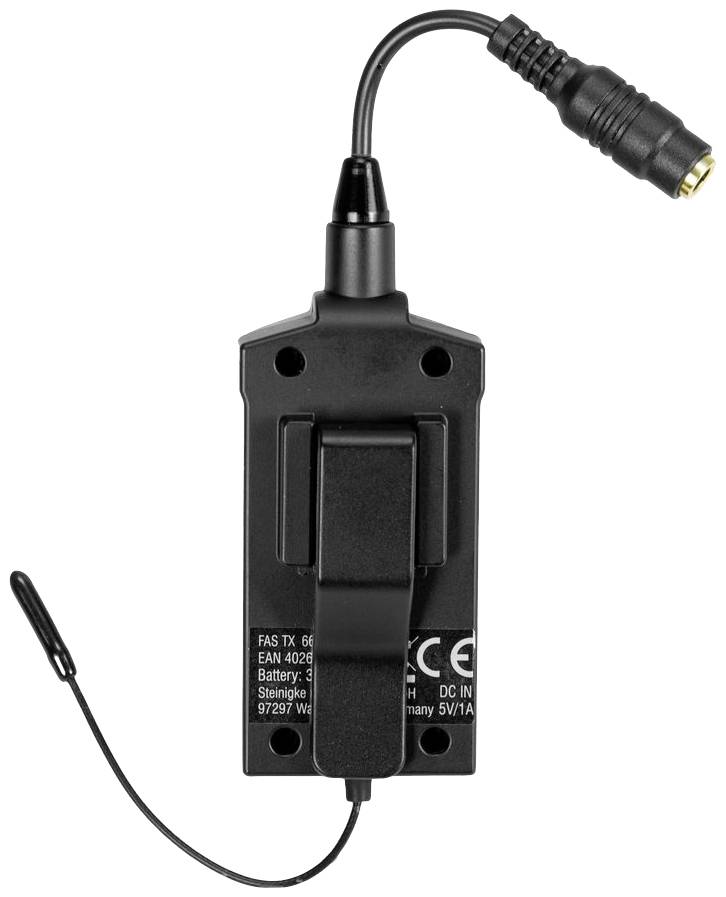

Omnitronic FAS Radio transmitter
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic FAS pocket transmitter 660-690MHz
- Mini pocket transmitter for the FAS-TWO receiver
- Battery life up to 5 h
- UHF 660 – 690 MHz
Technical specifications
- Product type
Radio transmitter
- Factory colour
Black
- Dim
(L x W x H) 210 x 30.5 x 29 mm
- Weight
34 g
- Length
210 mm
- Width
30.5 mm
- Height
29 mm
- No. of frequencies (adjustable)
40
- Transmission frequency
660 - 690 MHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131346 Omnitronic FAS Radio transmitter
Description
High noise immunity and excellent sound quality through digital transmission
Extremely low latency
Quick pairing at the touch of a button
This text is machine translated.
Extremely low latency
Quick pairing at the touch of a button
This text is machine translated.
Features
- Receiver automatically adjusts the frequency
- 2 channel banks, each with 20 adjustable frequencies available
- • Small, light design
- Range of up to 30m at sight range
- Wide range of microphones available for a wide range of applications
- Wireless, flexible and versatile
- UHF 660 - 690 MHz registered and uncharged in large parts of Europe
- POWER SUPPLY 5 V DC 1 A
- Current connection: Power feed via USB C (W) Installation version
- Power status LED
- Connections: Mic/line via 1 x 3.5 mm jack socket (stereo) in-built version
- Max. Level: Mono -1.5 dBu, unbal.
- Material: plastic
- Width 3.05 cm
- Pocket transmitter type
- Frequency range 660 - 690 MHz
- Battery type 1 x Lithium-Ion 3.7 V/600 mAh/2.2 Wh
- Battery: Operating time up to 5 hours
- Integrated battery/rechargeable battery: Battery/rechargeable battery
- Number of channels: 1
- Range: Up to 30m in visibility
- Modulation Pi/4 DQPSK
- Frequency selection 40
- In 2 groups: In 2 groups
- Frequencies can be automatically scanned: Frequencies can be automatically scanned
- Selectable frequencies: Frequencies can be set
- RF output power 10 mW
Scope of delivery
- Transmitter
- User manual
- Declaration of Conformity
