Buy Omnitronic HR-25 Compression drive speaker 50 W White 1 pc(s)

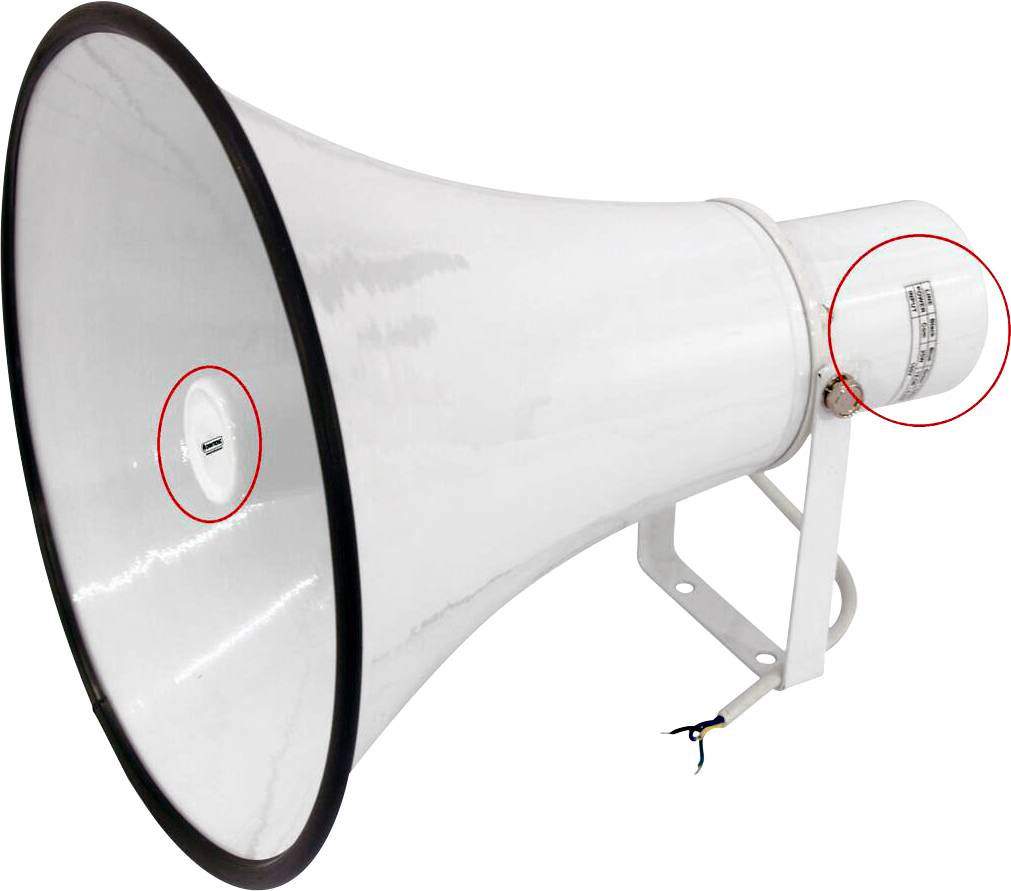

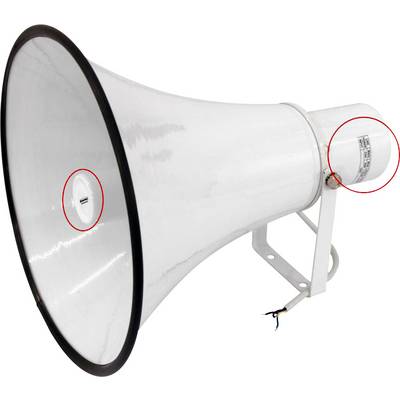

A white megaphone with a mounting bracket and exposed wires, likely for public address or outdoor announcements.

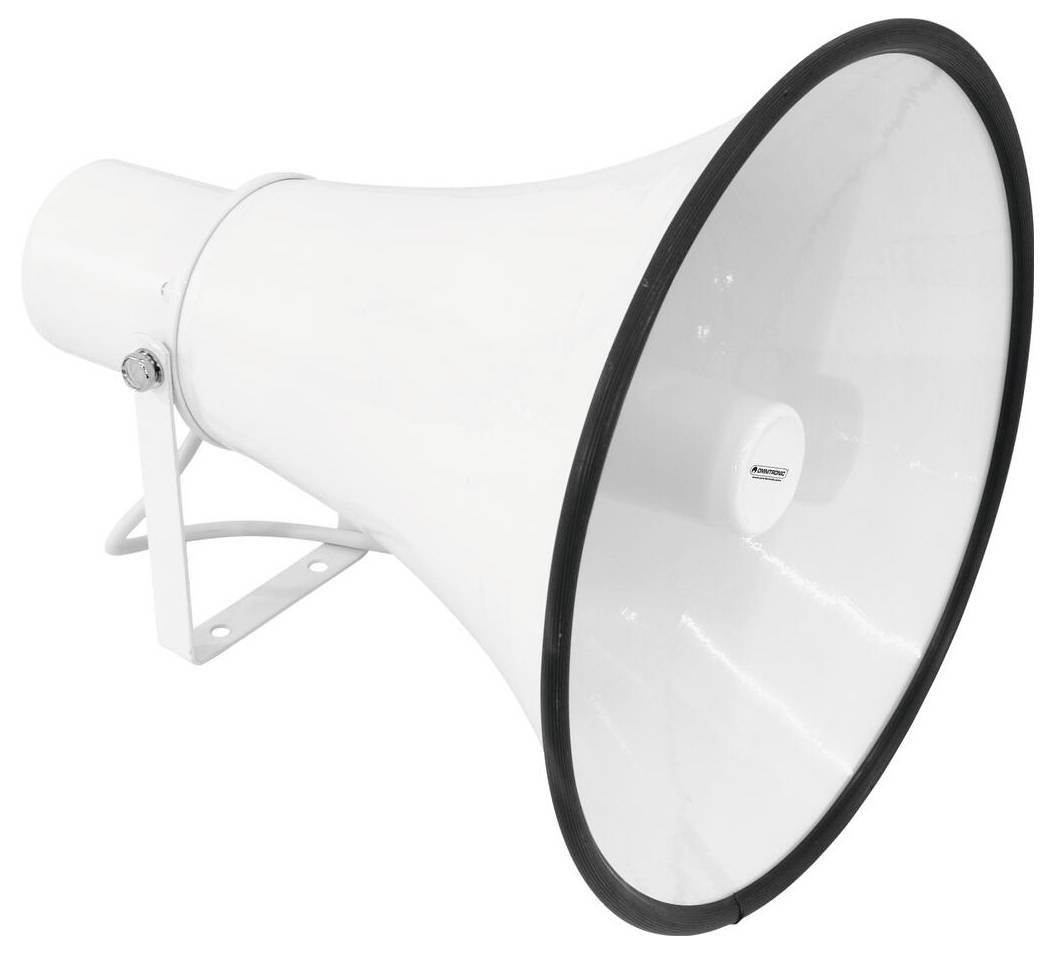

A white megaphone with a black rim, mounted on a metal bracket, typically used for amplifying sound at outdoor events.

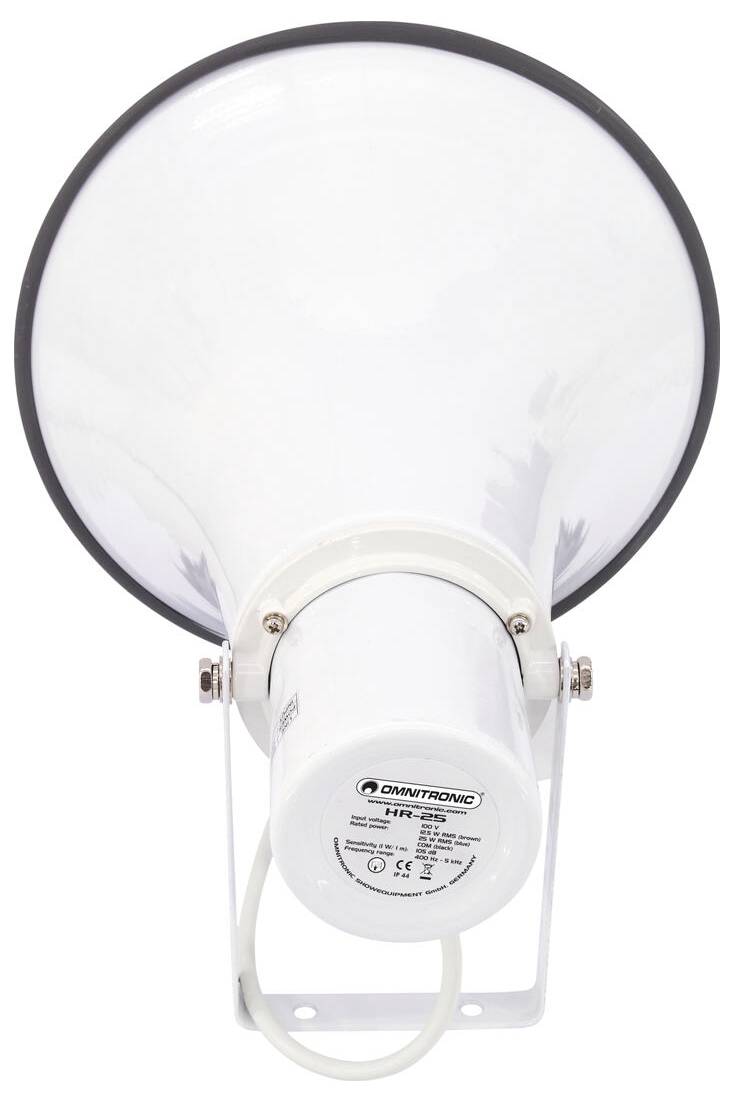

A white loudspeaker with a wide bell opening viewed from the front, mounted on a metal bracket.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Load capacity: Program: 50W; nominal: 25W RMS
Frequency range 400 5000 Hz
Sensitivity 105 dB
Impedance: ELA technique 100V
Supporting system: Mounting bracket
Power tapping: 12.5W; 25W RMS can be selected via open cable ends
Speaker type: Horn

Product type: Compression drive speaker

RMS capacity: 25 W

Max. load: 50 W

Max. sound pressure: 105 dB

: IP44

Operating voltage: 100 V

Factory colour: White

Material: Aluminium

Length: 347 mm

(Ø): 305 mm

Weight: 1750 g

Dim: (Ø x L) 305 mm x 347 mm

Features: weatherproof

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729783 Omnitronic HR-25 Compression drive speaker 50 W White 1 pc(s)

Description

Weatherproof pressure chamber speaker, PA system 100V 12,5/25 W RMS. Sturdy aluminum design. With mounting bracket. Suitable for outdoor use IP44. For applications such as: Installation.

This text is machine translated.

Scope of delivery

1 x device
1 x Operating manual
