Omnitronic HS-52 Compression drive speaker 60 W Grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Cable length 0.3 m.
- Load capacity: Program 60 W, nominal 30 W RMS
- Frequency range 125 8500 Hz
- Sensitivity 93 dB (1W/1m)
- Max. Sound pressure 108 dB ELA technique 100V; 111 dB 8 Ohm. Impedance: ELA technique 100V; 8 Ohm

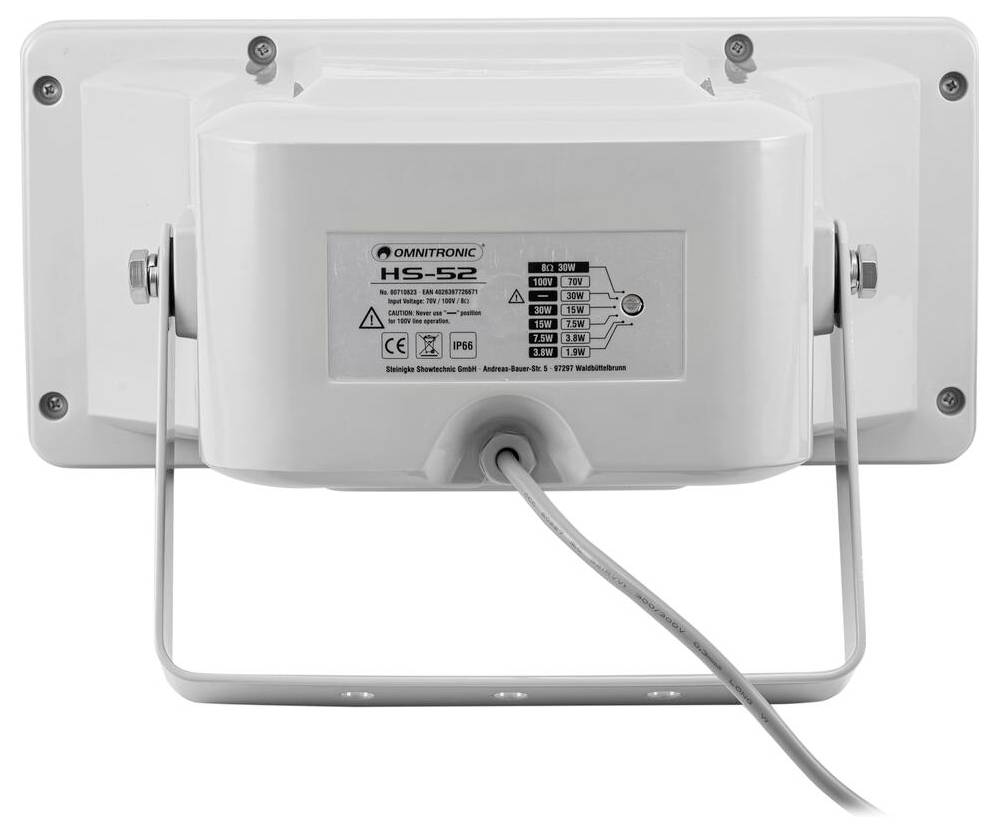

- Output tap: 3.8W; 7.5W; 15W; 30W RMS can be selected with the selector switch
- Connections: Connection cable with open cable ends
- 5" broadband loudspeaker with ferrite magnet
- Basket material: Steel
- Conus material: Weatherproof cardboard/paper
- Speaker type: Surface-mount speaker (wall/ceiling)
- Horn Material: ABS acrylonitrile-butadiene-styrene copolymers; aluminum
- Product type
Compression drive speaker
- RMS capacity
30 W
- Max. load
60 W
- Max. sound pressure
111 dB
IP66
- Operating voltage
100 V
- Factory colour
Grey
- Material
Aluminium
ABS plastic
- Width
366 mm
- Height
172 mm
- Length
280 mm
- (Ø)
13 cm
- Weight
3120 g
- Dim
(Ø x H) 13 cm x 172 mm
- Features
weatherproof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729761 Omnitronic HS-52 Compression drive speaker 60 W Grey 1 pc(s)
Description

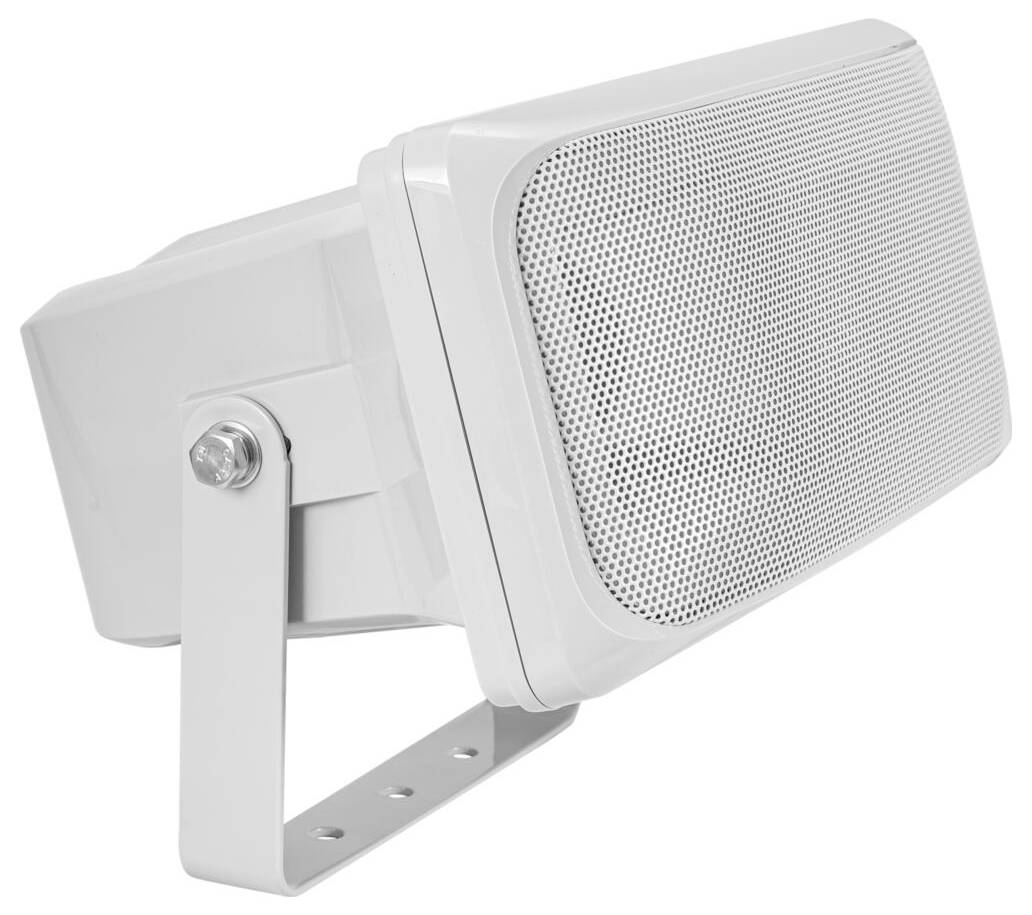

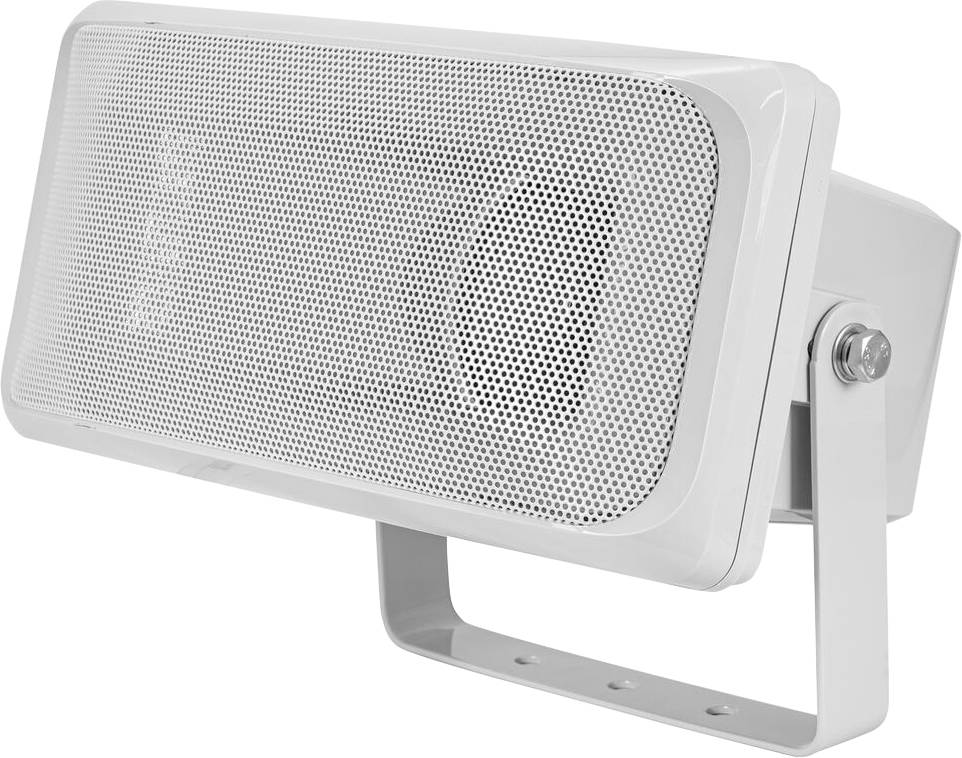

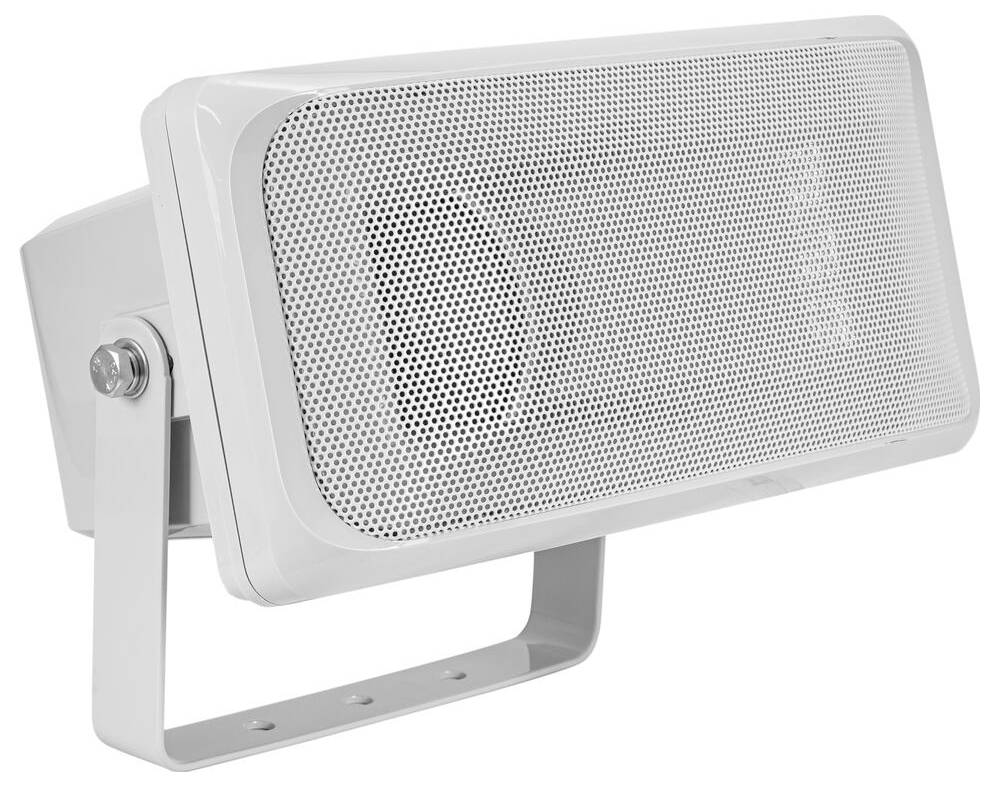

Weatherproof 5" speaker (IP66) with bracket, PA system 100V, 30 W RMS. High sound pressure and wide transmission range 13 cm cone speaker (5 ") for balanced sound. For outdoor sound systems, such as sports fields, swimming pools, open air events. Aluminium grille in gray. Suitable for outdoor use IP66. For applications such as: Installation.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x speaker
- 1 x Operating manual
