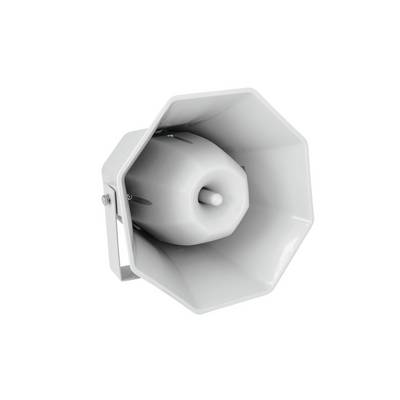

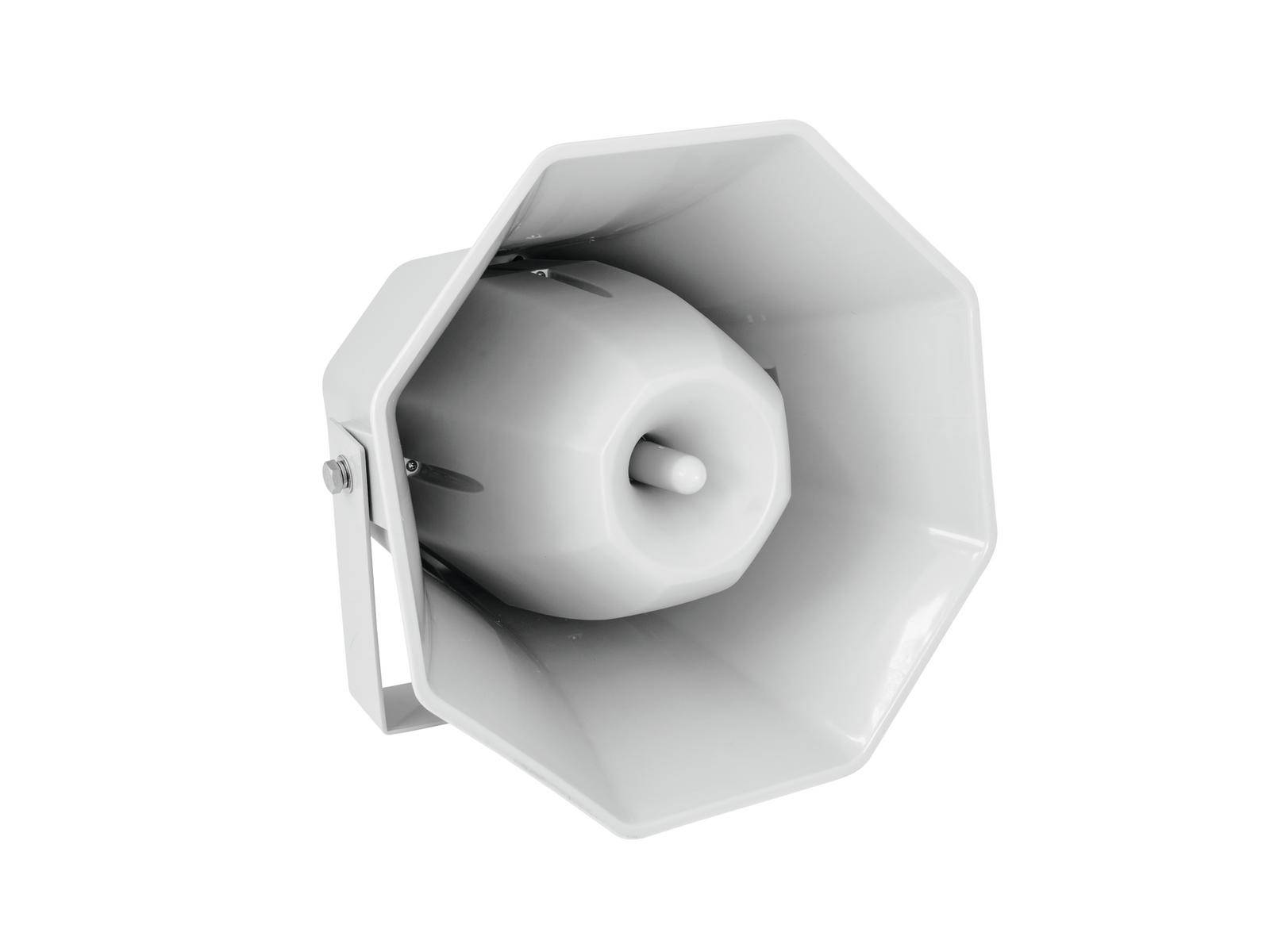

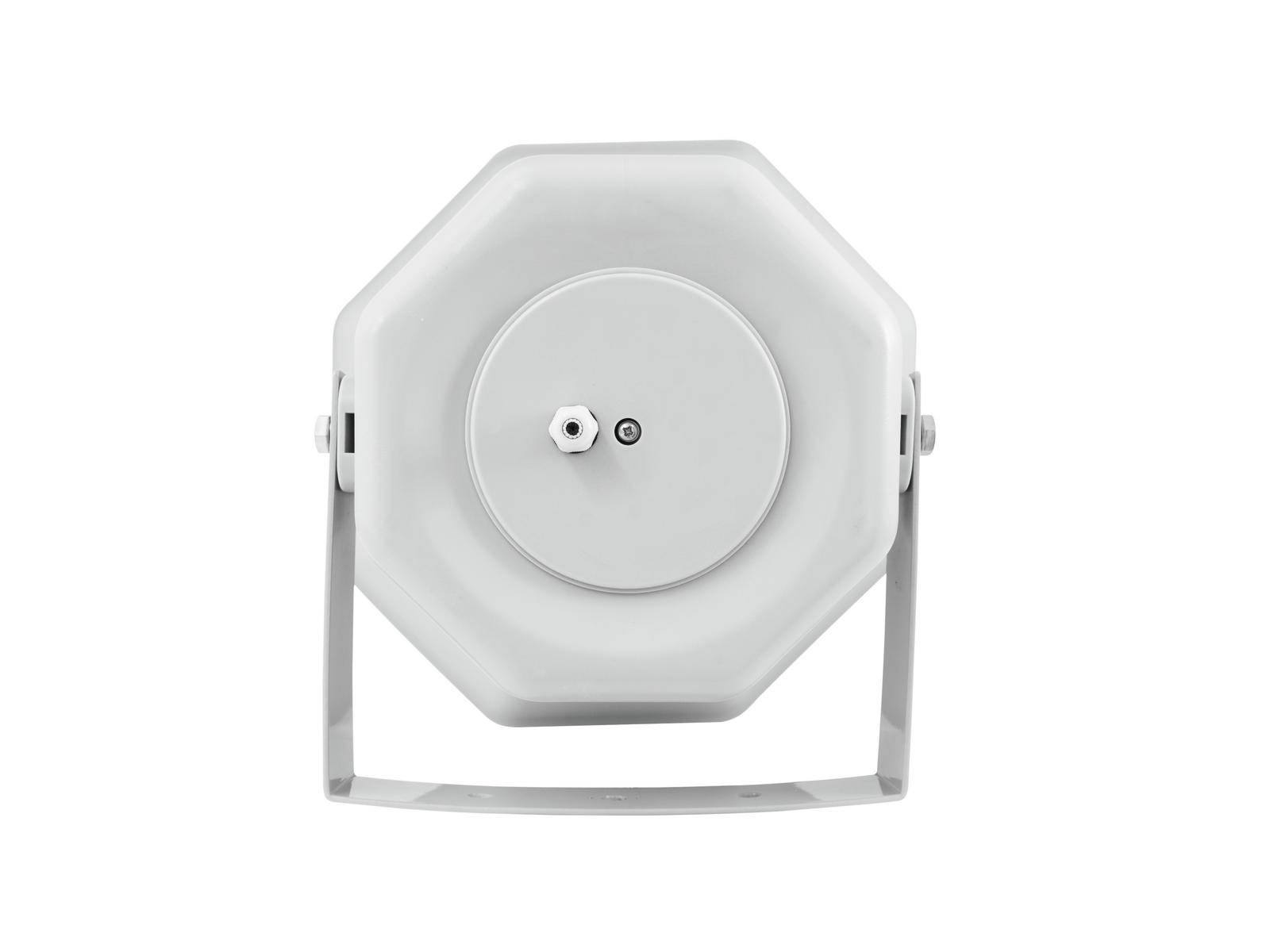

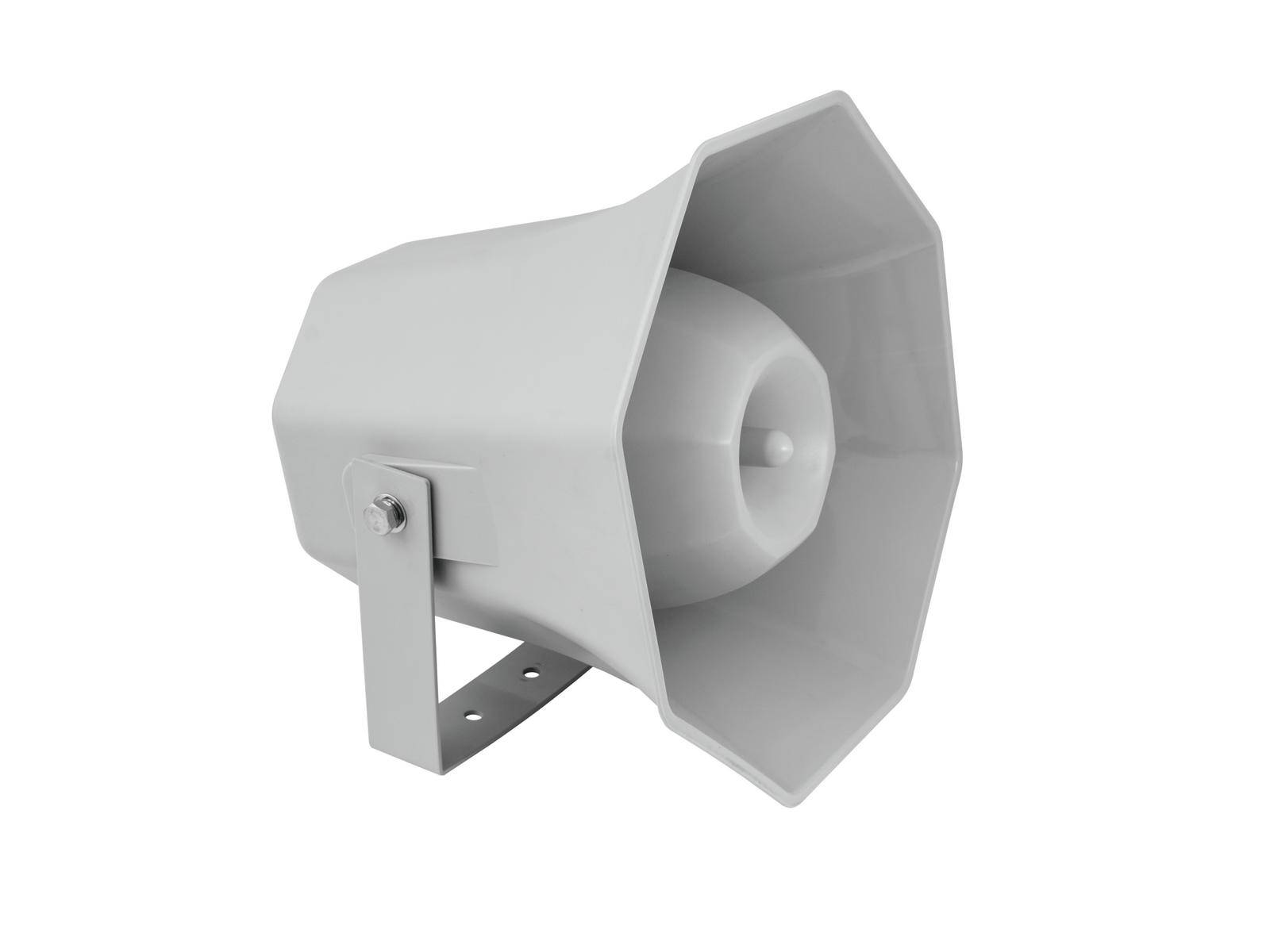

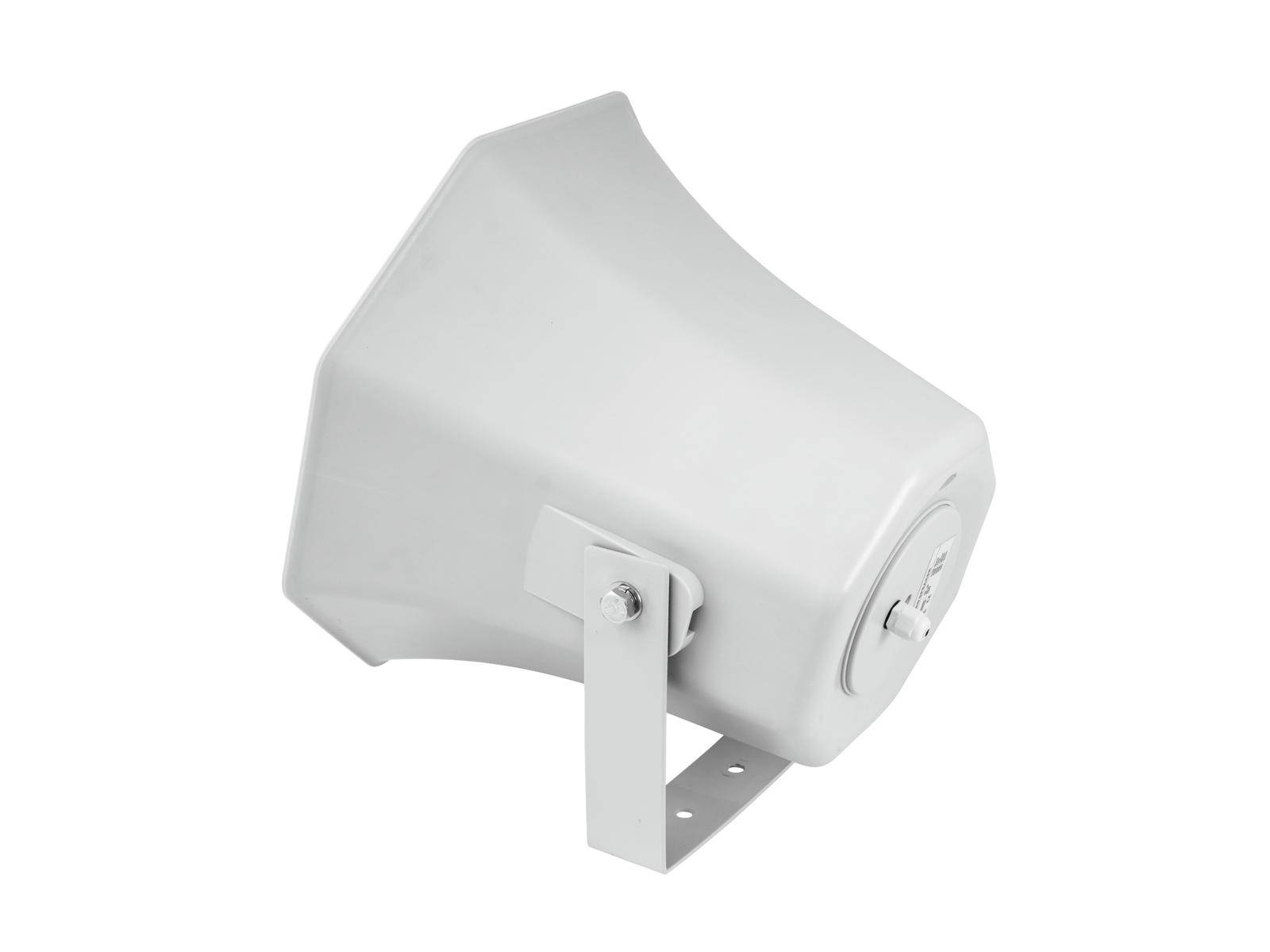

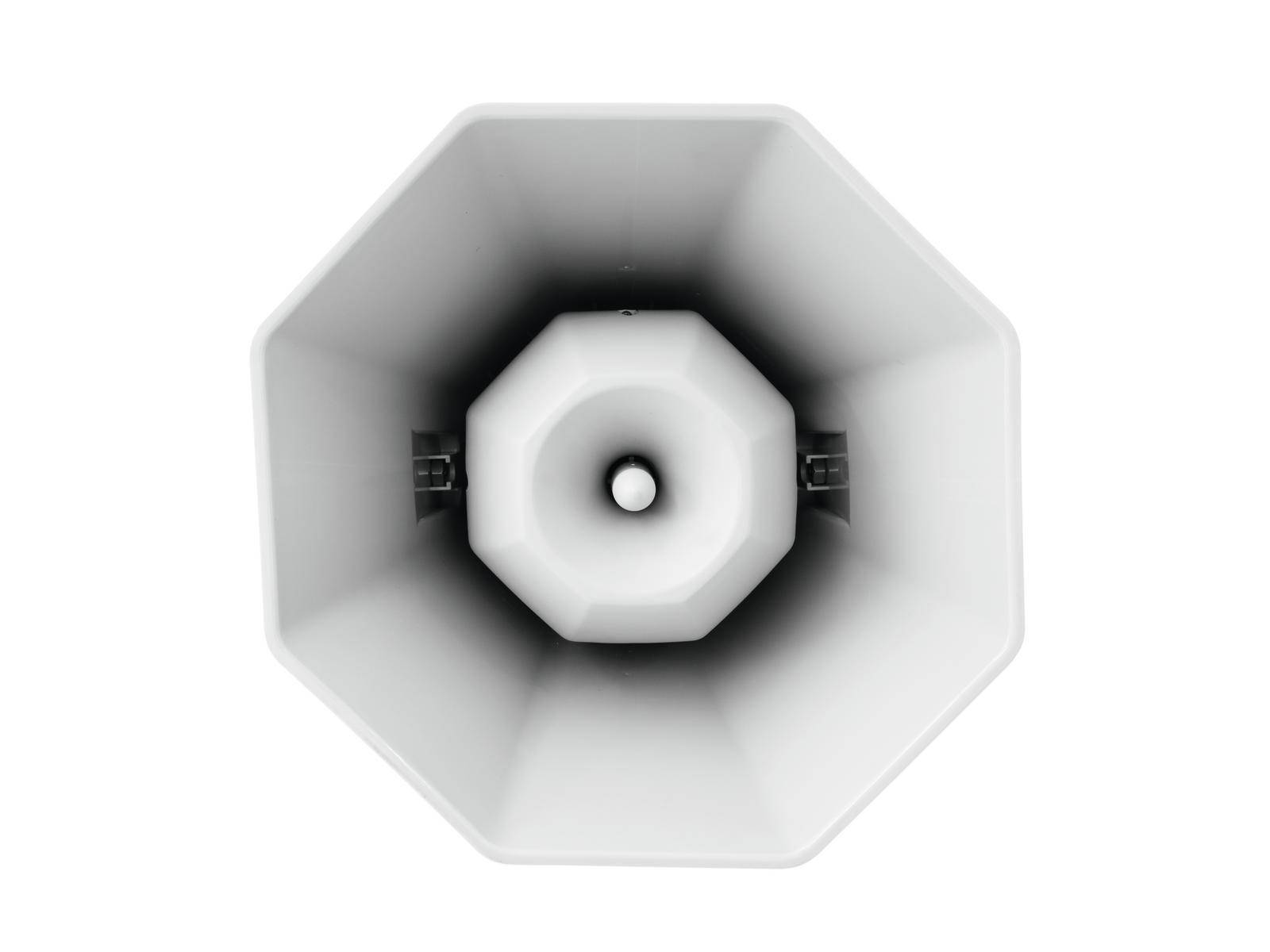

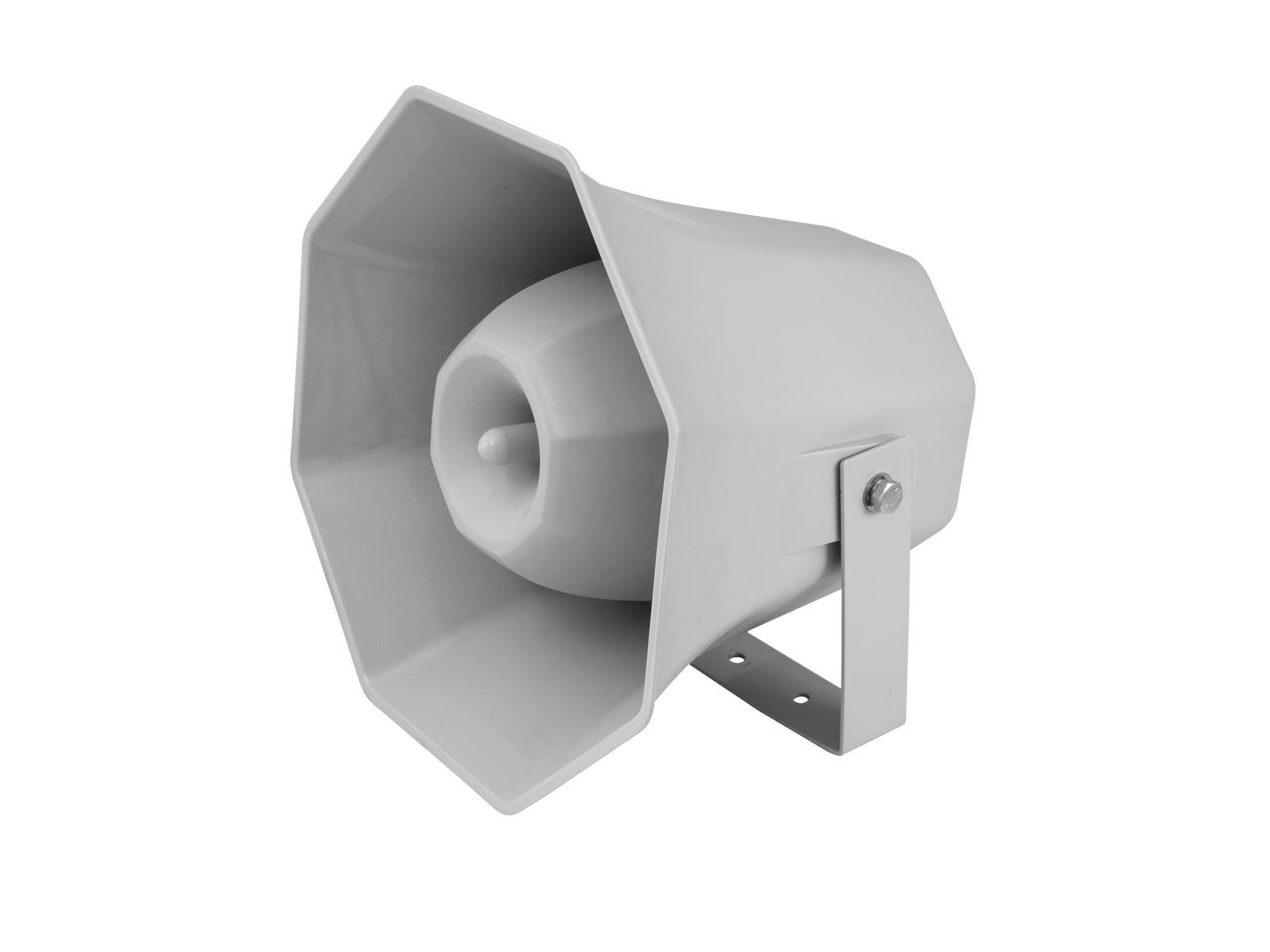

Omnitronic HS-80 PA compression drive speaker 80 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Input voltage: 100 V
- Components: 16.5 cm woofer (6.5") and 2.5 cm tweeter (1"")
- Power rating 10W RMS (green)
- 20 W RMS (white)
- 40 W RMS (yellow)
- 80 W RMS (red)
- COM (black)
- Sensitivity (1 W, 1 m): 99 dB
- Frequency range 90 Hz - 20 kHz
- Protection class: IP 44
- Dimensions (H x W x D): 348 x 348 x 288 mm
- Weight: 5.3 kg
- Shipping weight: 7,150 kg
- Product type
PA compression drive speaker
- RMS capacity
80 W
- Max. load
80 W
- Features
2-way
- Operating voltage
100 V
- Factory colour
White
- Material
Plastic
- Width
348 mm
- Height
348 mm
- Length
288 mm
- Weight
5.3 kg
- Dim
(L x W x H) 288 x 348 x 348 mm
- Max. sound pressure
99 dB
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375904 Omnitronic HS-80 PA compression drive speaker 80 W White 1 pc(s)
Description
Compression drive speaker.
This text is machine translated.
This text is machine translated.
Features
- 2-way compression drive speaker for 100 V operation
- 4 POWER TAPS (10 W, 20 W, 40 W, 80 W)
- 16.5 cm woofer (6.5"") and 2.5 cm tweeter (1"")
- PTC-tweeter protection
- High sound pressure and wide transmission range
- Weatherproof plastic housing (IP 44)
- Octagonal housing shape
- Swivelling Mounting Bracket
- Connection via luster terminal
- For outdoor sound systems, such as sports fields, swimming pools, open air events.
