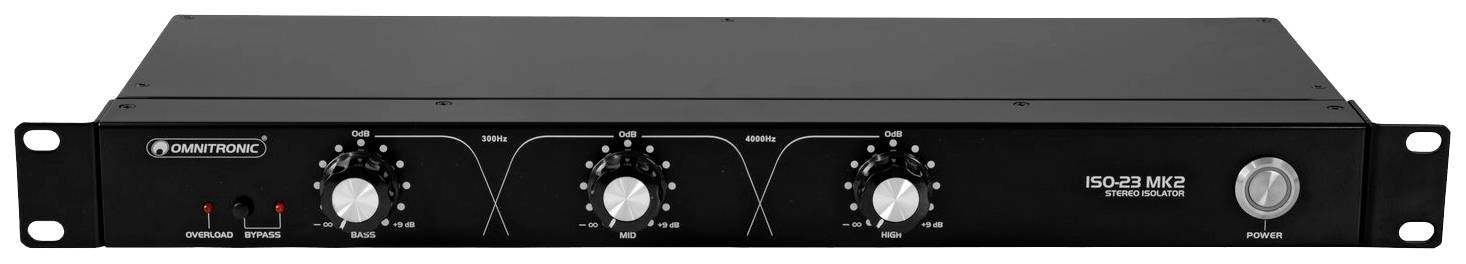

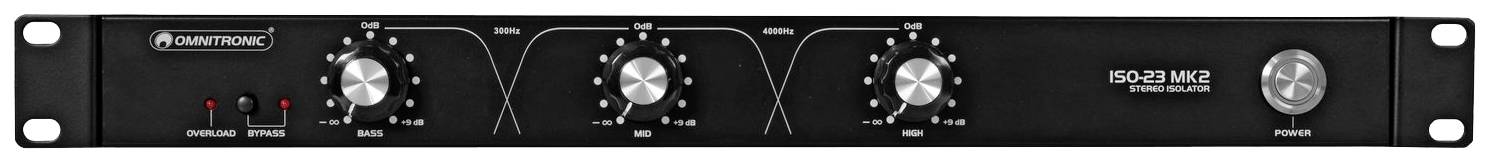

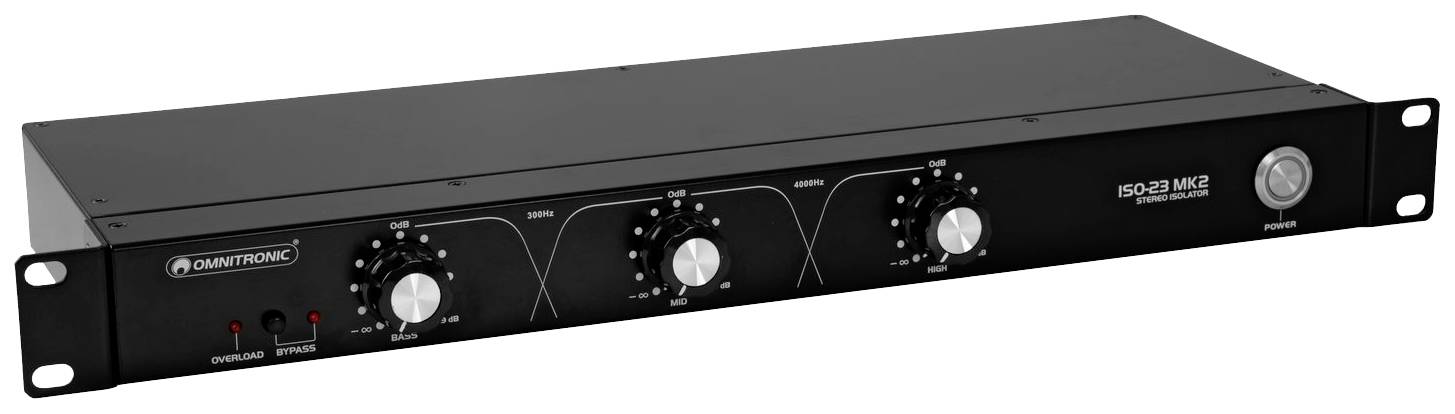

Omnitronic ISO-23 MK2 Stereo line isolator
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic ISO-23 MK2 DJ isolator
- 3-band frequency isolator with kill function and bypass for DJs
- 3-band frequency isolator with effective boost and kill function for DJs
- Kill characteristic allows you to completely eliminate bass, mid-range and treble
- This text is machine translated.
Technical specifications
- Product type
Stereo line isolator
n.rel.
- Dim
(L x W x H) 48.3 x 14.5 x 4.45 cm
- Weight
215 g
- Width
14.5 cm
- Height
4.45 cm
- Length
48.3 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131316 Omnitronic ISO-23 MK2 Stereo line isolator
Description
Features
- Classic ALPS rotary potentiometer (Blue Velvet RK27)
- 1 channel stereo design
- Bass 20 Hz - 300 Hz
- Mean 300 Hz - 4 kHz
- Treble 4 kHz - 20 kHz
- Bypass-switch

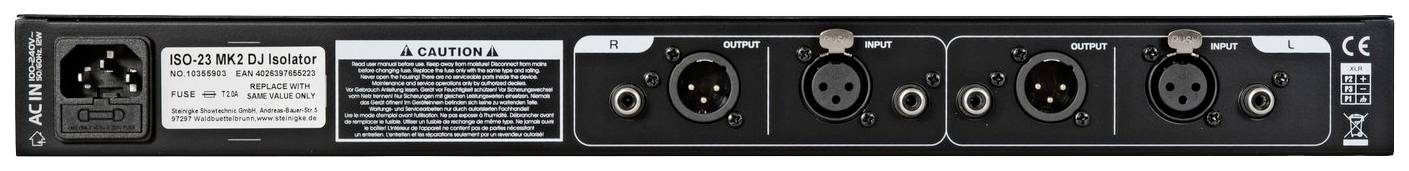

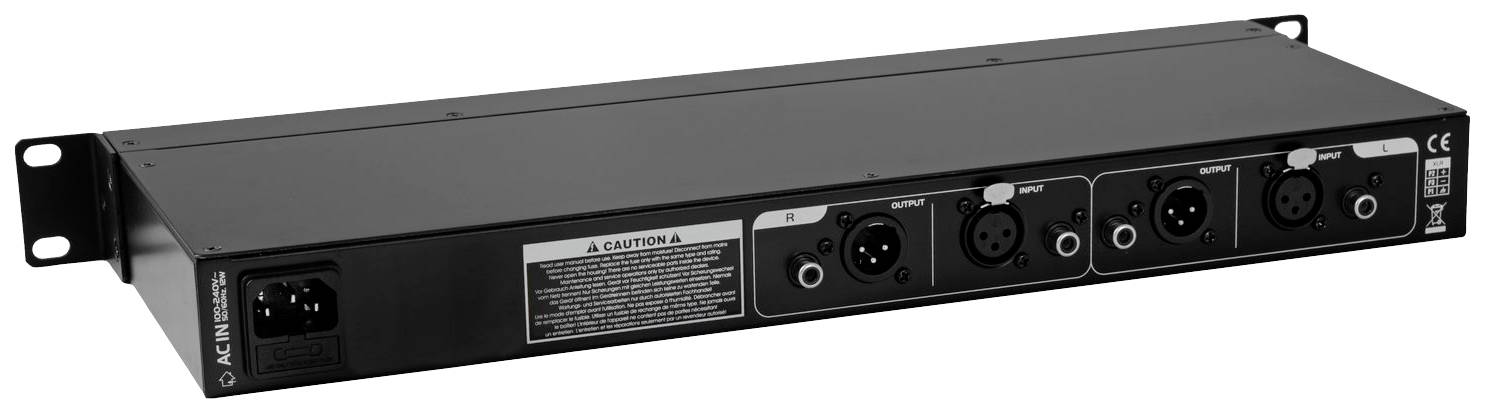

- Symmetric and asymmetric inputs/outputs (XLR/cinch)
- (19") 48.3 cm rack installation 1 HE
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 12 W
- Input: Line via 2 x cinch (W) mounting version
- Connections: Line via 2 x 3-pin XLR
- Output: Line via 2 x cinch (W) mounting version
- Max. Level +22 dBu
- Housing design (19") 48.3 cm Rack installation 1 HE
- Isolator: - ∞ to +9
- Low/mid 300 Hz, 18db/Oct , Butterworth: Low/mid 300 Hz, 18db/Oct , Butterworth
- Mid/high 4000 Hz, 18db/oct , Butterworth: Mid/high 4000 Hz, 18db/oct , Butterworth
Scope of delivery
- DJ Isolator
- Network cable/power cable
- 4 x Base
