Omnitronic KM-110A Active floor monitor 25 cm 10 inch 150 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

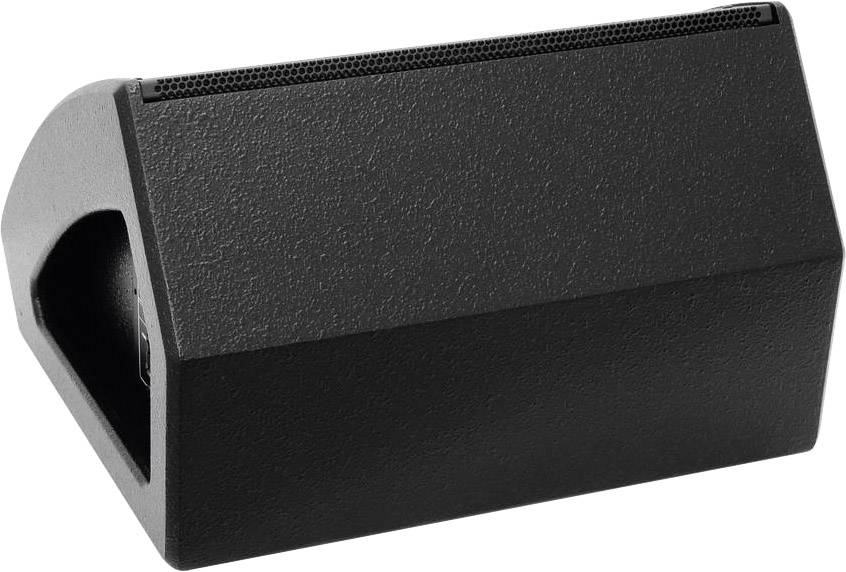

Omnitronic KM-110A active stage monitor
- RMS power:150 W
- Max. power:300 W
- 10 inch
- 121 dB
Technical specifications
- Product type
Active floor monitor
- RMS power
150 W
- Max. power
300 W
- Speaker size (cm)
25 cm
- Speaker size (inch)
10 inch
- Max. sound pressure
121 dB
- Interfaces
XLR in
XLR out
6.3 mm jack in
- Features
Can be used as a stage monitor
- Dim
(W x H x D) 480 x 420 x 300 mm
- Frequency range
60 - 20000 Hz
- Weight
14.3 kg
- Content
1 pc(s)
- Width
480 mm
- Height
420 mm
- Depth
300 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375547 Omnitronic KM-110A Active floor monitor 25 cm 10 inch 150 W 1 pc(s)
Description
Features
- Active 2-way coaxial stage monitor for live and playback applications
- Amplifier: Class D/OFF, Biamp
- POWER LF 150 W RMS
- POWER HF 50 W RMS
- 25 cm woofer (10") and 3.5 cm compression driver (1.35")
- 80° x 80° radiation behavior
- Bass reflex housing for deep basses and high sound pressure
- Line input (XLR/jack)
- Parallel output (XLR) for coupling other active speakers
- Low cut, level control
- Dual limiter and overload protection circuit
- Sturdy MDF housing with sturdy structural lacquer and ball-proof metal grillee

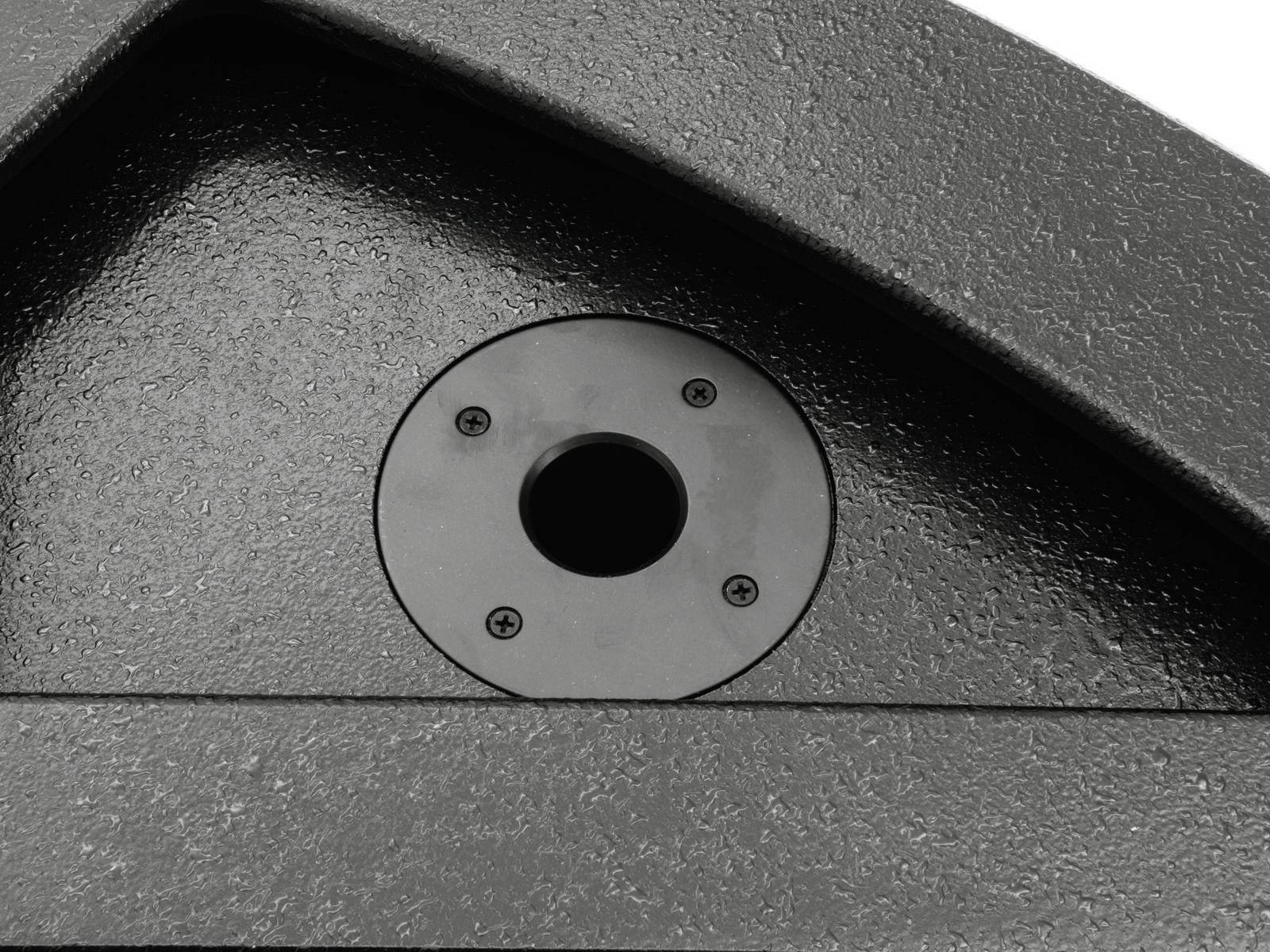

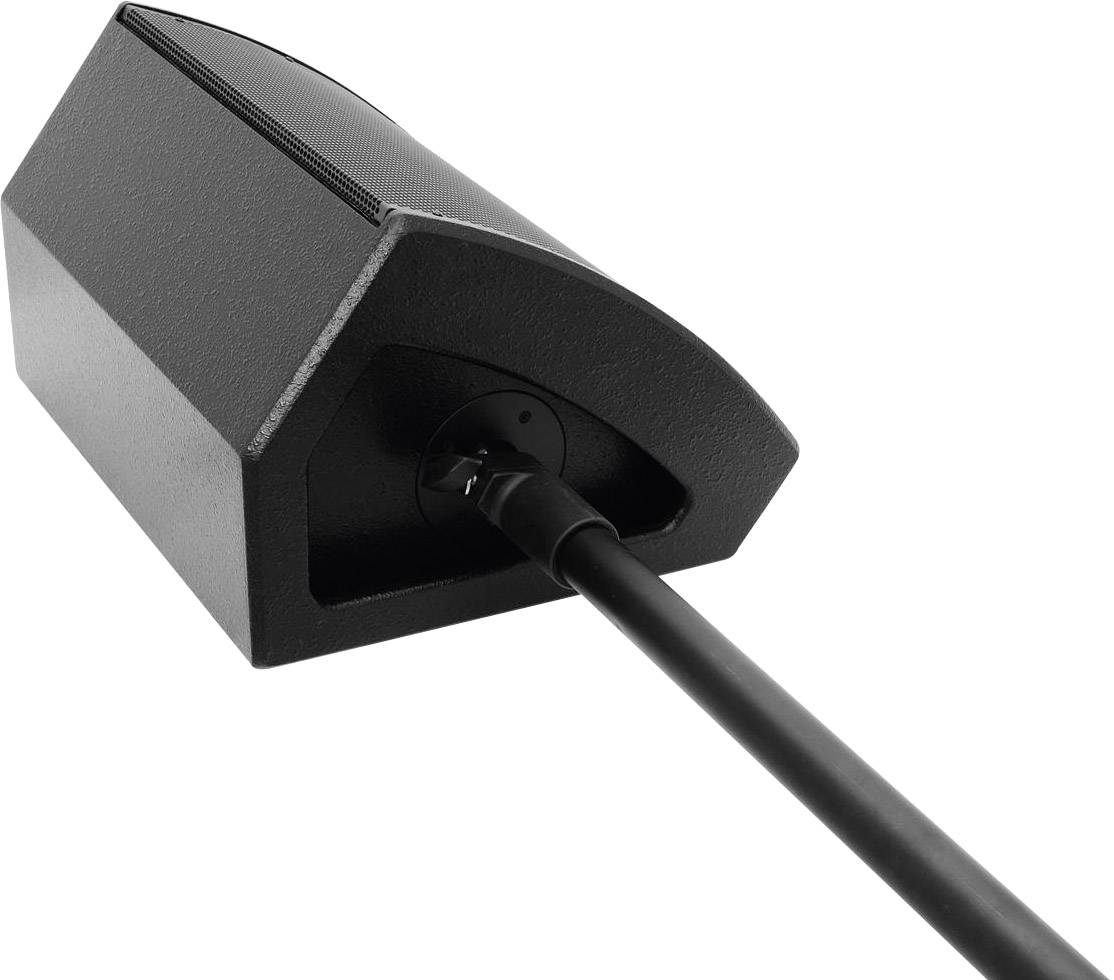

- Mounting flange for tripod mounting
- Power connection: Power feed cold devices (M) Built-in version Power connection cable with earthing contact (M) (included).
- This text is machine translated.
