Omnitronic KM-115A Active floor monitor 38 cm 15 inch 250 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

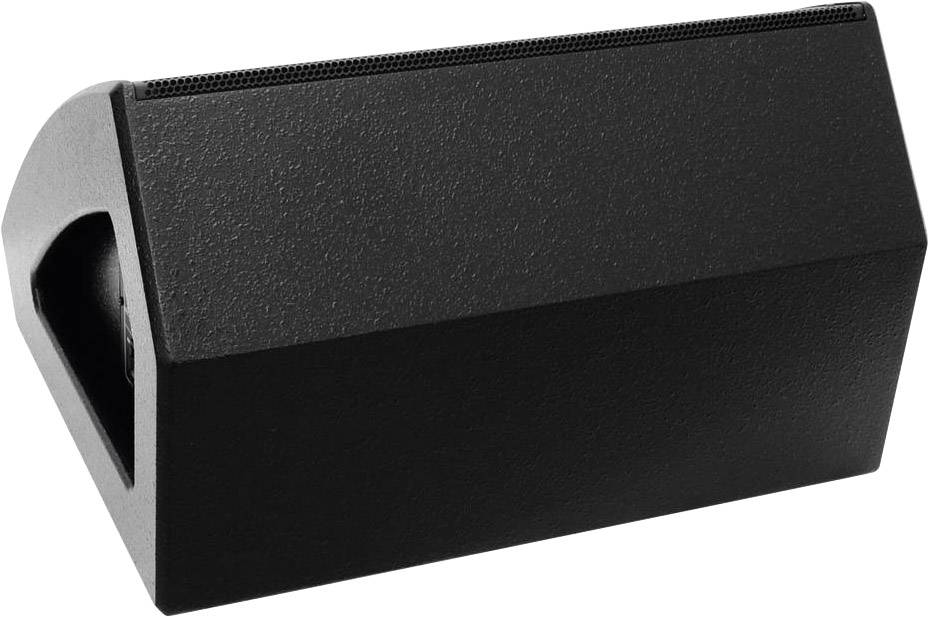

Omnitronic KM-115A active stage monitor
- RMS power:250 W
- Max. power:500 W
- 15 inch
- 124 dB
Technical specifications
- Product type
Active floor monitor
- RMS power
250 W
- Max. power
500 W
- Speaker size (cm)
38 cm
- Speaker size (inch)
15 inch
- Max. sound pressure
124 dB
- Interfaces
XLR in
XLR out
6.3 mm jack in
- Features
Can be used as a stage monitor
- Dim
(W x H x D) 600 x 540 x 370 mm
- Frequency range
45 - 20 000 Hz
- Weight
18 kg
- Content
1 pc(s)
- Width
600 mm
- Height
540 mm
- Depth
370 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375549 Omnitronic KM-115A Active floor monitor 38 cm 15 inch 250 W 1 pc(s)
Description
Features
- Active 2-way coaxial stage monitor for live and playback applications
- Amplifier: Class D/OFF, Biamp
- POWER LF 250 W RMS
- POWER HF 50 W RMS
- 38 cm woofer (15") and 3.5 cm compression driver (1.35")
- 60° x 60° radiation behavior
- Bass reflex housing for deep basses and high sound pressure

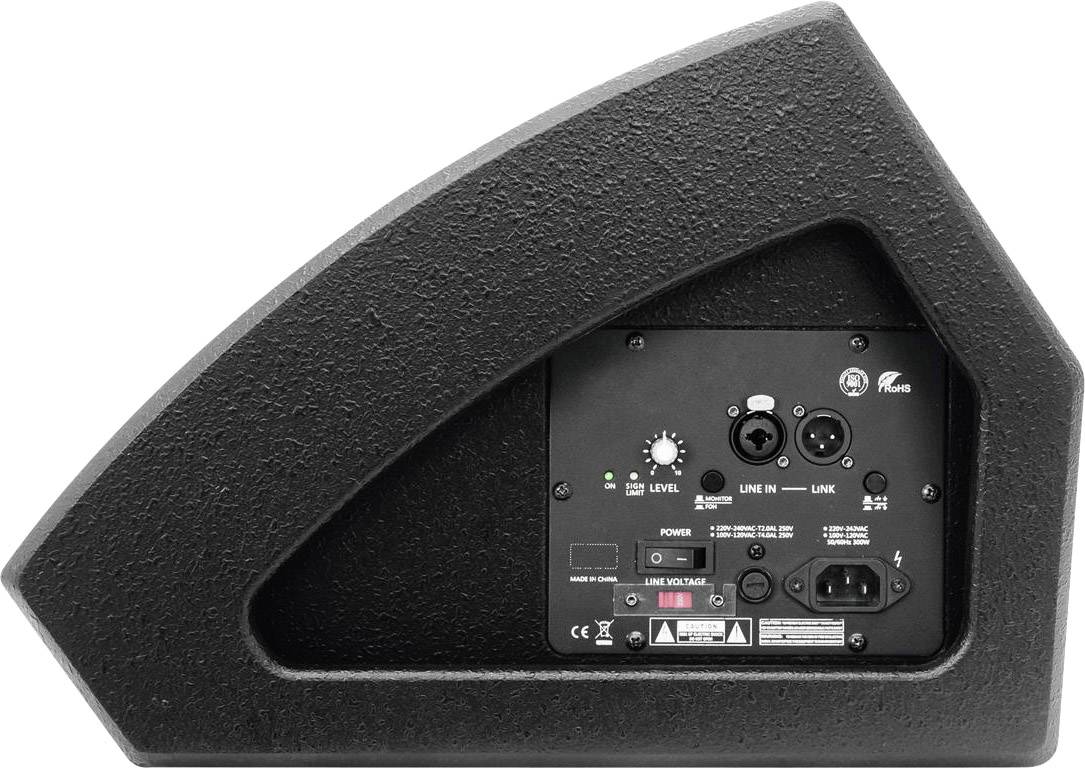

- Line input (XLR/jack)
- Parallel output (XLR) for coupling other active speakers
- Low cut, level control
- Dual limiter and overload protection circuit
- Sturdy MDF housing with sturdy structural lacquer and ball-proof metal grillee

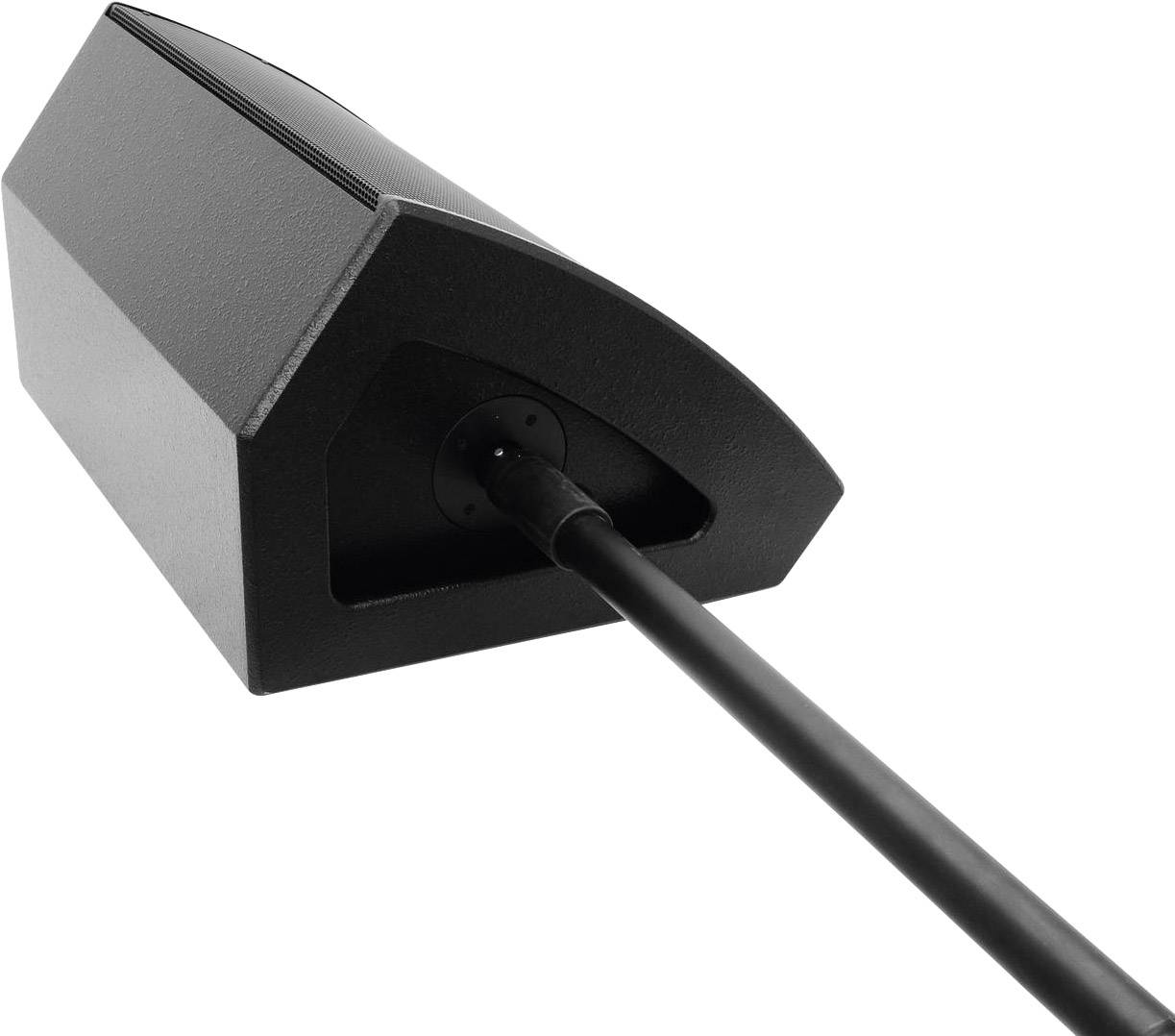

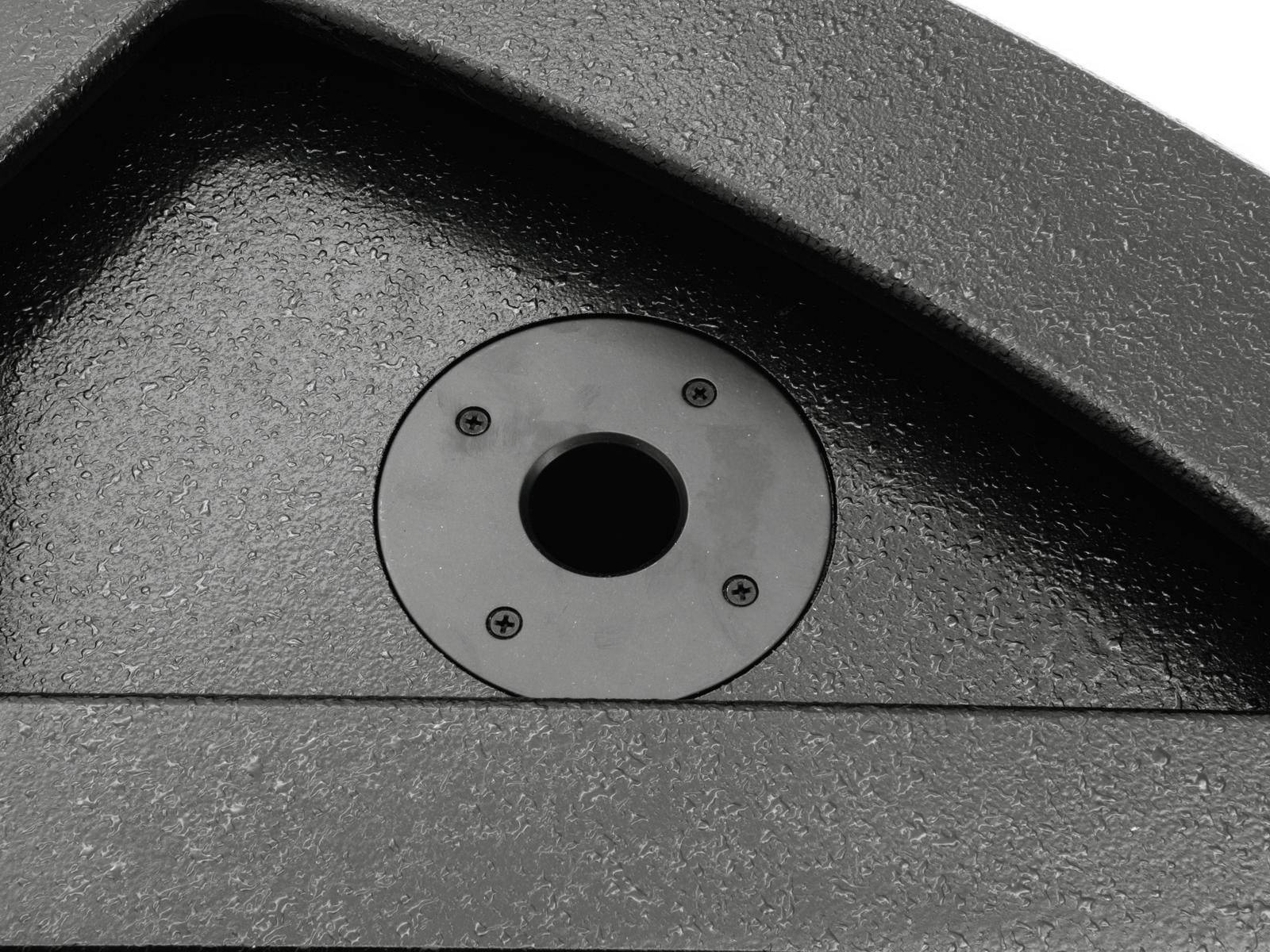

- Mounting flange for tripod mounting
- Power connection: Power feed cold devices (M) Built-in version Power connection cable with earthing contact (M) (included).
- This text is machine translated.
