Omnitronic LH-030 Headphone amplifier
EAN:
Part number:
Item no:
Technical specifications
- Power supply 230 V AC, 50 Hz; 12 V 150 mA
- Power connection: Power feed via hollow plug (M) Installation version Power connection cable with plug-in power supply (included)
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 90 dB
- Distortion factor: Less than 0.008 % at 1 kHz
- Impedance: Input: 100 ohms, unbalanced; Output: 51 ohms
- Gain 20 dB

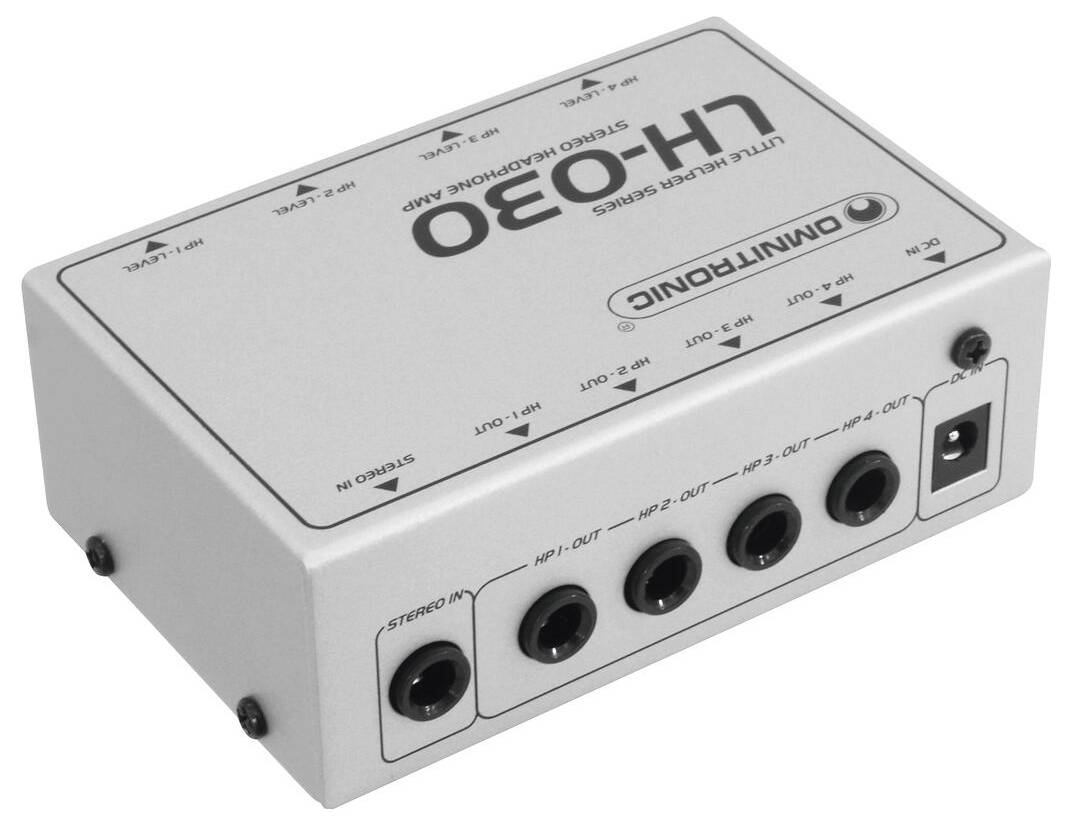

- Connections:
- Input: Line via 1 x 6.3 mm jack socket (stereo) Installation version
- Output: Headphones via 4 x 6.3 mm jack socket (stereo) Installation version
- Max. Level: Input +14 dBV
- Dimensions: Width: 11.3 cm; depth: 7.3 cm; height: 4 cm
- Weighs 0.58 kg.
- Product type
Headphone amplifier
- Interfaces (output)
Headphone jack (6.3 mm)
- Interfaces (input)
Jack connector
- Power supply
PSU (included)
- Frequency range
20 - 20.000 Hz
- Width
113 mm
- Height
40 mm
- Depth
73 mm
- Weight
580 g
- Impedance
100 kOhm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731486 Omnitronic LH-030 Headphone amplifier
Description

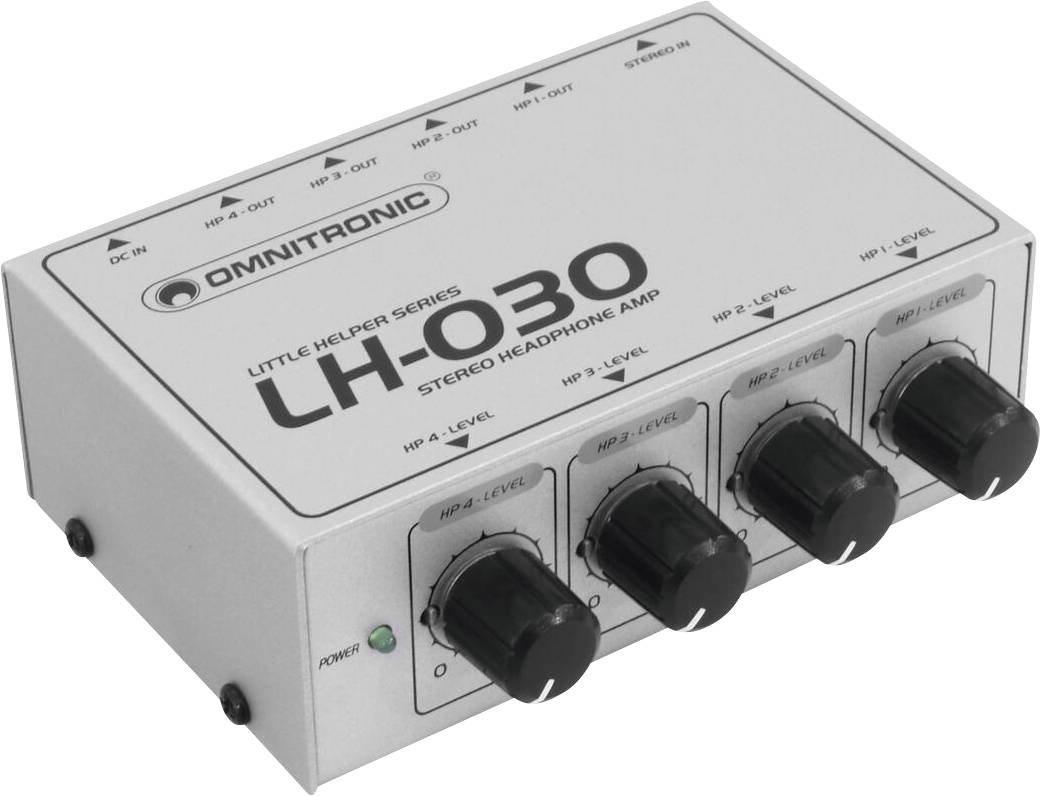

4-channel headphone amplifier, 6.3 mm jack. Distributes the signal from 1 audio source on 4 headphones. 4 Channels with separate volume controls and headphone outputs. For applications such as: Installation; mobile use; mobile DJ's / solo entertainer.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1x user manual

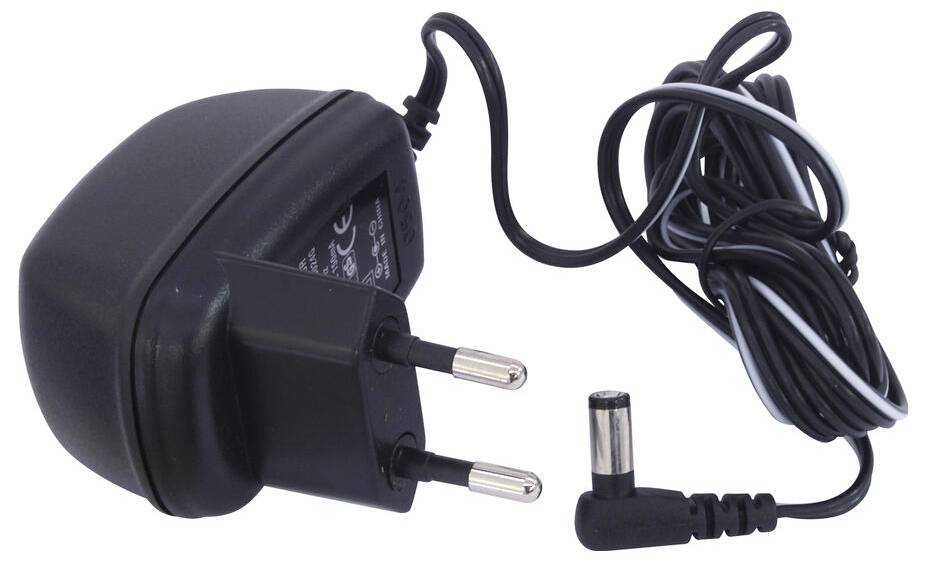

- 1 x external power supply
- 4 x Base.
