Omnitronic LH-031 Headphone amplifier Silver
EAN:
Part number:
Item no:
Technical specifications
- Power supply 100-240 V AC, 50/60 Hz; 12 V 150 mA
- Protection class SK III.
- Power connection: Power feed via hollow plug (M) Installation version Power connection cable with plug-in power supply (included)
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 90 dB
- Distortion factor: Less than 0.008 % at 1 kHz
- Impedance: Input: 100 ohms, unbalanced; Output: 51 ohms
- Gain 20 dB
- Controls: Power switch, volume control per channel
- Connections:
- Input: Line via 1 x stereo cinch; input: Line via 6.3 mm jack socket (stereo) installation version
- Input: Line via 1 x 3.5 mm jack socket (stereo) installation version; Input: Headphones via 4 x 6.3 mm jack socket (stereo) Installation version
- Max. Level: Input +14 dBV
- Dimensions: Width: 11.3 cm; depth: 8.5 cm; height: 5.5 cm
- Weight 0.57 kg
- Device weight: 0.390 kg
- Product type
Headphone amplifier
- Interfaces (input)
RCA in
Jack connector
Headphone jack (6.3 mm)
- Power supply
PSU (included)
- Factory colour
Silver
- Frequency range
20 - 20.000 Hz
- Width
113 mm
- Height
55 mm
- Depth
85 mm
- Impedance
100 kOhm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731490 Omnitronic LH-031 Headphone amplifier Silver
Description

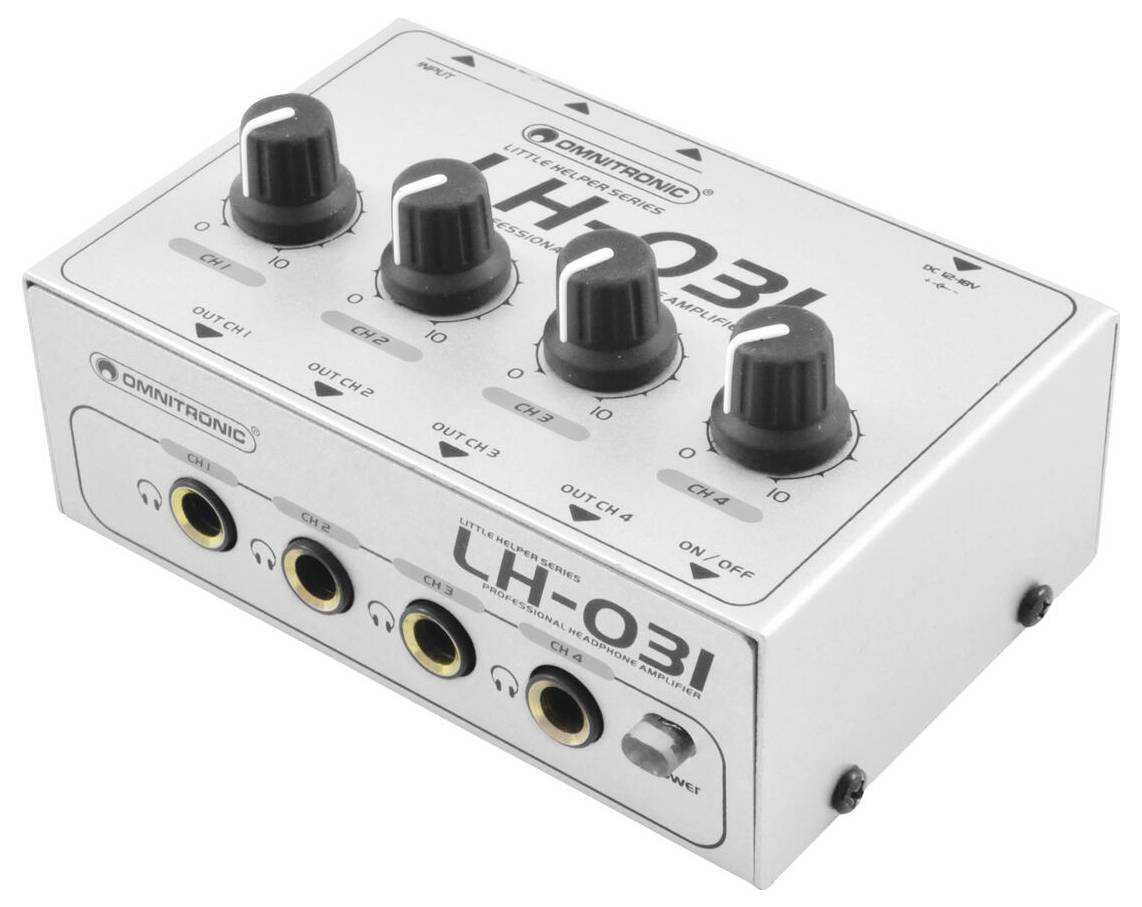

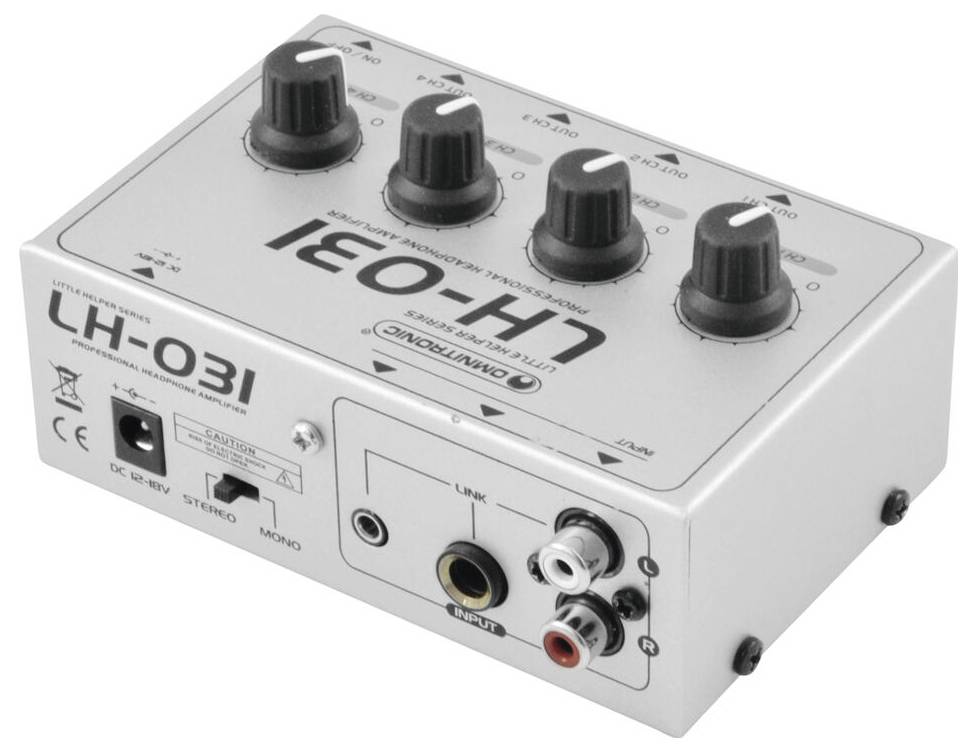

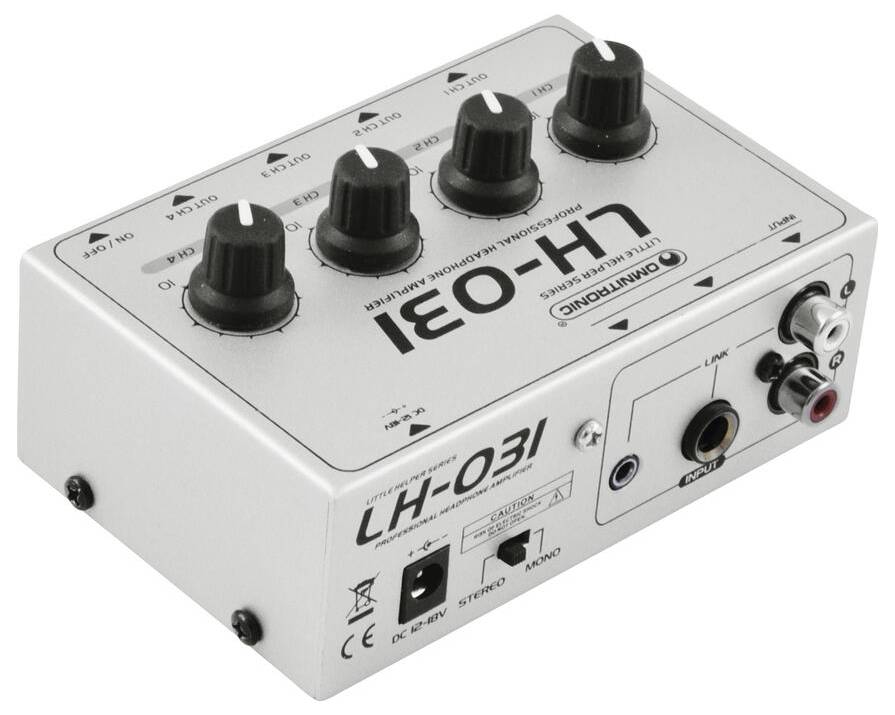

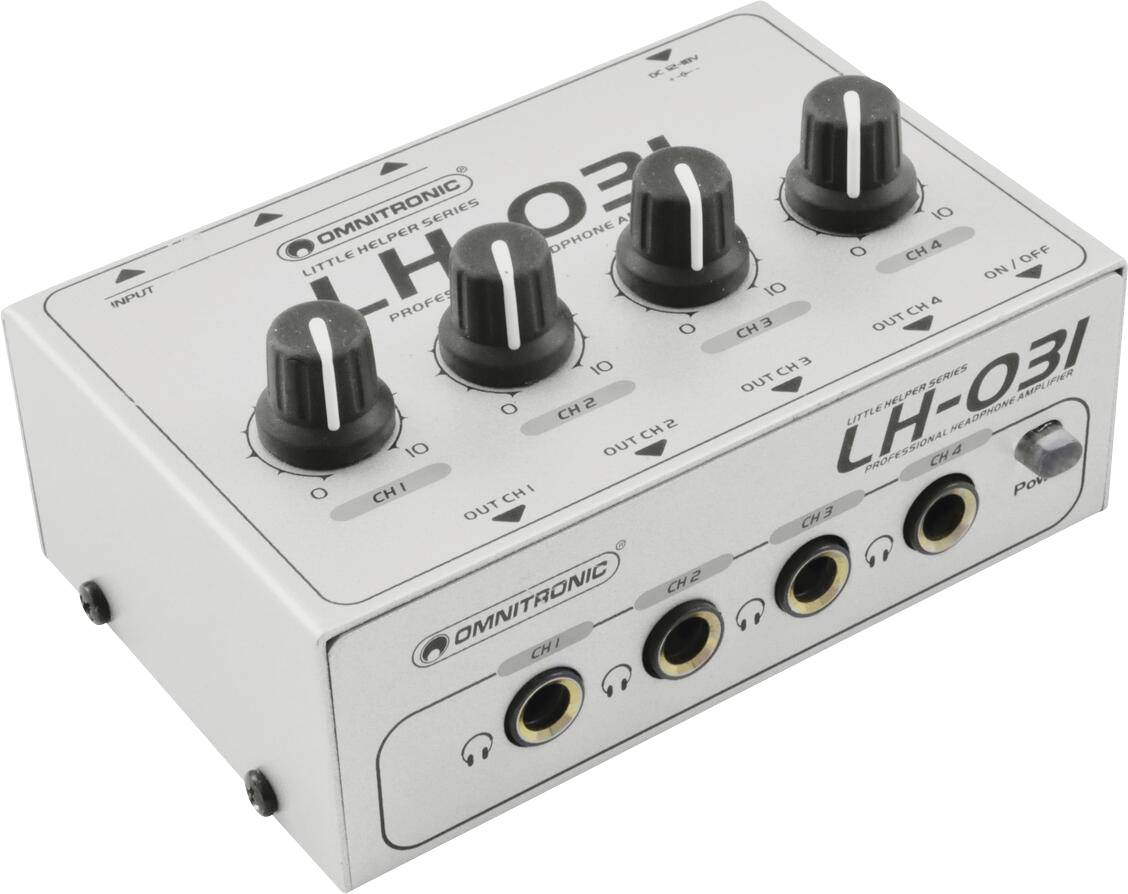

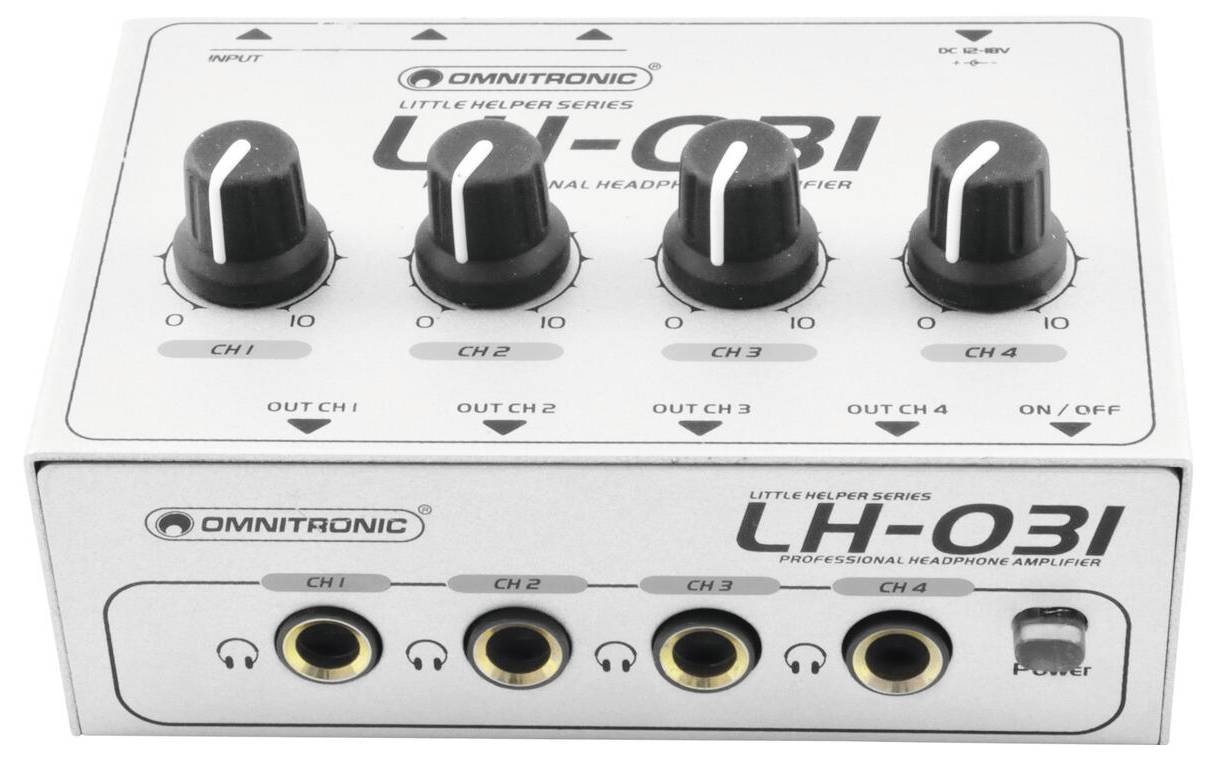

4-channel headphone amplifier, cinch and 6.3 mm jack. Distributes the signal from 1 audio source on 4 headphones. 1 stereo input (can be switched to mono operation) via cinch and jack connections (3.5 mm and 6.3 mm). 4 separately adjustable headphone outputs via 6.3-mm jack sockets. For applications such as: Installation; mobile use; mobile DJ's / solo entertainer.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1 x external power supply
- 4 x Base
- 1 x Operating manual
