Omnitronic LH-061 PRO Passive 2-channel DI box/splitter Passive 2-channel DI box/splitter
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 15 30000 Hz
- Impedance: Input: 50 ohms; output: 600 ohms
- Input attenuation 0 dB, -20 dB, -40 dB; switchable
- Controls: Ground lift switch, input sensitivity switch
- Connections:

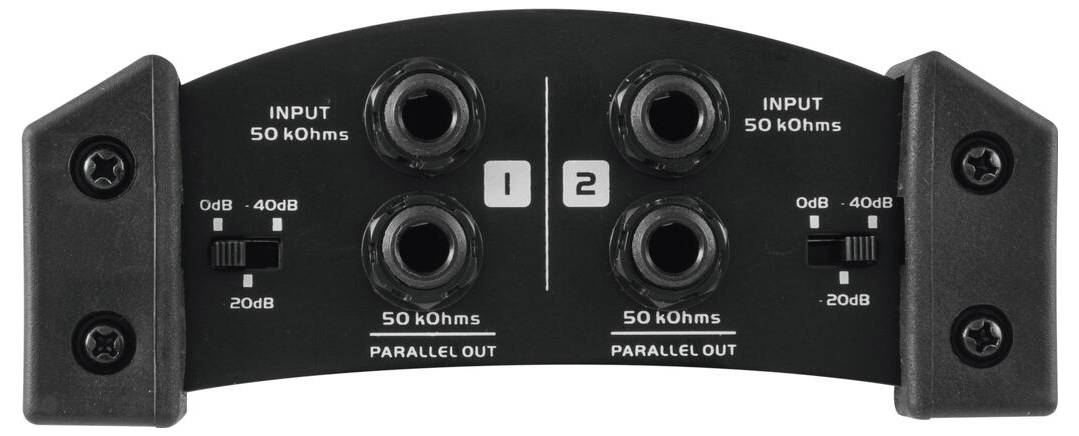

- Input 2 x 6.3 mm jack socket (mono) in version;

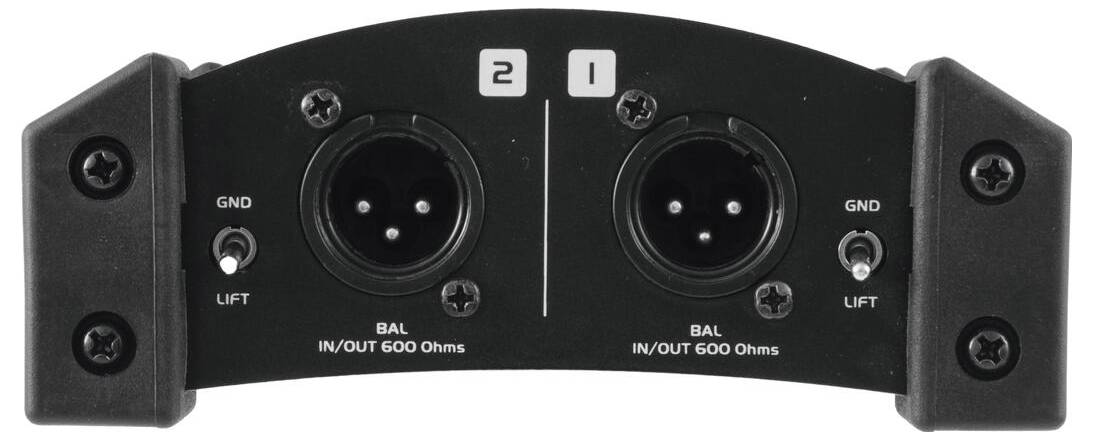

- Output: Line via 2 x 3-pin XLR; link: 2 x 6.3 mm jack socket (mono) in built-in version
- Max. Level: Output +6 dBu
- Colour, black
- Dimensions: Width: 13.3 cm; depth: 11.5 cm; height: 5.4 cm
- Weight 0.61 kg
- Product type
Passive 2-channel DI box/splitter
- Dim
(L x W x H) 115 x 133 x 54 mm
- Weight
610 g
- Width
133 mm
- Height
54 mm
- Length
115 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731494 Omnitronic LH-061 PRO Passive 2-channel DI box/splitter Passive 2-channel DI box/splitter
Description

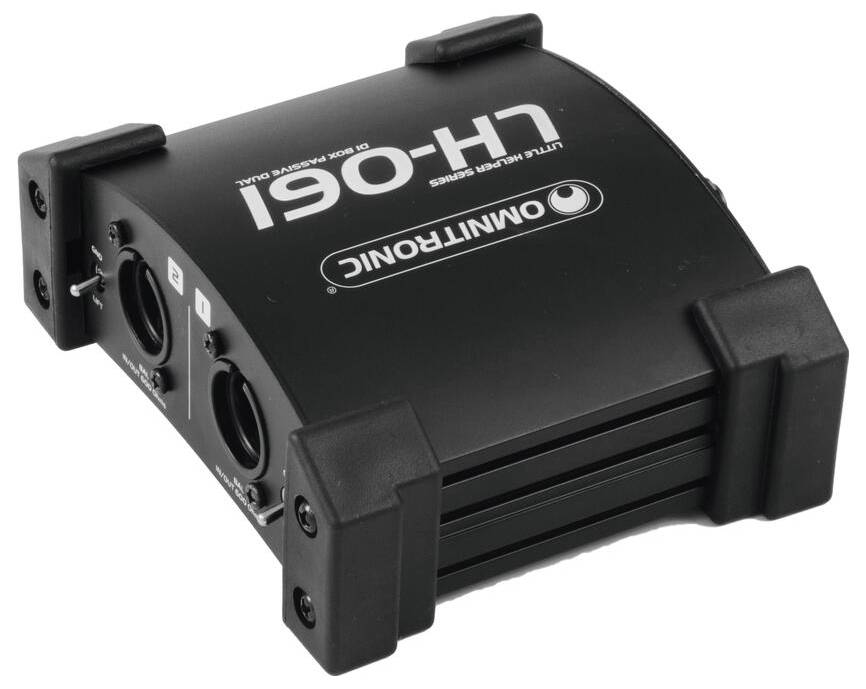

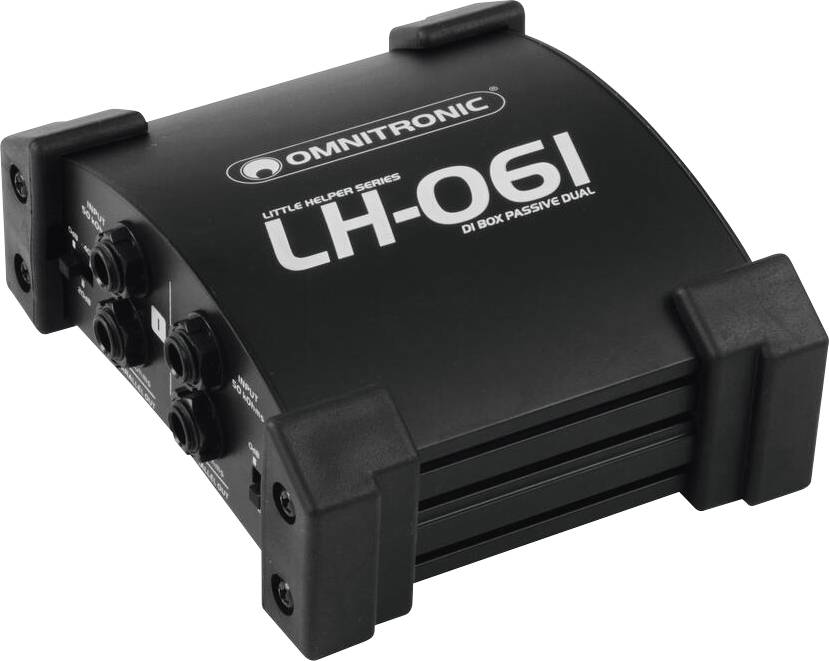

Passive 2-channel DI box/splitter, black. 2 high-resistance signal inputs via two 6.3 mm jack sockets. 2 low-ohm XLR-outputs. Converts 2 separate asymmetric line signals (e.g. CD players, instruments) in 2 symmetric XLR-output signals, for connection to a mixer. Switchable input attenuation 0 dB, -20 dB, -40 dB Cables can be routed under the housing. For applications such as: Installation; mobile use; mobile DJ's / solo entertainer.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x user manual
- 1 x device.
