1/5
Omnitronic LH-086 Cable tester Cable tester
EAN:
Part number:
Item no:
Technical specifications
- Electrical connection: Battery / rechargeable battery
- Cable length 1 m.
- Battery:1 x 9.0 V E-Block 6F22 Zinc-carbon included

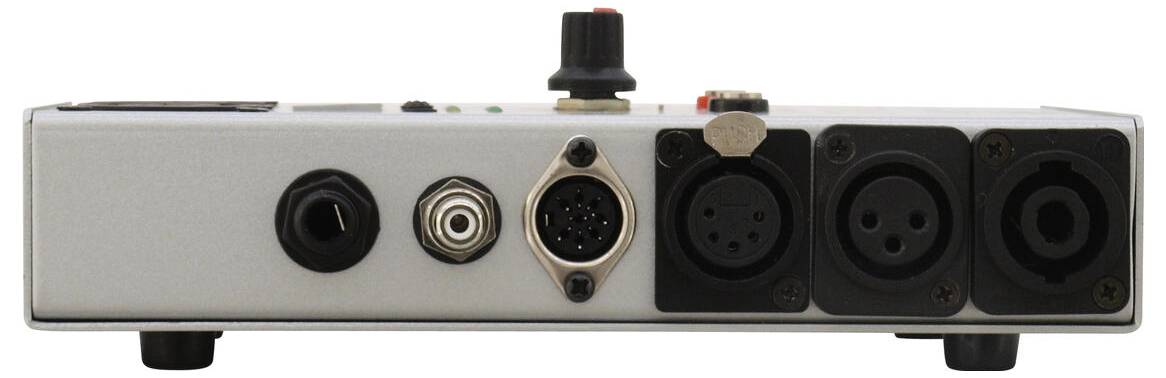

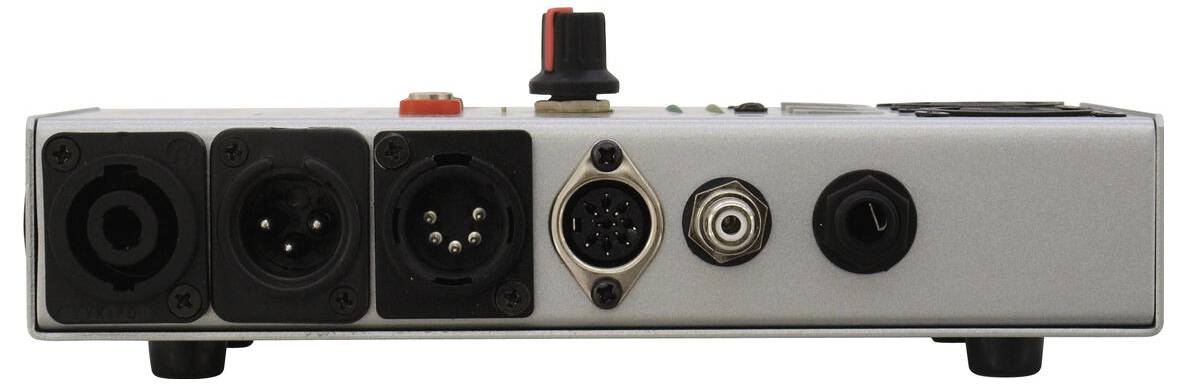

- Connections: RJ-45 (W) installation version; 3.5 mm jack socket (stereo) installation version; cinch (W) installation version; 3-pin XLR; 5-pin XLR; speaker installation socket (W); 6.3 mm jack plug (stereo) mounting version; 5-pin DIN (W) mounting version
- Colour: Silver.
- Dimensions: Width: 11.2 cm; depth: 19 cm; height: 6 cm
- Product type
Cable tester
- Dim
(L x W x H) 190 x 112 x 60 mm
- Weight
900 g
- Width
112 mm
- Height
60 mm
- Length
190 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3731493 Omnitronic LH-086 Cable tester Cable tester
Description

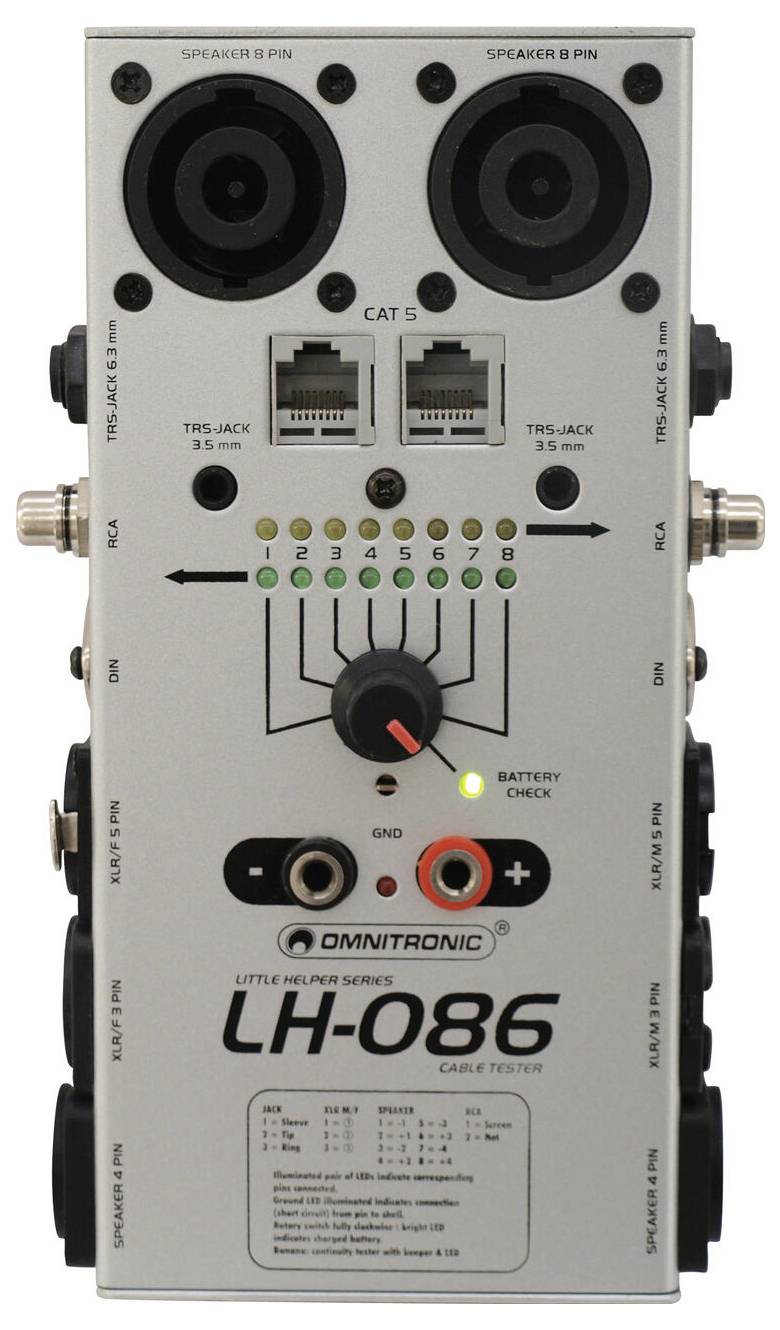

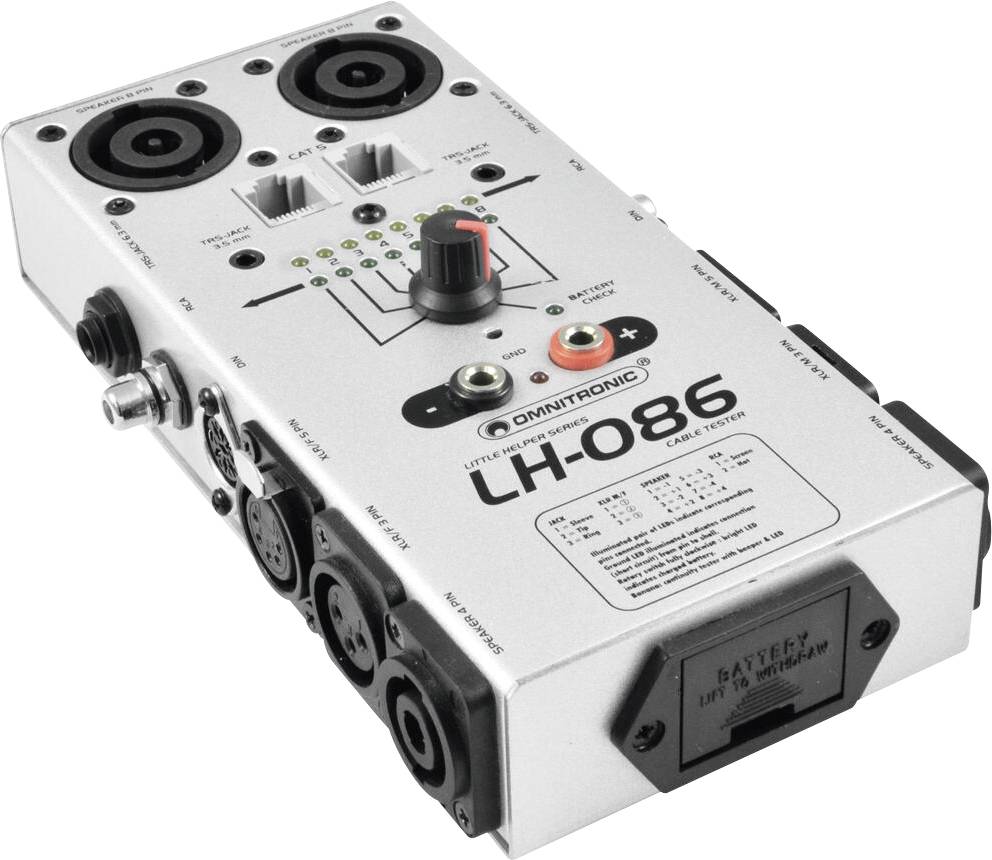

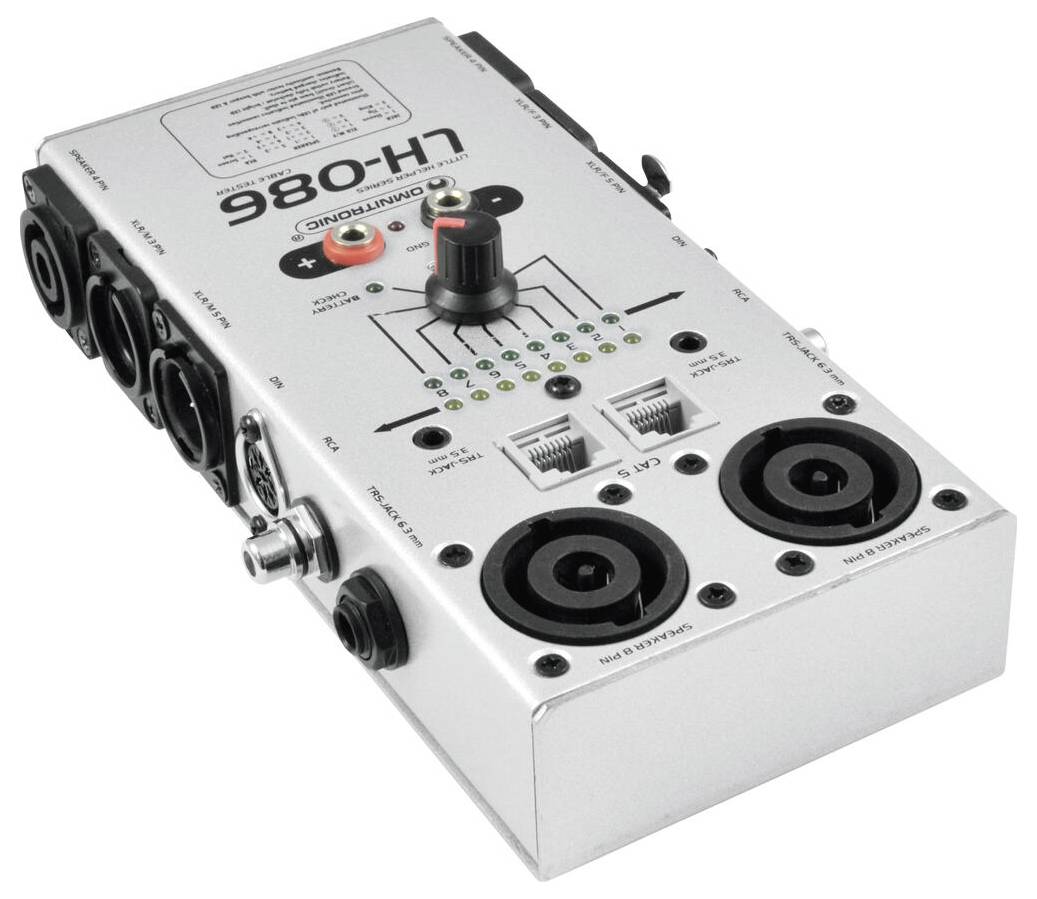

Cable tester for XLR, jack, CAT5, DIN, phono, Speaker Ideal cable tester for all cable connections in the studio and for live operation. Tests 3+5 pole XLR-, 3.5/6.3-mm jack (including stereo), CAT5, DIN-, cinch- and 4+8-pin Speaker cables and connectors. Display of the polarity or existing short circuits. Comfortable selection via rotary switch. Also test the continuity signal via two banana sockets to which the measuring prods for diode test can be connected. A LED as well as a beeper are activated in case of a continuity signal. Indispensable assistant for musicians, sound and stage engineers. For applications such as: Mobile use; mobile DJ's / solo entertainer.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 2 x test leads
- 1x user manual
- 1 x battery
