Omnitronic LH-089 White
EAN:
Part number:
Item no:
Highlights & Details

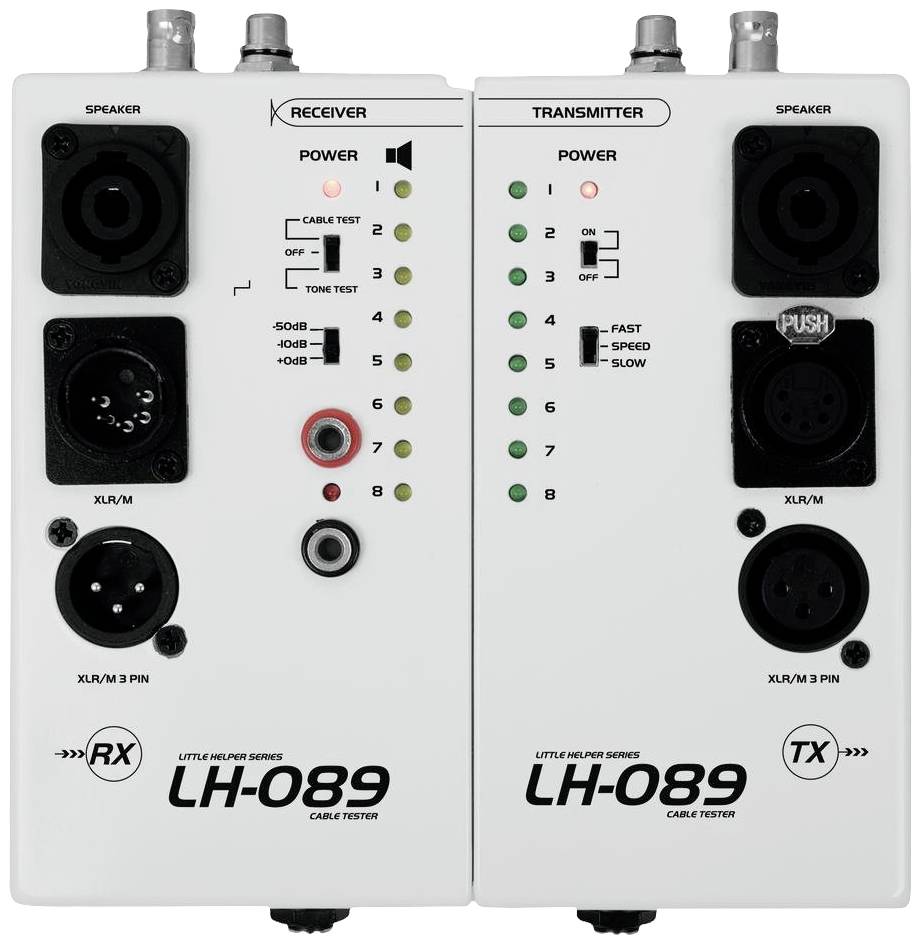

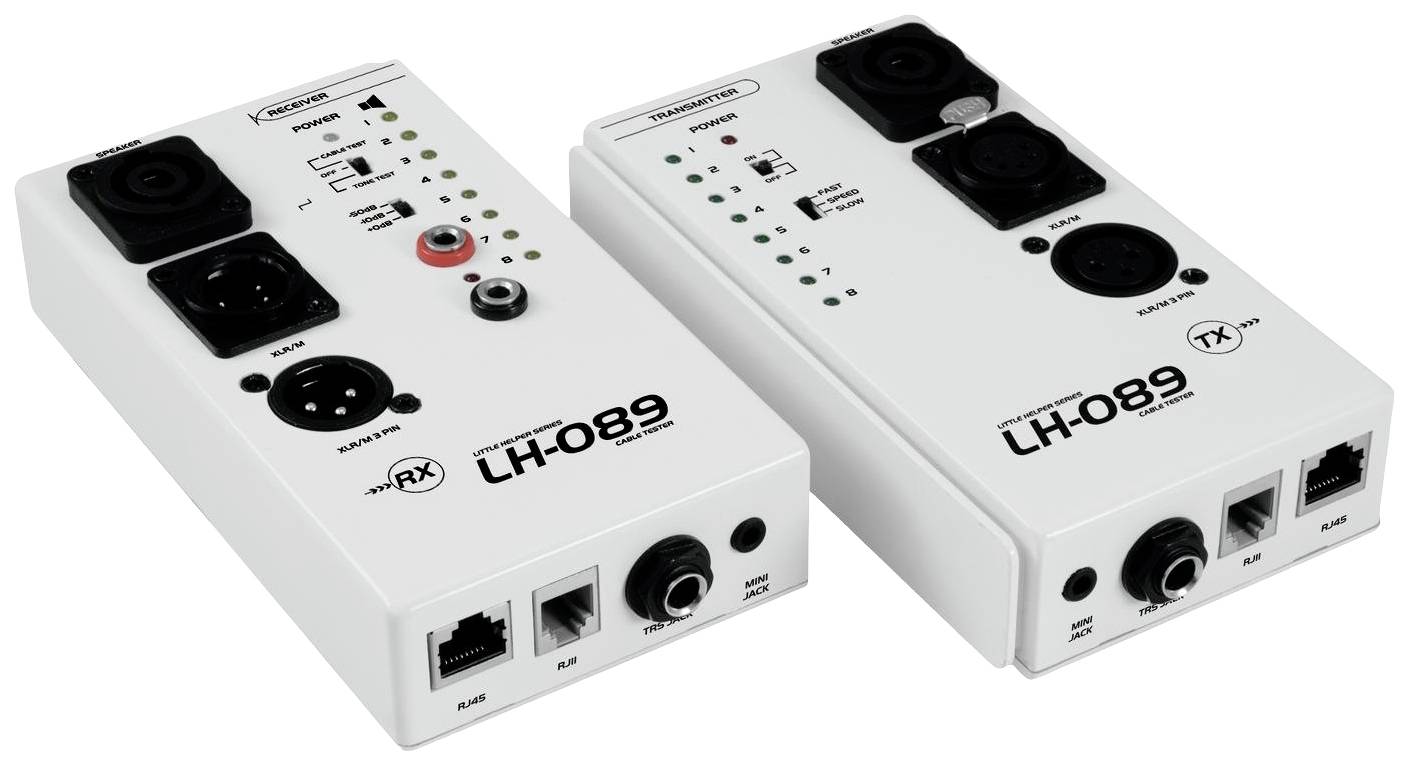

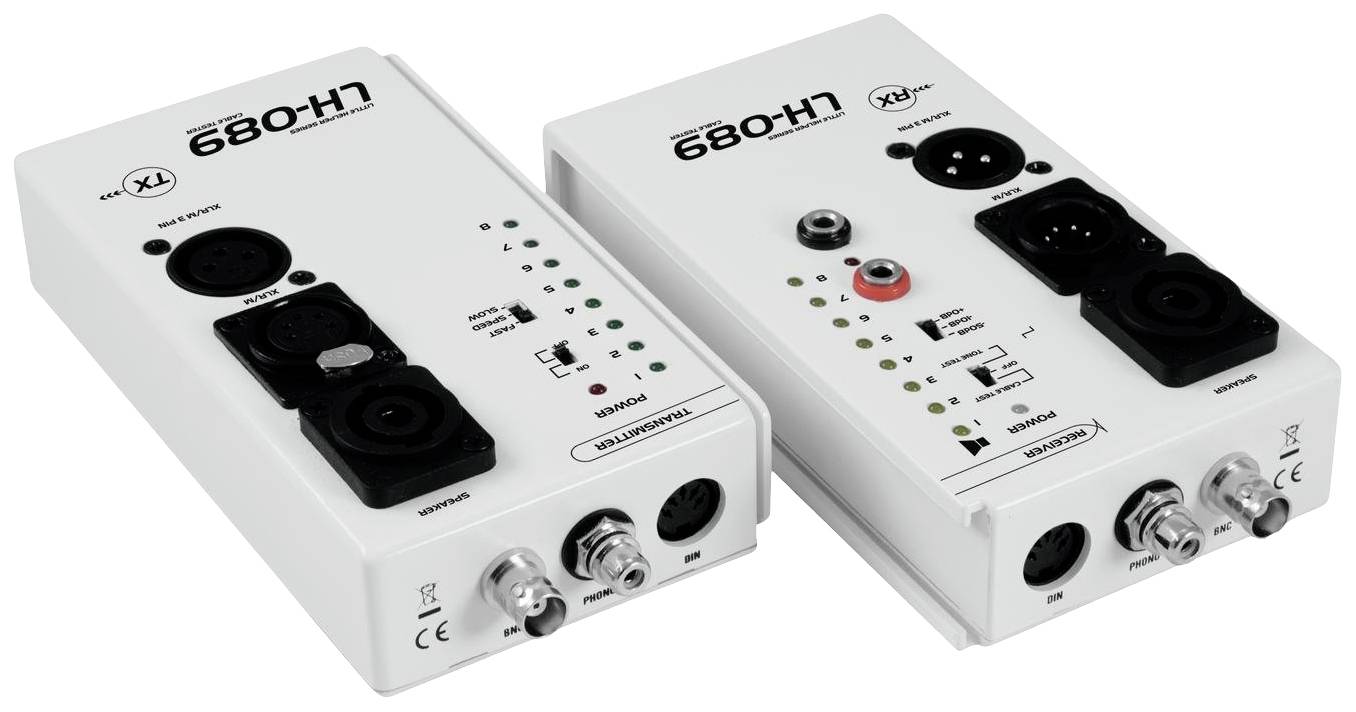

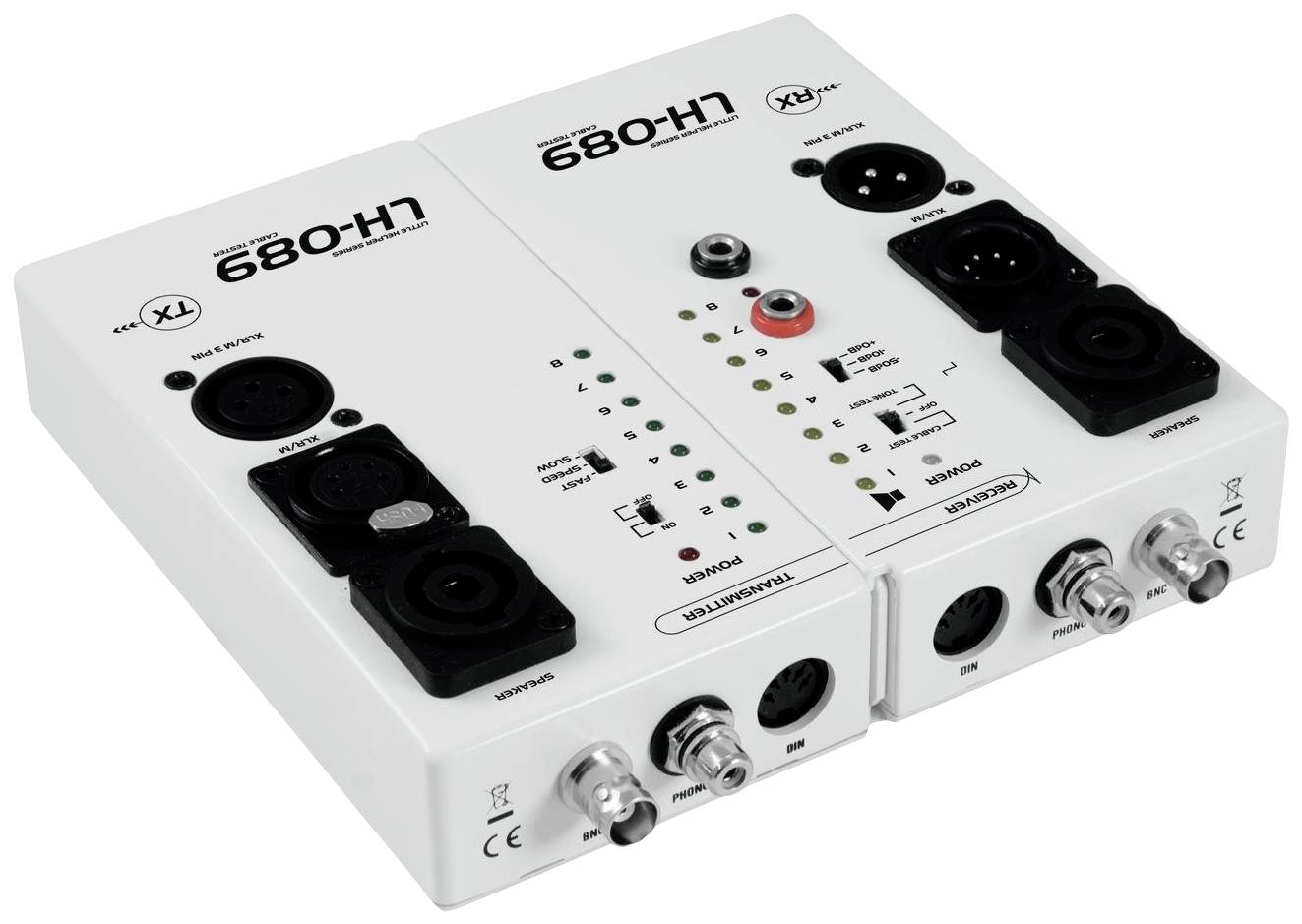

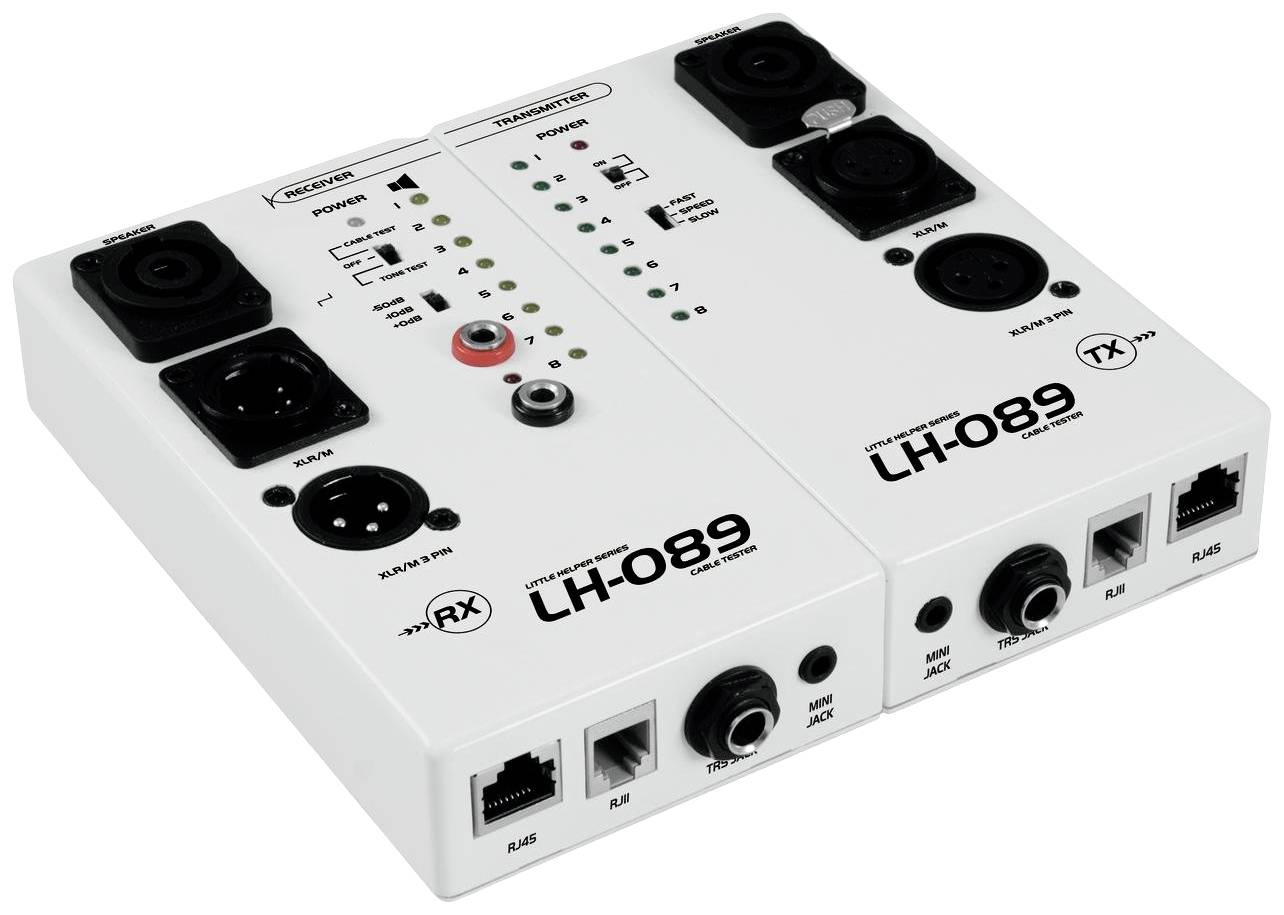

Omnitronic LH-089 cable tester system, white
- Multi-format cable tester consisting of transmitter and receiver moduleIndispensable assistant for musicians, sound and stage engineersThe tester can be split for testing cables that are very long and routed in the wallXLR (3-pin/5-pin), jack (3.5 mm/6.3 mm), DIN (3-pin/5-pin), RCA, speaker (4-pin), RJ45, RJ11, BNC, banana plugVisual and acoustic function/error displayThree test speeds (fast/medium/slow)Tone generator with adjustable amplitude (+0 dB, -10 dB, -50 dB)
Technical specifications

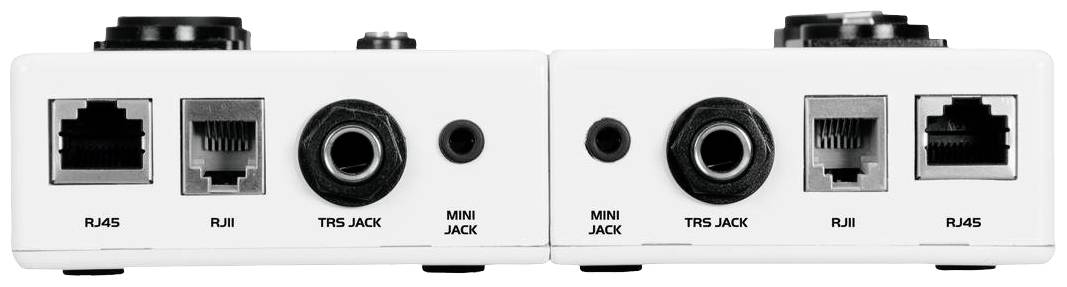

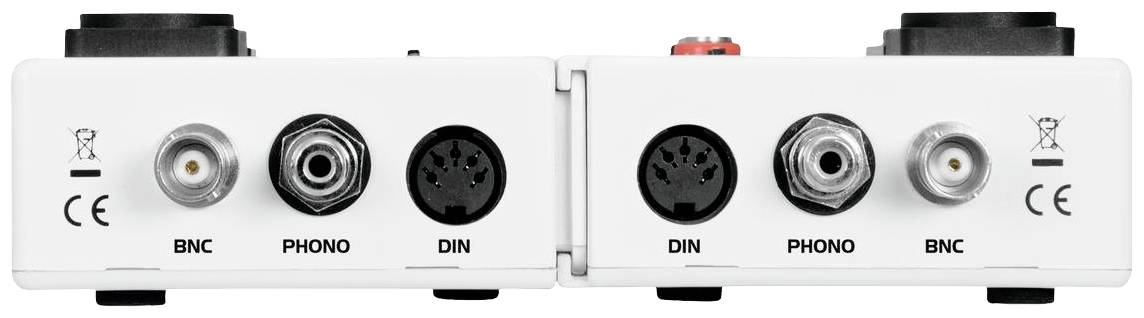

- Electrical connection: Battery / rechargeable batteryBattery: 2 x 9.0 V E-Block (not included in delivery)Connections: 3.5 mm jack socket (stereo) installation version; 6.3 mm jack socket (stereo) installation version; 3-pin XLR; 5-pin XLR; speaker installation socket (W); cinch (W) installation version; 5-pin DIN (W) mounting version; RJ11 (W) mounting version; RJ-45 (W) mounting version; BNC (W)
- Factory colour
White
- Weight
510 g
- Length
175 mm
- Width
165 mm
- Height
45 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2632010 Omnitronic LH-089 White
Description
The LH-089 from Omnitronic enables the easy testing of a large number of common audio and data cables and is thus an indispensable tool for musicians, sound and stage engineers. Each contact of the connected cable is checked individually and the assignment is shown on a clear LED display. The continuity tester with optical and acoustic signal allows you to test all other connections. A tone generator is also integrated. The tester can be split for testing cables that are very long and routed in the wall.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1x user manual
- 2 x test leads
