Omnitronic LMC-3242FX Mixing console No. of channels:18 USB port
EAN:
Part number:
Item no:
Highlights & Details

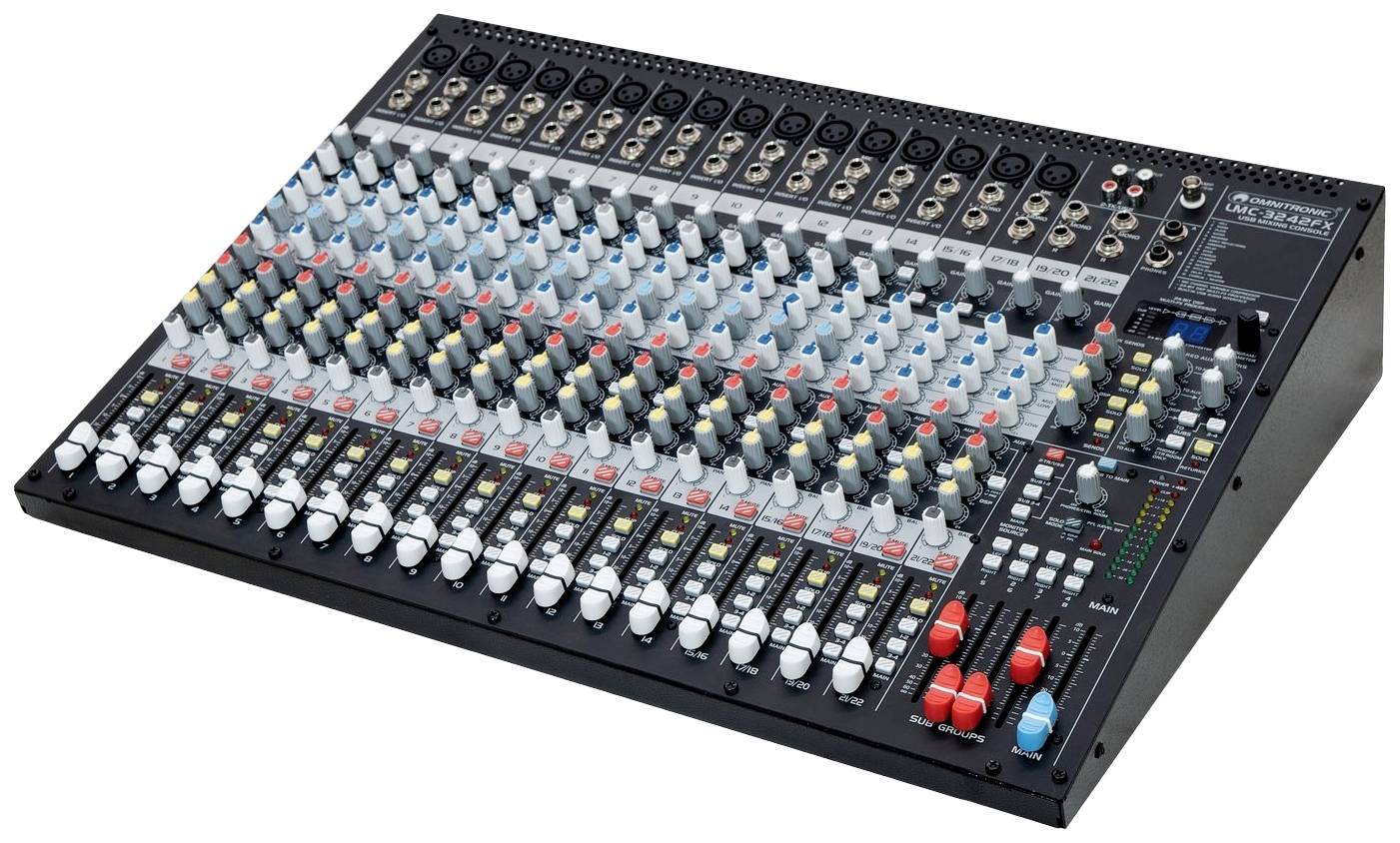

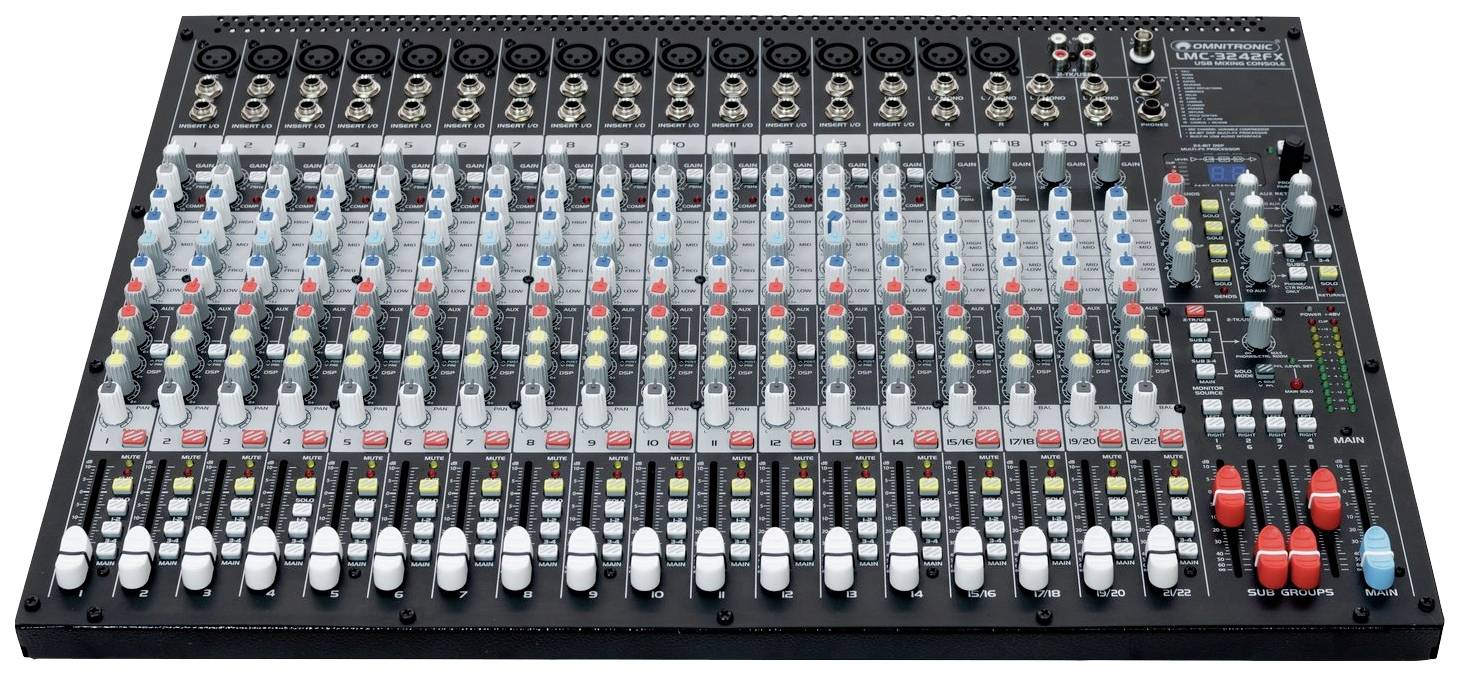

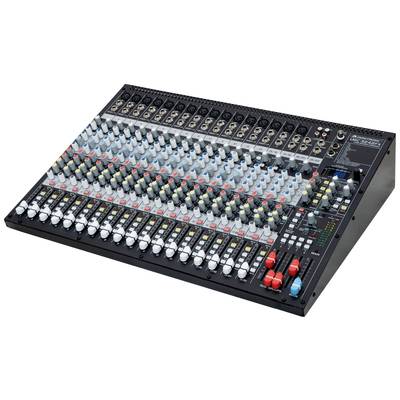

Omnitronic LMC-3242FX USB mix board
- PRO audio mixer with British-style EQ, compressor, effects unit and USB interface
- 14 mono input channels
- 14 inserts
- 4 stereo input channels with 4-band EQ
- Low-noise microphone preamplifier with 130 dB dynamic range
Technical specifications
- Product type
Mixing console
- Channels
18
- No. of inputs
22 x
- Category
USB port
- No. of 6.3 mm headphone outputs
2 x
- No. of line-ins
22 x
- No. of microphone XLR inputs
16 x
- Weight
9.3 kg
- No of. USB type B ports
1 x
- Width
592 mm
- Height
137 mm
- Length
450 mm
- Dim
(L x W x H) 450 x 592 x 137 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131314 Omnitronic LMC-3242FX Mixing console No. of channels:18 USB port
Description
Professional live mixing desks with British EQ, effect unit and USB interface
The LMC series by Omnitronic provides you with simple and easy sound! The extremely easy-to-use compact mixers have a warm, absolutely undistorted sound with excellent audio parameters, a comprehensive equipment and the highest reliability - Ideal for professional live performances, studio recordings and as a fixed PA mixer. Especially the 2022FX has several useful features, which are unique in this price class: Feedback detection, voice canceller and 3D stereo surround sound.
The mono channel accesses are standard equipped with extremely low-noise microphone preamps in studio quality, which offer an impressive 130 dB dynamic range and with a bandwidth of less than 10 Hz to over 200 kHz for crystal-clear playback. All channel accesses are located pleasant warm sounding Equalizer based on classic British EQ circuits of mixing consoles of the 60's and 70's.
In addition, all the desks have one-button compressors in the mono channels and a 24-bit FX processor for mixing 16 editable effects, which can be routed to individual channels, buses or the main mix. Thanks to the integrated USB audio interface with a max. Sampling rate of 48 kHz allows each session to be recorded quickly and easily on the computer.
This text is machine translated.
The LMC series by Omnitronic provides you with simple and easy sound! The extremely easy-to-use compact mixers have a warm, absolutely undistorted sound with excellent audio parameters, a comprehensive equipment and the highest reliability - Ideal for professional live performances, studio recordings and as a fixed PA mixer. Especially the 2022FX has several useful features, which are unique in this price class: Feedback detection, voice canceller and 3D stereo surround sound.
The mono channel accesses are standard equipped with extremely low-noise microphone preamps in studio quality, which offer an impressive 130 dB dynamic range and with a bandwidth of less than 10 Hz to over 200 kHz for crystal-clear playback. All channel accesses are located pleasant warm sounding Equalizer based on classic British EQ circuits of mixing consoles of the 60's and 70's.
In addition, all the desks have one-button compressors in the mono channels and a 24-bit FX processor for mixing 16 editable effects, which can be routed to individual channels, buses or the main mix. Thanks to the integrated USB audio interface with a max. Sampling rate of 48 kHz allows each session to be recorded quickly and easily on the computer.
This text is machine translated.
Features
- Excellent equalizer with British-EQ switch for warm and musical sound
- Easy-to-operate one-button compressors in studio quality with control LED in all mono channel accesses
- 24-bit DSP-effect unit with 16 editable effects, tap function and user settings that can be stored
- Integrated USB audio interface allows recordings and playback on a computer (PC and Mac)
- Intelligent feedback detection for easy removal of feedback
- 4 AUX sends per channel: 2 pre-fader/post fader switchable for flexible routing
- 4 sub-groups with separate faders and outputs for additional routing options
- 4 stereo AUX returns can be used as additional line inputs
- 14 direct outputs for recording purposes
- Clip-LEDs in all the channel accesses
- Routing switch for mute, main mix, subgroup and solo/PFL in all channel accesses
- 2 separate total outputs with INSERTS
- 2 headphone and monitor outputs with flexible input routing
- CD/tape input with routing on buzzer or monitor/headphone outputs, CD/tape output
- Precise 12-digit LED level meter
- Desk light can be connected via BNC socket
- Remote-controlled effect processor via external foot switch
- +48 V Phantom power, centrally switchable
- Single-color 2-digit 7-segment LED display
- The device can be connected with the PC via USB.
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 50 W
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 110 dB
- Harmonic distortion factor: 0.05 % with 1 kHz
- DSP: 24-bit digital signal processor with 16 effects
- Phantom power 48 V DC
- Impedance: Microphone 2.6 kOhm , balanced
- 2-track via 1 x stereo cinch input
- Insert: Master via 2 x 6.3 mm jack socket (stereo) Installation version
- Gain: Variable
- Cross talk-attenuation 89 dB
- Display type: Single-colored 2-digit 7-segment LED display
- Controls: Encoder, power switch, phantom power switch
- Status LED: Master level display, clip, gain reduction, mute, phantom power
- Power Power
- Connections: Lamp via 1 x BNC (W)
- Output: AUX sends +22 dBu, unbal.
- Channels: 14 x mono via XLR or jack, channel control via 60mm fader, 3-band EQ-potentiometer with semi-parametric middle EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 send/AUX, pre-post switch, gain controller, low-cut switch, adjustable one-button compressor, routing sub-group bus switch, routing master bus switch, panorama regulator, mute switch, Solo switch
- Input channel: 2 x stereo via jack, channel control via 60mm fader, 4-band EQ-potentiometer EQ ±15dB at 80Hz/500Hz/3kHz/12kHz, 4 send/AUX, pre-post switch, gain controller, routing sub-group bus switch, Routing master-bus switch, balance control, mute switch, solo switch
- Master output: Stereo, channel control via 60 mm fader
- Cutoff frequency: High-pass 75 Hz, 18db/oct
- Max. Level: Master +28 dBu, synm.
- USB connection (type B)
- PC connect via USB
Scope of delivery
- Blender
- Network cable/power cable
- USB cable
- User manual
- 2 x angle
