Buy Omnitronic MA-120P PA amplifier 120 W

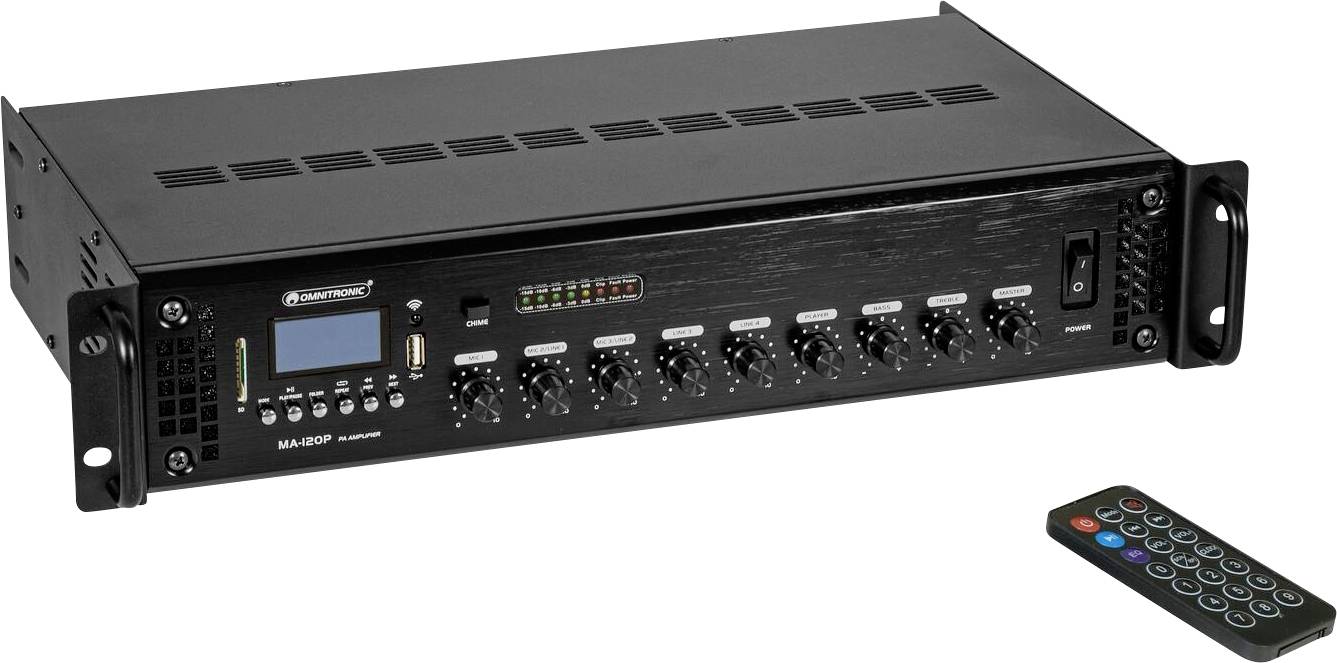

An audio amplifier with multiple control knobs and a digital display. A remote control with multicolored buttons is beside it.

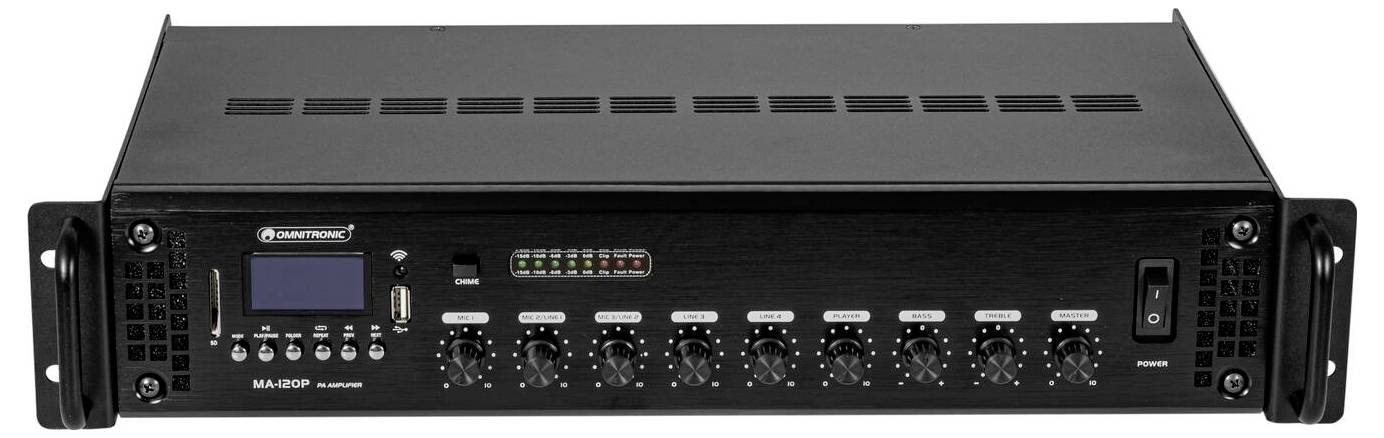

A black audio amplifier with multiple control knobs and switches on the front panel, designed for sound management in professional settings.

Rear panel of a MA-245P amplifier with various input/output ports, including power, speaker output, line inputs, and a mic input.

'Power Dynamics PDC85' audio mixer with multiple control knobs and digital display, designed for professional sound management.

'AudioTrak MA-202F MKII' audio amplifier with 10 rotary knobs, display, and power button on the front panel. Black metal casing.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 230 V AC 50 Hz
Total connected wattage 240 W
Protection class SK I
Power output 120 W RMS
Power connection: Fixed power connection cable with protective contact plug
Device fuse 5 x 20 mm, T 3 A fuse can be replaced
Frequency range 50 18000 Hz
Noise ratio: 75 dB microphone; 85 dB line
Harmonic distortion factor less 0.5 % with 1 kHz
Cooling: Fans, air flow front to rear
Impedance: PA system 100V; 4-16 Ohm; PA system 70V
Controls IR remote control
Audio player USB + SD + Bluetooth
Housing colour black.
Circuit:Class AB
LCD display type
Controls: Power switch, master controller, volume control per channel, sound control, audio player
Protective circuit: Overload; short circuit; limiter; overheating
Status LED: Power, fault, clip, level display
Connections:
Input: Microphone via 2 x 6.3 mm jack (unbal.)
Input: Microphone via 1 x 3-pin XLR
Input: Line via 2 x stereo cinch 0.3 V.
Output: Line via 1 x stereo-cinch 0.3 V.
Output: Speaker via screw terminal
Equaliser Master 1 x 2-band mono controller
MP3 music format
Number of files: Max. 999
Suitable storage media: USB devices/SD cards of up to 32 GB (FAT 32)
Housing design (19") 48.3 cm Rack installation 2 HE
Remote control. Battery:1 x button cell 3.0 V CR2025 Lithium-manganese installed

Product type: PA amplifier

RMS power: 120 W

Dim: (L x W x H) 300 x 483 x 92 mm

Weight: 5600 g

Output type (PA amplifier): 100 V

Width: 483 mm

Height: 92 mm

Length: 300 mm

Interfaces: 6.3 mm jack in
Mic 6.35 mm in
RCA in
RCA out
XLR in

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729775 Omnitronic MA-120P PA amplifier 120 W

Description

PA mixer-amplifier with audio player, IR remote control and Bluetooth, 120 W RMS. Wireless transfer of music from your music devices (e.g. smartphone, tablet) via Bluetooth. SD card slot and USB port Folder navigation, repeat functions and random playback. 3 microphone inputs with separate volume controls. Mic 1 with phantom power and priority function. Mic 2 and 3 switchable Mic/Line. 2 line inputs with separate volume controls. 1 Line output. Bass, treble and master controller for the output signal. 5-digit LED level meter. Chime, switch function (19") 48.3 cm rack installation 2 HE. Highly efficient air flow front to rear. The device is cooled by a fan. Can be controlled via IR remote control. LCD display Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.

This text is machine translated.

Scope of delivery

1 x amplifier
1x user manual
1x remote control
1 x battery
2 x holder
4 x Screws
