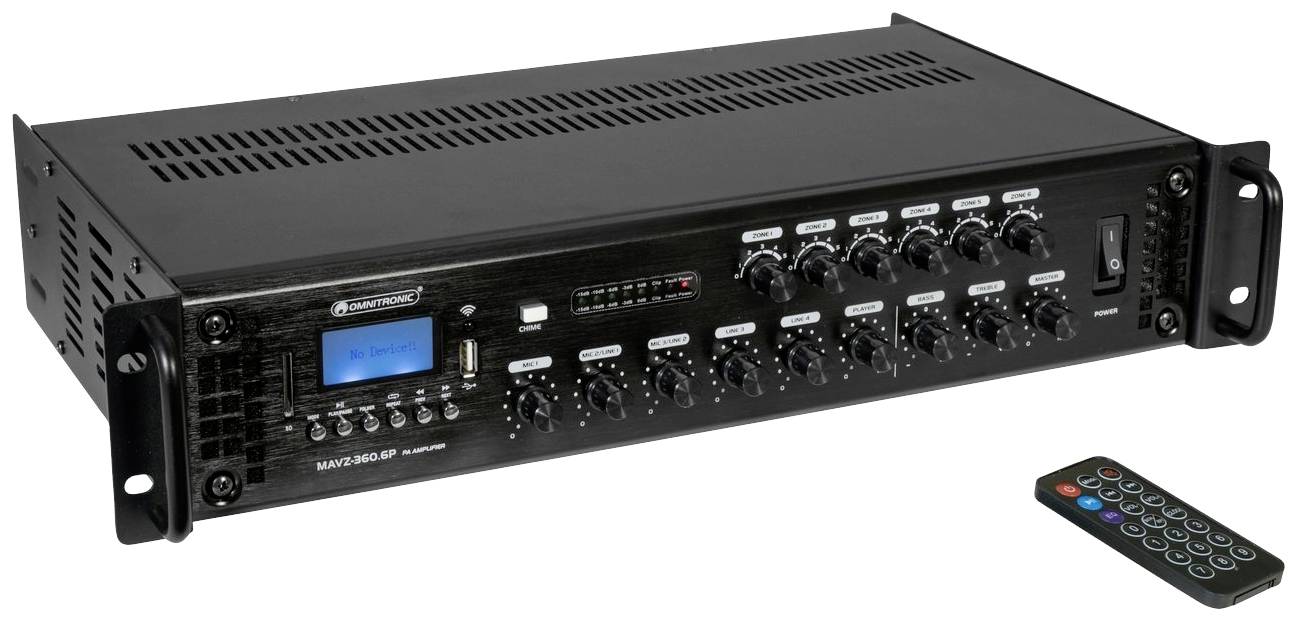

Black audio mixer with multiple faders and LED indicators, with a remote control to the right. An LCD display to the left of the mixer.

Black audio mixer with multiple faders and LED indicators, with a remote control to the right. An LCD display to the left of the mixer.

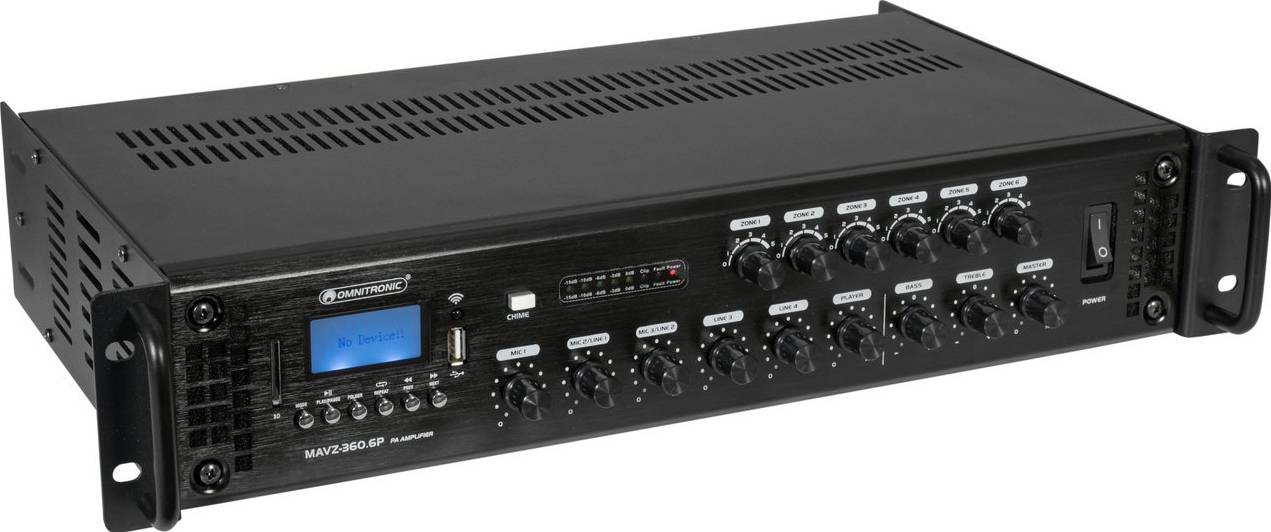

Audio amplifier with multiple controls and a digital display on the front panel, suitable for professional sound systems.

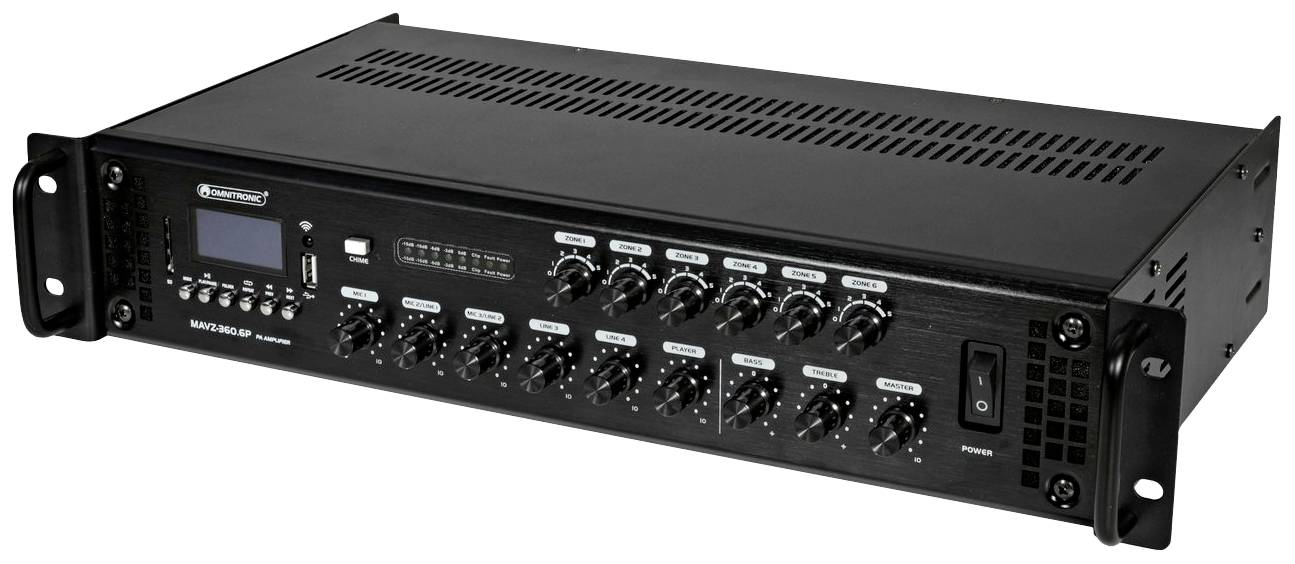

'Music electronic device with multiple rotary controls and switches on the front panel, USB port, and cooling vents on top.'

Black audio amplifier with multiple buttons and switches on the front panel, blue display on the left, labelled as 'MAX-1500MP'.

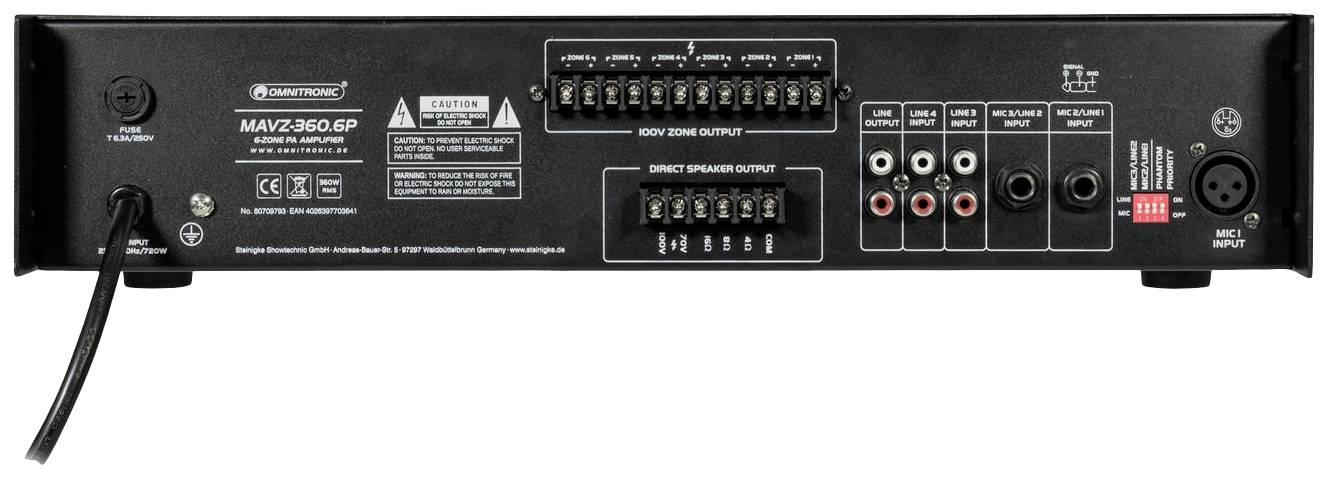

The back panel of an audio amplifier shows several connections for speakers, inputs, and other audio output options.

1/5

Omnitronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 230 V AC 50 Hz
Total connected wattage 720 W
Frequency range 50 18000 Hz
Signal-to-noise ratio of 75 dB microphone, 85 dB line
Harmonic distortion factor: 0.5 % with 1 kHz
Cooling: Fans
Impedance: PA system 100V; 4-16 Ohm; PA system 70V
Protective circuit: Overload; short circuit; limiter; overheating
Input: Microphone via 2 x 6.3-mm jack (unsym.), microphone via 1 x 3-pin XLR, line via 3 x stereo-cinch 0.3 V
Output: Line over 1 x stereo RCA 0.3 V, speaker via screw terminal
Equaliser Master 1 x 2-band mono controller
MP3 music format
Number of files: Max. 999
Suitable storage media: USB devices/SD cards of up to 32 GB (FAT 32)

Product type: PA amplifier

RMS power: 360 W

No. of zones: 6-zone

Dim: (L x W x H) 27.5 x 48.3 x 9.6 mm

Weight: 7.15 kg

Width: 48.3 mm

Height: 9.6 mm

Length: 27.5 mm

Interfaces: 6.3 mm jack in
XLR in
RCA in
RCA out
Screw terminals

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2898849 Omnitronic MAVZ-360.6P PA amplifier 360 W 6-zone

Description

6-zone PA mono mixer amplifier, MP3 player and IR-FB, zones can be regulated.

This text is machine translated.

Features

Comfortable control for ELA speakers via 6-zone technology
6 ELA zone outputs (100 V) each with 5-level volume regulator
Connection option for low-ohm loudspeakers (4-16 ohm)
Integrated Bluetooth audio streaming for wireless music enjoyment
SD card slot and USB port
Folder navigation, repeat functions and random playback
3 microphone inputs with separate volume controls
Mic 1 with phantom power and priority function
Mic 2 and 3 switchable Mic/Line
2 line inputs with separate volume controls
1 Line output
Bass, treble and master controller for the output signal
5-digit LED level meter
Chime, switch function
The device is cooled by a fan
Can be controlled via IR remote control
LCD display
(19") 48.3 cm rack installation 2 HE

Scope of delivery

MAVZ-360.6P
Remote control
Battery
2x bracket
4x screw
User manual
