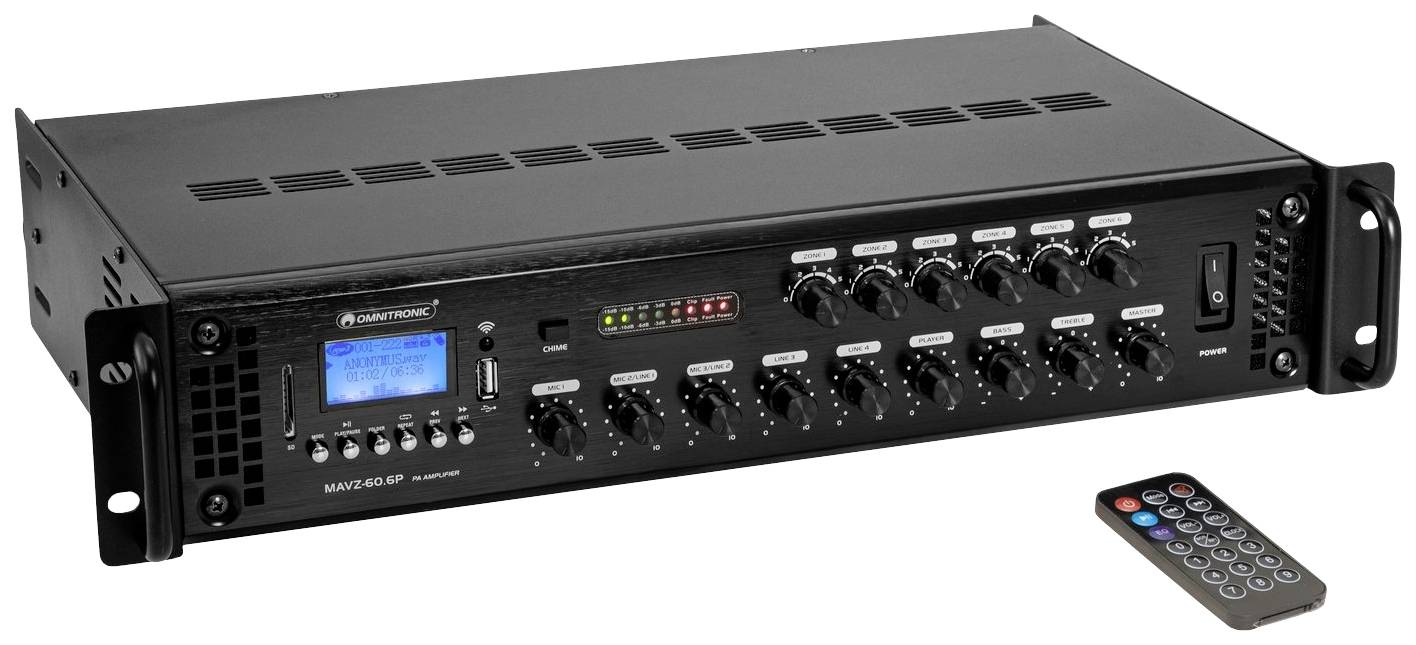

Black audio amplifier with multiple rotary controls and a digital display, with a remote control beside it.

Black audio amplifier with multiple rotary controls and a digital display, with a remote control beside it.

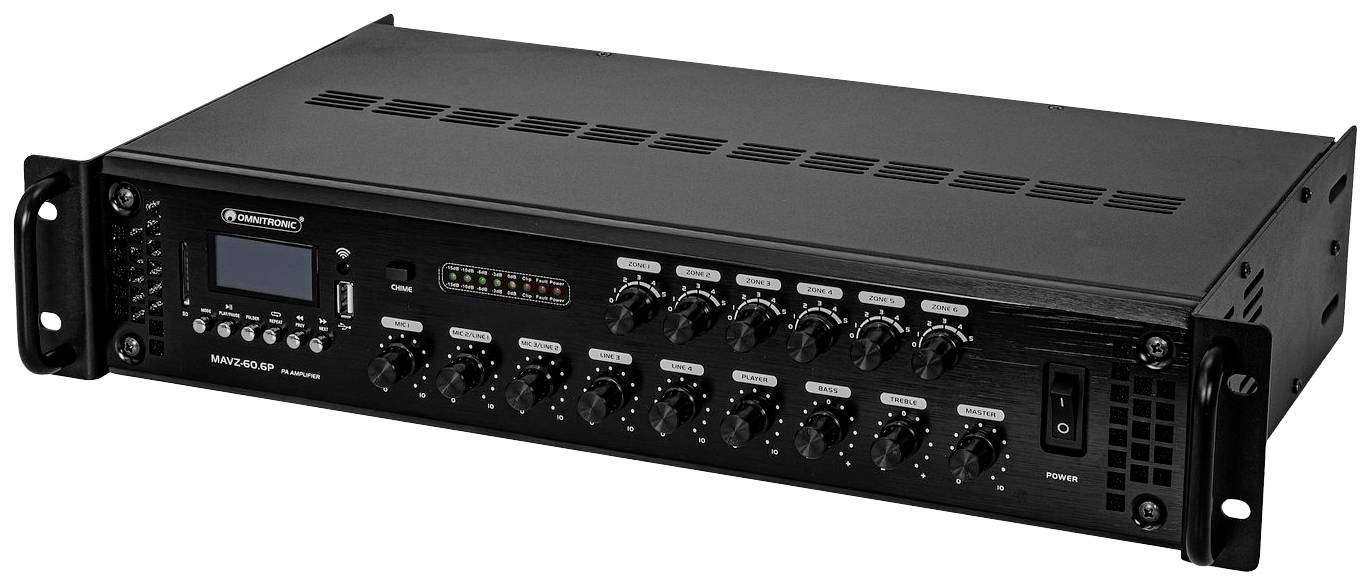

A black audio amplifier in a rack-mounted format with multiple controls and a small display on the left side.

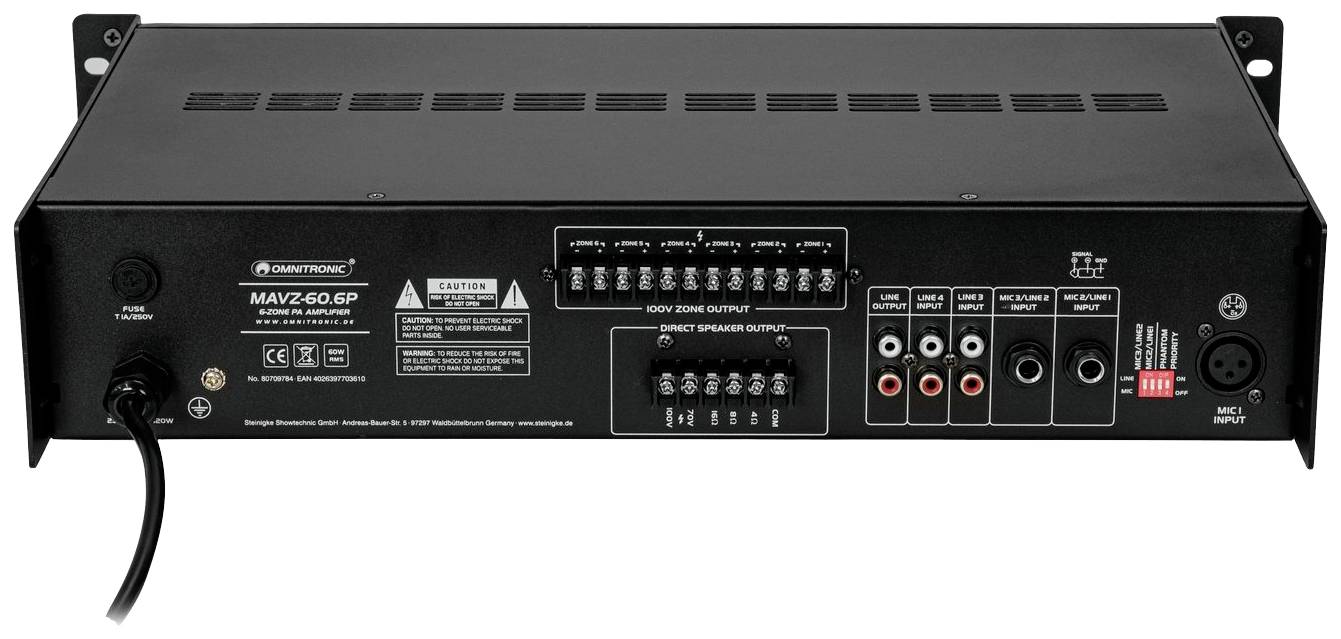

Rear view of an amplifier with various audio connections and switches for configuring speakers and inputs.

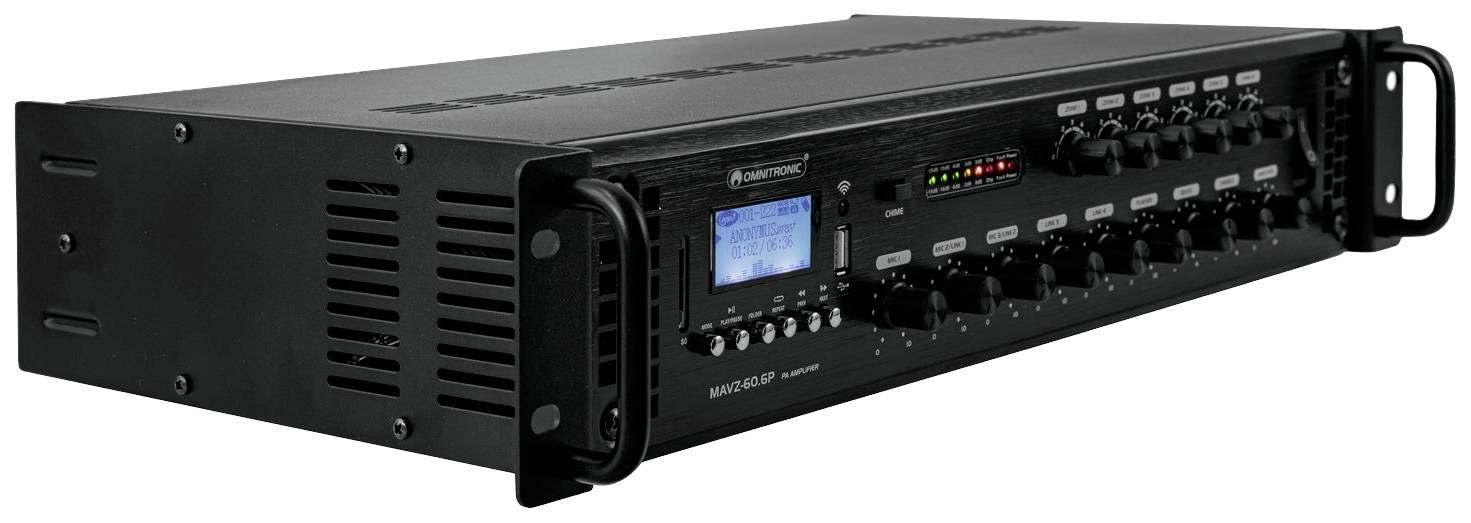

A black audio mixer in rack format with multiple rotary controls, buttons, and a small LCD display on the front panel.

1/5

Omnitronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 230 V AC 50 Hz
Total connected wattage 120 W
Frequency range 50 18000 Hz
Signal-to-noise ratio of 75 dB microphone, 85 dB line
Harmonic distortion factor: 0.5 % with 1 kHz
Cooling: Fans
Impedance: PA system 100V; 4-16 Ohm; PA system 70V
Protective circuit: Overload; short circuit; limiter; overheating
Input: Microphone via 2 x 6.3-mm jack (unsym.), microphone via 1 x 3-pin XLR, line via 3 x stereo-cinch 0.3 V
Output: Line over 1 x stereo RCA 0.3 V, speaker via screw terminal
Equaliser Master 1 x 2-band mono controller
MP3 music format
Number of files: Max. 999
Suitable storage media: USB devices/SD cards of up to 32 GB (FAT 32)

Product type: PA amplifier

RMS power: 60 W

No. of zones: 6-zone

Dim: (L x W x H) 32 x 48.3 x 9.2 cm

Weight: 5.1 kg

Width: 48.3 cm

Height: 9.2 cm

Length: 32 cm

Interfaces: 6.3 mm jack in
XLR in
RCA in
RCA out
Screw terminals

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2898846 Omnitronic MAVZ-60.6P PA amplifier 60 W 6-zone

Description

6-zone PA mono mixer amplifier, MP3 player and IR-FB, zones can be regulated.

This text is machine translated.

Features

Comfortable control for ELA speakers via 6-zone technology
6 ELA zone outputs (100 V) each with 5-level volume regulator
Connection option for low-ohm loudspeakers (4-16 ohm)
Integrated Bluetooth audio streaming for wireless music enjoyment
SD card slot and USB port
Folder navigation, repeat functions and random playback
3 microphone inputs with separate volume controls
Mic 1 with phantom power and priority function
Mic 2 and 3 switchable Mic/Line
2 line inputs with separate volume controls
1 Line output
Bass, treble and master controller for the output signal
5-digit LED level meter
Chime, switch function
The device is cooled by a fan
Can be controlled via IR remote control
(19") 48.3 cm rack installation 2 HE

Scope of delivery

MAVZ -60.6P
Remote control
Battery
2x bracket
4x screw
User manual
