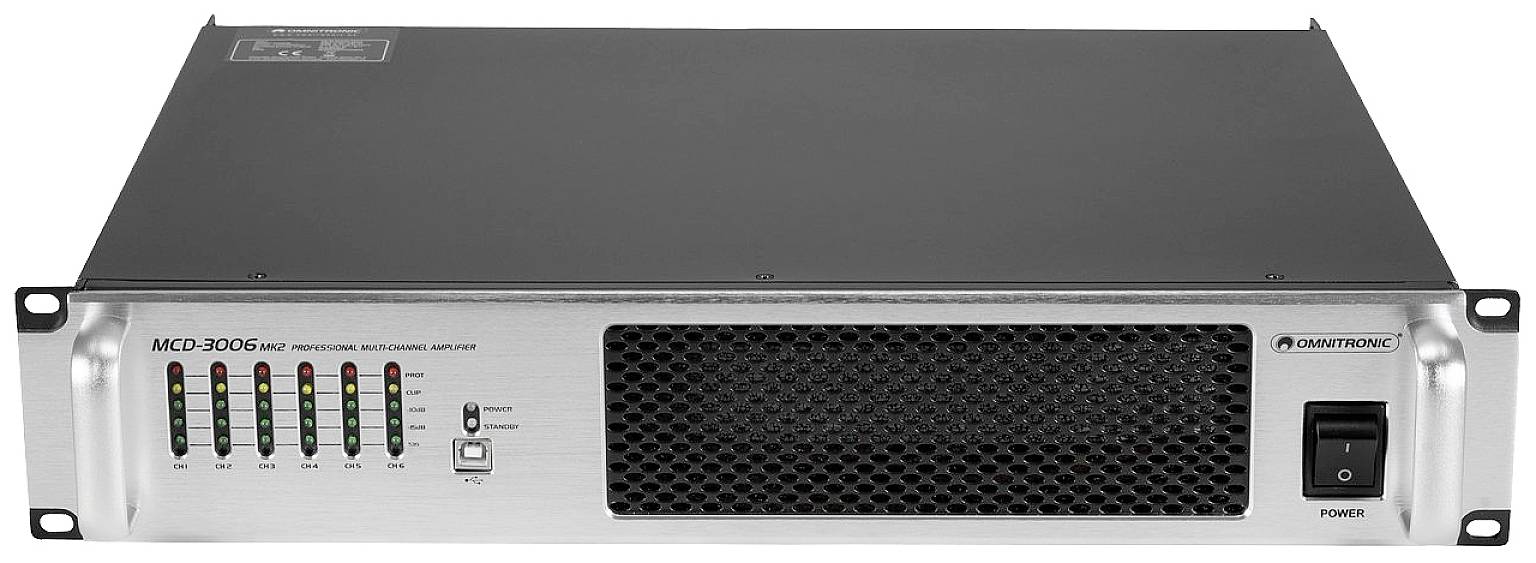

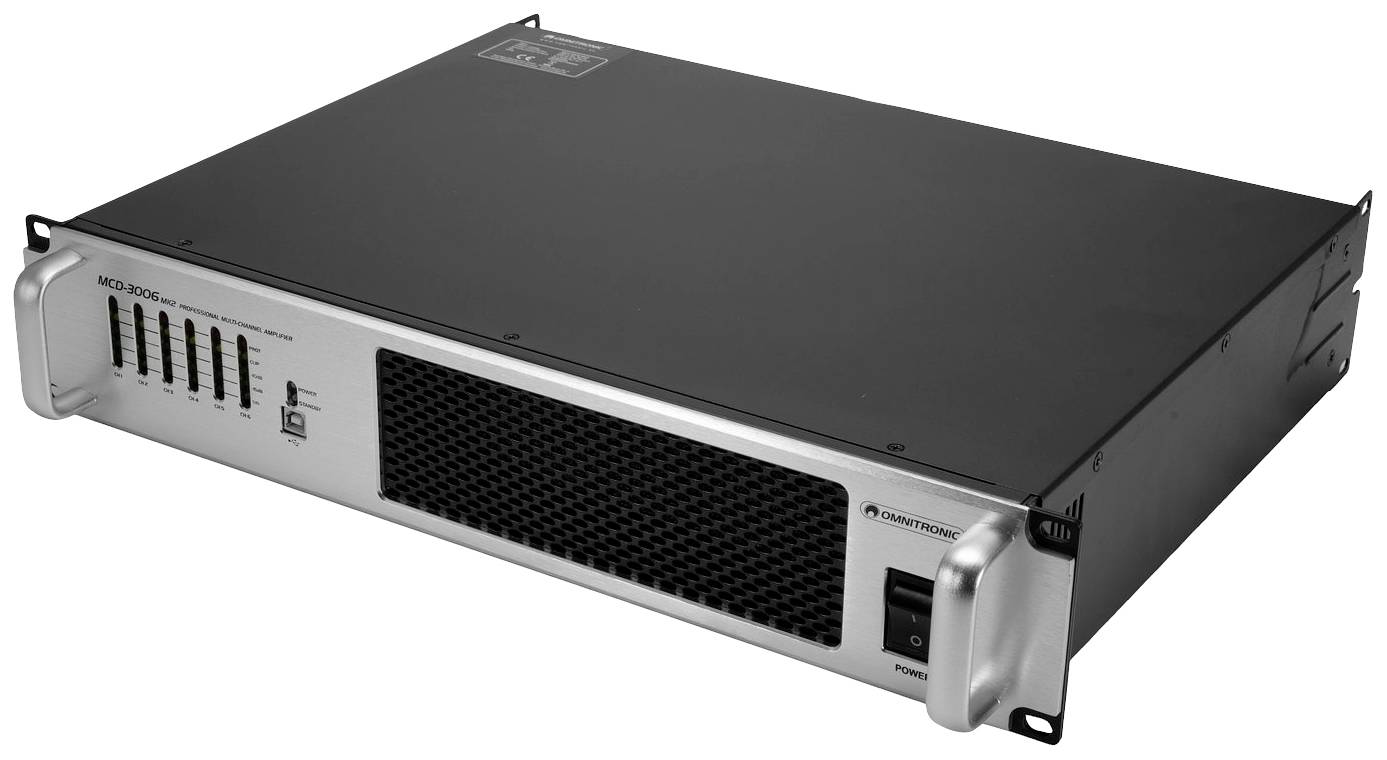

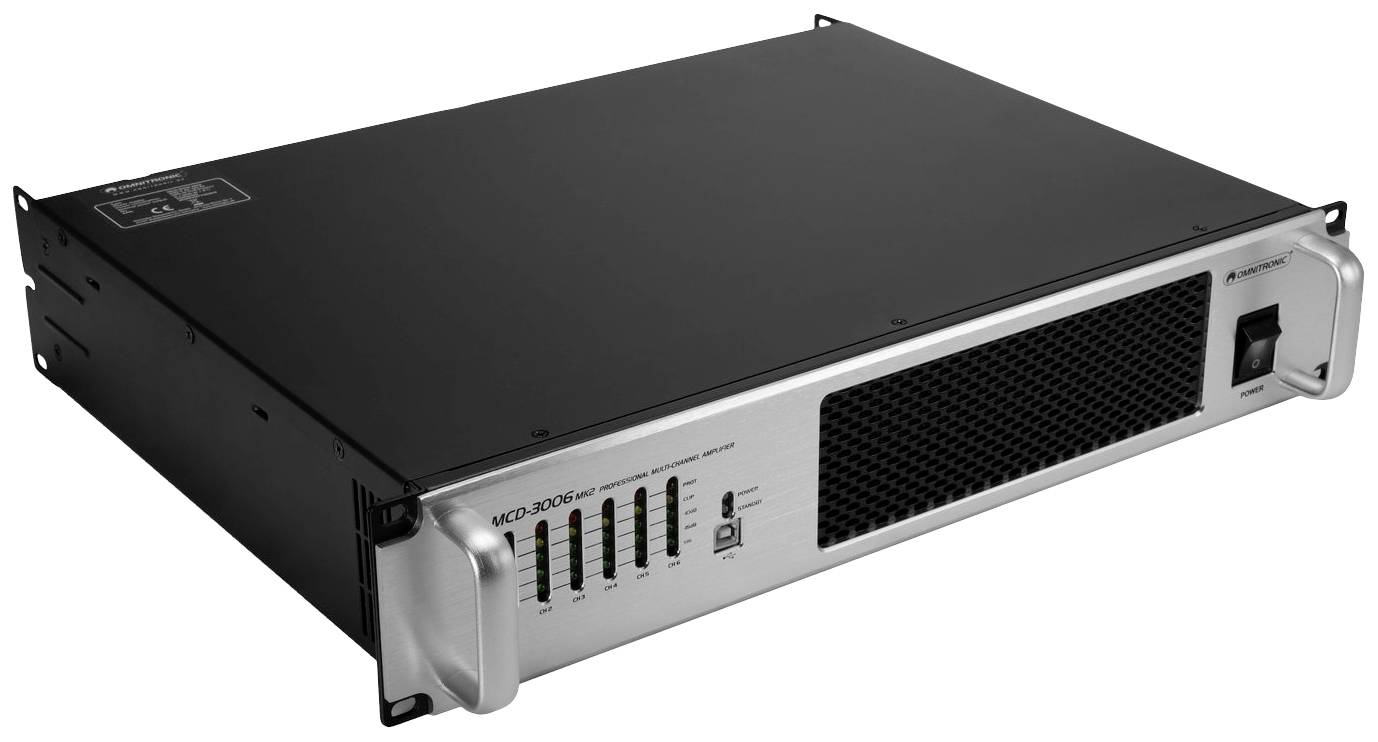

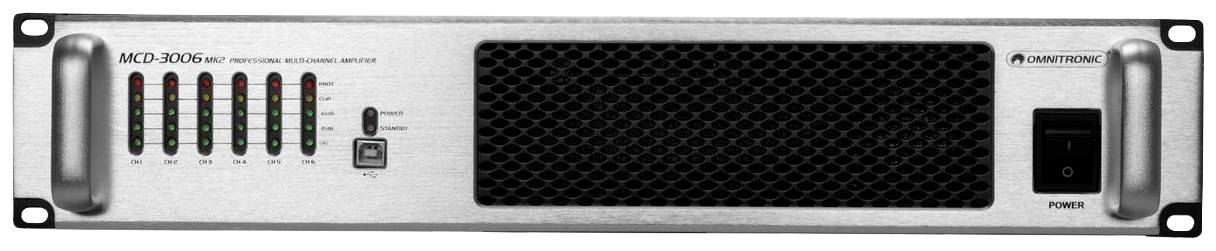

Buy Omnitronic MCD-3006 PA amplifier RMS power per channel (at 4 Ohm): 500 W

1/5

Unavailable

Sales and shipping:

Highlights & Details

PA amplifier with integrated limiter for multi-zone applicationsSignal inputs via balanced XLR panel jacks or terminal blocksSpeaker connection via terminal blocksTamper-proof volume setting on the back3-way level display with clip LED per channelSpeaker switch-on delayRobust steel chassis with aluminum front plate

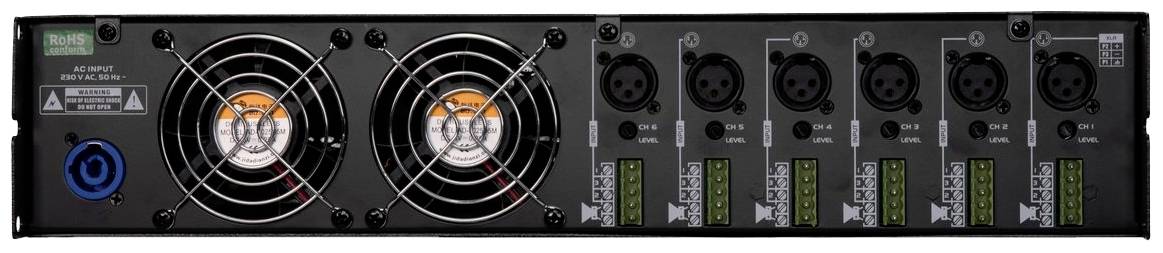

Product dimensions, depth 388 mmPower supply: 230 V AC, 50 HzTotal connected wattage 525 W 1/8 PowerOutput power 6 x 250 W RMS (8 ohm); 6 x 500 W RMS (4 ohm)Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)Signal-to-noise ratio>120 dBHarmonic distortion factor<: 0.003 % with 1 kHzCooling: 2 x fans , air flow front to rearImpedance: Input 22 kOhm , balanced; input 12 kOhm , unbalancedGain 26 dBClass D switching Rise time>10 V/µsAttenuation factor>500Controls: Power switch, volume control per channelProtective circuit: Soft start, short circuit, overheating, overload, DC voltage; Switch-on delayStatus LED: Power, level indicator, clip, protectInputs: Line via 6 x 3-pin XLR; Line via 6 x screw terminalsOutputs: Speaker via 6 x screw terminalsMax.Level : Input +2 VHousing design (19") 48.3 cm Rack installation 2 HE

User & Safety Instructions 2632014 Omnitronic MCD-3006 PA amplifier RMS power per channel (at 4 Ohm): 500 W

6-channel PA amplifier with switched-mode power supply, 4 ohm: 6 x 500 W, 8 ohm: 6 x 250 W

This text is machine translated.

Complete protective circuit packageAir flow from front to rearThe device is cooled by a fan(19") 48.3 cm rack installation 2 HE
