Buy Omnitronic MP-60 PA amplifier 60 W

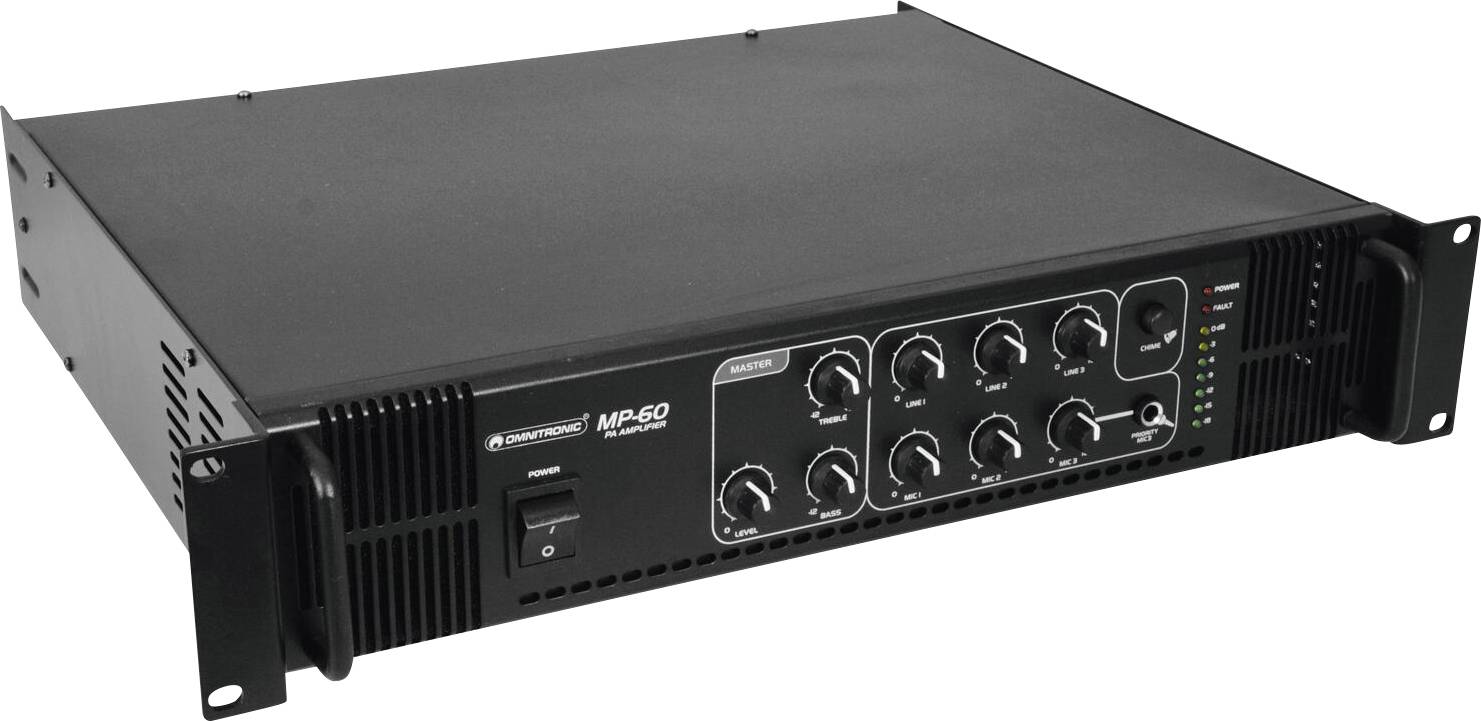

A black audio amplifier with multiple control knobs and indicators on the front panel.

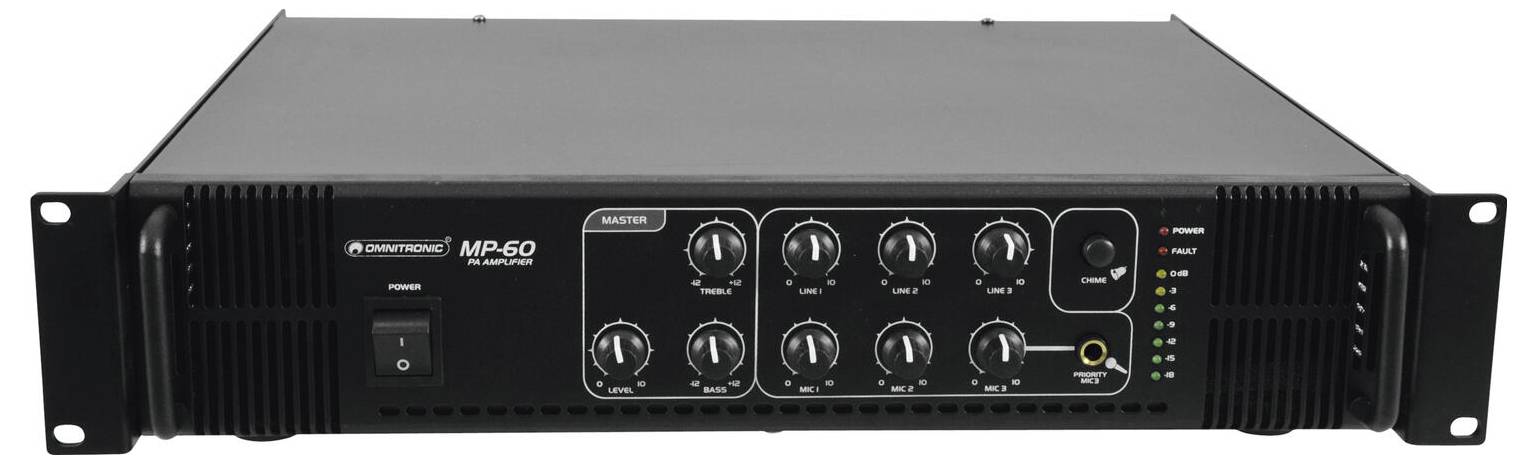

Black audio amplifier with control knobs and LED indicators on the front panel, used for sound mixing and output adjustment.

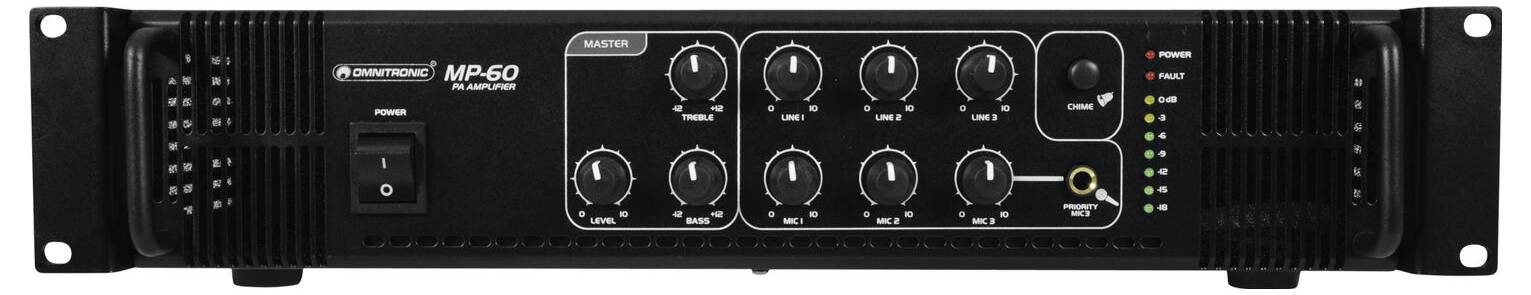

Front view of a Pyle-Pro MP-60 mixer amplifier with multiple knobs for adjusting sound levels, power switch, and indicator lights.

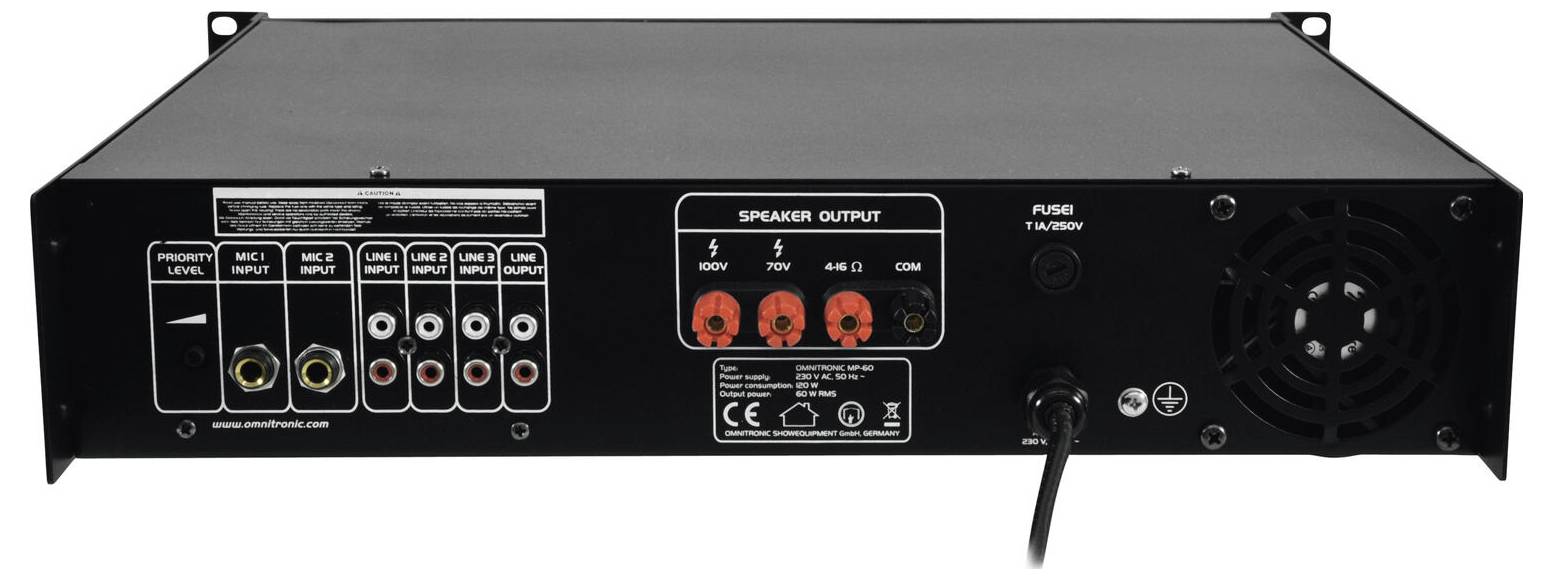

Rear view of an audio amplifier showing input and output ports, including microphone inputs, RCA jacks, speaker outputs, and fuse details.

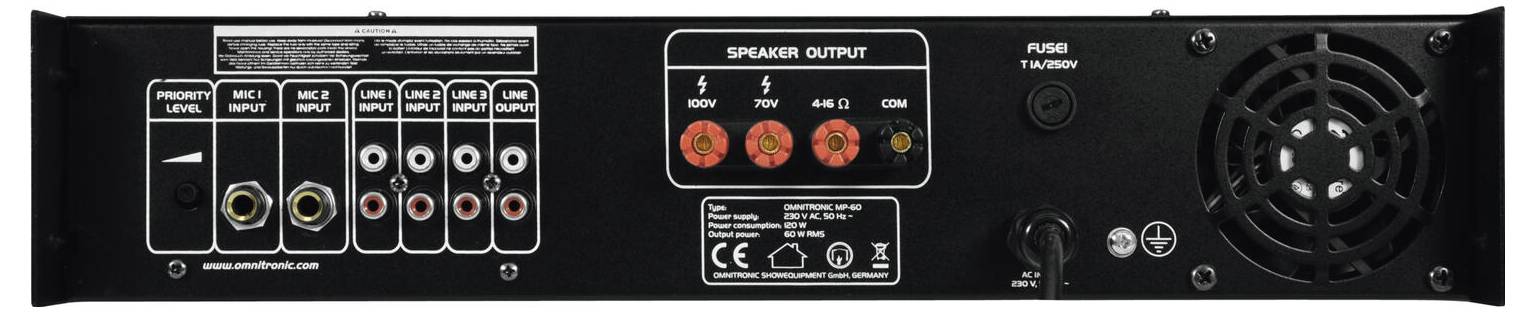

The back panel of an audio amplifier with multiple input/output ports labeled for speakers, power, and audio channels; includes a fan.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 230 V AC 50 Hz
Total connected wattage 120.00 W
Power output 60 W RMS
Power connection: Fixed power connection cable with protective contact plug
Frequency range 80 14000 Hz
Noise ratio: 75 dB microphone; 85 dB line
Distortion factor: Less than 0.5 % at 1 kHz
Cooling: Fans
Impedance: PA system 100V; 4-16 Ohm; PA system 70V
Circuit:Class AB
Protective circuit: Switch-on delay; overvoltage; short circuit
Connections:
Input: Microphone via 3 x 6.3 mm jack (unbal.)
Input line via 3 x stereo cinch
Output: Line via 1 x stereo-cinch 0.3 V.
Output: Speaker via screw terminal
Equaliser Master 1 x 2-band mono controller
Material: Metallic
Colour, black
Housing design (19") 48.3 cm Rack installation 2 HE

Product type: PA amplifier

RMS power: 60 W

Dim: (L x W x H) 400 x 483 x 89 mm

Weight: 8100 g

Output type (PA amplifier): 100 V

Width: 483 mm

Height: 89 mm

Length: 400 mm

Interfaces: 6.3 mm jack in
RCA in
RCA out

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3731492 Omnitronic MP-60 PA amplifier 60 W

Description

PA MIXER-AMPLIFIER, 60 W RMS. 3 microphone inputs (6.3-mm jack, unbalanced) With separate volume controls. Microphone input 3 on the front panel with adjustable priority function. 3 line inputs (stereo RCA) with separate volume controls. 1 line output (stereo-cinch) Chime, switch function Treble and bass tone control for output signal 7-digit LED level meter. Master control for the output signal. (19") 48.3 cm rack installation 2 HE. The device is cooled by a fan. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.

This text is machine translated.

Scope of delivery

1 x amplifier
1 x Operating manual
