Buy Omnitronic MPVZ-180.6P PA amplifier 180 W 6-zone

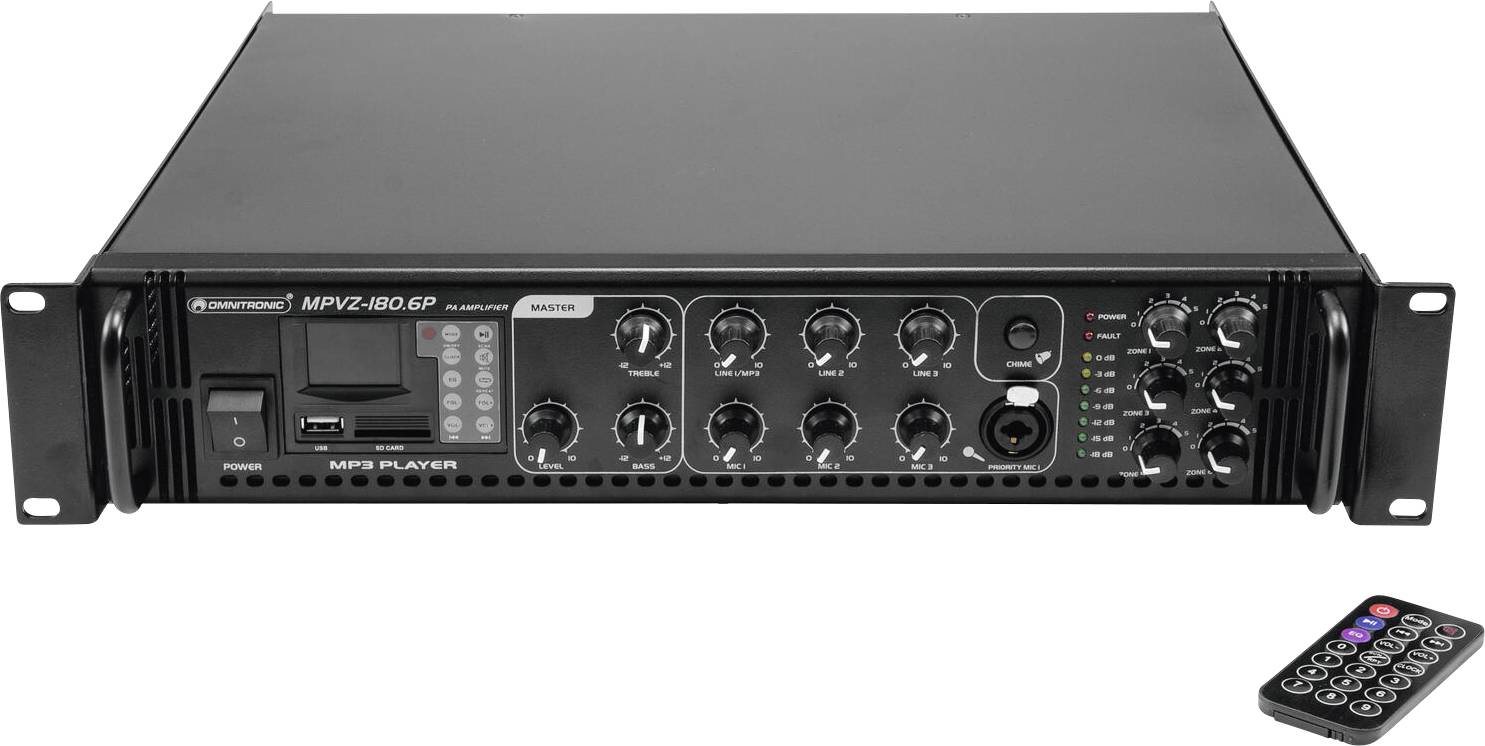

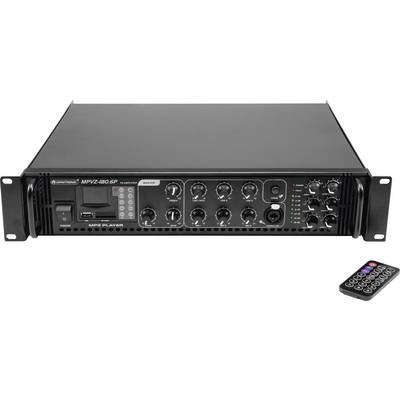

'MPVZ-180-6P' audio amplifier with black front panel featuring various control knobs, input ports, a digital display, and a remote control.

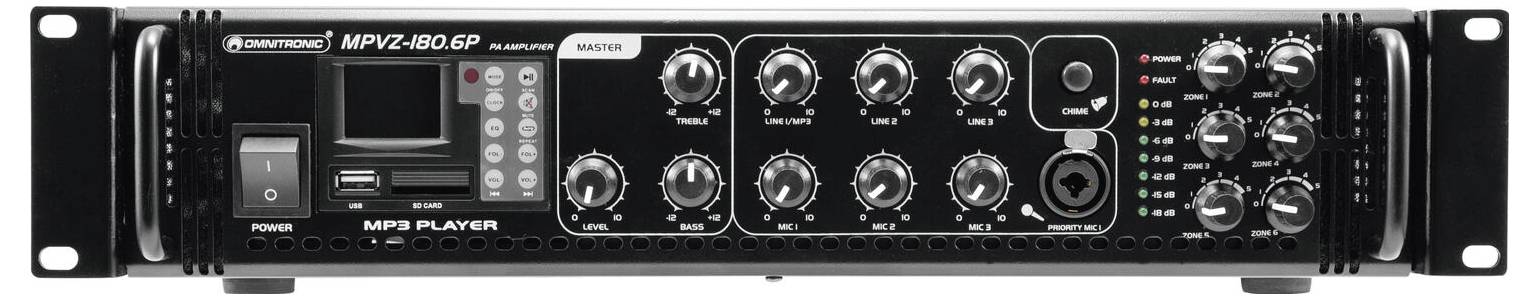

A black audio amplifier with multiple control knobs, input slots, display screen, and power button on the front panel.

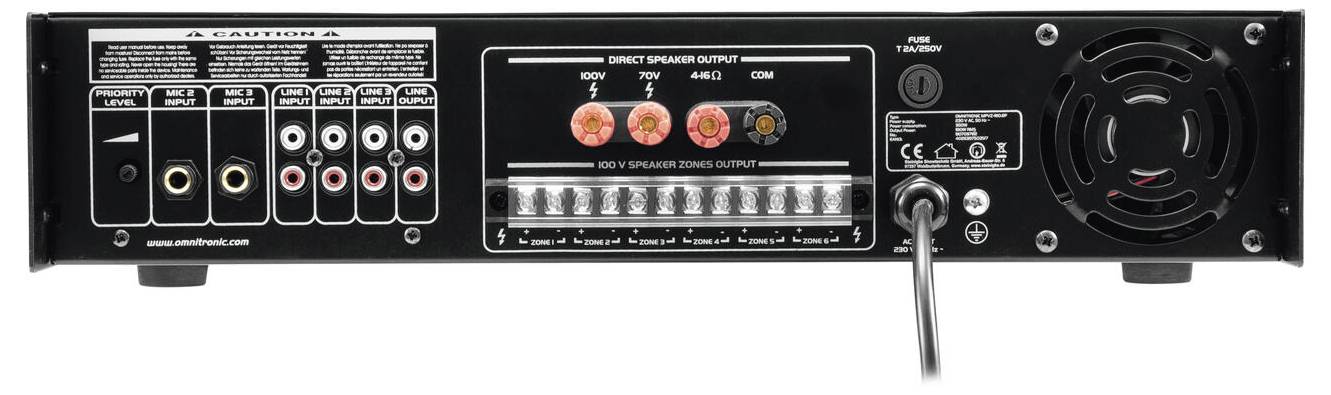

The image shows the rear panel of an audio amplifier, featuring various input and output ports, speaker connectors, and a cooling fan.

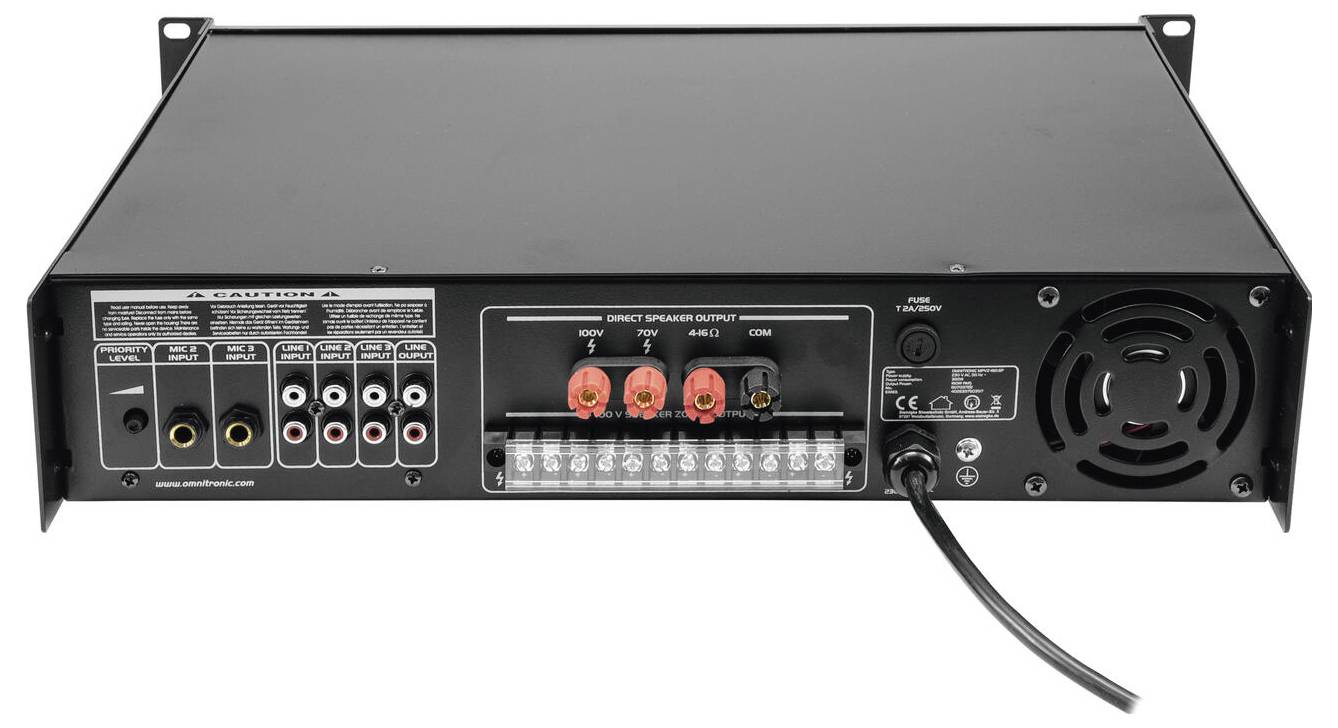

Back view of an audio amplifier showing input/output ports, speaker connections, power cable, and cooling fan. Labels detail connectivity options.

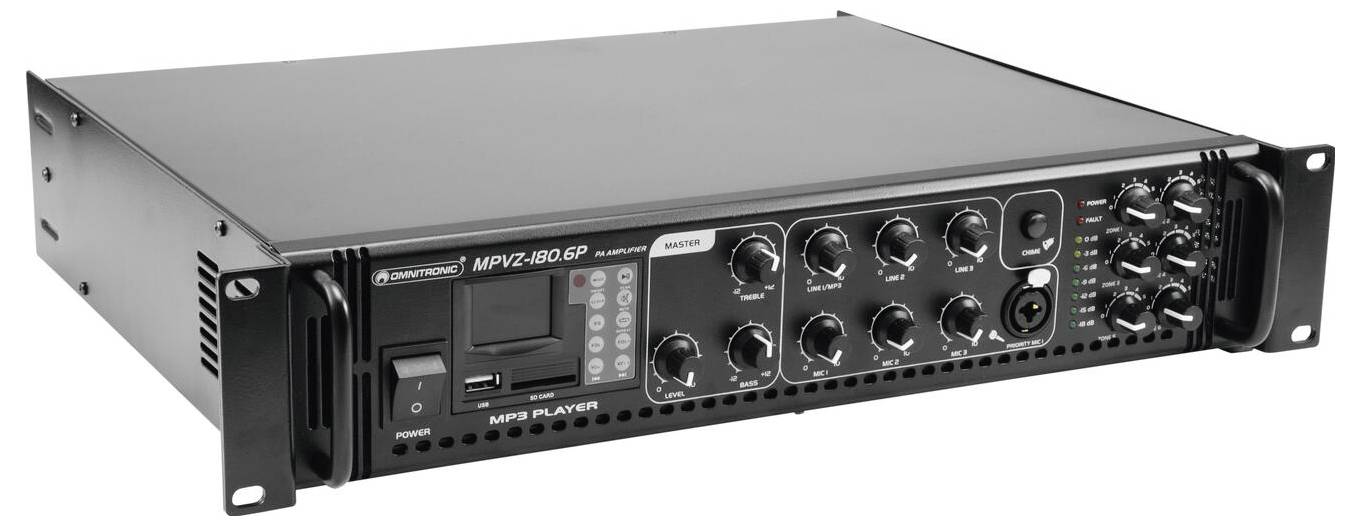

Black audio amplifier with multiple control knobs and buttons on the front panel, a digital display, and a USB input slot.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 230 V AC 50 Hz
Total connected wattage 360.00 W
Protection class SK I
Power output 180 W RMS
Power connection: Fixed power connection cable with protective contact plug
Device fuse 5 x 20 mm, T 2 A fuse can be replaced
Frequency range 80 16000 Hz
Noise ratio: 75 dB microphone; 85 dB line
Distortion factor: Less than 0.5 % at 1 kHz
Cooling: Fan temperature controlled , air flow front to rear
Impedance: PA system 100V; 4-16 Ohm; PA system 70V
6 adjustable zones
Circuit:Class AB
Controls: Power switch, master controller, volume control per channel, tone control, adjustable talkover
Protective circuit: Current limiter; short circuit; switch-on delay
Status LED: Power, fault, level display
Connections:
Input: Microphone via 1 x 3-pin XLR/6.35-mm jack (W) combo jack bushing
Input: Microphone via 2 x 6.3 mm jack (unbal.)
Input: Line via 3 x stereo cinch 0.3 V.
Output: Line via 1 x stereo-cinch
Output: Speaker via screw terminal
Equaliser Master 1 x 2-band mono controller
Material: Metallic
Colour, black
Housing design (19") 48.3 cm Rack installation 2 HE
Remote control. Battery:1 x button cell 3.0 V CR2025 Lithium-manganese installed
Audio player. Controls IR remote control
USB + SD audio player
LCD display type
MP3 music format
Number of files: Max. 999
Suitable storage media: USB devices/SD cards of up to 32 GB (FAT 32)

Product type: PA amplifier

RMS power: 180 W

No. of zones: 6-zone

Dim: (L x W x H) 385 x 483 x 89 mm

Weight: 9000 g

Output type (PA amplifier): 100 V

Width: 483 mm

Height: 89 mm

Length: 385 mm

Interfaces: 6.3 mm jack in
Mic 6.35 mm in
RCA in
RCA out
XLR in

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3730880 Omnitronic MPVZ-180.6P PA amplifier 180 W 6-zone

Description

6-zone ELA mixer amplifier with audio player and IR remote control, adjustable zones, 180 W RMS. Comfortable control for ELA speakers via 6-zone technology 6 ELA zone outputs (100 V) each with 5-level volume regulator. Connection option for low-ohm loudspeakers (4-16 ohm). SD card slot and USB port Folder navigation and repeat functions (Repeat 1, All). 2 rear microphone inputs (6.3-mm jack, unbalanced). 1 front microphone input (combination XLR/6.3-mm jack, unbal.) On the front panel with adjustable priority function. All microphone inputs with separate volume controls. 3 line inputs (stereo RCA) with separate volume controls. 1 line output (stereo-cinch) Chime, switch function Treble and bass tone control for output signal 7-digit LED level meter. Master control for the output signal. (19") 48.3 cm rack installation 2 HE. Highly efficient air flow front to rear. The device is cooled by a temperature controlled fan. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms. Audio player. Can be controlled via IR remote control. LCD display

This text is machine translated.

Scope of delivery

1 x amplifier
1x remote control
1 x battery
1 x Operating manual
