Omnitronic MPZ-350,6P PA amplifier 6-channel 6-zone
EAN:
Part number:
Item no:
Technical specifications
- Product type
PA amplifier
- No. of zones
6-zone
- No. of channels
6-channel
- Output type (PA amplifier)
70 V
100 V
- Interfaces
Line in
Mic 6.35 mm in
Mic input combo jack (XLR, 6.35 mm jack)
SD memory card slot
USB type A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1284078 Omnitronic MPZ-350,6P PA amplifier 6-channel 6-zone
Description

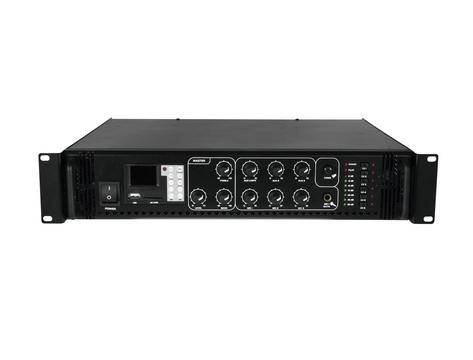

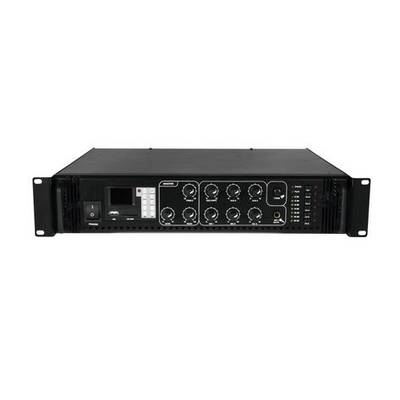

6-zone ELA-mono mixer amplifier with MP3 player and IR remote control
This text is machine translated.
This text is machine translated.
Features
- 6-zone ELA-mono mixer amplifier with MP3 player and IR remote control
- Comfortable control for ELA speakers via 6-zone technology
- 6 ELA zone outputs (100 V), can be switched separately on the front plate
- Master ELA speaker output (70 and 100 V)
- Connection option for low-resistance loudspeakers (4-16 ohms)
- MP3 player with IR remote control and blue backlit LCD display
- SD card slot and USB port
- Folder navigation and repeat functions (Repeat 1, All)
- 2 rear microphone inputs (6.3 mm jack, unbalanced)
- 1 microphone input on the front panel (combination XLR/6.3 mm jack, unbalanced) with adjustable priority function
- All microphone inputs with separate volume controls
- 3 line inputs (stereo cinch) with separate volume controls
- 1 line output (stereo cinch)
- Chime, switchable
- Treble and bass sound control for output signal
- 7-fold LED-level display
- Master controller for the output signal
- Fan cooled
- Protective circuits with LED display: Overvoltage, short circuit, switch-on delay
- Rack installation, angle removable
