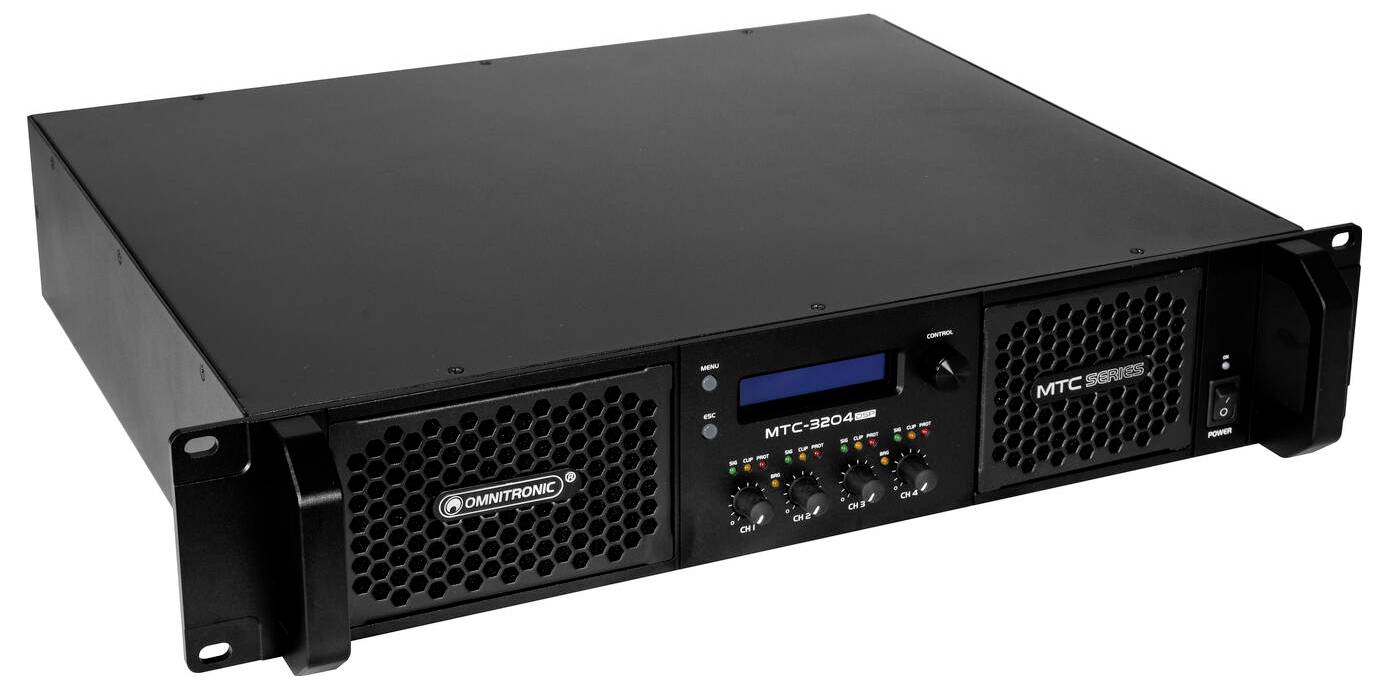

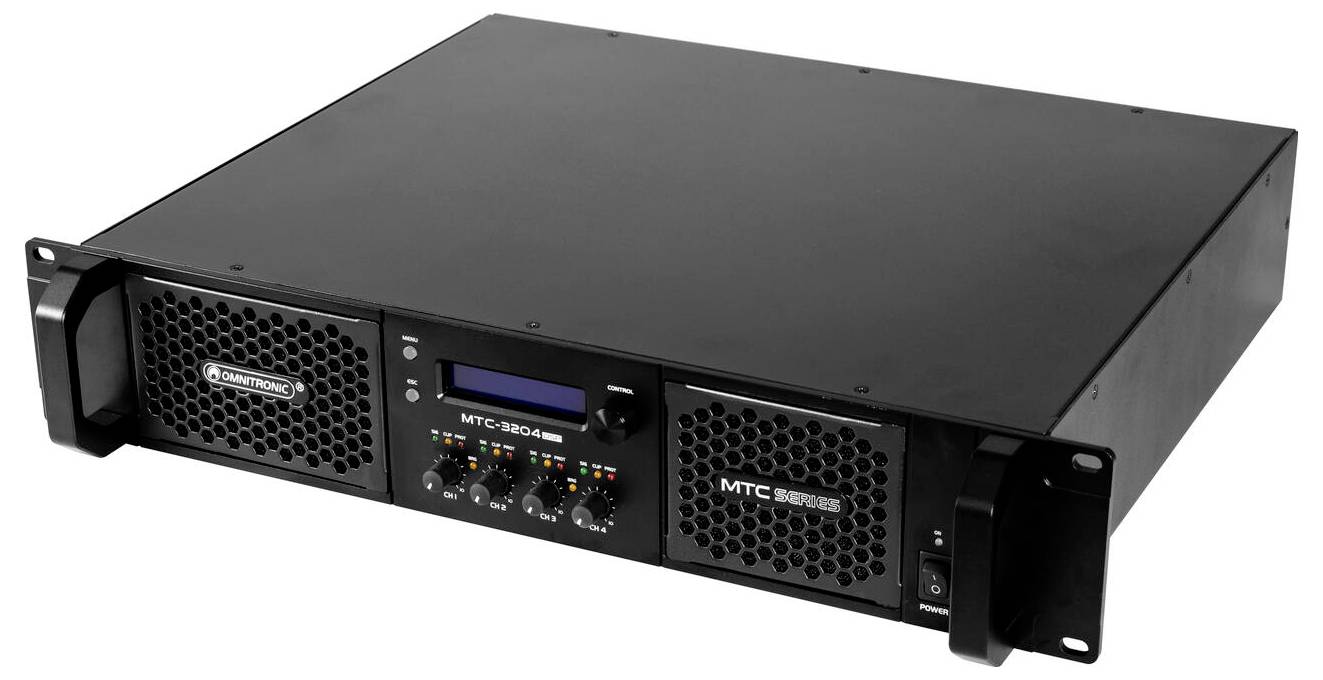

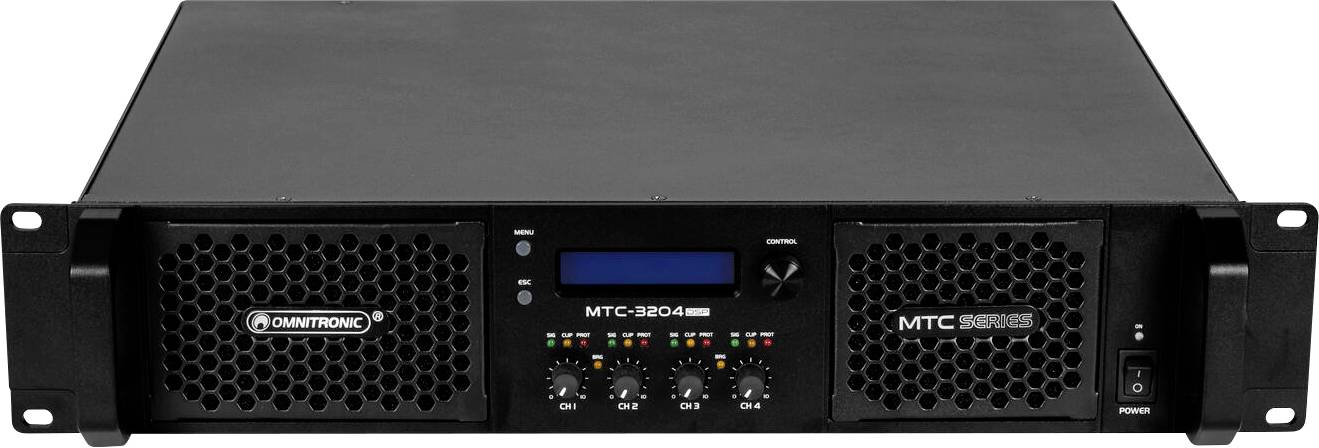

Omnitronic MTC-3204DSP PA amplifier RMS power per channel (at 4 Ohm): 800 W
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected wattage 600 W 1/8 Power
- Protection class SK I
- Output power:4 x 800 W RMS (4 ohm); 4 x 400 W RMS (8 ohm); 2 x 1500 W RMS bridged (8 ohm); 4 x 200 W RMS (100 V); 2 x 1500 W RMS bridged (100 V)
- Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
- Cable length 1.2 m removable
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 119 dB
- Distortion factor: Less than 0.05 % at 1 kHz
- Network connection: Protocol: Ethernet TCP/IP via 2x RJ-45 (W) mounting version
- DSP: Digital signal processor FIR Filter
- Cooling: 1 x fans temperature-controlled, air flow front to rear
- Impedance: Input: 20 kOhm, balanced; Input: 10 kOhm, unbalanced
- Gain 28.2 dB; bridged 34.2 dB
- Filter: Linkwitz-Riley; Butterworth; Bessel; 6db/Oct; 12db/Oct; 18db/Oct; 24db/Oct; 48db/Oct
- Delay: Input 0 - 10 ms; output 0 - 10 ms
- Housing colour black.
- Sampling rate 96 kHz
- Class D switching
- Attenuation factor 350
- LCD display type

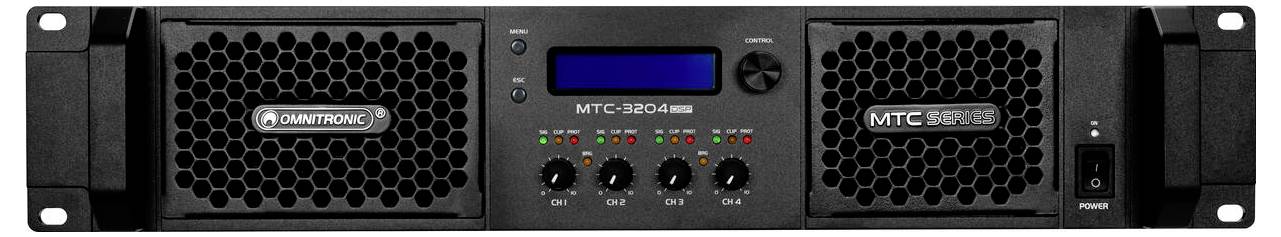

- Controls: Power switch, encoder, volume control per channel, power selector switch (stereo / bridge / 100V), menu
- Protective circuit: Soft start, overheating, overload, short circuit, DC voltage
- Status LED: Power, signal, clip, bridged, protect

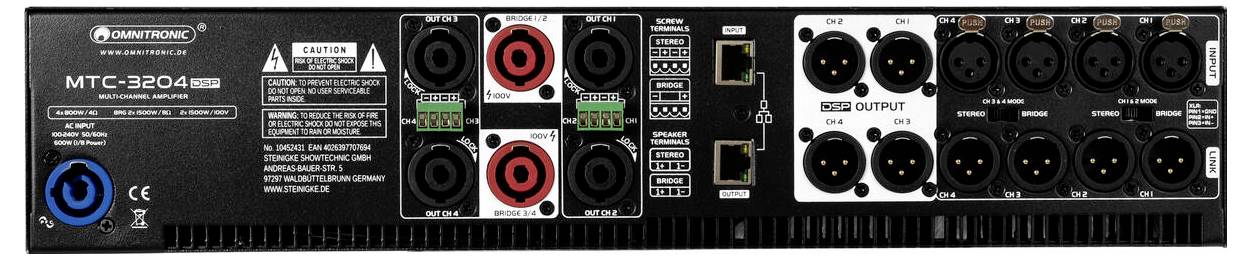

- Connections:
- Input: Line via 4 x 3-pin XLR;
- Link: Line via 4 x 3-pin XLR;
- Output:DSP via 4 x 3-pin XLR (W) installtion version;
- Output: Speaker via screw terminals; output: 4 x speaker mounted sockets (W);
- Speaker (bridge) via 2 x speaker mounted sockets (W); 2 x RJ-45 (W) installed version
- PC connect: DXO software via RJ-45 (W) mounting version, firmware can be updated
- Housing design (19") 48.3 cm Rack installation 2 HE
- Dimensions: Width: 48.3 cm; depth: 40.8 cm; height: 8.8 cm
- Operating system: Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better
- Product type
PA amplifier
- Power per channel (4Ω)
800 W
- Power per channel (8Ω)
400 W
- Max. frequency
20000 Hz
- Min. frequency
20 Hz
- Interfaces
XLR out
XLR in
- Weight
7600 g
- Width
483 mm
- Height
88 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729546 Omnitronic MTC-3204DSP PA amplifier RMS power per channel (at 4 Ohm): 800 W
Description
4-channel PA amplifier with DSP & switched-mode power supply, 4 x 800 W, 4 x 400 W. Efficient Class-D technology. The integrated Ethernet interface enables the linking in a network and a communication in real-time. With the intelligent software you can control the device comfortably from computer. Presets can be saved, transferred and managed easily. Up to 100 user presets can be saved via software in the device. Sampling rate 96 kHz 2 modes can be set (stereo or bridge/100V). Very low weight and compact installation height through built-in switched-mode power supply. Level control per channel. Parametric 10-band equalizer per input and output. Selectable filter types per equalizer: Bell, High Shelf, Low Shelf, Notch, Allpass, Band pass, high pass, low pass Additionally up to 48 dB/octave in the outputs with Linkwitz-Riley filter. Output Limiter with adjustable limits and automatic attack and release settings for the overload protection of your PA system. 2 Ethernet interfaces for easy wiring. (19") 48.3 cm rack installation 2 HE. Digital signal processor FIR filter. Highly efficient air flow front to rear. The device is cooled by a temperature controlled fan. LCD display The device can be connected to the PC via RJ-45 (W) installation version, in connection with DXO software. Firmware can be updated. Compatible with Win XP, Win Vista, Win 7, Win 10, OS X 10.5 or better. For application areas such as: Clubs/dance schools; installation; mobile use; mobile DJ's/solo entertainer; restaurants, bars and hotels; distributors; sports centers/fitness studios.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x amplifier
- 1 x Power cable/power cable
- 1 x Operating manual
