Buy Omnitronic MTC-4806 PA amplifier RMS power per channel (at 4 Ohm): 800 W

1/5

Unavailable

Sales and shipping:

Highlights & Details

Class D multi-channel PA-amplifier with switched-mode power supply
6 x 800 W RMS (4 ohm), 6 x 400 W RMS (8 ohm)
Very low weight and compact installation height through built-in switched-mode power supply
2 modes can be set (stereo or bridge/100V)
This text is machine translated.

User & Safety Instructions 3131320 Omnitronic MTC-4806 PA amplifier RMS power per channel (at 4 Ohm): 800 W

Level control per channel
(19") 48.3 cm rack installation 2 HE
Highly efficient air flow front to rear
The device is cooled by a temperature controlled fan
Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected wattage 900 W 1/8 Power
Power connection: Power feed via P-Con (blue), installation version power connection cable with safety plug (included)
Frequency range: 20 - 20 000 Hz
Signal-to-noise ratio 119 dB
Harmonic distortion factor: 0.05 % with 1 kHz
Impedance: 20 kOhm , balanced
Input: 10 kOhm , unbalanced
Gain 28.2 dB
Controls: Power switch, volume control per channel, power selection switch (stereo/bridge)
Status LED: Power, signal, clip, bridged, protect

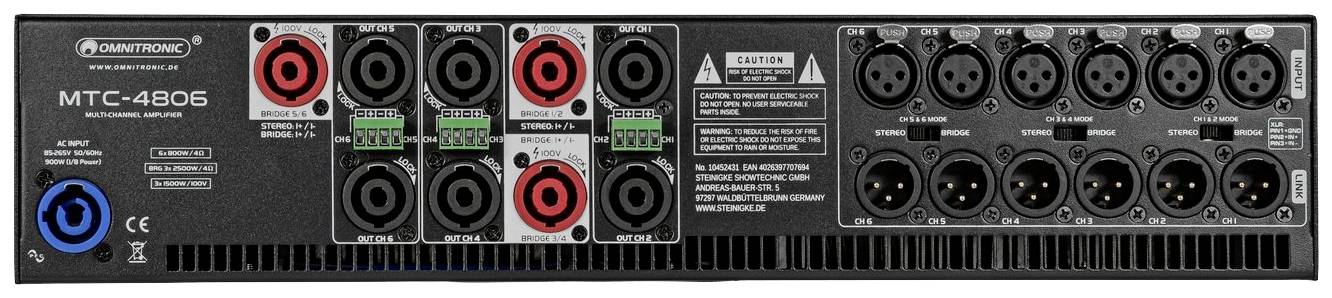

Connections: Line via 6 x 3-pin XLR
6 x mounted speaker jack (W)
Housing design (19") 48.3 cm Rack installation 2 HE
Protection class SK I
Output power 6 x 800 W RMS (4 ohm)
Cable length 1 m removable
Device fuse: 5 x 20 mm, T 10 A fuse installed permanently (e.g. on circuit board)
Cooling: 2 x fans temperature controlled , air flow front to rear
Housing colour black.
Class D switching
Attenuation factor 350
Protective circuit: Soft start
DC voltage: DC voltage
Short circuit: Short circuit
Overheating: Overheating
Overload: Overload
Link: Line via 6 x 3-pin XLR
6 x 400 W RMS (8 ohm)
Bridged (8 ohm)
3 x 1500 RMS
6 X 200 W RMS (100 V)
3 x 1500 W RMS bridged (100 V)
Bridged 34.2 dB
