Omnitronic OD-2T PA speaker cabinet 15 W White 1 Pair
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Nominal load capacity: 15 W RMS
- Load-carrying capacity progra mm: 30 W
- Speakers: 6 cm (2.5")
- Connection: Federkle softly
- Sensitivity: 88 dB (1 W, 1 m)
- Max. Sound pressure: 92 dB (1 m)
- Frequency range 150 Hz - 22 kHz
- Angle of radiation 60° x 60° (HxV):
- Dimensions (H x W x D): 111 x 87 x 90 mm
- Weight (pieces): 0.5 kg (incl. mounting plate)
- Shipping weight: 1.460 kg
- Product type
PA speaker cabinet
- Operating voltage
100 V
- RMS capacity
15 W
- Max. load
30 W
- Max. sound pressure
92 dB
- Material
Plastic
- Length
11.1 cm
- Width
8.7 cm
- Content
1 Pair
- Weight
500 g
- Factory colour
White
Documents & Downloads
Datasheet
Datasheet 1375519 Omnitronic OD-2T PA speaker cabinet 15 W White 1 Pair
User & Safety Instructions
User & Safety Instructions 1375519 Omnitronic OD-2T PA speaker cabinet 15 W White 1 Pair
Description
Features
- Universal wall loudspeaker pair
- 100-V PA speakers for universal use.
- 1-way system with 30 W power and 100V transformer
- 6 cm wide-band speaker (2.5")
- Attractive ABS-plastic casing with metal grille (impact-resistant and scratch-resistant)
- Stable mounting plate with rotary and swivel joint allows the wall and ceiling mounting in different angles

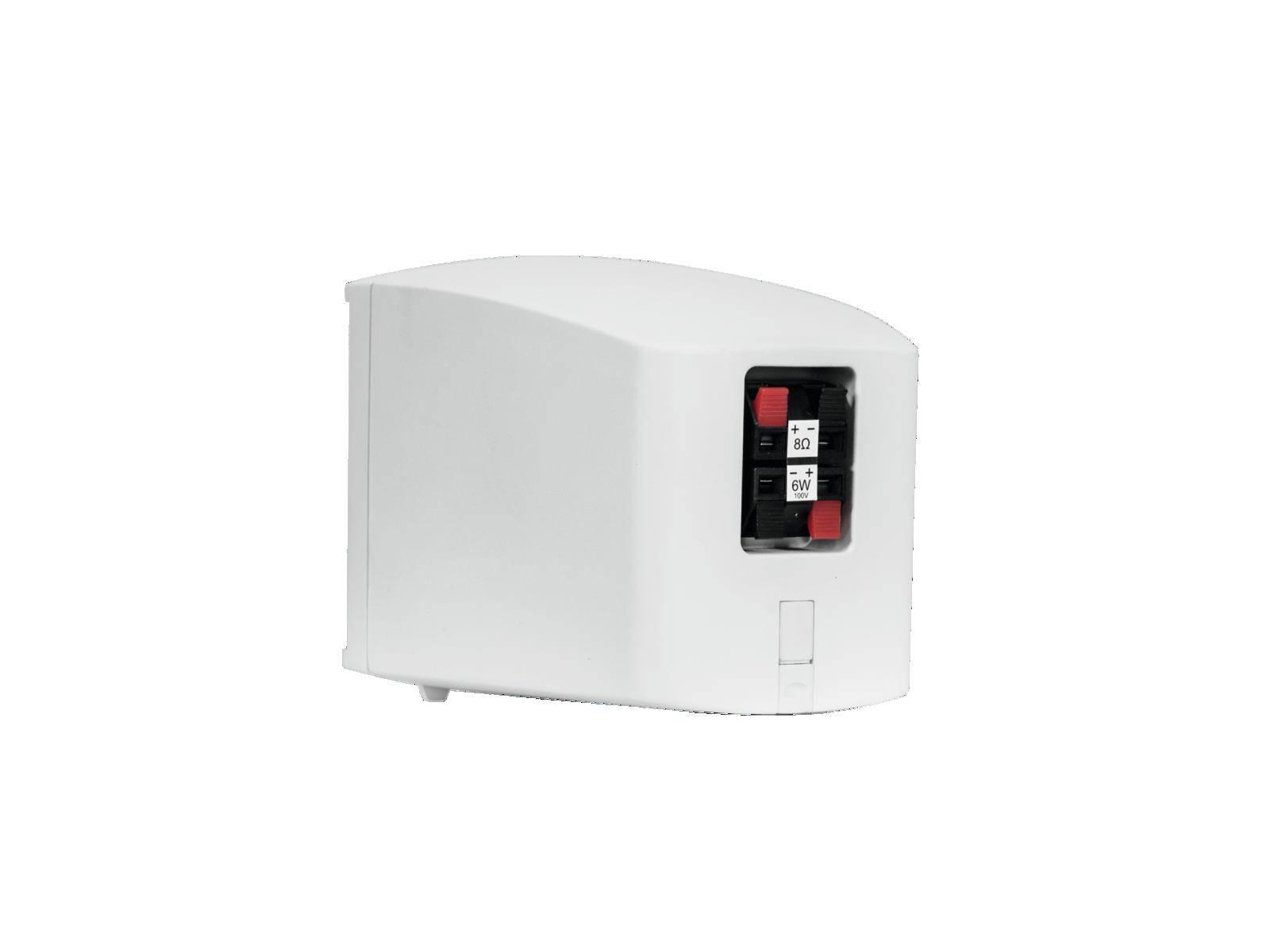

- Spring-loaded terminals
- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
- This text is machine translated.
