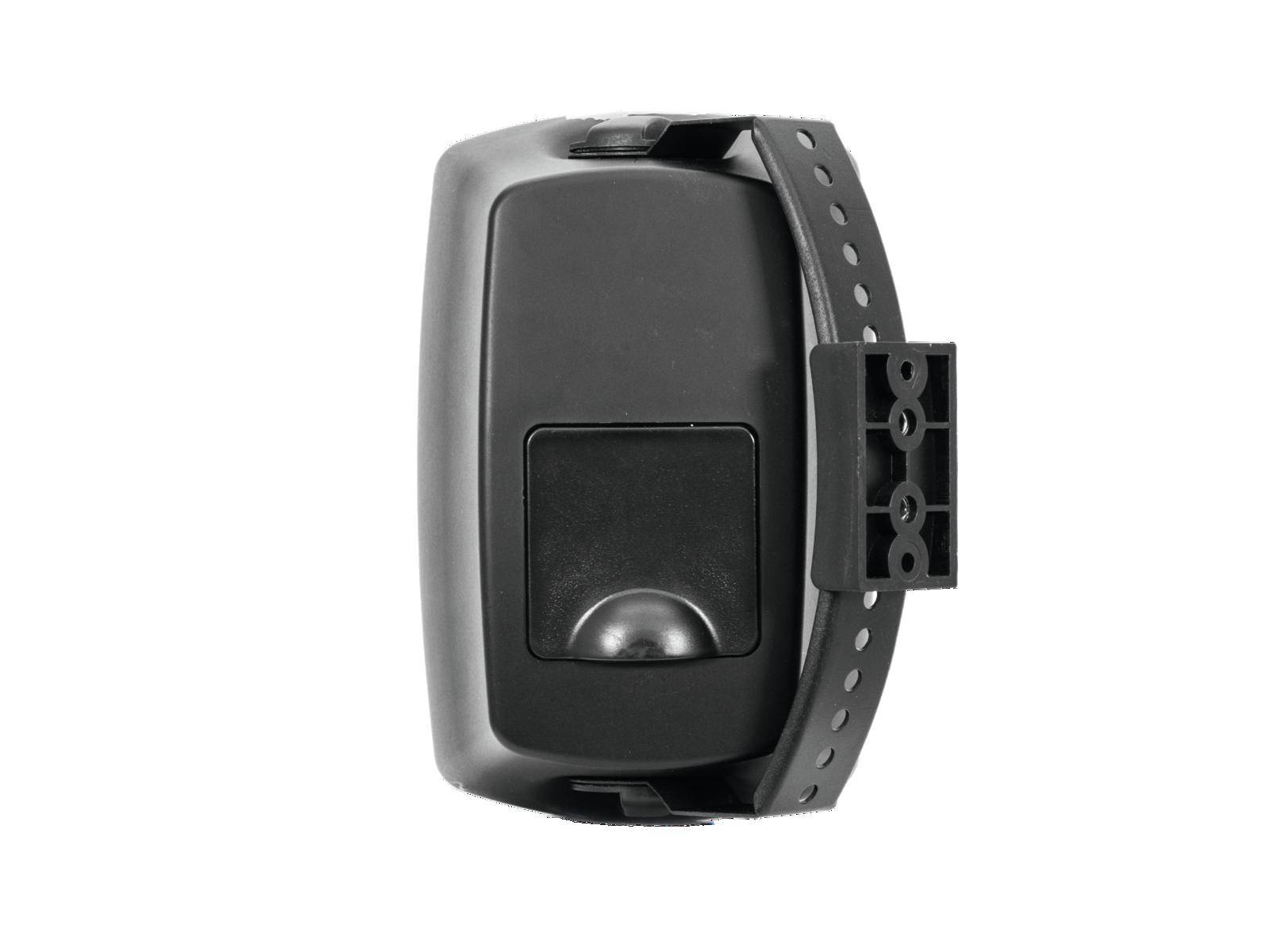

Omnitronic OD-4 Wall speaker 60 W Black 1 Pair
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
OMNITRONIC OD-4 Wall Loudspeaker 8 Ohm black 2 x
- Weather-proof wall loudspeaker pair
- 8-Ohm-Beschallungsboxen with very good sound for universal use
- Also 100V versions T": 100-V transformer with 4 power taps (2W, 4W, 8W and 16 W)
- 2-way system with 10 cm (4") woofer and 1.5 cm tweeter (0.5")
- Weatherproof (IP65) plastic casing with metal grille and cover over the connections
- Pan and swivel mounting bracket for wall and ceiling mounting in different angles
- This text is machine translated.
Technical specifications
- Nominal load capacity: 30 W RMS
- Load-carrying capacity progra mm: 60 W
- Components: 10 cm woofer, 1.5 cm (4") Horn (0.5")
- Connections: Schraubkle softly
- Sensitivity: 88 dB (1 W, 1 m)
- Max. Sound pressure: 91 dB (1 m)
- Impedance 8 Ohm
- Frequency range 100 Hz - 20 kHz
- Beam angle (HxV): 170° x 170°
- Dimensions (L x W x H): 125 x 125 x 195 mm
- Weight (pieces): 1.3 kg (incl. bracket)
- Shipping weight: 3.065 kg
- Product type
Wall speaker
- RMS capacity
30 W
- Max. load
60 W
- Power levels
2 W. 4 W. 8 W und 16 W W
- Max. sound pressure
91 dB
- Features
weatherproof
- Operating voltage
100 V
- Factory colour
Black
- Material
Plastic
- Weight
1.3 kg
- Length
125 mm
Documents & Downloads
Datasheet
Datasheet 1375524 Omnitronic OD-4 Wall speaker 60 W Black 1 Pair
User & Safety Instructions
User & Safety Instructions 1375524 Omnitronic OD-4 Wall speaker 60 W Black 1 Pair
Information
Information 1375524 Omnitronic OD-4 Wall speaker 60 W Black 1 Pair
Description
Features
- Weather-proof wall loudspeaker pair
- 8-Ohm-Beschallungsboxen with very good sound for universal use
- 2-way system with 10 cm (4") woofer and 1.5 cm tweeter (0.5")
- Weatherproof (IP65) plastic casing with metal grille and cover over the connections
- Pan and swivel mounting bracket for wall and ceiling mounting in different angles

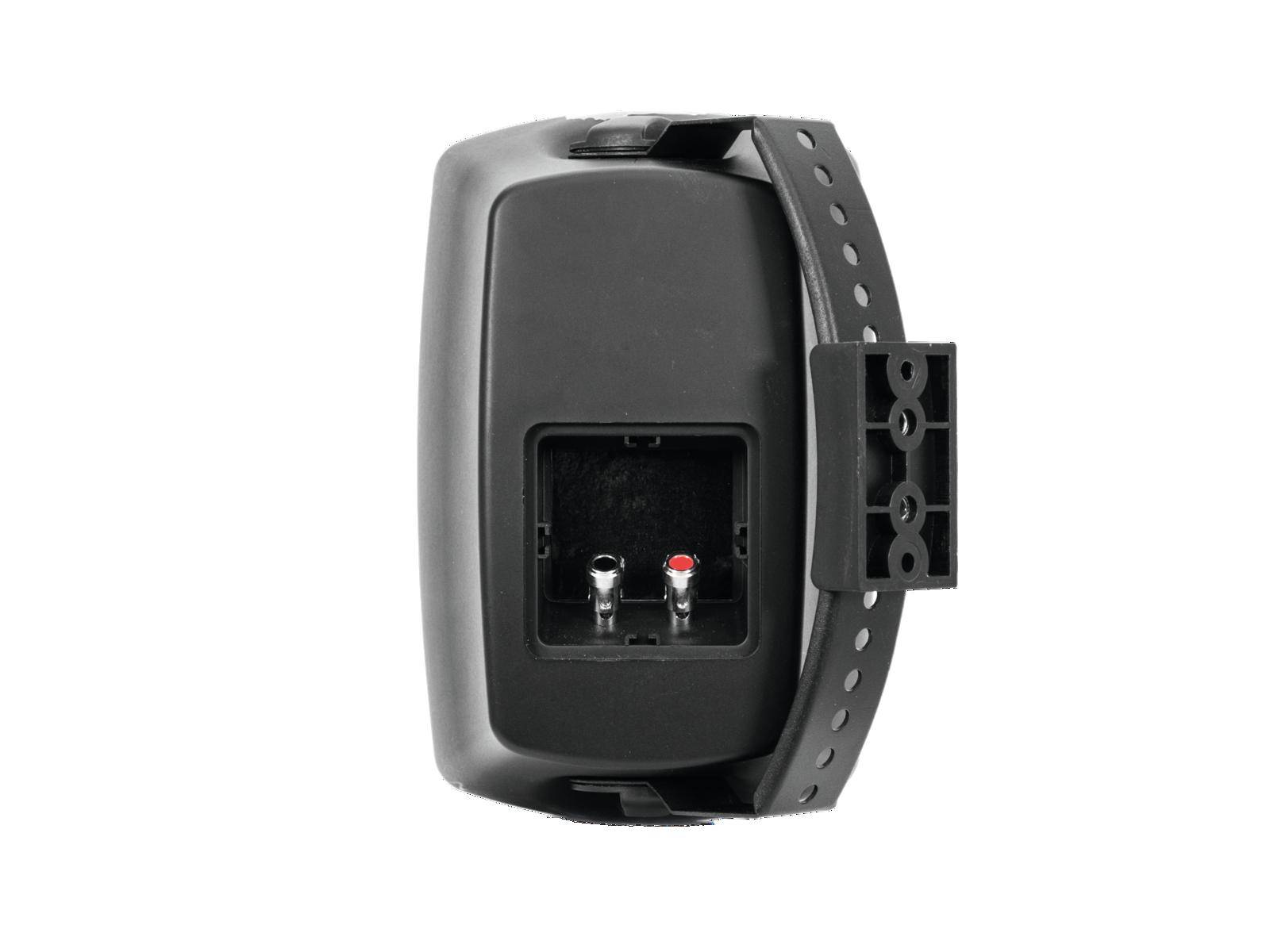

- Connection via screw terminals
- Packed in pairs
- For sound systems in indoor and outdoor areas.
