Omnitronic OD-5T PA speaker cabinet 16 W White 1 Pair
EAN:
Part number:
Item no:
Technical specifications
- Connection: 100 V or 8 Ohm
- Components: 13.5 cm Woofer (5.25"), 1.5 cm (0.5") Horn
- Connections: Schraubkle softly
- Power Rating: 2/4/8/16 W RMS
- Sensitivity: 89 dB (1 W, 1 m)
- Max. Sound pressure: 92 dB (1 m)
- Frequency range 80 Hz - 20 kHz
- Beam angle (HxV): 170° x 170°
- Dimensions (L x W x H): 163 x 160 x 255 mm
- Weight (pieces): 2.2 kg (incl. bracket)
- Shipping weight: 5,800 kg
- Product type
PA speaker cabinet
- Operating voltage
100 V
- RMS capacity
16 W
- Max. load
32 W
- Impedance
8 Ω
- Max. sound pressure
92 dB
- Features
2-way
weatherproof
IP65
- Material
Plastic
- Length
25.5 cm
- Width
16 cm
- Content
1 Pair
- Weight
2.2 kg
- Factory colour
White
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1375531 Omnitronic OD-5T PA speaker cabinet 16 W White 1 Pair
Information
Information 1375531 Omnitronic OD-5T PA speaker cabinet 16 W White 1 Pair
Description
Features
- Weather-proof wall loudspeaker pair
- 100-V PA speakers with very good sound for universal use
- 2-way system with 13.5 cm woofer (5.25") and 1.5 cm tweeter (0.5")

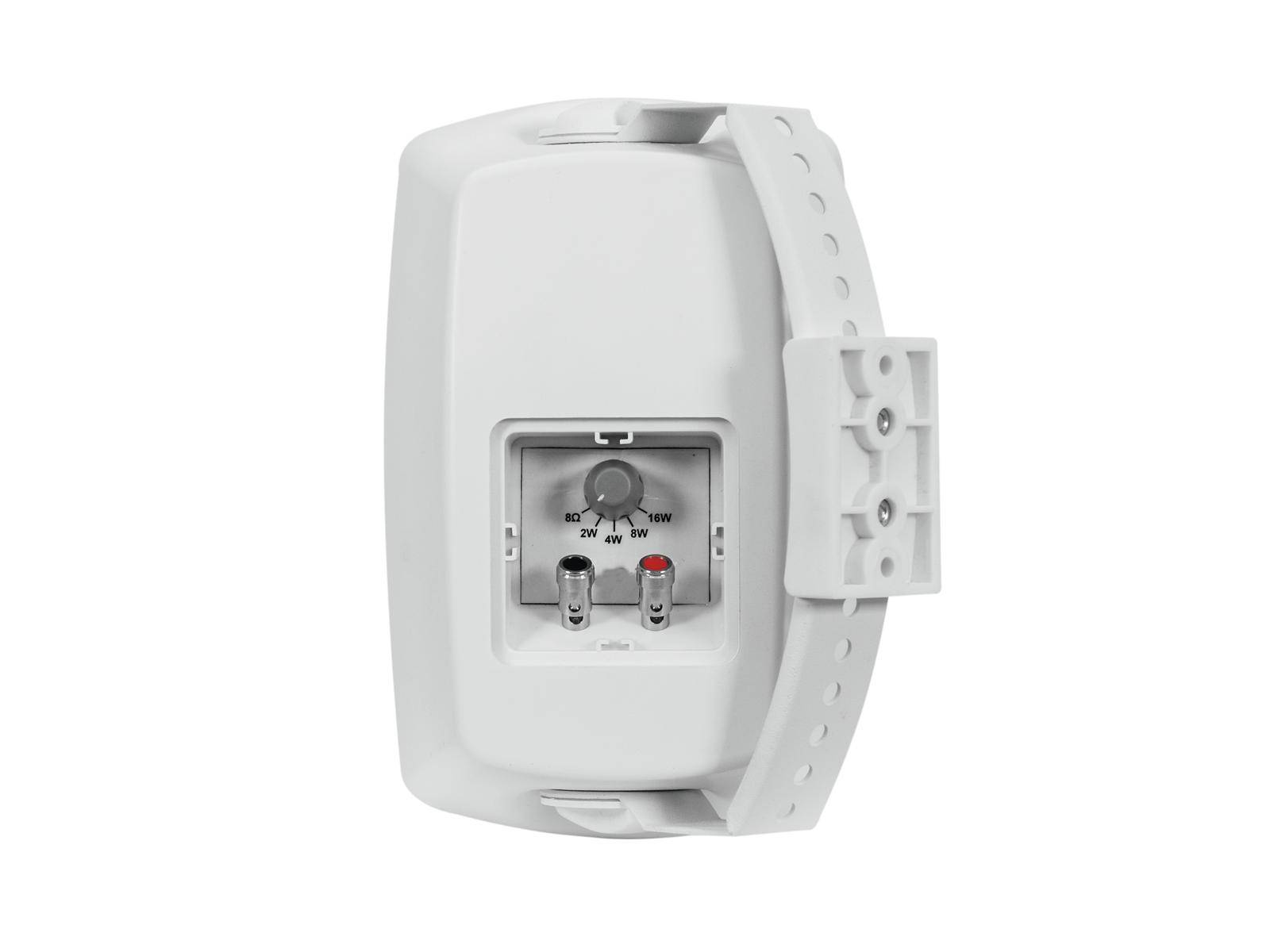

- Weatherproof (IP65) plastic casing with metal grille and cover over the connections
- 100-V transformer with 4 power taps (2W, 4W, 8W and 16 W)
- Power changeover switch with 8-Ohm-Betriebsstellung
- Pan and swivel mounting bracket for wall and ceiling mounting in different angles
- Connection via screw terminals
- Packed in pairs
- For sound systems in indoor and outdoor areas.
- This text is machine translated.
