Omnitronic OD-8 Wall-mounted speaker Black 120 W 30 Hz - 20000 Hz 2 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

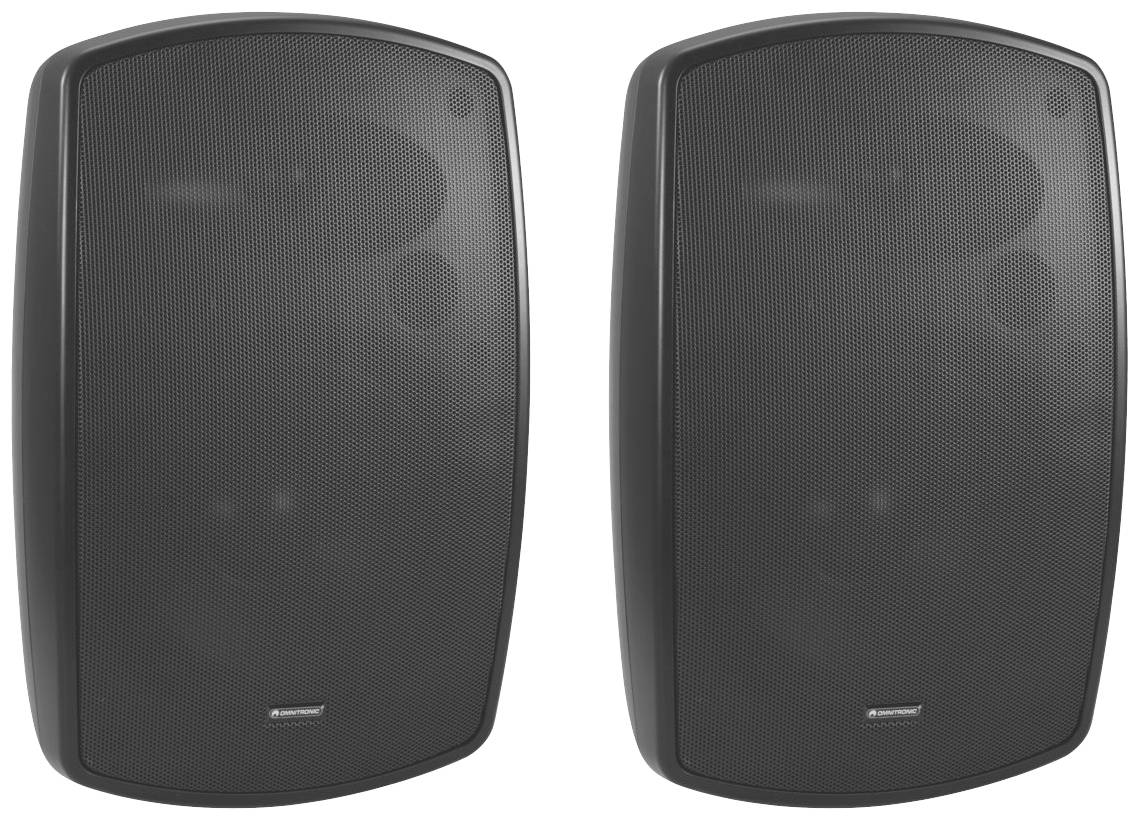

Omnitronic OD-8 wall speaker 8Ohm black 2x
- 2 weatherproof speakers with bracket
- 8" woofer, 1" tweeter, 50 W RMS
- 8 Ohm PA loudspeaker for universal use
Technical specifications
- Content
2 pc(s)
- Max. audio capacity
120 W
- Power handling (sinus)
60 W
- Min. frequency
30 Hz
- Max. frequency
20000 Hz
- Frequency range
30 Hz - 20000 Hz
- Impedance
8
- SPL
112
- Factory colour
Black
- Width
245 mm
- Height
380 mm
- Depth
240 mm
- Weight
9.1 kg
- Dim
(W x H x D) 245 x 380 x 240 mm
- Audio power range (max.)
101 W - 200 W
- Features
sprayproof
- Product type
Wall-mounted speaker
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131322 Omnitronic OD-8 Wall-mounted speaker Black 120 W 30 Hz - 20000 Hz 2 pc(s)
Description
2-way system with 20 cm woofer (8") and 2.5 cm dome tweeter (1") with silk diaphragm
Stable plastic housing with metal grille and cover over the connections
With mounting bracket swiveling and tilting for wall and ceiling mounting at any angle
Suitable for outdoor areas IP65
Set of 2
This text is machine translated.
Stable plastic housing with metal grille and cover over the connections
With mounting bracket swiveling and tilting for wall and ceiling mounting at any angle
Suitable for outdoor areas IP65
Set of 2
This text is machine translated.
Features
- Frequency range 30 20000 Hz
- Impedance 8 Ohm

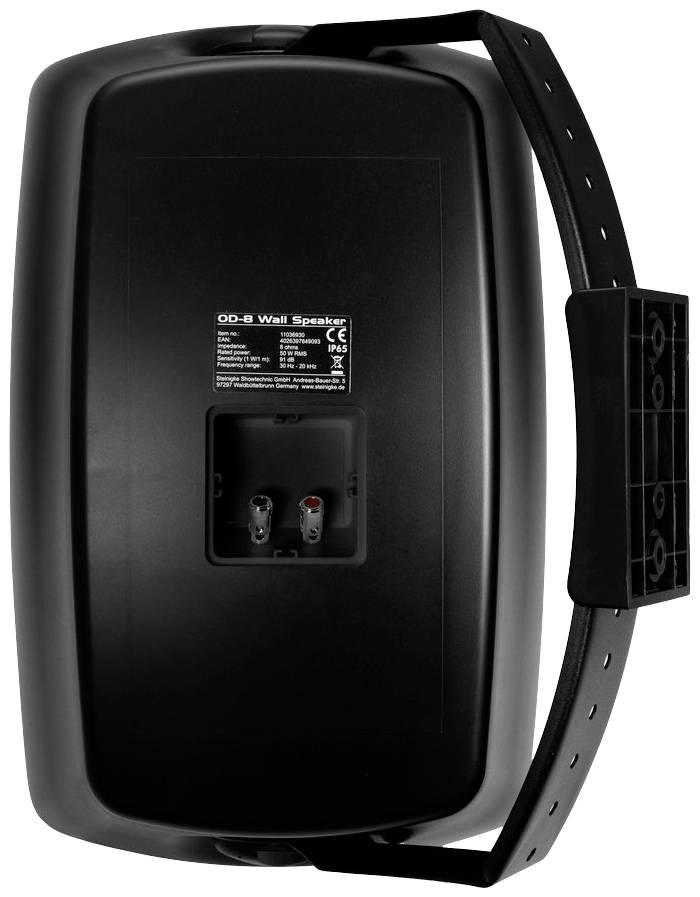

- Connections: Speaker via screw terminal
- Protection system: IP65
- Load carrying capacity: 120W
- Nominal 60W RMS
- Sensitivity 91 dB
- Max. Sound pressure level 112 dB
- Emission ratio 170° x 170°

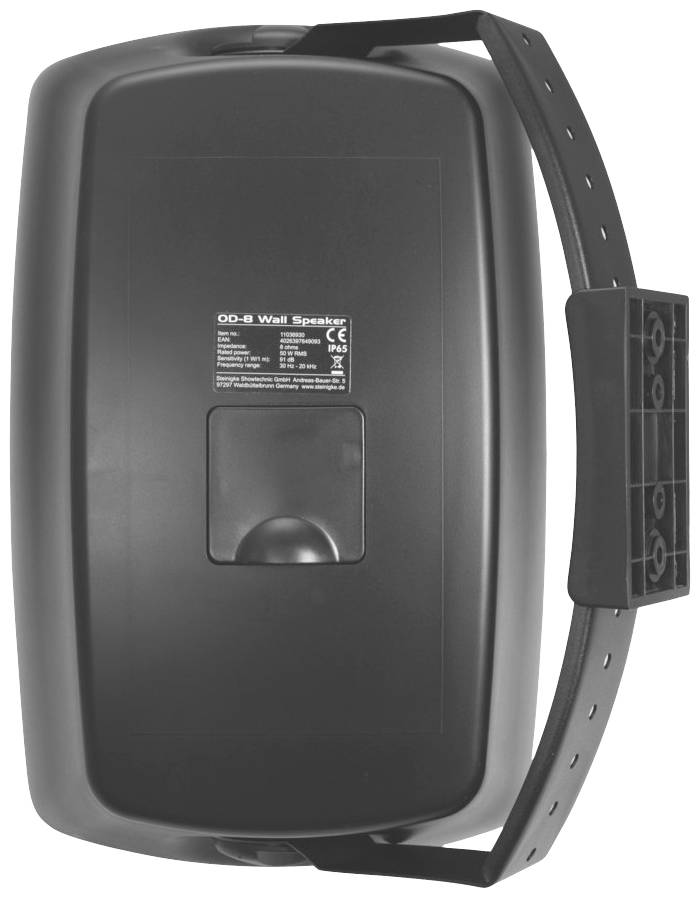

- Mounting system: Swivel and tilt mounting bracket for wall and ceiling mounting at any angle
- 1 x 8" woofer
- 1 1" dome tweeter 1 x 1" dome tweeter
- Speaker type: Surface-mount speaker (wall/ceiling)
- Material: plastic
Scope of delivery
- 2 x compact box
- 2 x mounting bracket
- 4 x Knurled screw
- User manual
