Omnitronic ODC-244T 2-way coaxial speaker assembly kit 4 inch 120 W 1 pc(s)

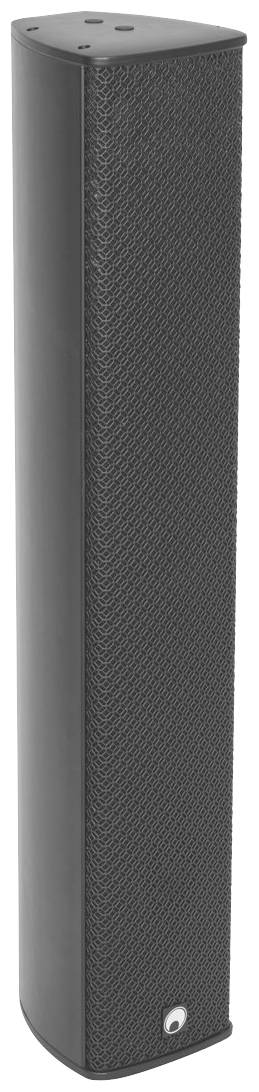

A black, slim speaker with a rectangular shape; suitable for use in entertainment systems or presentations.

A black, slim speaker with a rectangular shape; suitable for use in entertainment systems or presentations.

Speaker enclosure in black with indicators for 'High', 'Low' and 'Power-On', a connection and specific model numbers.

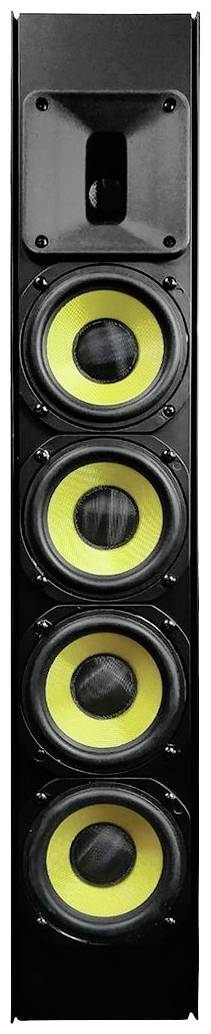

Speakers with a vertical arrangement of four yellow subwoofers in a black enclosure, with a small tweeter on top.

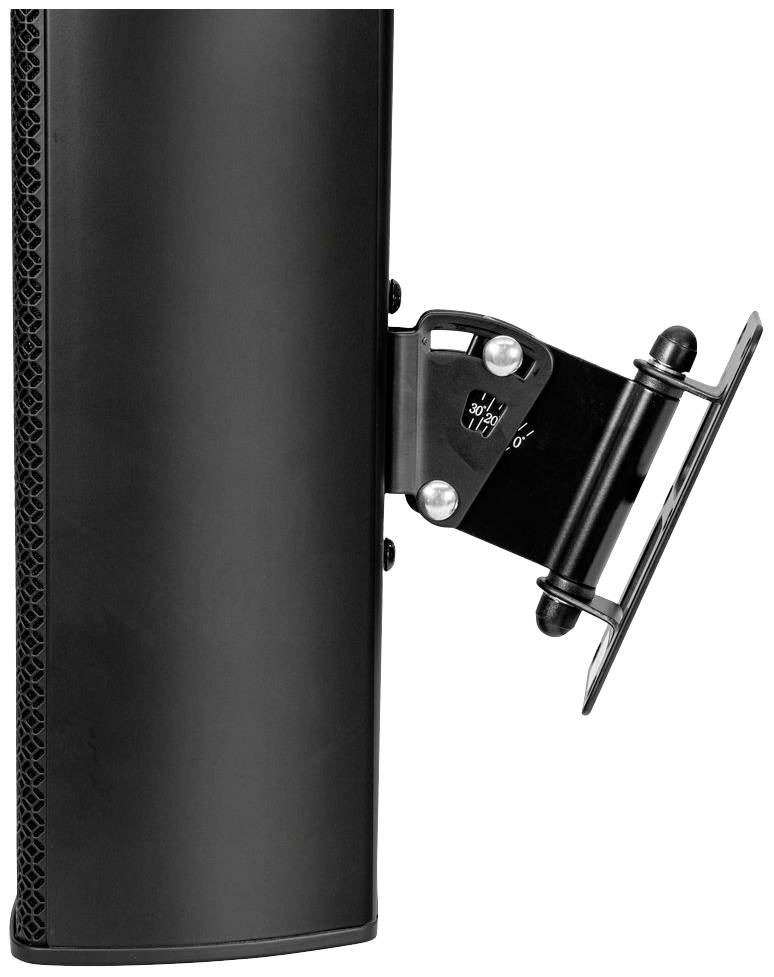

Black vertical speaker system with a side mounting bracket that can be used for wall attachment.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Omnitronic ODC-244T outdoor column loudspeaker black

Weather-proof sound column in aluminum profile housing (4 x 4"), with holder, 130 W RMS
Excellent voice clarity and music playback
This text is machine translated.

Technical specifications

Product type: 2-way coaxial speaker assembly kit

RMS power: 120 W

Max. power: 260 W

Speaker size (cm): 100 cm

Speaker size (inch): 4 inch

Max. sound pressure: 121 dB

Dim: (L x W x H) 12.7 x 14.4 x 74 cm

Frequency range: 120 - 18000 Hz

Weight: 10.5 kg

Content: 1 pc(s)

Width: 14.4 cm

Height: 74 cm

Factory colour: Black

Length: 12.7 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3131328 Omnitronic ODC-244T 2-way coaxial speaker assembly kit 4 inch 120 W 1 pc(s)

Features

2-way system with 4 x 10 cm mid-range speaker (4")
Stable aluminum casing with protective grille
Power switch with 8 Ohm operating position
With mounting bracket
Suitable for outdoor IP56
Aluminium grid in black with acoustic foam
Frequency range 120 18000 Hz
Impedance 8 Ohm
Connections: 2-pin screw connector (M) installation version IP
Separation frequency 1900 Hz
Protection class: IP56
Load carrying capacity: 260W
NOMINAL: 120W RMS (100V ELA)
Sensitivity 94 dB (1W/1m)
Max. Sound pressure level 121 dB
Emission ratio 100° x 50°
Supporting system: Mounting bracket
4 x 4" woofer with ferrite magnet
Speaker type: Column loudspeaker
Material: Aluminium
Power tapping: 30W
PA system 100V
Basket material: Aluminium
1" moving coil woofer
Diaphragm material: Mylar
1 x 1" compression driver tweeter with ferrite magnet
1.4" moving coil compression driver - high tone
Type: Closed box
120W RMS can be selected via selector switch

Scope of delivery

Top section
2 x angle
Connector
10 x washers
4 x Screws
User manual

Description

Features

2-way system with 4 x 10 cm mid-range speaker (4")
Stable aluminum casing with protective grille
Power switch with 8 Ohm operating position
With mounting bracket
Suitable for outdoor IP56
Aluminium grid in black with acoustic foam
Frequency range 120 18000 Hz
Impedance 8 Ohm
Connections: 2-pin screw connector (M) installation version IP
Separation frequency 1900 Hz
Protection class: IP56
Load carrying capacity: 260W
NOMINAL: 120W RMS (100V ELA)
Sensitivity 94 dB (1W/1m)
Max. Sound pressure level 121 dB
Emission ratio 100° x 50°
Supporting system: Mounting bracket
4 x 4" woofer with ferrite magnet
Speaker type: Column loudspeaker
Material: Aluminium
Power tapping: 30W
PA system 100V
Basket material: Aluminium
1" moving coil woofer
Diaphragm material: Mylar
1 x 1" compression driver tweeter with ferrite magnet
1.4" moving coil compression driver - high tone
Type: Closed box
120W RMS can be selected via selector switch

Scope of delivery

Top section
2 x angle
Connector
10 x washers
4 x Screws
User manual
