Omnitronic ODP-204 Wall speaker 80 W 16 Ω Black 1 Pair
EAN:
Part number:
Item no:
Highlights & Details
ODP-204 Installation Loudspeaker 16 Ohm black 2x
- 2 weather-proof 4"-wall loudspeaker with bracket
- Load carrying capacity 40 W RMS
- 16-Ohm-Beschallungsbox with very good sound for universal use
Technical specifications
- Nominal load capacity: 40 W RMS load program: 80 W components: 10 cm woofer (4"), 2 cm dome tweeter (0.8") Connection: screw terminals sensitivity: 88 dB maximum acoustic pressure: 103 dB range: 120° x 90° dimensions (L x W x H): 170 x 141 x 230 mm protection class IP 54 Weight: 5.1 kg size of the low toner: 10 cm (4") Frequency range 75 - 20000 Hz Height: 23 cm depth: 17 cm Width: 14.1 cm
- Product type
Wall speaker
- Type
Ovoid
- RMS capacity
40 W
- Max. load
80 W
- Impedance
16 Ω
- Max. sound pressure
88 dB
- Features
weatherproof
2-way
IP54
- Frequency range
75 - 20000 Hz
- Factory colour
Black
- Material
Plastic
- Weight
5.1 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875793 Omnitronic ODP-204 Wall speaker 80 W 16 Ω Black 1 Pair
Description
ODP-204 Installation Loudspeaker 16 Ohm black 2x.
This text is machine translated.
This text is machine translated.
Features

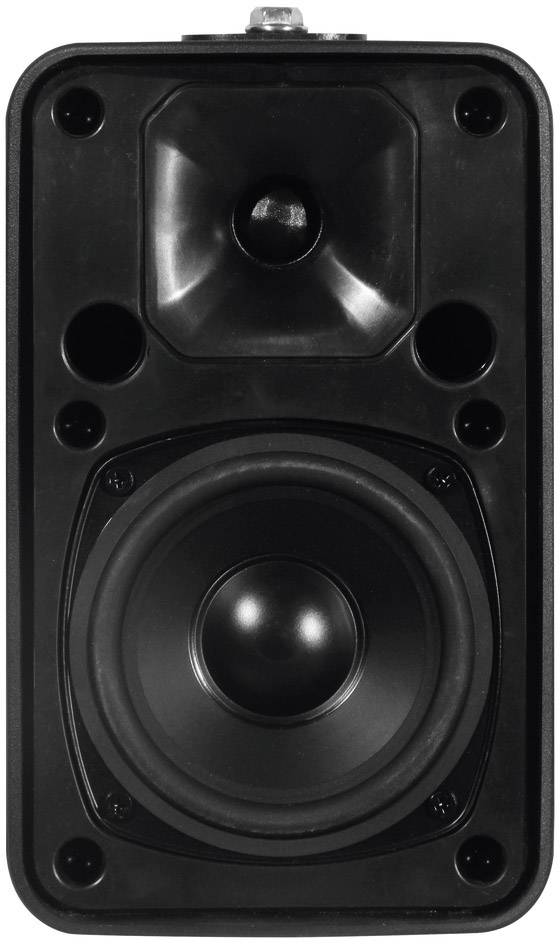

- 2-way system with 10 cm woofer (4") and a 2-cm dome tweeter (0.8")
- Weatherproof plastic housing (IP54)

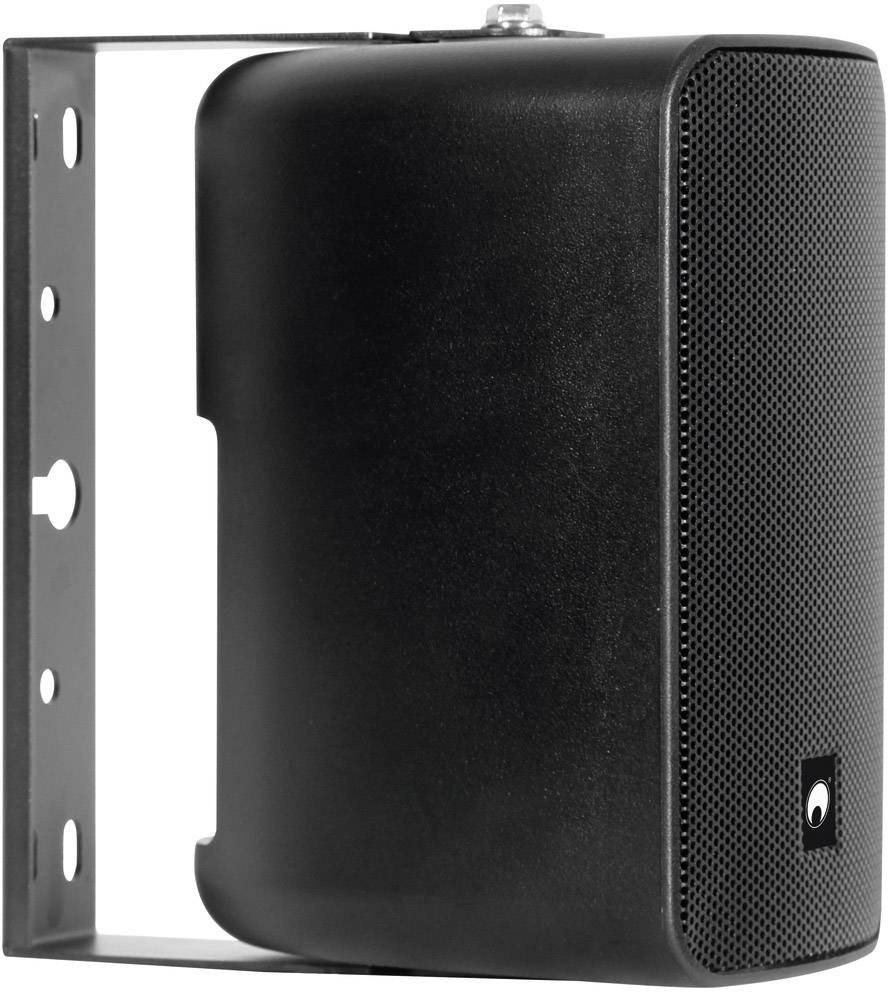

- Swivelling Mounting Bracket
- Swivel and neigbarere wall holder available as accessories

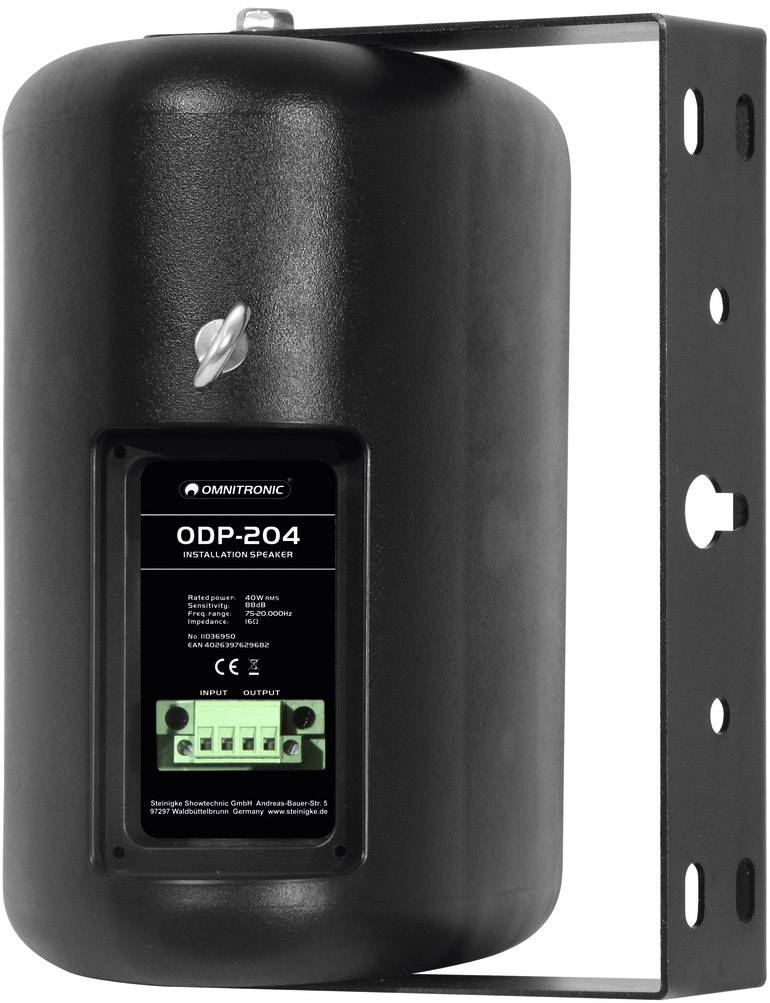

- Screw terminals for easy connection

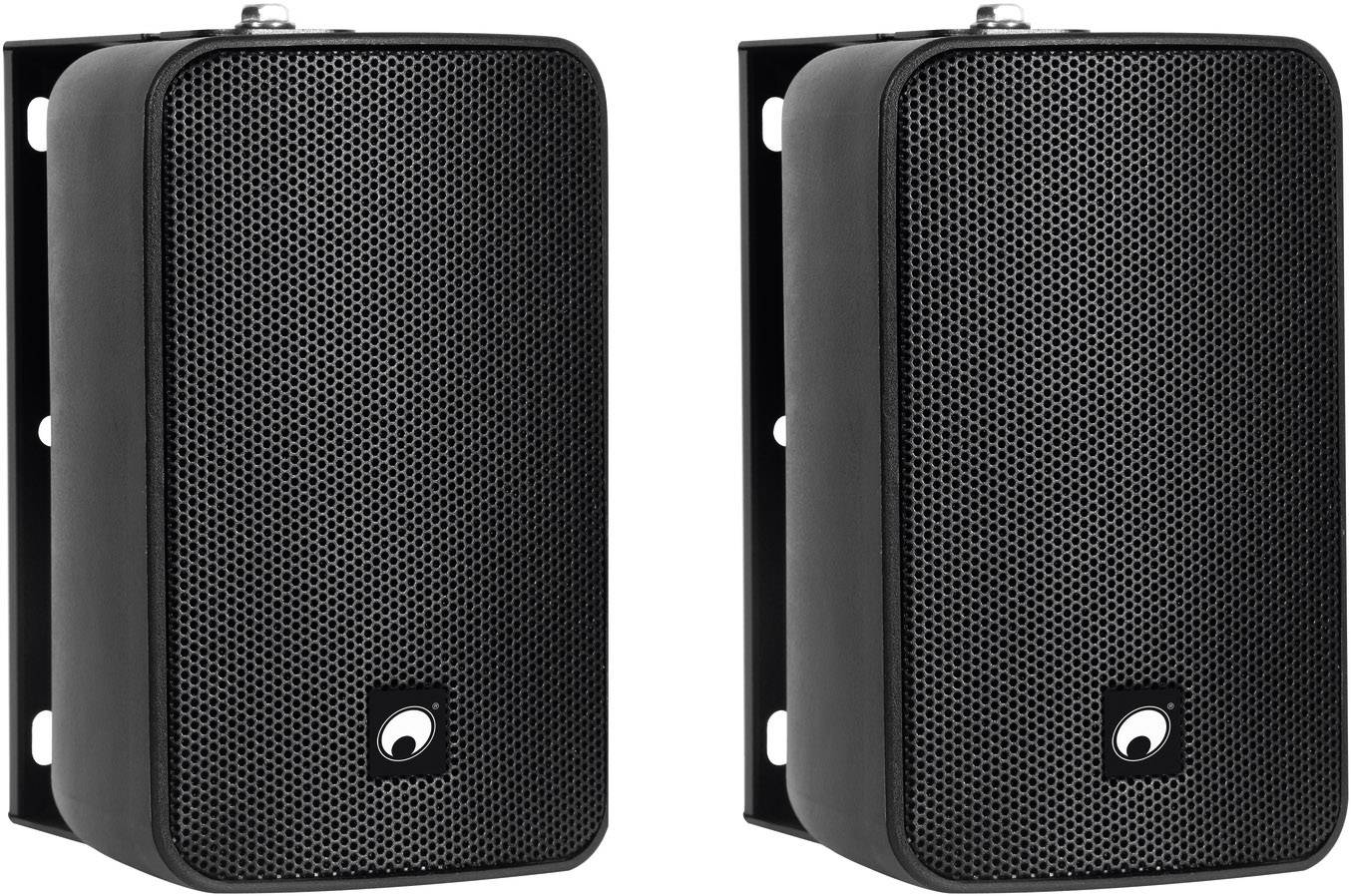

- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
