1/5
Omnitronic ODP-204T PA wall speaker 10 W White 1 Pair
EAN:
Part number:
Item no:
Highlights & Details
ODP-204 T installation loudspeaker 100 V WHITE 2x
- 2 weather-proof 4"-wall loudspeaker with bracket
- 10/20/40 W RMS
- 100-V Beschallungsbox with very good sound for universal use
Technical specifications
- Connection: 100 V or 16 Ohm components: 10 cm woofer (4"), 2 cm dome tweeter (0.8") Connection: screw terminals rated output:10/20/40W RMS sensitivity: 88 dB maximum acoustic pressure: 103 dB range: 120° x 90° dimensions (L x W x H): 170 x 141 x 230 mm Weight: 6.35 kg size of the protection class IP54 low toner: 10 cm (4") Frequency range 75 - 20000 Hz Height: 23 cm depth: 17 cm Width: 14.1 cm
- Product type
PA wall speaker
- Operating voltage
100 V
- RMS capacity
10 W
- Max. load
40 W
- Max. sound pressure
103 dB
- Features
2-way
weatherproof
IP54
- Material
Plastic
- Length
23 cm
- Width
14.1 cm
- Content
1 Pair
- Weight
6.35 kg
- Factory colour
White
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875853 Omnitronic ODP-204T PA wall speaker 10 W White 1 Pair
Description
ODP-204 T installation loudspeaker 100 V WHITE 2x.
This text is machine translated.
This text is machine translated.
Features

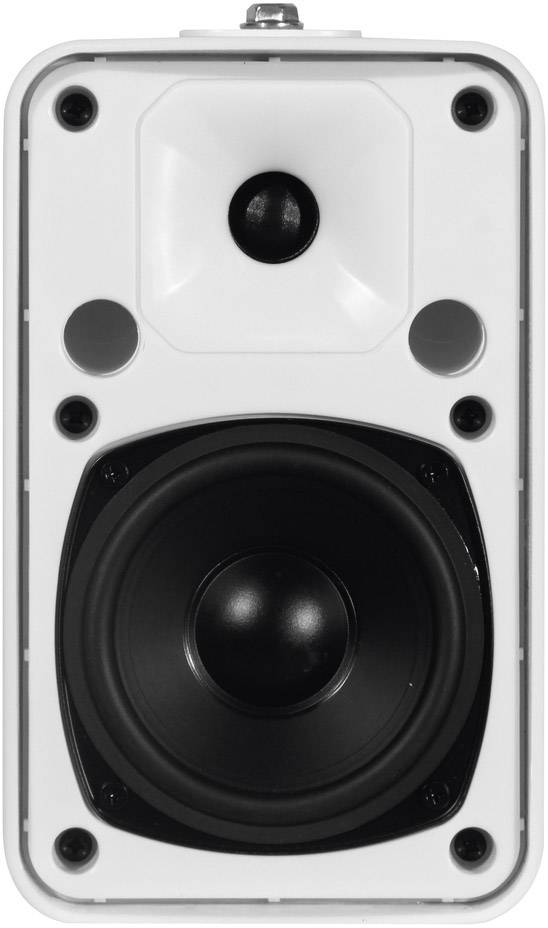

- 2-way system with 10 cm woofer (4") and a 2-cm dome tweeter (0.8")
- Weatherproof plastic housing (IP54)

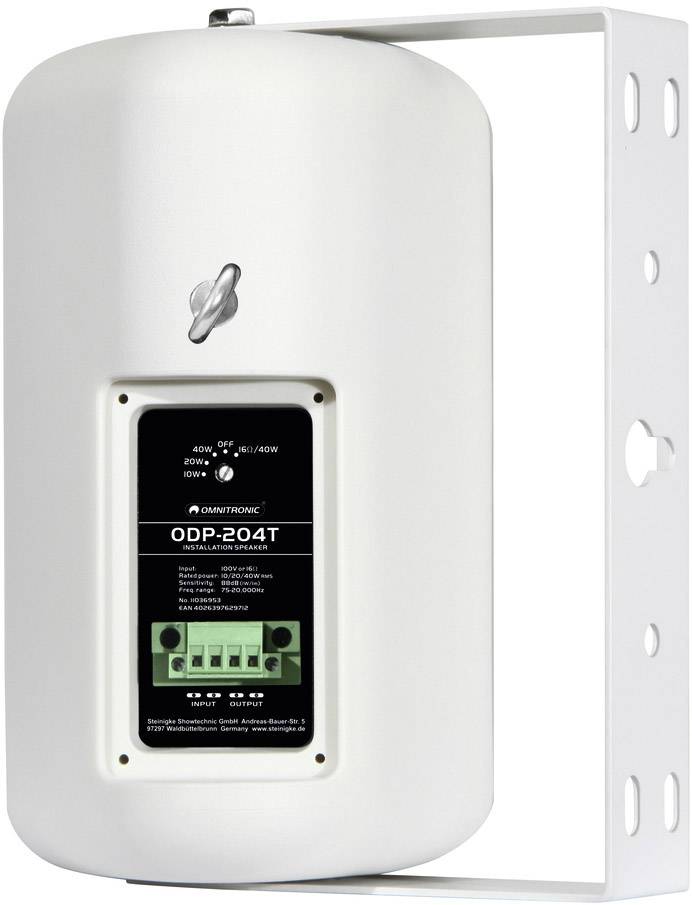

- 100-V transformer with 3 power taps (10 W, 20 W, 40 W)
- Power changeover switch with 16-Ohm-Betriebsstellung

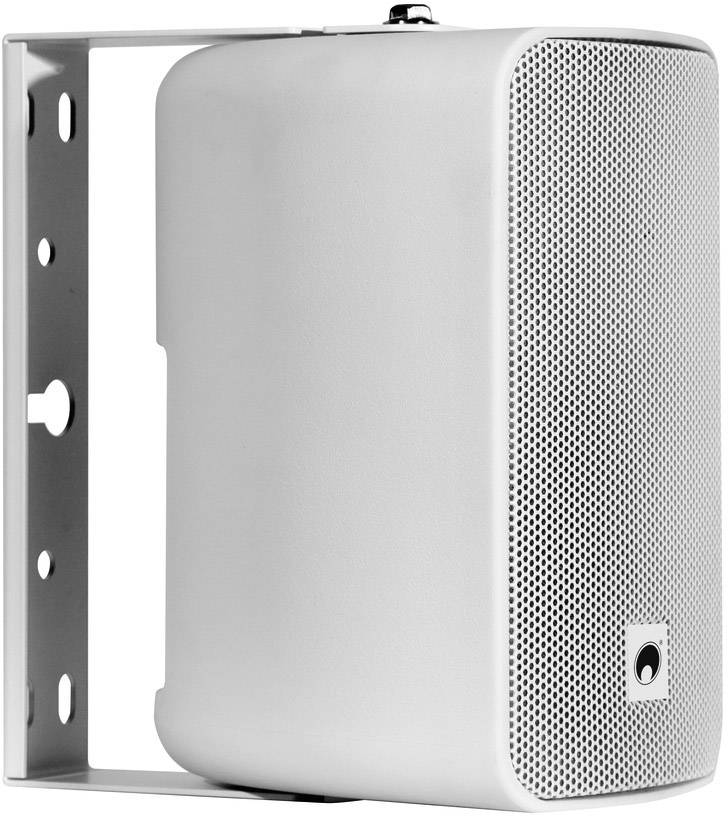

- Swivelling Mounting Bracket
- Swivel and neigbarere wall holder available as accessories
- Screw terminals for easy connection

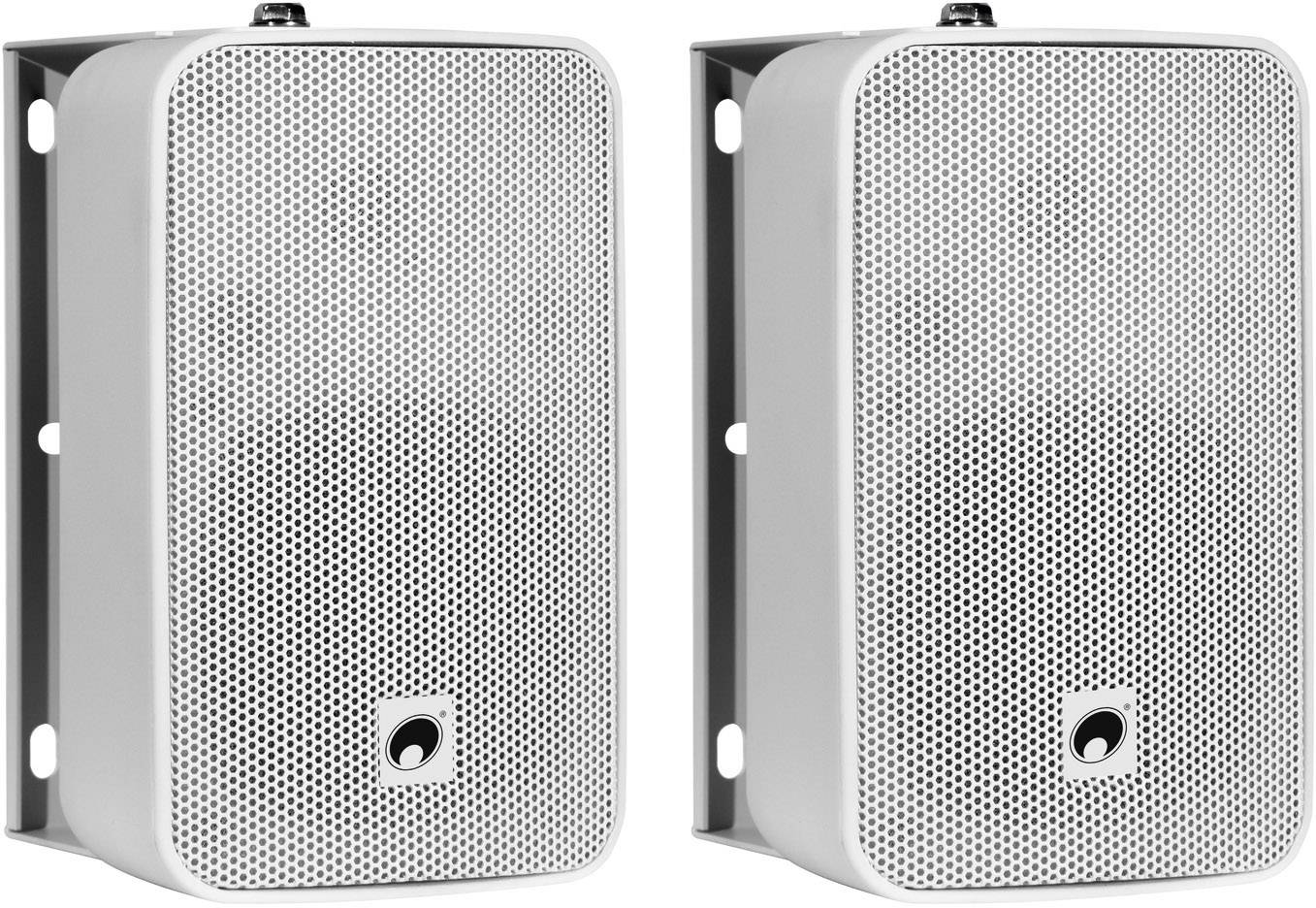

- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
