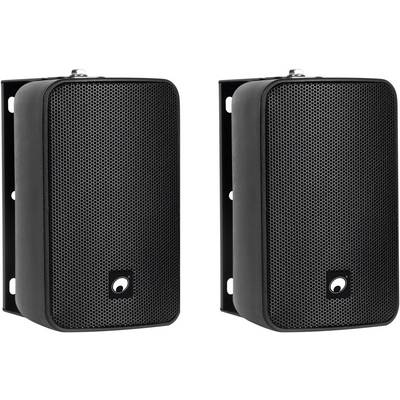

'Two black wall-mounted speakers with metal grille fronts. They are positioned side by side at a slight angle.'

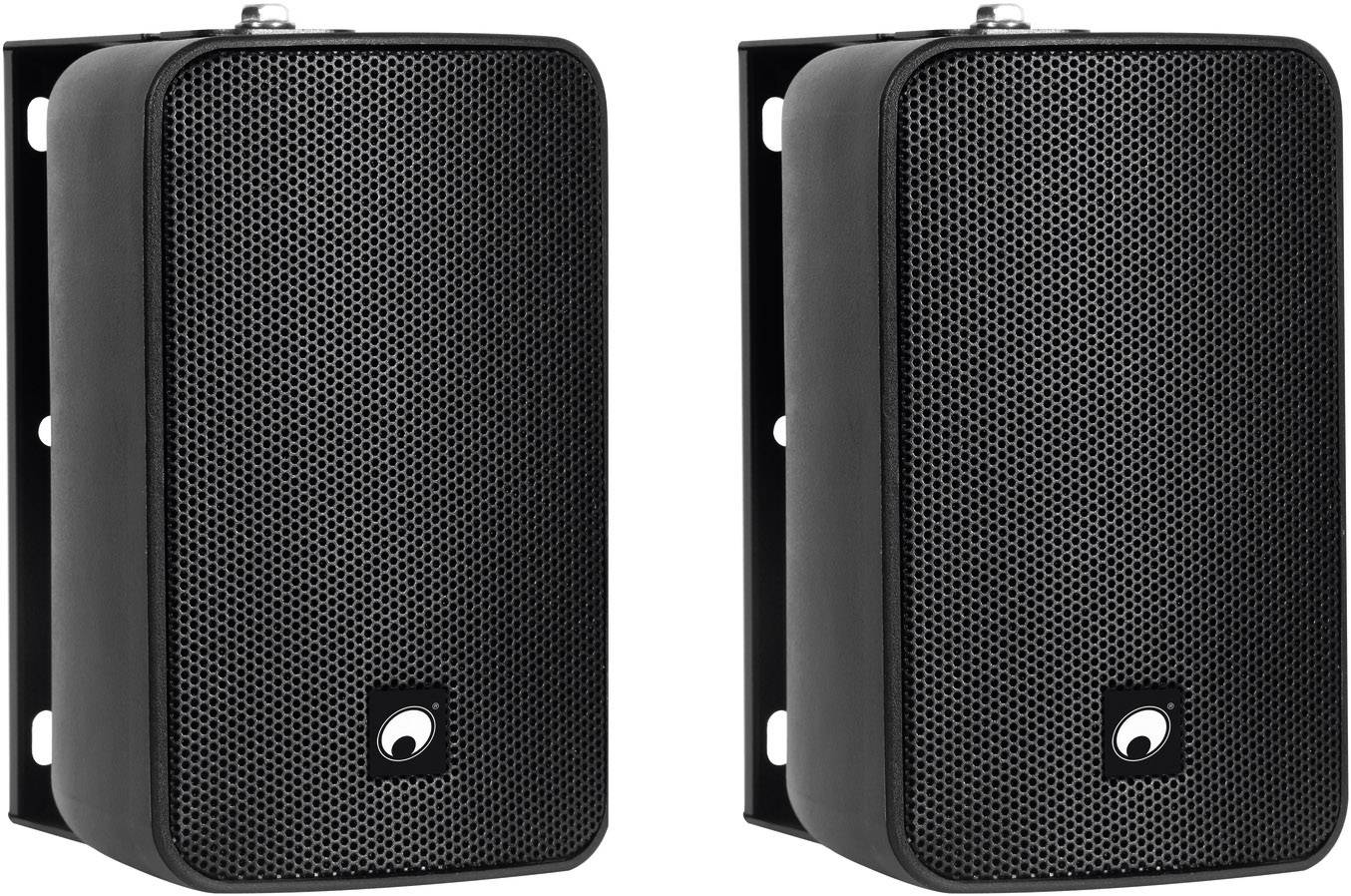

'Two black wall-mounted speakers with metal grille fronts. They are positioned side by side at a slight angle.'

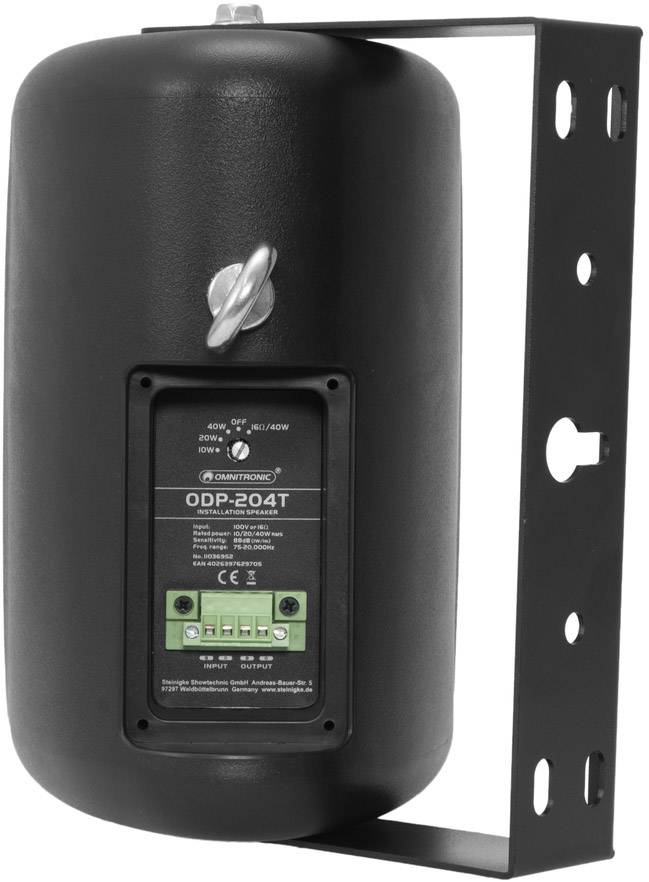

Wall speaker with black enclosure, side-mounted. Shows model number ODP-204T and connection terminals on the front.

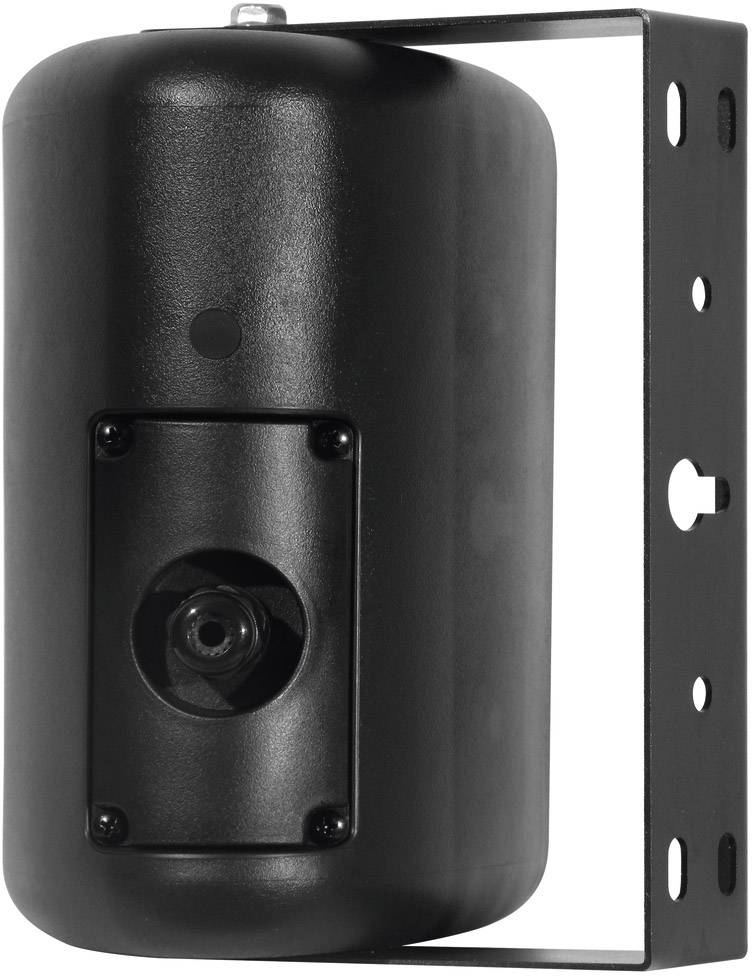

Black enclosure with a circular opening, mounted on a metal frame, likely an electronic device or sensor.

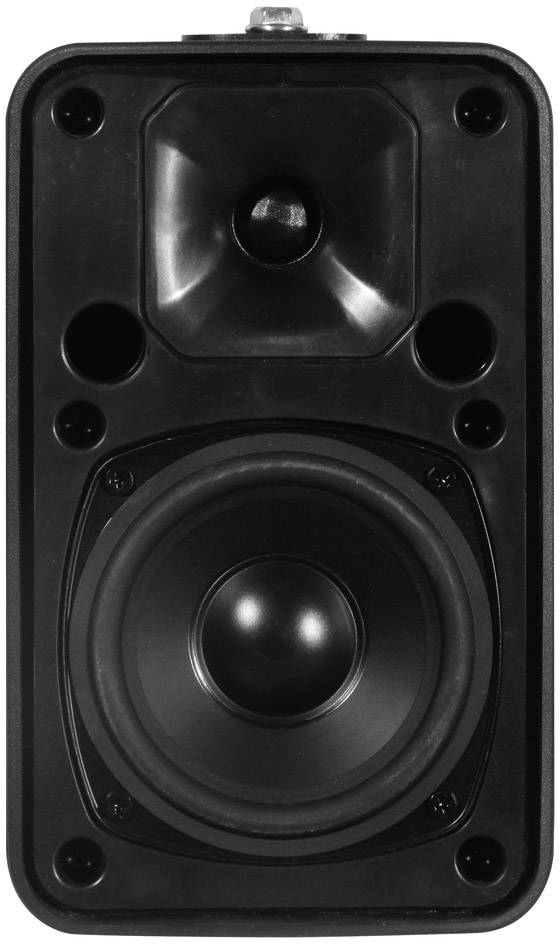

A black loudspeaker with two visible drivers, a larger woofer at the bottom and a smaller tweeter at the top.

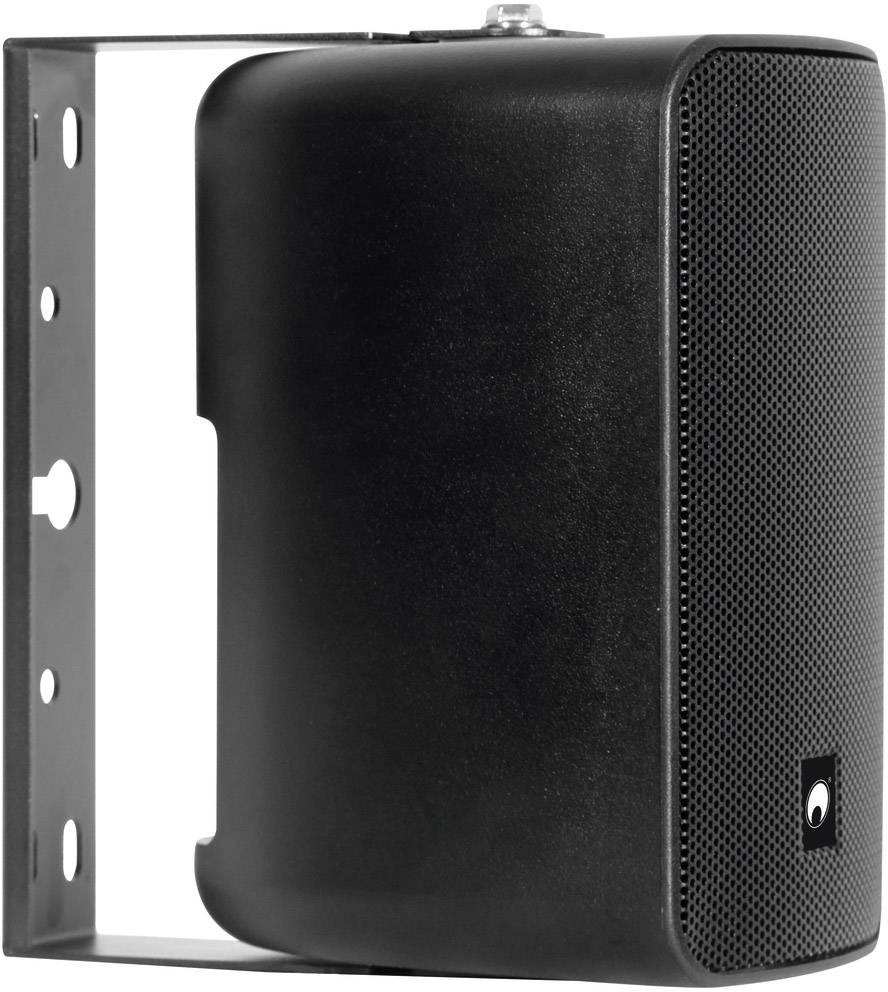

Black speaker with wall mount, side view, showing grille cover and mounting plate with screw holes.

1/5

Omnitronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

ODP-204 T installation loudspeaker 100 V black 2 x

2 weather-proof 4"-wall loudspeaker with bracket
10/20/40 W RMS
100-V Beschallungsbox with very good sound for universal use

Technical specifications

Connection: 100 V or 16 Ohm components: 10 cm woofer (4"), 2 cm dome tweeter (0.8") Connection: screw terminals rated output:10/20/40W RMS sensitivity: 88 dB maximum acoustic pressure: 103 dB range: 120° x 90° dimensions (L x W x H): 170 x 141 x 230 mm Weight: 6.35 kg size of the protection class IP54 low toner: 10 cm (4") Frequency range 75 - 20000 Hz Height: 23 cm depth: 17 cm Width: 14.1 cm

Product type: Wall speaker

Operating voltage: 100 V

RMS capacity: 10 W

Max. load: 40 W

Impedance: 16 Ω

Max. sound pressure: 103 dB

Features: 2-way
weatherproof

: IP54

Material: Plastic

Length: 17 cm

Width: 14.1 cm

Content: 1 Pair

Weight: 6.35 kg

Factory colour: Black

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1875811 Omnitronic ODP-204T Wall speaker 10 W Black 1 Pair

Description

ODP-204 T installation loudspeaker 100 V black 2 x.

This text is machine translated.

Features

2-way system with 10 cm woofer (4") and a 2-cm dome tweeter (0.8")
Weatherproof plastic housing (IP54)
100-V transformer with 3 power taps (10 W, 20 W, 40 W)
Power changeover switch with 16-Ohm-Betriebsstellung
Swivelling Mounting Bracket
Swivel and neigbarere wall holder available as accessories
Screw terminals for easy connection
Packed in pairs
Ideal for sound systems in restaurants, bars, shops and in the conference area.
