Omnitronic ODP-206 Wall speaker 160 W 16 Ω White 1 Pair
EAN:
Part number:
Item no:
Highlights & Details
ODP-206 Installation Loudspeaker 16 Ohm white 2x
- 2 weather-proof 6"-wall loudspeaker with bracket
- 80 W RMS
- 16-Ohm-Beschallungsbox with very good sound for universal use
Technical specifications
- Load capacity: 80 W RMS load capacity: 160 W nominal program components: 15 cm (6") woofer, 2.5 cm dome tweeter (1") Connection: screw terminals sensitivity: 89 dB maximum acoustic pressure: 110 dB range: 90° x 60° dimensions (L x W x H): 224 x 182 x 362 mm protection class IP 54 Weight: 12.1 kg size of the low toner: 17 cm (6.5") Frequency range: 60 - 18000 Hz Height: 36.2 cm Depth: 22.4 cm Width: 18.2 cm loudspeaker control: 16 Ohm
- Product type
Wall speaker
- Type
Ovoid
- RMS capacity
80 W
- Max. load
160 W
- Impedance
16 Ω
- Max. sound pressure
110 dB
- Features
2-way
weatherproof
IP54
- Frequency range
60 - 18000 Hz
- Factory colour
White
- Material
Plastic
- Weight
12.1 kg
- Length
22.4 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875812 Omnitronic ODP-206 Wall speaker 160 W 16 Ω White 1 Pair
Description
ODP-206 Installation Loudspeaker 16 Ohm white 2x
This text is machine translated.
This text is machine translated.
Features

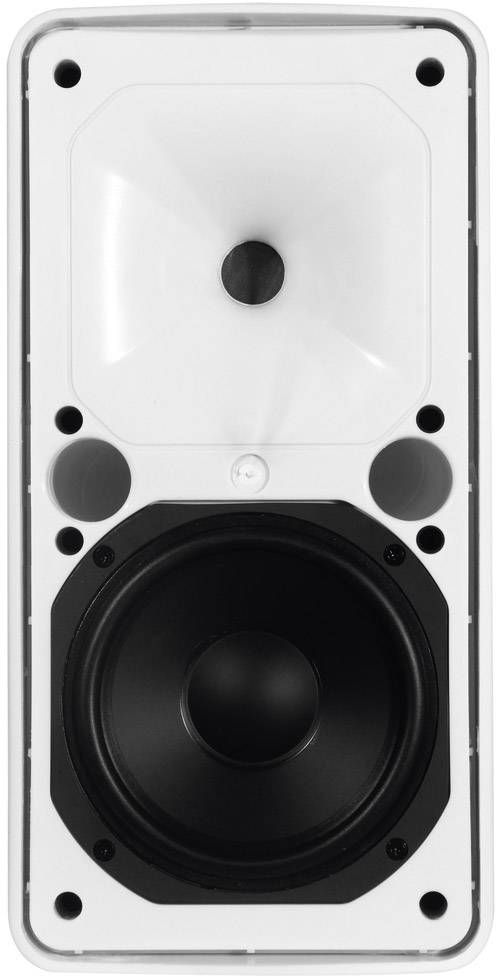

- 2-way system with 15 cm woofer (6") and a 2.5 cm dome tweeter (1")
- Weatherproof plastic housing (IP54)

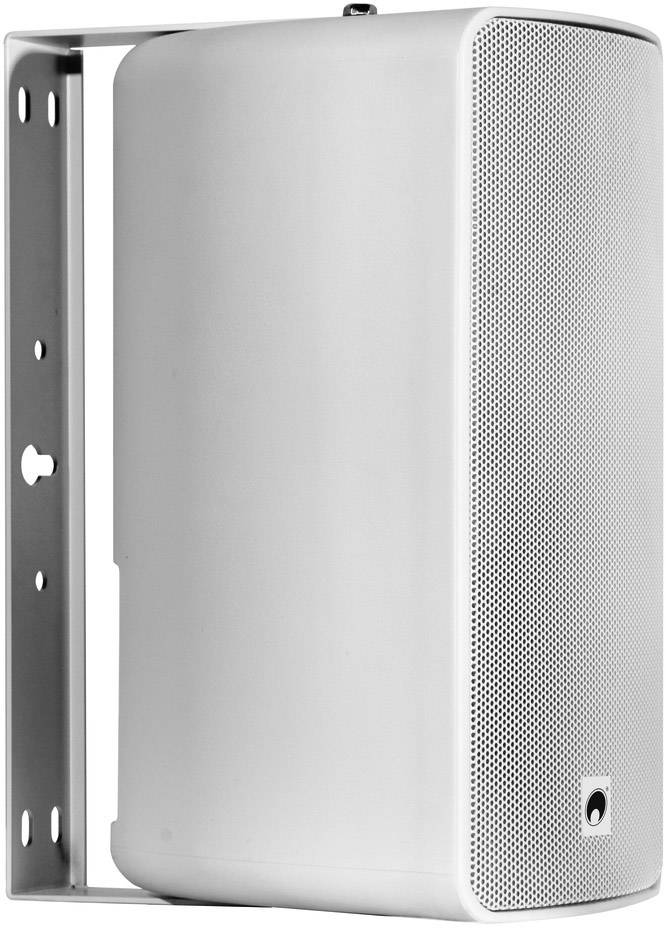

- Swivelling Mounting Bracket
- Swivel and neigbarere wall holder available as accessories

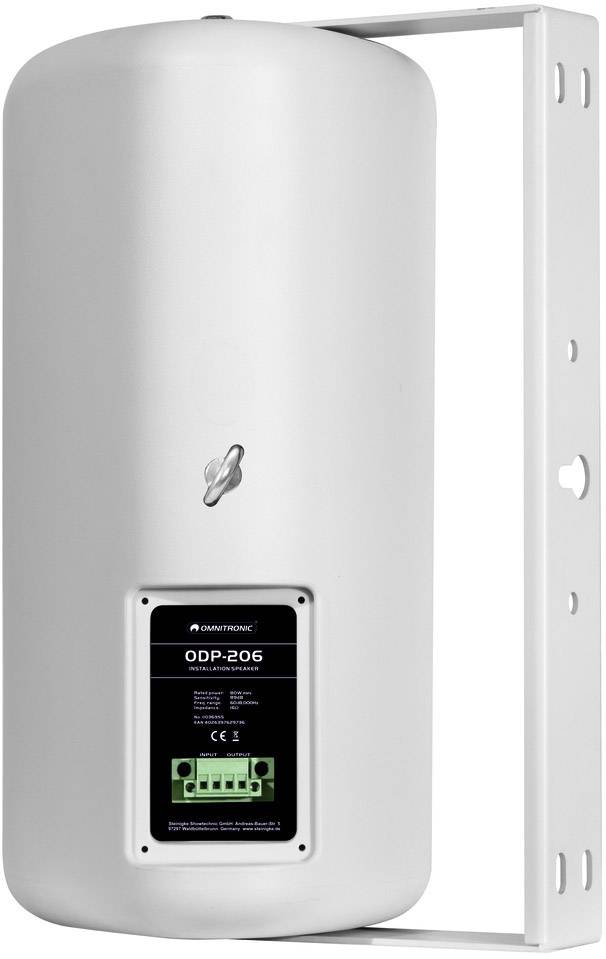

- Screw terminals for easy connection

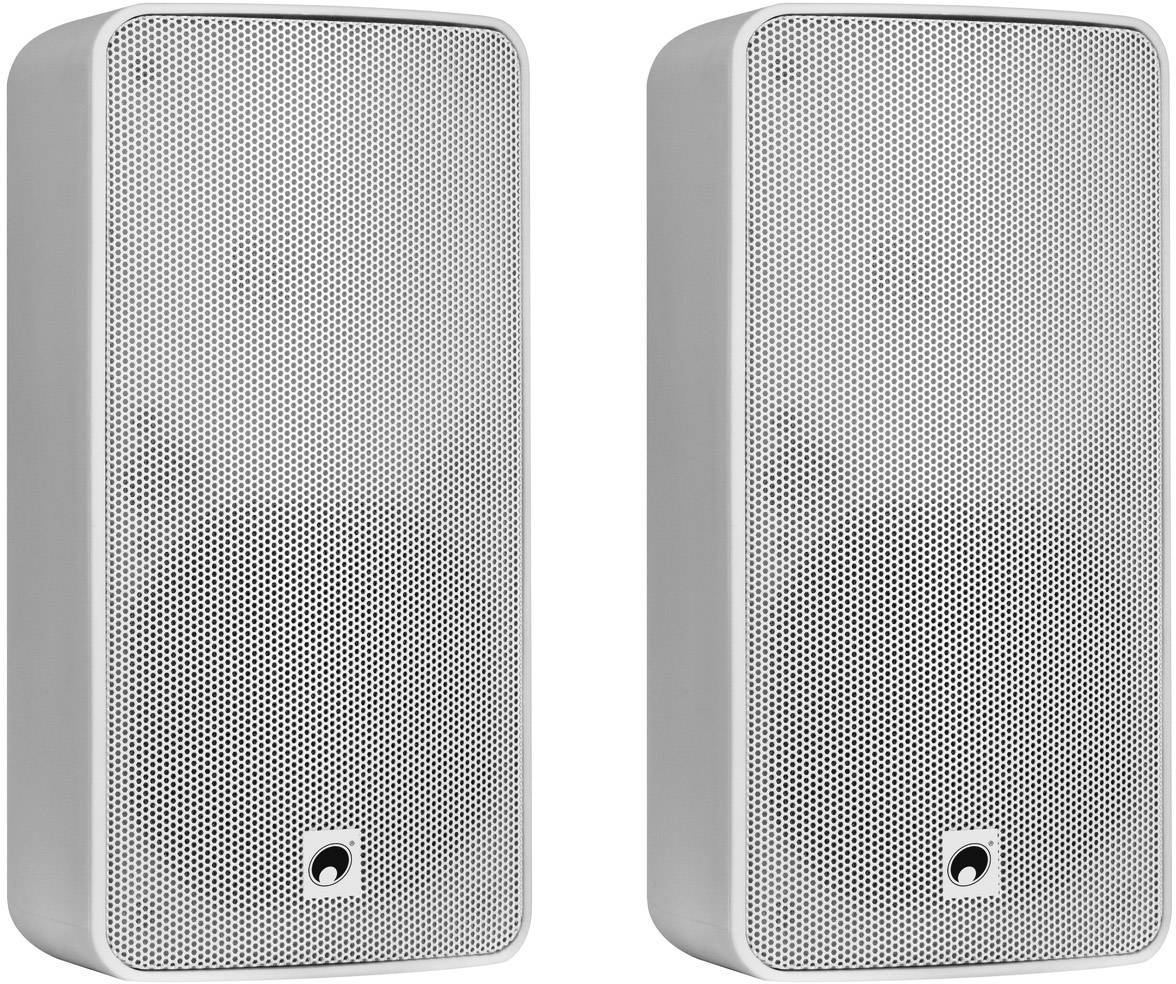

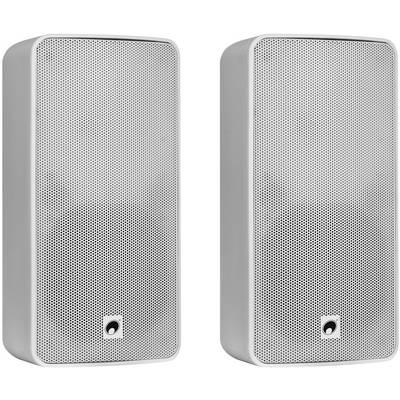

- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
