Omnitronic ODP-206T PA wall speaker 20 W Black 1 Pair
EAN:
Part number:
Item no:
Highlights & Details
ODP-206T installation loudspeaker 100 V black 2 x
- 2 weather-proof 6"-wall loudspeaker with bracket
- 20/40/80 W RMS
- 100-V Beschallungsbox with very good sound for universal use
Technical specifications
- Connection: 100 V or 16 Ohm components: 15 cm (6") woofer, 2.5 cm dome tweeter (1") Connection: screw terminals rated output:20/40/80 W RMS sensitivity: 89 dB maximum acoustic pressure: 110 dB range: 90° x 60° dimensions (L x W x H): 224 x 182 x 362 mm Weight: 2.15 kg size of the protection class IP54 low toner: 17 cm (6.5") Frequency range: 60 - 18000 Hz Height: 36.2 cm Depth: 22.4 cm Width: 18.2 cm loudspeaker control: 16 Ohm
- Product type
PA wall speaker
- Operating voltage
100 V
- RMS capacity
20 W
- Max. load
80 W
- Max. sound pressure
110 dB
- Features
2-way
weatherproof
IP54
- Material
Plastic
- Length
36.2 cm
- Width
18.2 cm
- Content
1 Pair
- Weight
14 kg
- Factory colour
Black
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875855 Omnitronic ODP-206T PA wall speaker 20 W Black 1 Pair
Description
ODP-206T installation loudspeaker 100 V black 2 x.
This text is machine translated.
This text is machine translated.
Features

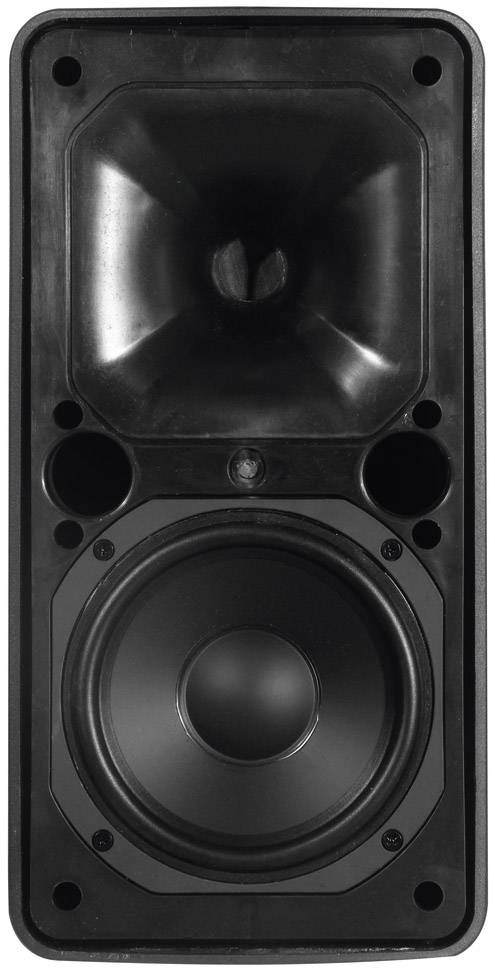

- 2-way system with 15 cm woofer (6") and a 2.5 cm dome tweeter (1")
- Weatherproof plastic housing (IP54)
- 100-V transformer with 3 power taps (20 W, 40 W, 80 W)
- Power changeover switch with 16-Ohm-Betriebsstellung

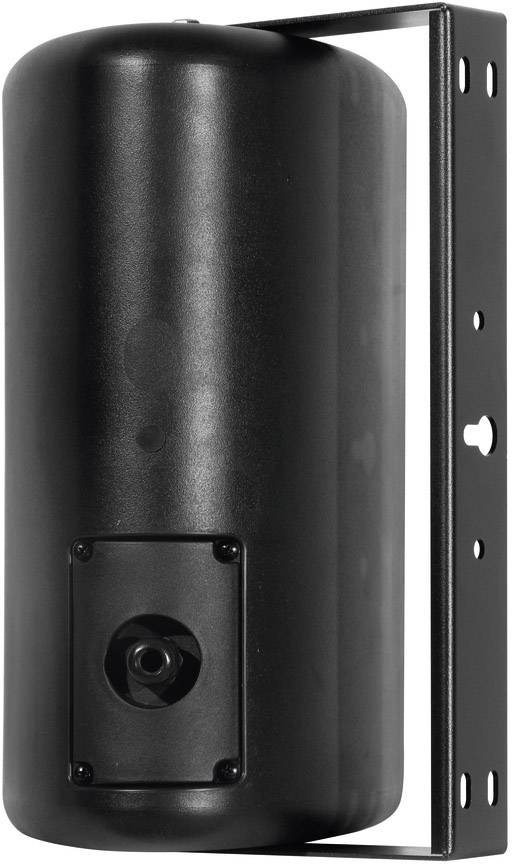

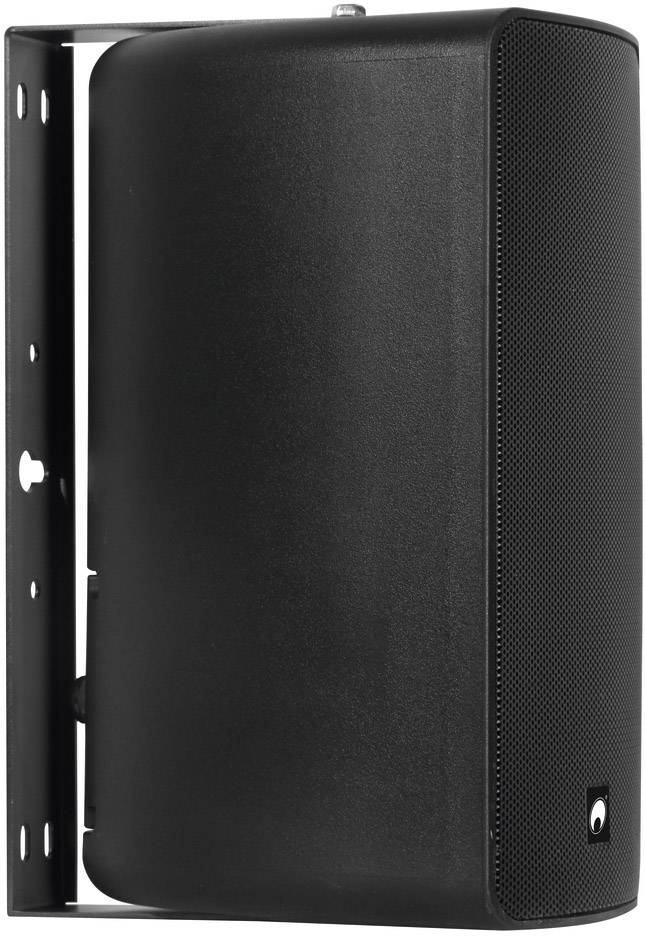

- Swivelling Mounting Bracket
- Swivel and neigbarere wall holder available as accessories

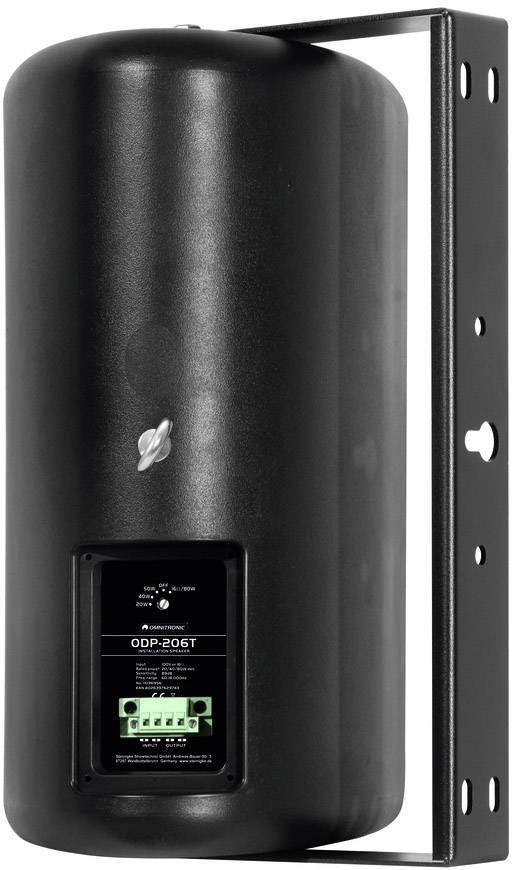

- Screw terminals for easy connection

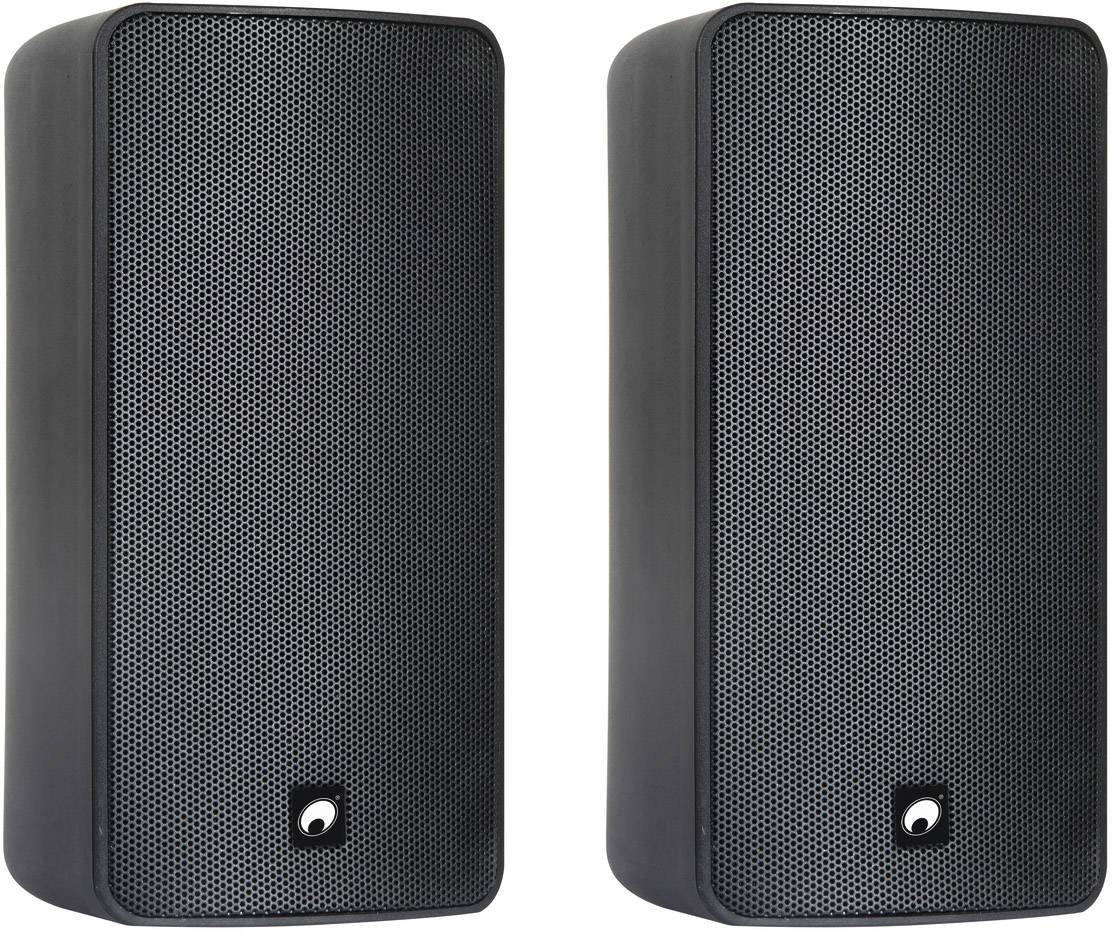

- Packed in pairs
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
