Omnitronic ODP-208T PA wall speaker 37.5 W Black 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

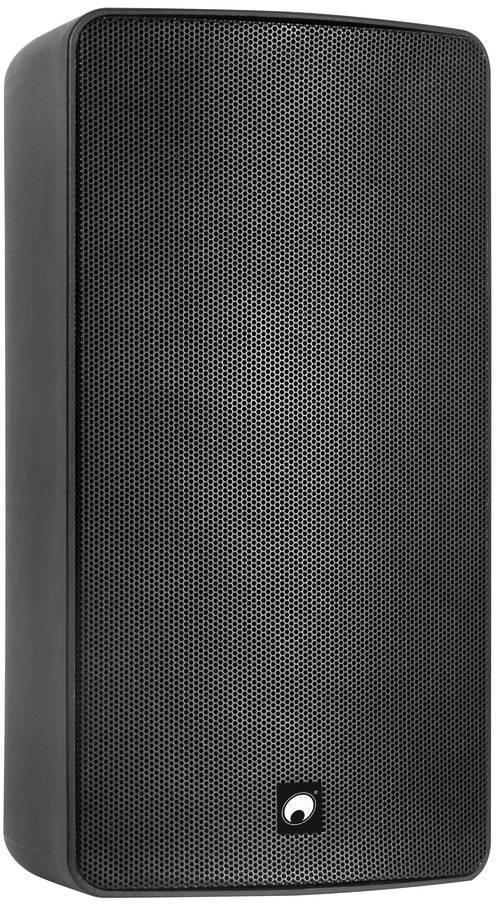

ODP-208T installation loudspeaker 100 V black
- Weather-proof 8"-wall loudspeaker with bracket
- 37,5/75/150 W RMS
- 100-V Beschallungsbox with very good sound for universal use
Technical specifications
- Connection: 100 V or 16 Ohm components: 20 cm woofer (8"), 2.5 cm dome tweeter (1") Connection: screw terminals rated power: 37,5/75/150 W RMS sensitivity: 94 dB maximum acoustic pressure: 116 dB range: 90° x 50° dimensions (L x W x H): 285 x 241 x 450 mm protection class IP 54 Weight: 10.85 kg size of the low toner: 20 cm (8") Frequency range: 60 - 18000 Hz Height: 45 cm Depth: 28.5 cm Width: 24.1 cm loudspeaker control: 16 Ohm
- Product type
PA wall speaker
- Operating voltage
100 V
- RMS capacity
37.5 W
- Max. load
150 W
- Impedance
16 Ω
- Max. sound pressure
116 dB
- Features
2-way
weatherproof
IP54
- Material
Plastic
- Length
45 cm
- Width
24.1 cm
- Content
1 pc(s)
- Weight
10.8 kg
- Factory colour
Black
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875858 Omnitronic ODP-208T PA wall speaker 37.5 W Black 1 pc(s)
Description
ODP-208T installation loudspeaker 100 V black.
This text is machine translated.
This text is machine translated.
Features

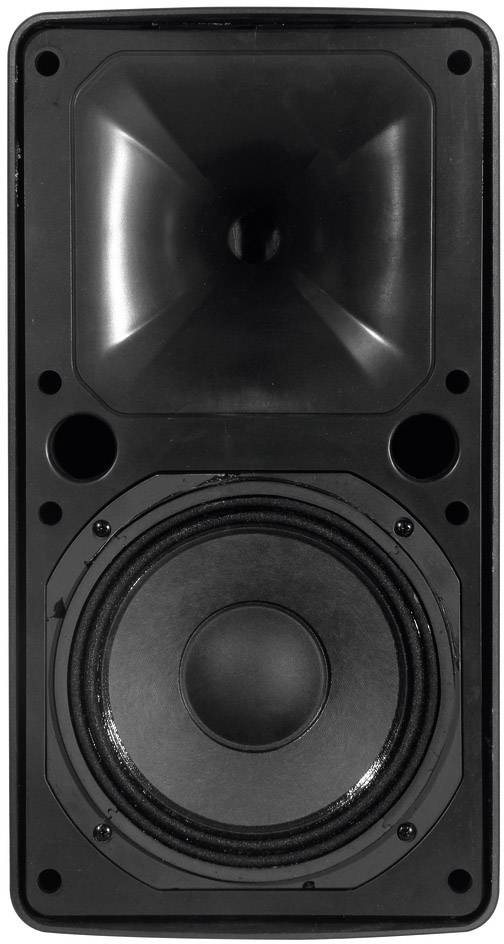

- 2-way system with 20 cm woofer (8") and a 2.5 cm dome tweeter (1")
- Weatherproof plastic housing (IP54)
- 100-V transformer with 3 power taps (37.5 W, 75 W, 150 W)
- Power changeover switch with 16-Ohm-Betriebsstellung

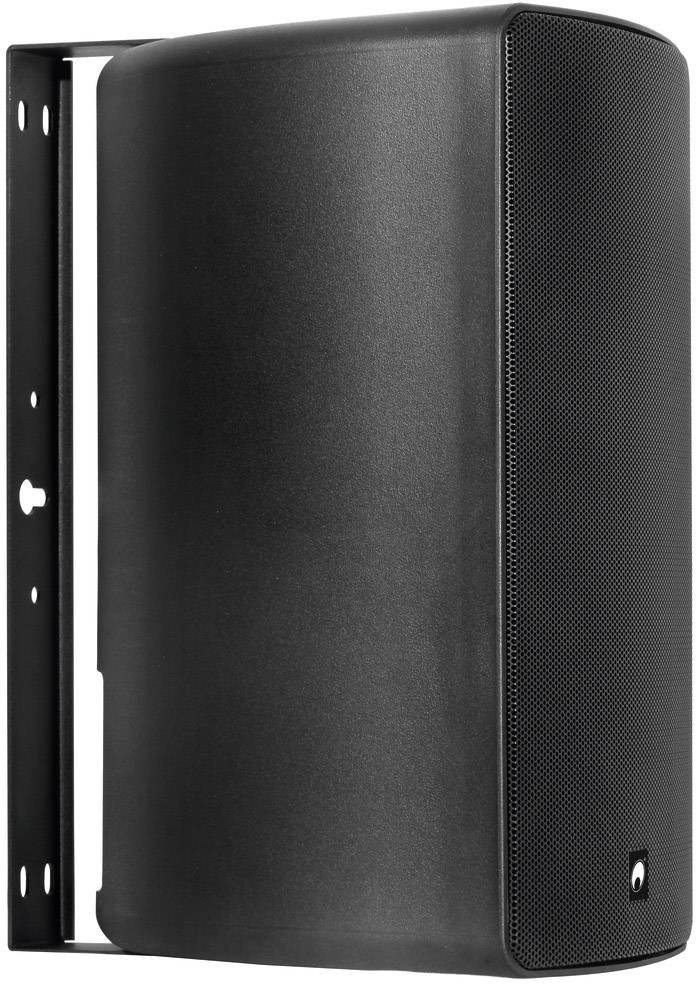

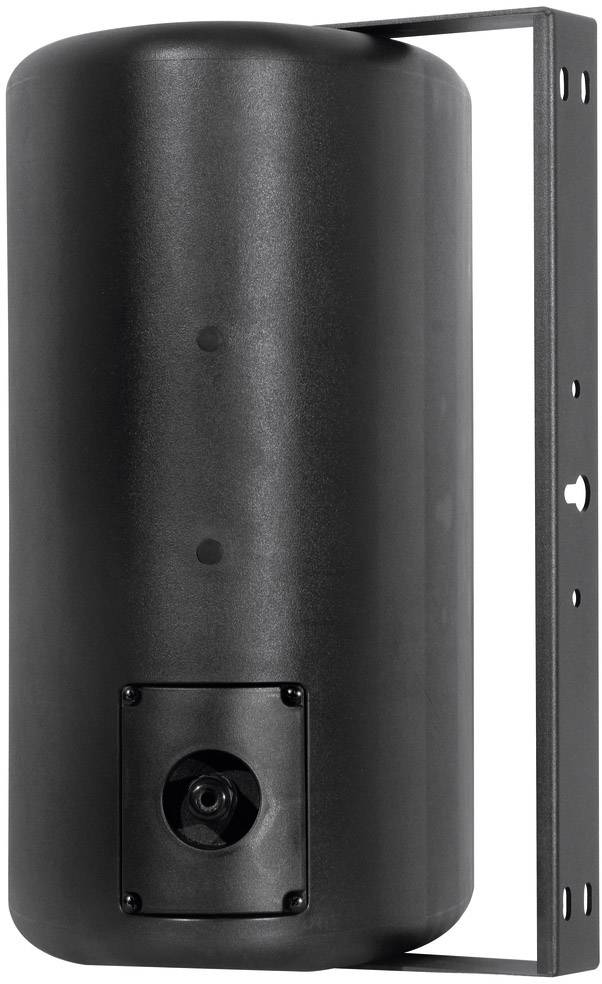

- Swivelling Mounting Bracket

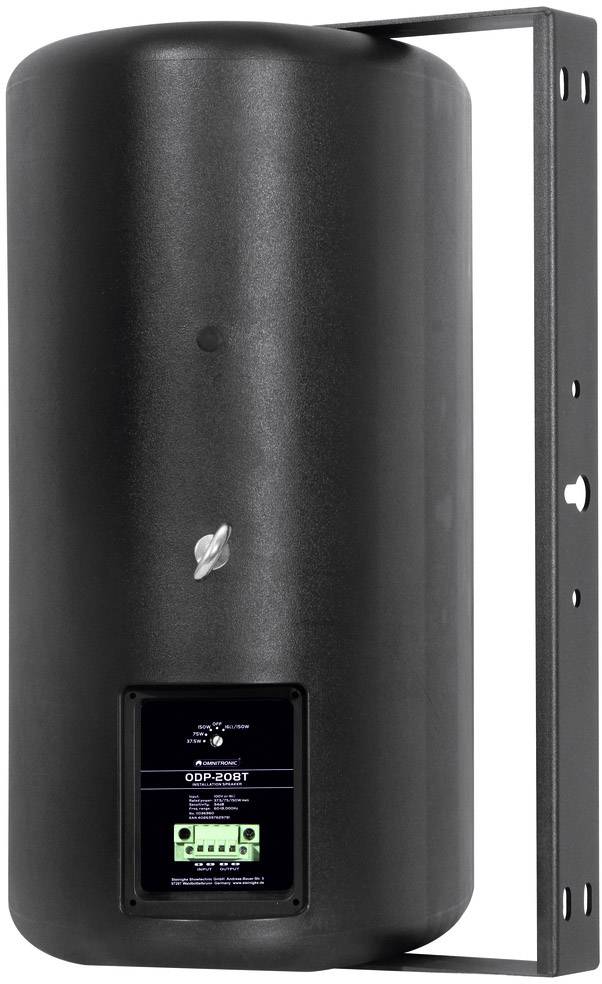

- Screw terminals for easy connection
- Ideal for sound systems in restaurants, bars, shops and in the conference area.
