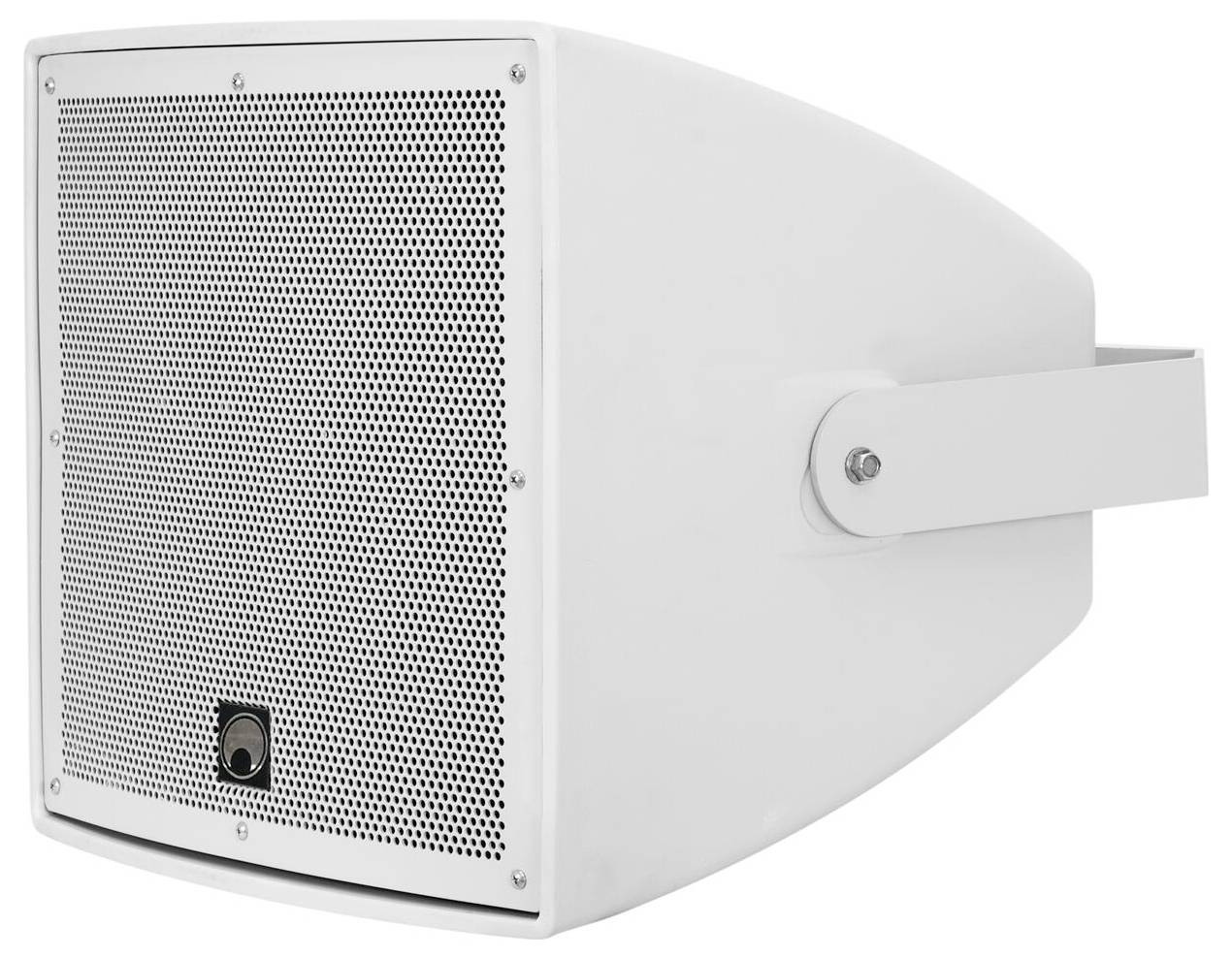

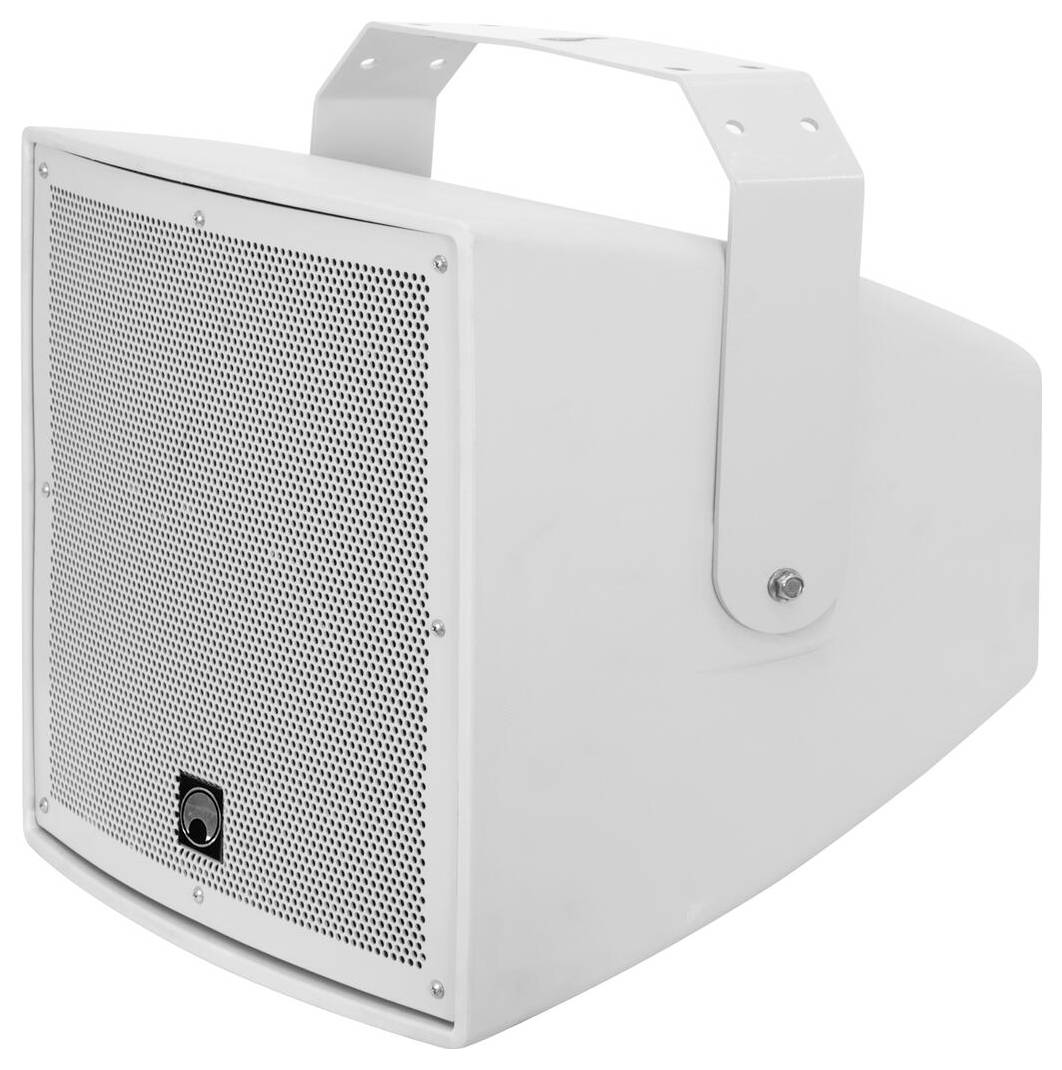

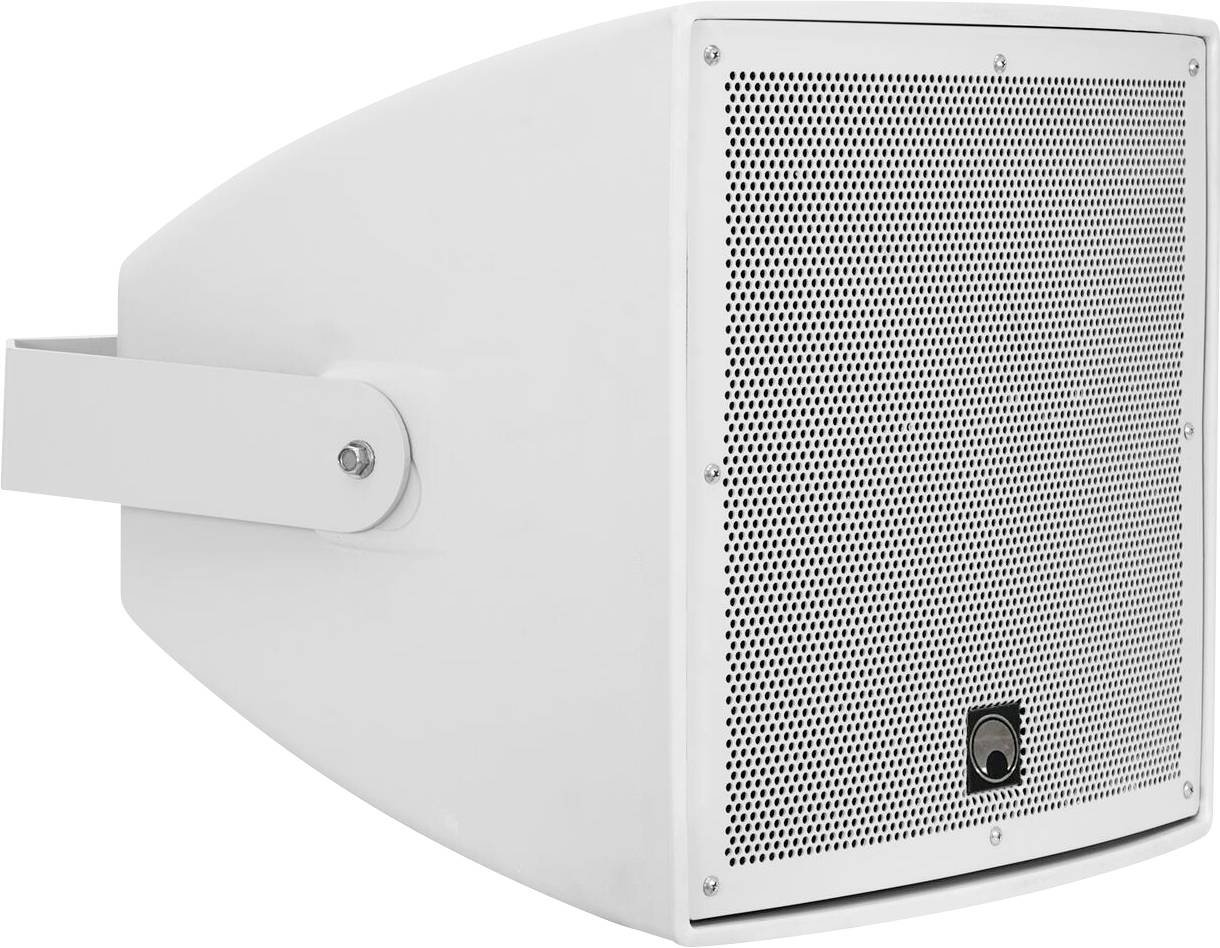

Omnitronic ODX-115ST Outdoor speaker 400 W IP56 White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity: Program 800 W; nominal 400 W RMS
- Frequency range 45 300 Hz
- Sensitivity 98 dB
- Max. sound pressure 130 dB
- Radiation behavior: Unidirectional
- Impedance 8 Ohm; ELA technology 100 V
- Supporting system: Mounting bracket
- Power tap: 75 W; 150 W; 300 W RMS can be selected via the selector switch
- Connections: Input: Speaker via screw terminal
- Speakers:

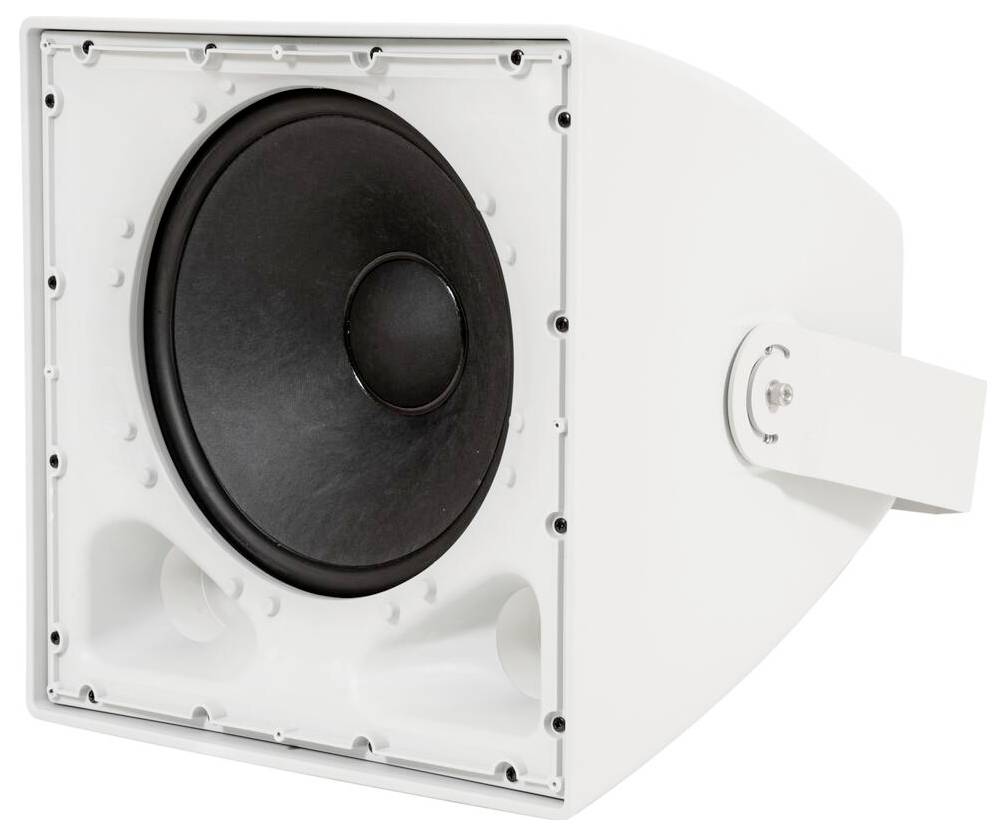

- 1 x 15" woofers
- 3" moving coil woofer
- Speaker type: Subwoofer
- Bass reflex design
- Product type
Outdoor speaker
- RMS capacity
400 W
- Max. load
800 W
- Impedance
8 Ω
- Max. sound pressure
130 dB
IP56
- Factory colour
White
- Weight
24800 g
- Length
520 mm
- Width
490 mm
- Height
500 mm
- Content
1 pc(s)
- Dim
(L x W x H) 520 x 490 x 500 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729554 Omnitronic ODX-115ST Outdoor speaker 400 W IP56 White 1 pc(s)
Description
Weatherproof 15" - Subwoofer with holder, 400 W RMS. Ideal addition to deep bass of the ODX full range speakers. Robust plastic housing with metal grille. Power switch with 8 Ohm operating position. Screw terminals for parallel connection. With mounting bracket. Suitable for outdoor IP56. For application areas like: Installation; sport centers/gyms; multi-purpose hall.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x mounting bracket
- 1x user manual
- 6 x Screws
- 1 x safety loop
- 1 x cover
- 8 x washers
- 1 x woofer
- 1 x screw connection.
