Omnitronic ODX-206T Outdoor speaker 100 W IP56 White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity: Program: 200 W (8 ohms); nominal: 100 W RMS (8 ohms)
- Frequency range 100 18000 Hz
- Sensitivity 93 dB (1W/1m)
- Max. Sound pressure level 116 dB
- Radiating characteristics 100° x 100° conical
- Impedance 8 Ohm; ELA technology 100 V
- Supporting system: Mounting bracket
- Power tap: 25 W; 50 W; 100 W RMS can be selected via the selector switch

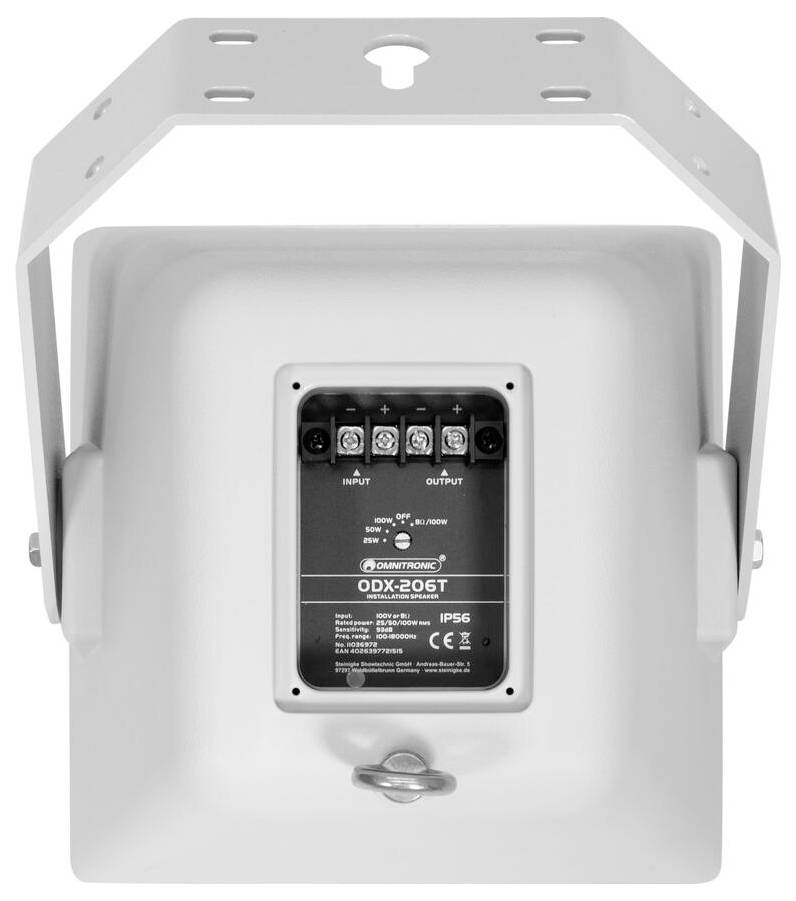

- Connections: Screw terminals
- Separation frequency 2800 Hz
- Speakers:
- 1 x 6.5" woofer with ferrite magnet
- 1.4" moving coil woofer
- 1 x 0.8" compression driver tweeter
- 1" moving coil compression driver - high tone
- Speaker type: Surface-mount speaker (wall/ceiling)
- Bass reflex design
- Product type
Outdoor speaker
- RMS capacity
100 W
- Max. load
200 W
- Impedance
8 Ω
- Max. sound pressure
16 dB
IP56
- Factory colour
White
- Weight
7200 g
- Length
273 mm
- Width
256.5 mm
- Height
258.5 mm
- Content
1 pc(s)
- Dim
(L x W x H) 273 x 256.5 x 258.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729555 Omnitronic ODX-206T Outdoor speaker 100 W IP56 White 1 pc(s)
Description

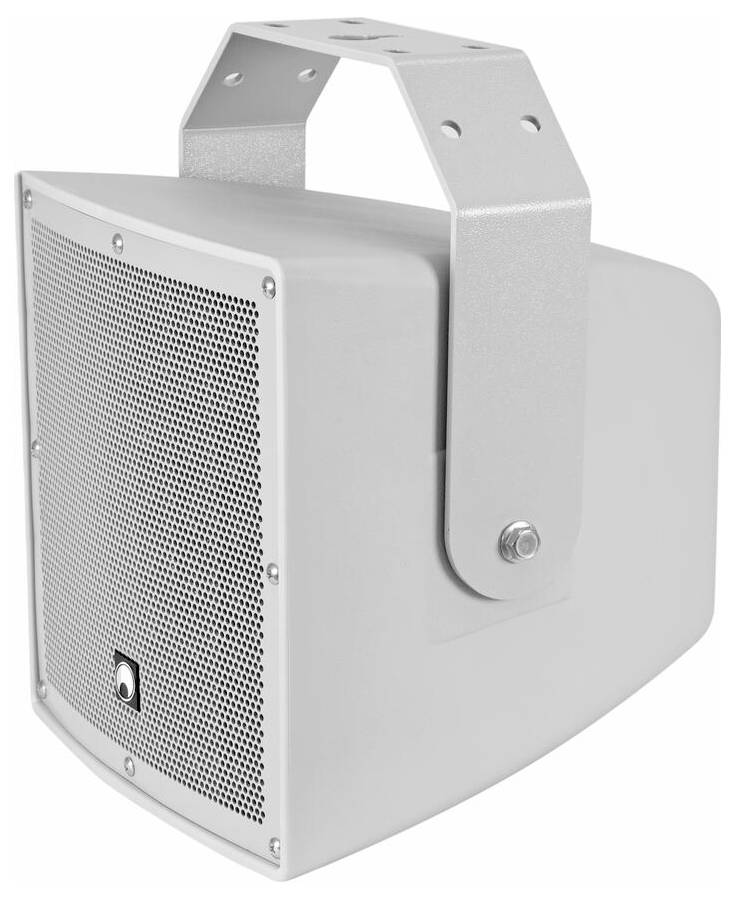

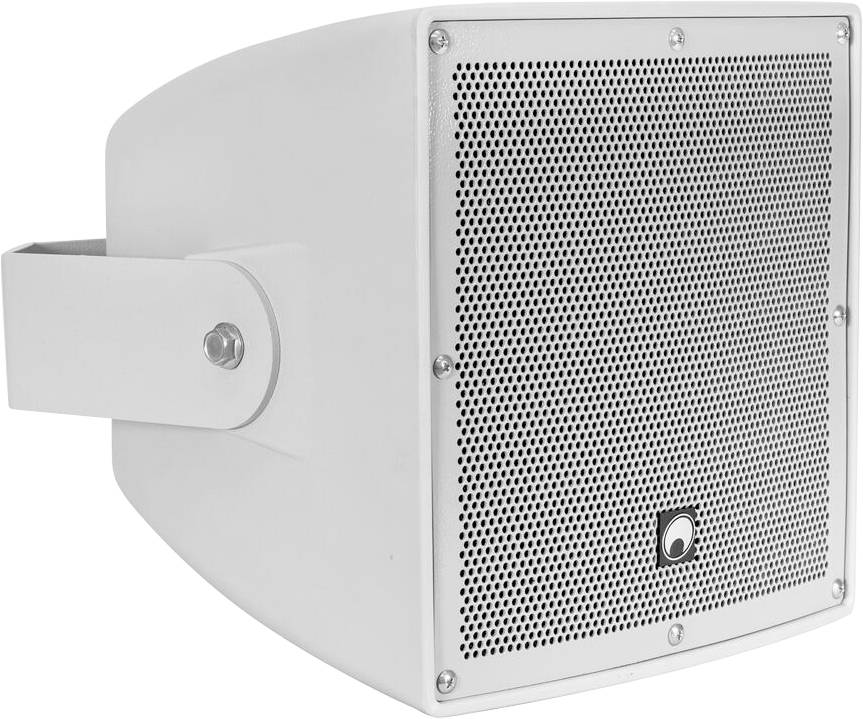

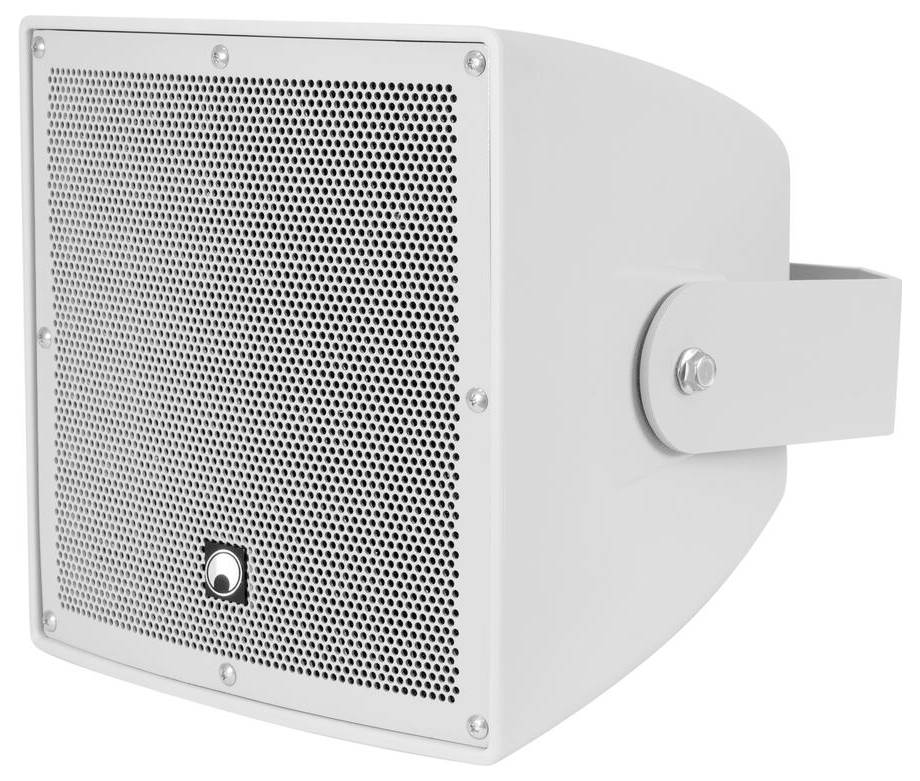

Weatherproof 6.5" wall speaker (IP56) with bracket, 100 W RMS. 2-way coaxial system Robust plastic housing with metal grille. Power switch with 8 Ohm operating position. Screw terminals for parallel connection. With mounting bracket. Metallic grille in white. Suitable for outdoor IP56. For application areas like: Installation; sport centers/gyms; multi-purpose hall.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x user manual
- 1 x top part
- 1 x mounting bracket
- 5 x Screws
- 1 x safety loop
- 1 x cover
- 2 x washers
- 1 x screw connection.
