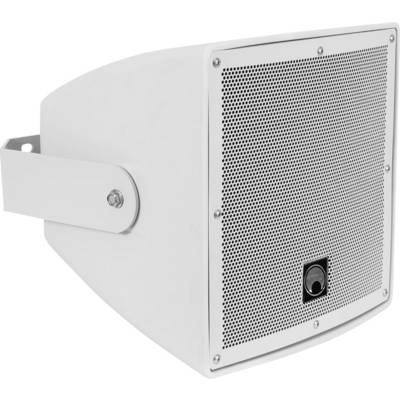

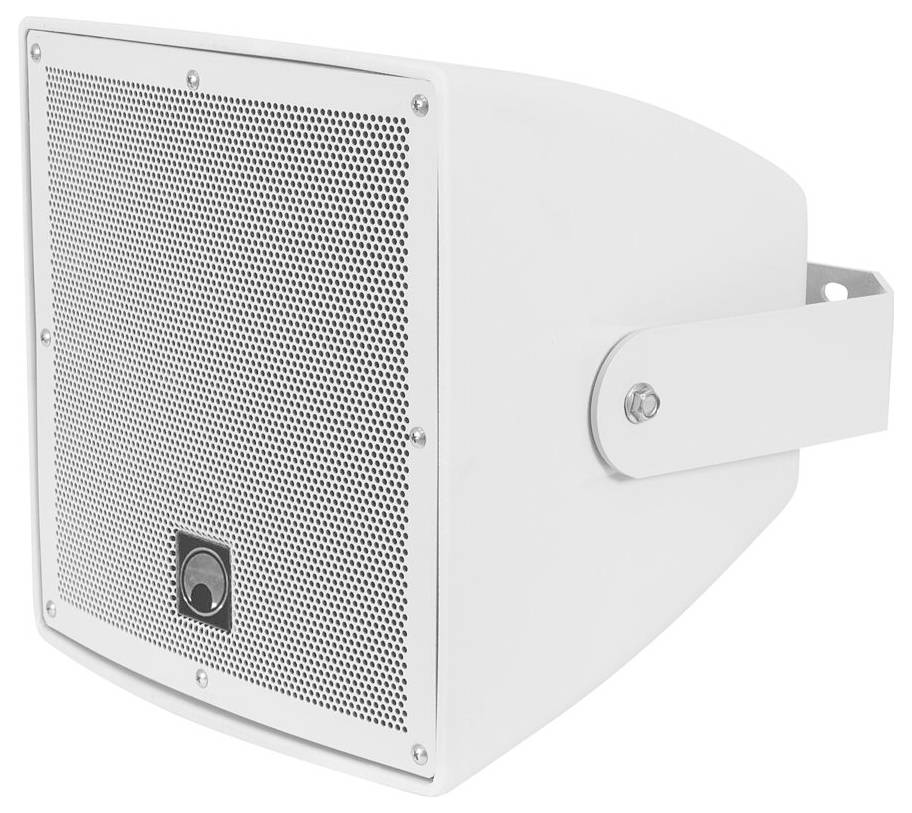

Omnitronic ODX-208T Outdoor speaker 150 W IP65 White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity: Program 300 W; nominal 150 W RMS
- Frequency range 80 18000 Hz
- Sensitivity 96 dB (1W/1m)
- Max. Sound pressure level 117 dB
- Emission ratio 100° x 100°
- Impedance 8 Ohm; ELA technology 100 V

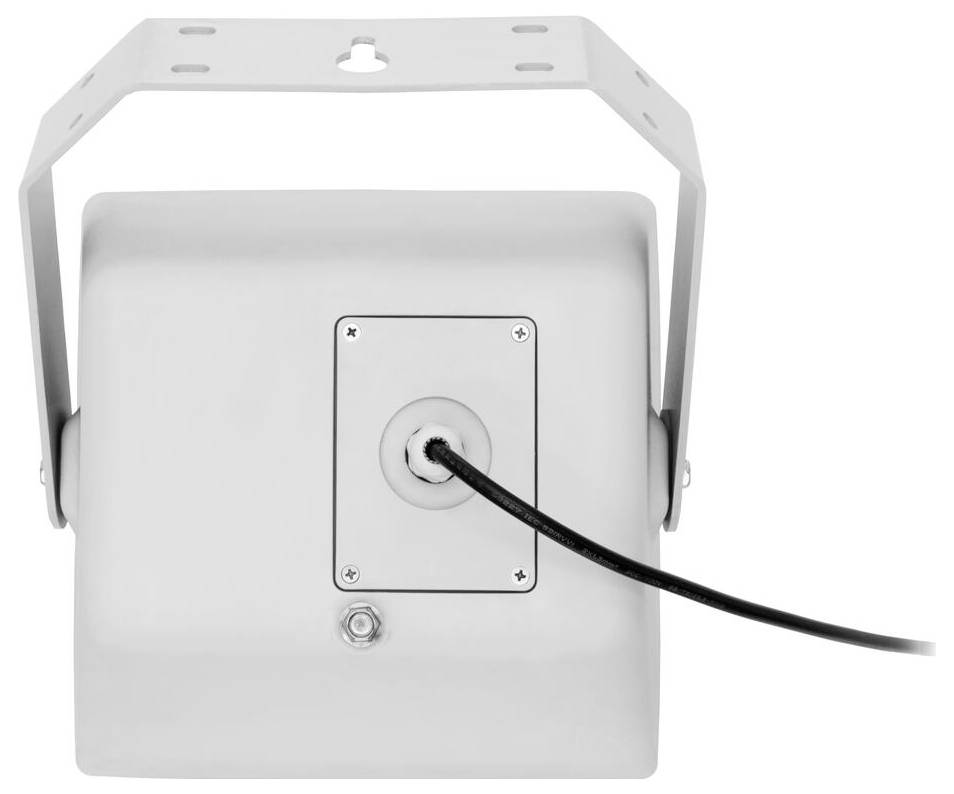

- Supporting system: Mounting bracket
- Power tap: 37.5 W; 75 W; 150 W RMS can be selected via the selector switch
- Connections: Input: Speaker via screw terminal
- Separation frequency 2500 Hz
- Speakers:
- 1 x 8" woofers
- Basket material: Aluminium
- 2" moving coil woofer
- 1 x 1" compression driver tweeter
- 1.4" moving coil compression driver - high tone
- Speaker type: Surface-mount speaker (wall/ceiling)
- Product type
Outdoor speaker
- RMS capacity
150 W
- Max. load
300 W
- Impedance
8 Ω
- Max. sound pressure
117 dB
IP65
- Factory colour
White
- Weight
10850 g
- Length
308 mm
- Width
350 mm
- Height
310 mm
- Content
1 pc(s)
- Dim
(L x W x H) 308 x 350 x 310 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729547 Omnitronic ODX-208T Outdoor speaker 150 W IP65 White 1 pc(s)
Description
Weatherproof 8" wall speaker (IP56) with bracket, 150 W RMS. 2-way coaxial system with 20 cm woofer (8") and 2.5 cm tweeter (1"). Robust plastic housing with metal grille. Power switch with 8 Ohm operating position. Screw terminals for parallel connection. With mounting bracket. Aluminium grille in gray. Suitable for outdoor IP56. For application areas like: Installation; sport centers/gyms; multi-purpose hall.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x top part
- 1 x mounting bracket
- 1x user manual
- 6 x Screws
- 1 x safety loop
- 1 x cover
- 2 x washers.
