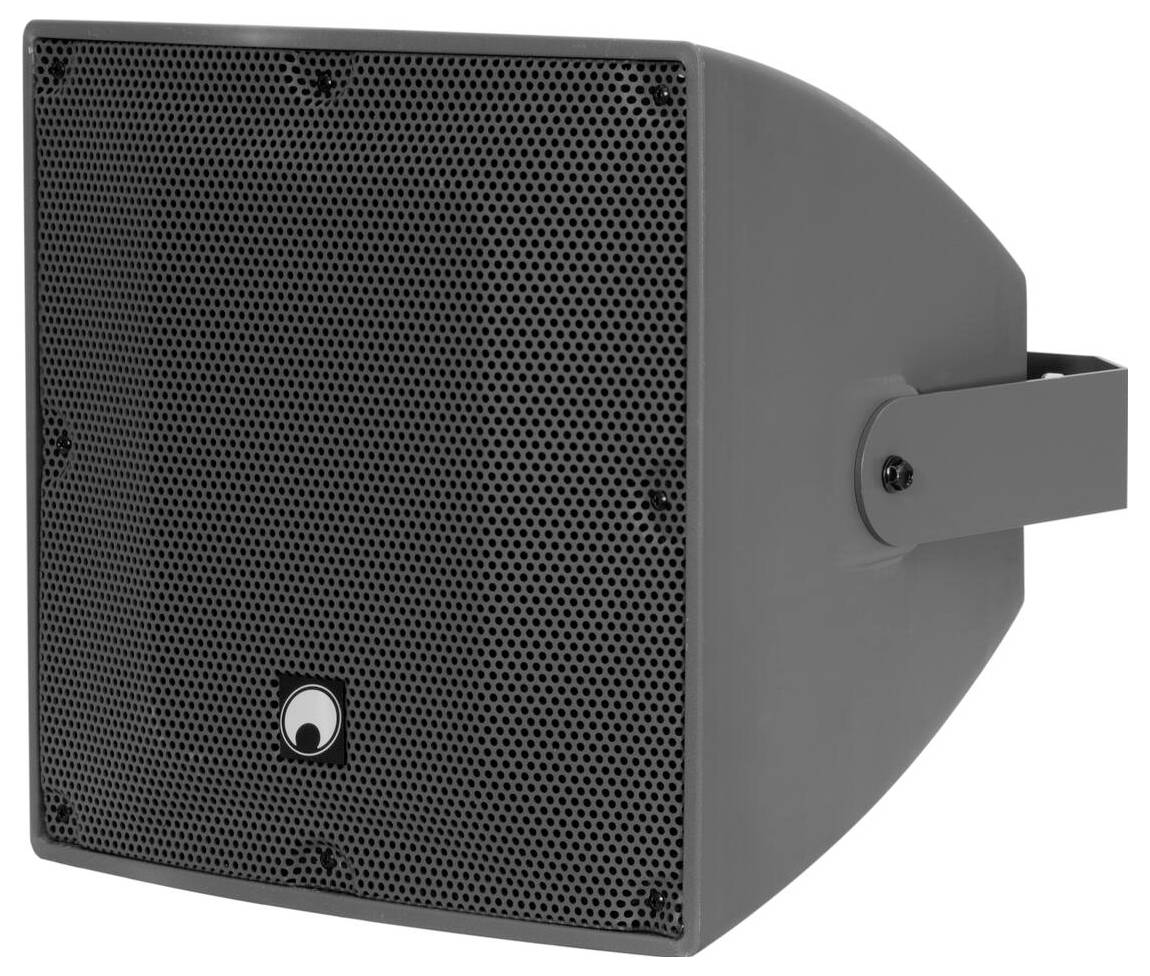

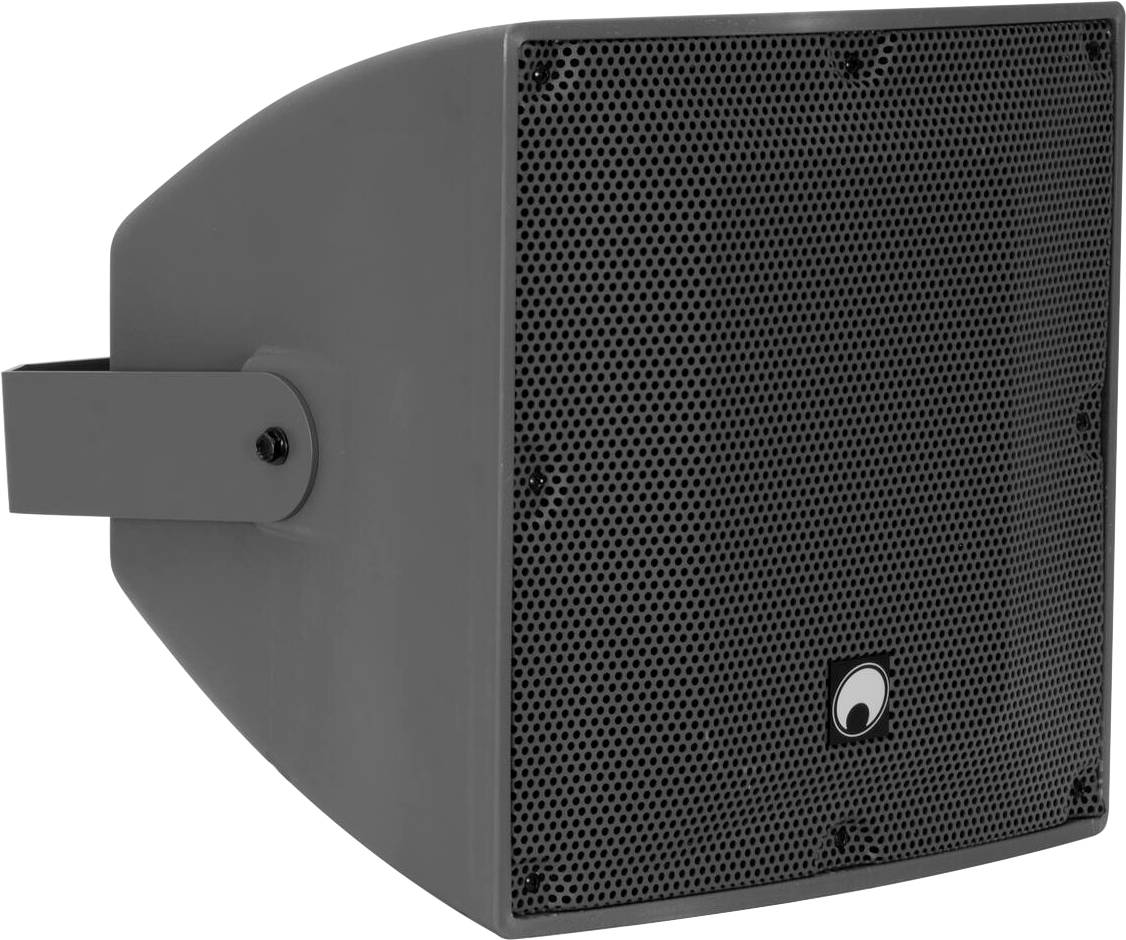

Omnitronic ODX-212TM Outdoor speaker 300 W IP56 Grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity: Program 600 W; nominal 300 W RMS
- Frequency range 55 18000 Hz
- Sensitivity 98 dB (1W/1m).
- Max. Sound pressure level 123 dB
- Emission ratio 80° x 80°
- Impedance 8 Ohm; ELA technology 100 V
- Supporting system: Mounting bracket
- Power tap: 50 W; 100 W; 200 W RMS can be selected via the selector switch

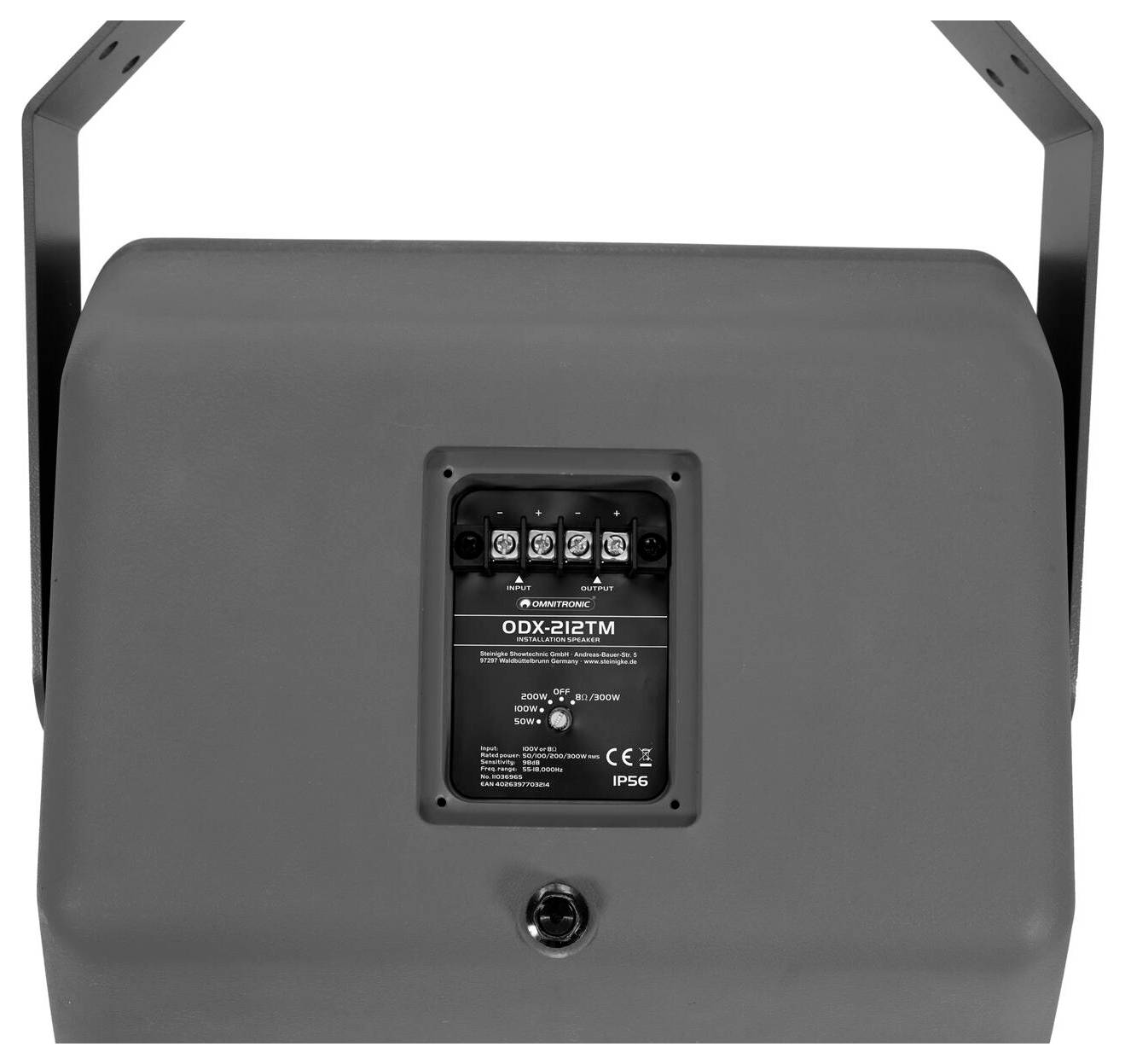

- Connections: Input: Speaker via screw terminal
- Separation frequency 2000 Hz

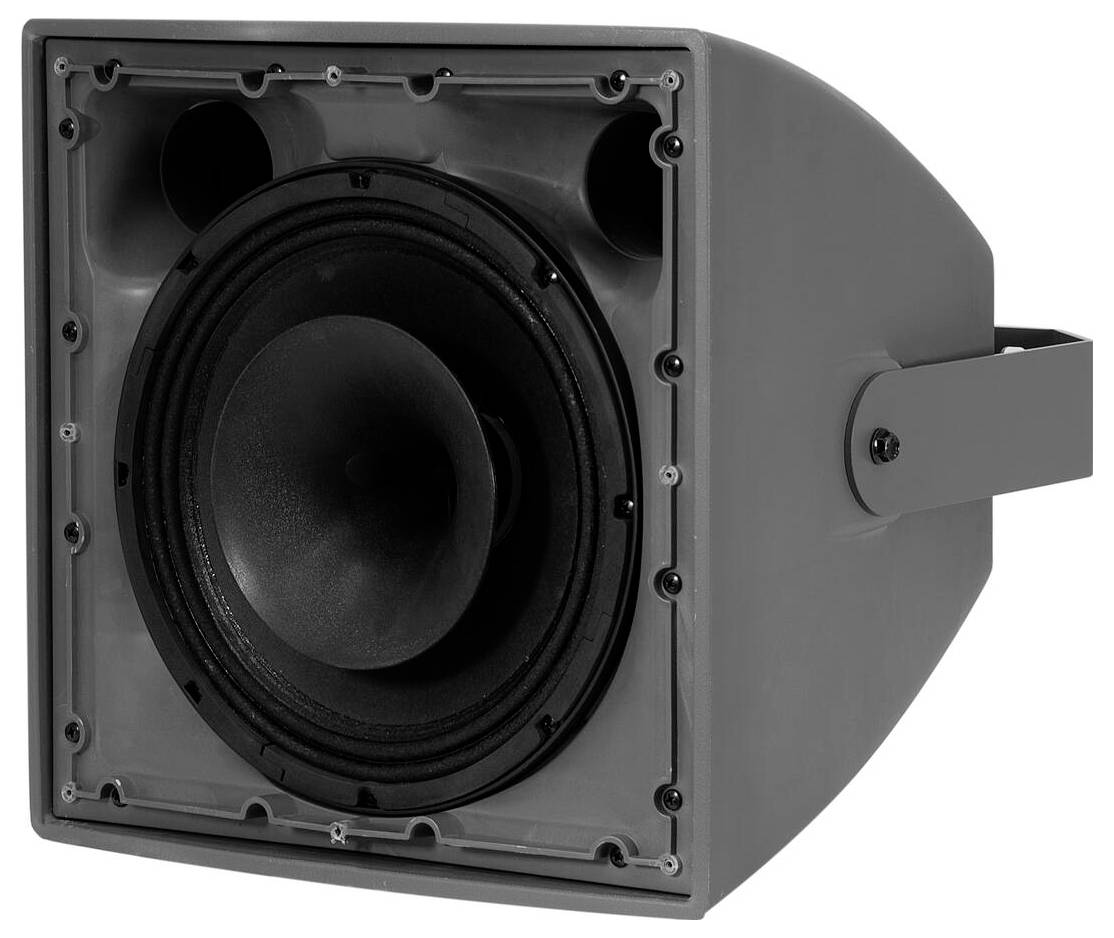

- Speakers:
- 1 x 12" woofers
- Basket material: Aluminium
- Conus material: Cardboard / paper
- 3" moving coil woofer
- 1 x 1" compression driver tweeter; 1.7" moving coil compression driver tweeter
- Speaker type: Surface-mount speaker (wall/ceiling)
- Product type
Outdoor speaker
- RMS capacity
300 W
- Max. load
600 W
- Impedance
8 Ω
- Max. sound pressure
123 dB
- Material
Plastic
IP56
- Factory colour
Grey
- Weight
19650 g
- Length
380 mm
- Width
400 mm
- Height
410 mm
- Content
1 pc(s)
- Dim
(L x W x H) 380 x 400 x 410 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729550 Omnitronic ODX-212TM Outdoor speaker 300 W IP56 Grey 1 pc(s)
Description
Weatherproof 12" wall speaker (IP56) with bracket, 300 W RMS. Very balanced sound. 2-way coaxial system with 30 cm woofer (12") and 4 cm tweeter (1.7"). Power switch with 8 Ohm operating position. Screw terminals for parallel connection. With mounting bracket. Aluminium grid in gray with acoustic foam. Suitable for outdoor IP56. For application areas like: Installation; sport centers/gyms; multi-purpose hall.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x top part
- 1 x mounting bracket
- 1x user manual
- 6 x Screws
- 1 x safety loop
- 1 x cover
- 2 x washers.
