Omnitronic ODX-215TM Outdoor speaker 400 W IP56 Grey 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Load capacity: Program 800 W; nominal 400 W RMS
- Frequency range 50 18000 Hz
- Sensitivity 103 dB (1W/1m)
- Max. Sound pressure level 129 dB
- Emission ratio 70° x 70°
- Impedance 8 Ohm; ELA technology 100 V
- Supporting system: Mounting bracket

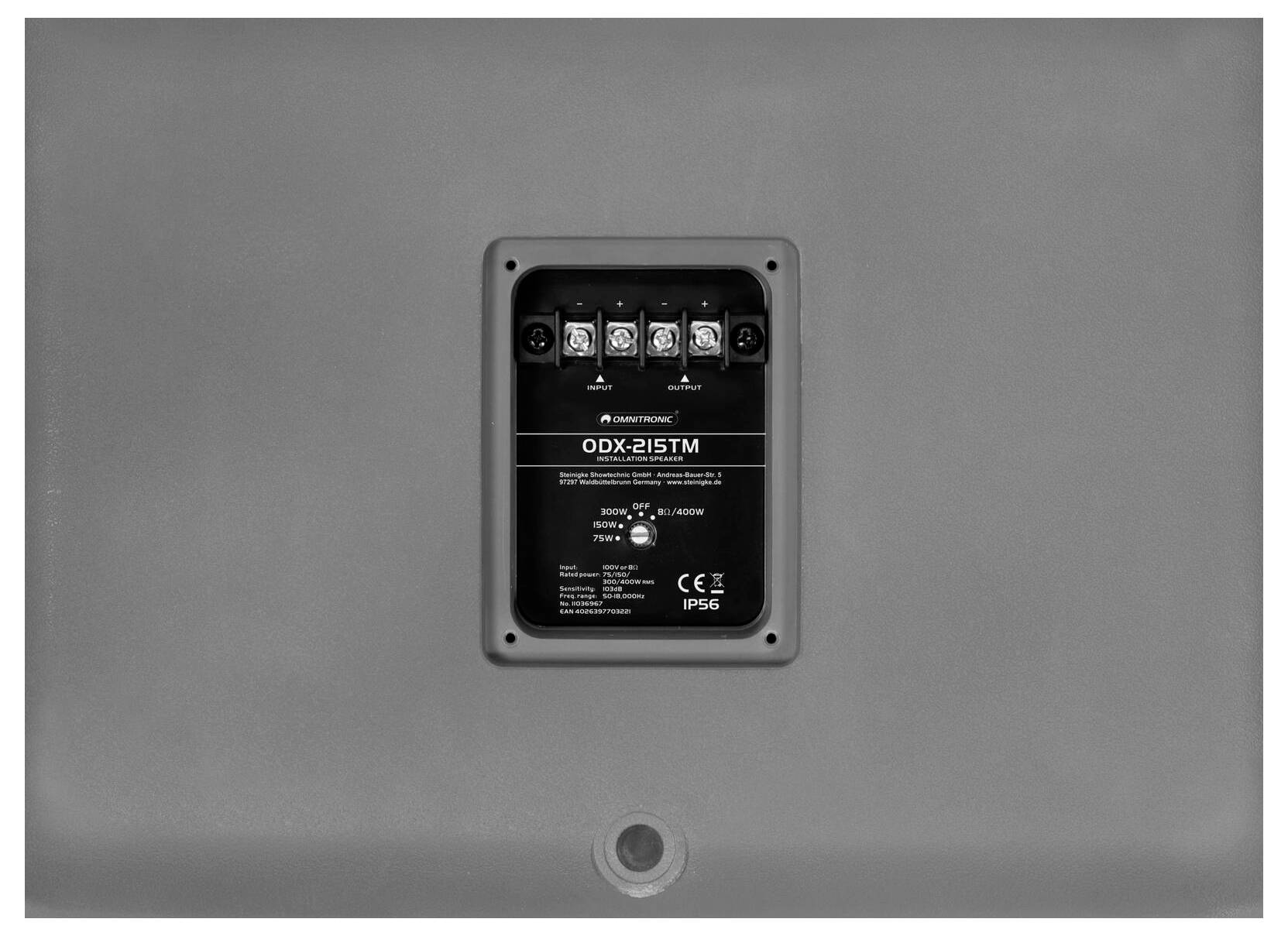

- Power tap: 75 W; 150 W; 300 W; 400 W RMS can be selected using the selector switch
- Connections: Input: Speaker via screw terminal
- Separation frequency 2100 Hz
- Speakers:
- 1 x 15" woofers
- Basket material: Aluminium
- Conus material: Cardboard / paper
- 3" moving coil woofer
- 1 x 1" compression driver tweeter
- 1.7" moving coil compression driver - high tone
- Speaker type: Surface-mount speaker (wall/ceiling)
- Product type
Outdoor speaker
- RMS capacity
400 W
- Max. load
800 W
- Impedance
8 Ω
- Max. sound pressure
129 dB
IP56
- Factory colour
Grey
- Weight
26800 g
- Length
520 mm
- Width
500 mm
- Height
500 mm
- Content
1 pc(s)
- Dim
(L x W x H) 520 x 500 x 500 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729552 Omnitronic ODX-215TM Outdoor speaker 400 W IP56 Grey 1 pc(s)
Description

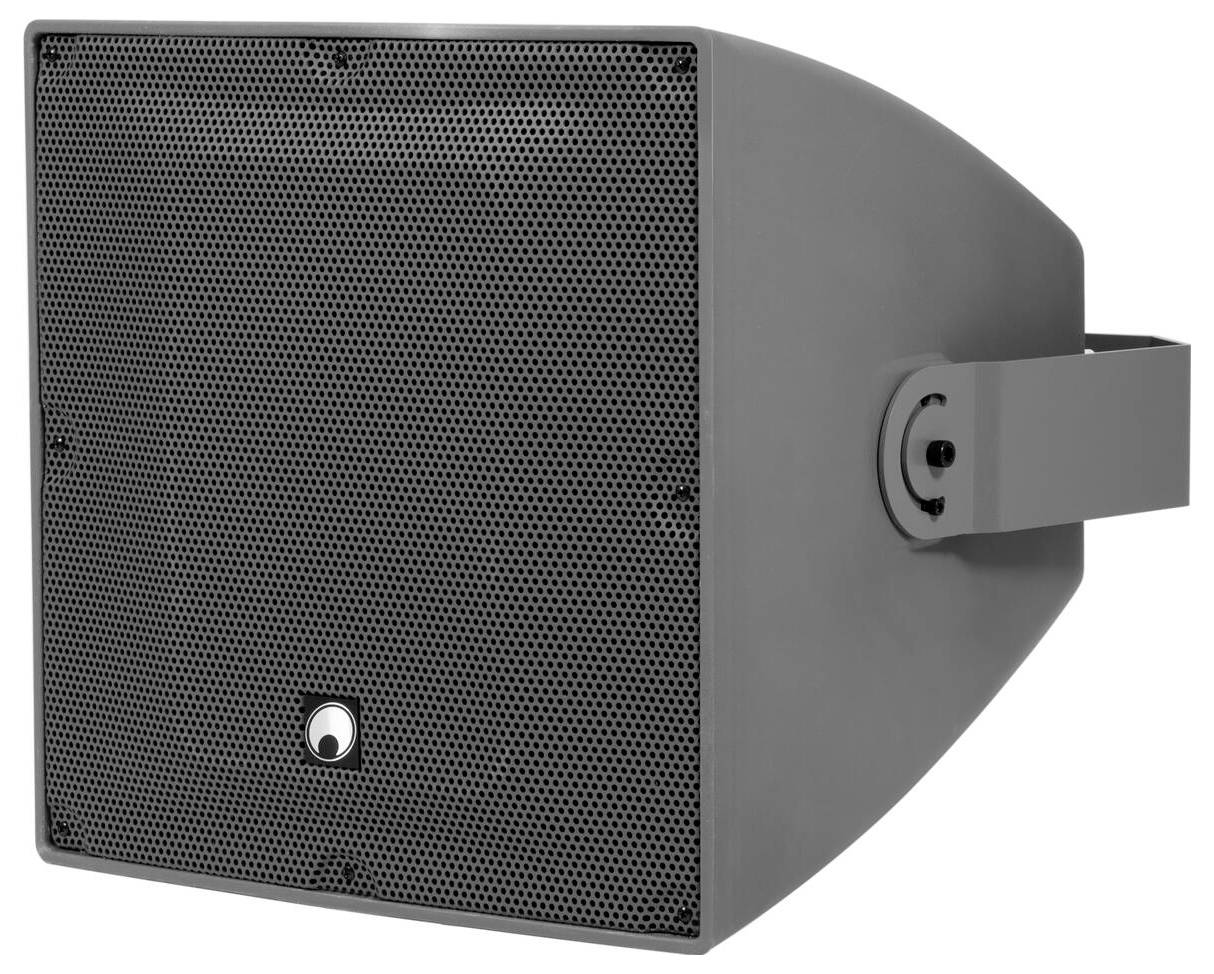

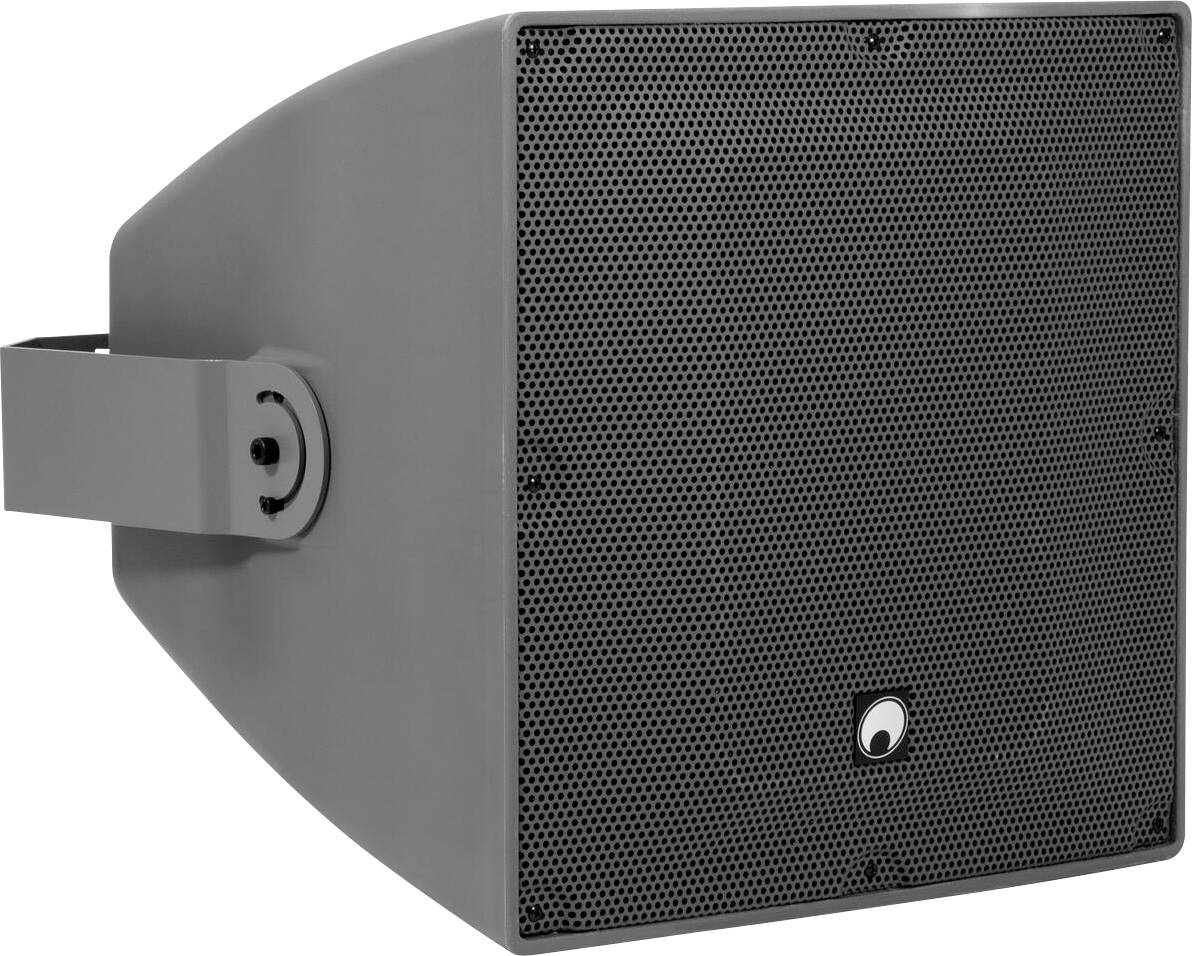

Weatherproof 15" wall speaker (IP56) with bracket, 400 W RMS. Very balanced sound. 2-way coaxial system with 38 cm woofer (15") and 4 cm tweeter (1.7"). Power switch with 8 Ohm operating position. Screw terminals for parallel connection. With mounting bracket. Aluminium grille in gray. Suitable for outdoor IP56. For application areas like: Sports centers/fitness studios; multi-purpose hall.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x top part

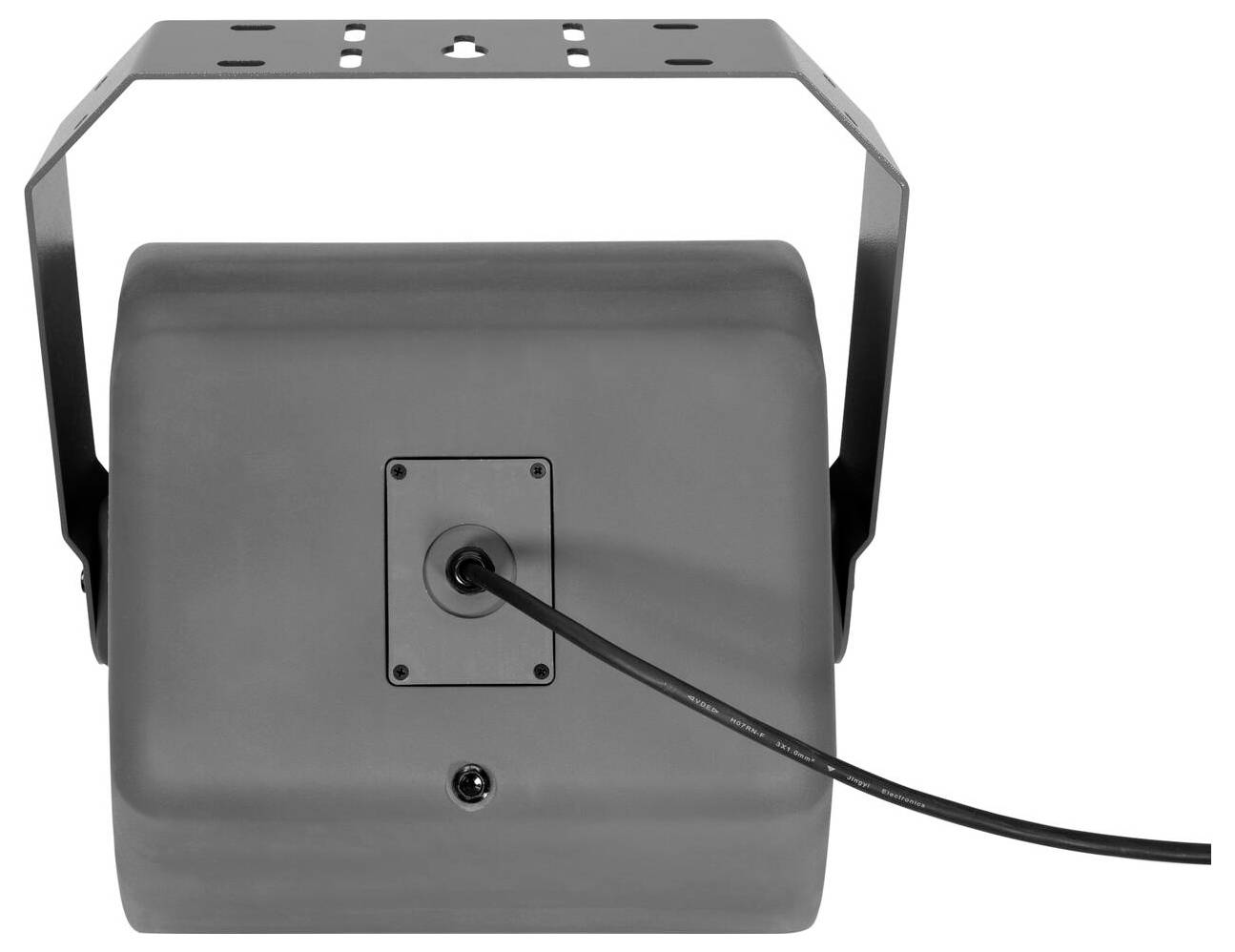

- 1 x mounting bracket
- 1x user manual
- 6 x Screws
- 1 x safety loop
- 1 x cover
- 8 x washers.
