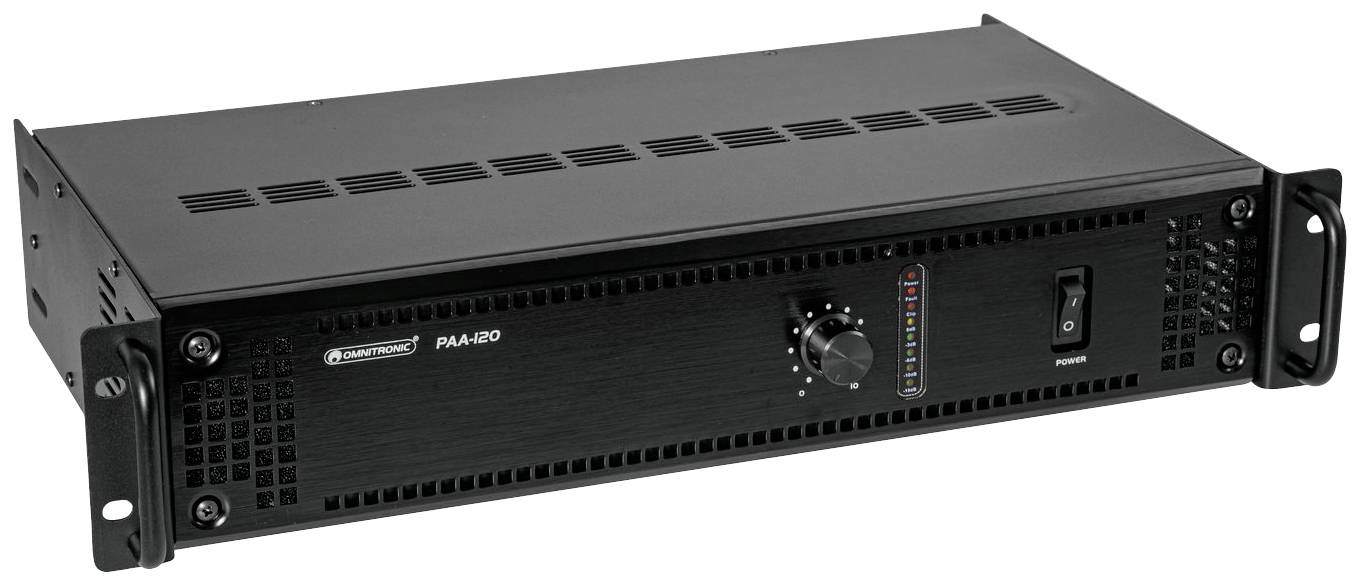

'A black audio amplifier, positioned horizontally. On the front panel, a volume control, a switch, and LED indicators are visible.'

'A black audio amplifier, positioned horizontally. On the front panel, a volume control, a switch, and LED indicators are visible.'

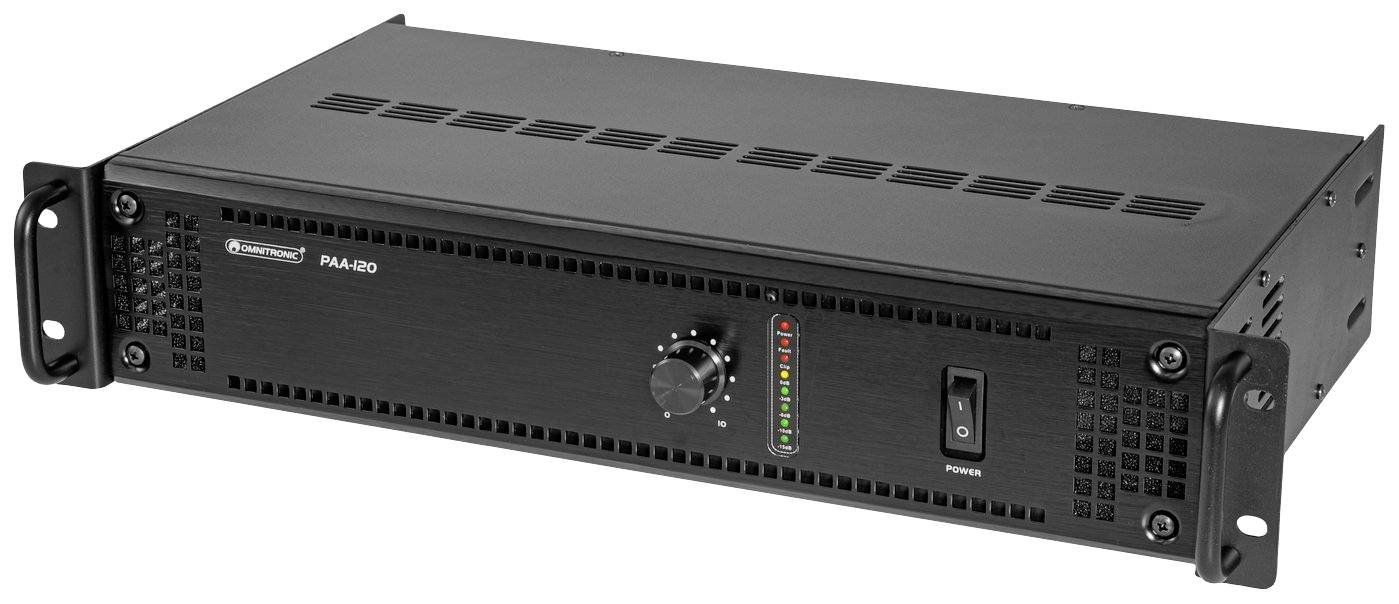

A black audio amplifier with rotary control and LED display. Suitable for professional audio applications with rack-mounting option.

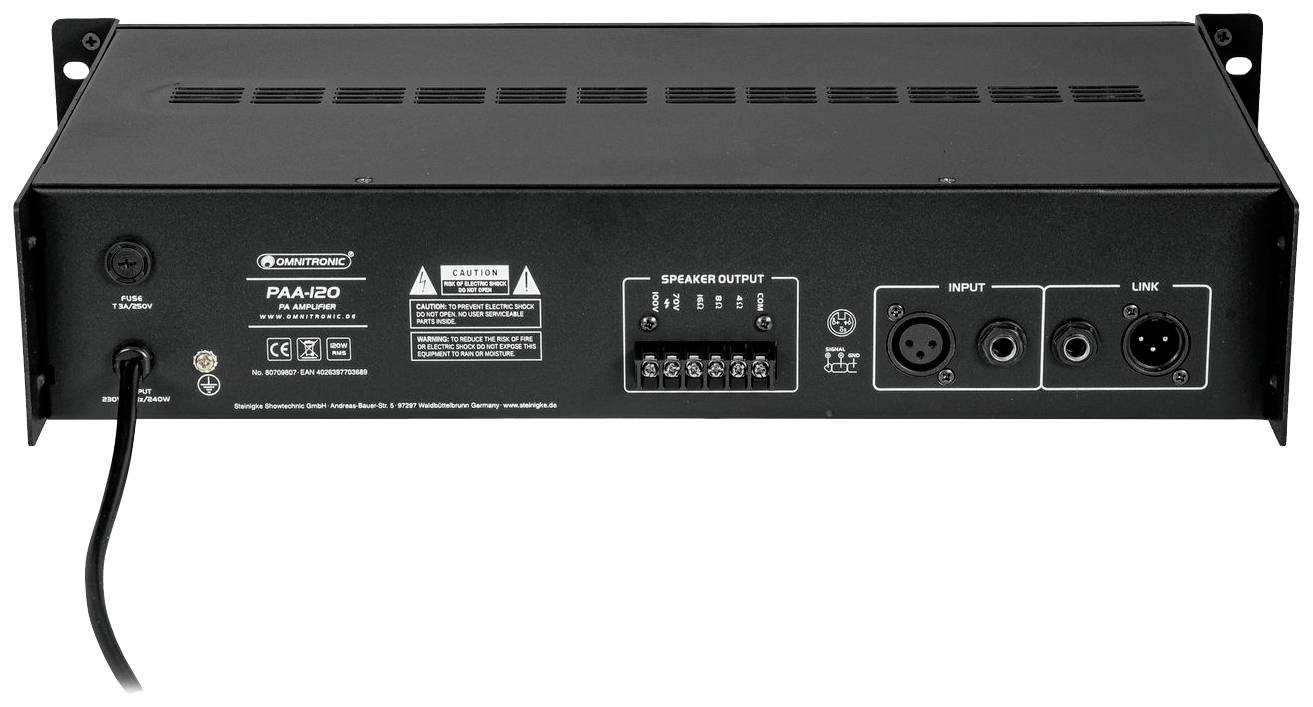

Rear view of an audio device with various connections and a power cable, suitable for speaker and audio system connections.

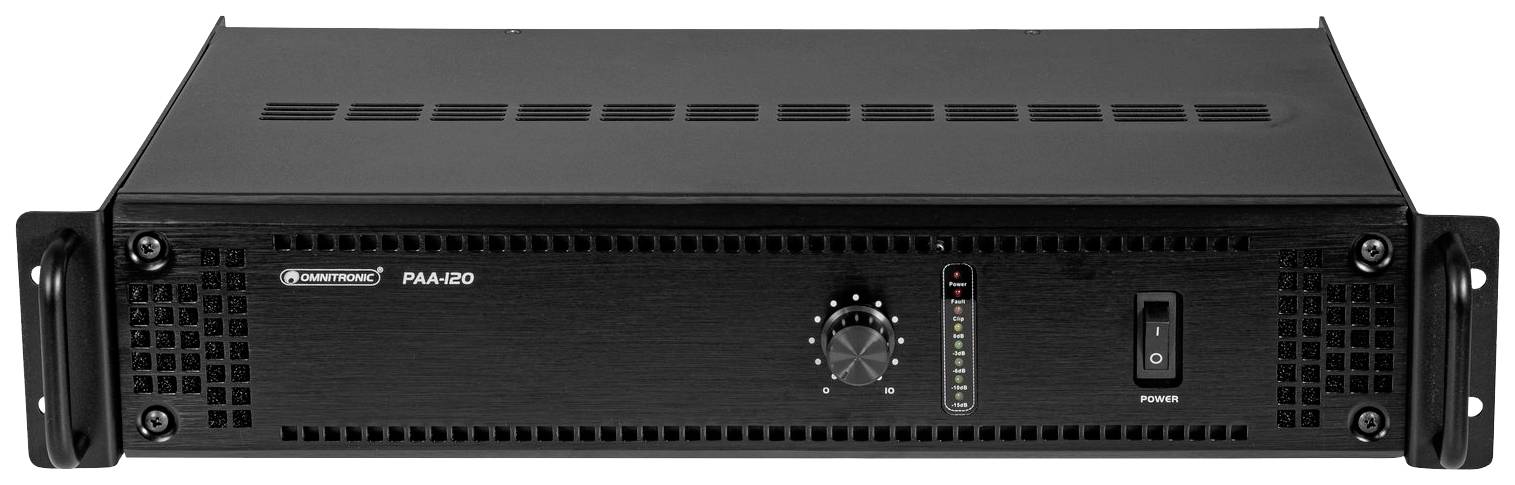

A black audio amplifier in rack format with a central volume control, LED level indicator, and a power switch on the right.

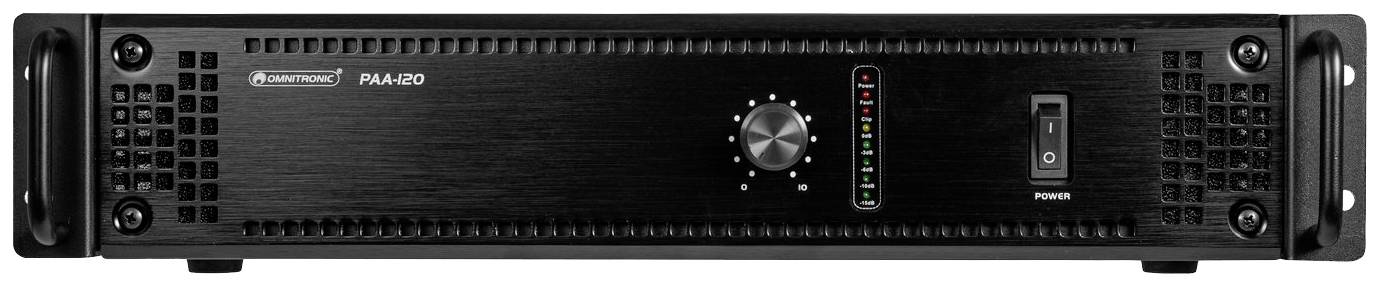

A black audio amplifier with ventilation slots on the left and right, a central volume control knob, and LED indicators on the right.

1/5

Omnitronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 230 V AC 50 Hz
Total connected wattage 240 W
Frequency range 60 18000 Hz
Signal-to-noise ratio 90 dB
Harmonic distortion factor: 0.5 % with 1 kHz
Impedance: PA system 100V; 4-16 Ohm; PA system 70V
Protective circuit: Overload; short circuit; limiter; overheating
Input: Line via 1 x 6.3 mm jack socket (mono), built-in version, Line via 1 x 3-pin XLR 0.8 V
Output: Line via 1 x 6.3 mm jack socket (mono), built-in version, line via 1 x 3-pin XLR

Product type: PA amplifier

RMS power: 120 W

Dim: (L x W x H) 38.5 x 48.3 x 9.2 cm

Weight: 5.35 kg

Output type (PA amplifier): 100 V

Width: 48.3 cm

Height: 9.2 cm

Length: 38.5 cm

Interfaces: 6.3 mm jack in
XLR in
XLR out
6.3 mm jack out

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2898850 Omnitronic PAA-120 PA amplifier 120 W

Description

Features

PA amplifier, 120 watt1 line input (XLR and 6.3-mm jack)
1 loop-through output (selectable between XLR and 6.3-mm jack)
Master controller
LED display for Power, level, clip and Fault
(19") 48.3 cm rack installation 2 HE
This text is machine translated.

Scope of delivery

PAA-120
2x bracket
4x screw
User manual
