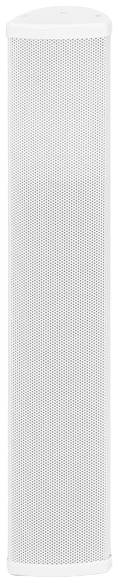

Omnitronic PCS-230 PA sound column 30 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Frequency range 180 18000 Hz
- Loudspeaker: 4x woofer (2") approx. 5 cm, 1x tweeter (1") approx. 2.5 cm
- Dim. (W x H x D) 75 x 405 x 69 mm
- Power tapping: 7.5W; 15W; 30W RMS can be selected with lever clamp
- Product type
PA sound column
- Operating voltage
100 V
- RMS capacity
30 W
- Max. load
60 W
- Max. sound pressure
105 dB
- Features
weatherproof
IP44
- Material
Aluminium
- Length
69 mm
- Width
75 mm
- Content
1 pc(s)
- Weight
1.85 kg
- Factory colour
White
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898853 Omnitronic PCS-230 PA sound column 30 W White 1 pc(s)
Description
Weather-proof speaker column in a slim aluminum profile housing.
This text is machine translated.
This text is machine translated.
Features
- Very good sound quality and high range
- Stable aluminum casing with protective grille
- 2-way system with 4 x 5 cm woofers (2")

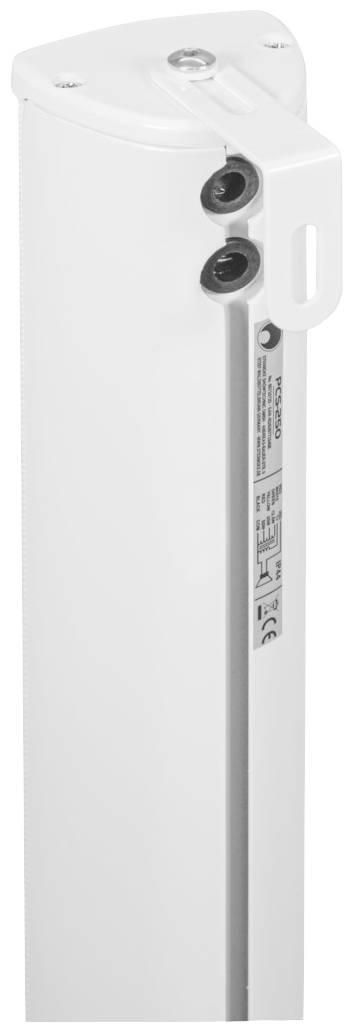

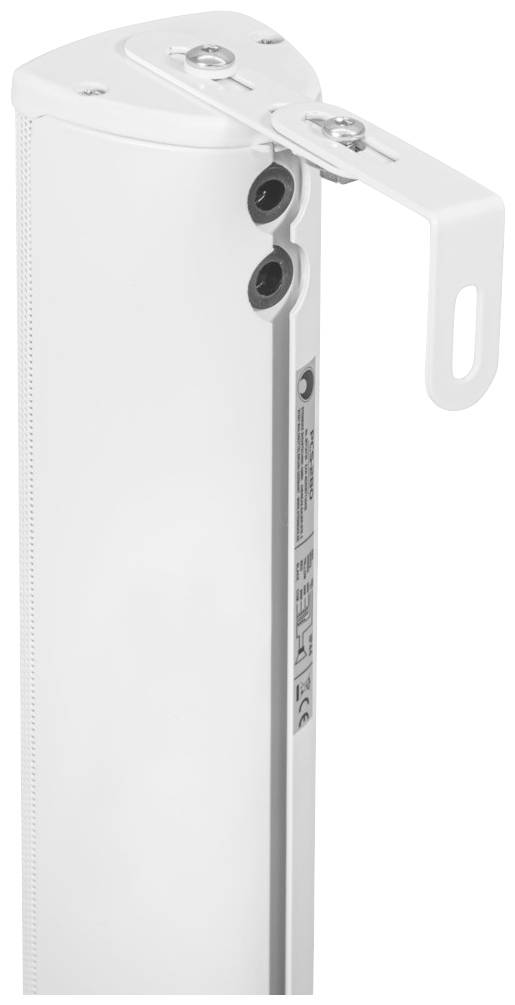

- With mounting bracket
- Suitable for outdoor use IP44
Scope of delivery
- Sound column
- 3x Angle
- 3x screw
- 3x washer
- Allen key
- 2x screw connections
- User manual
