Buy Omnitronic PKD-352 Stereo headstage RMS power per channel (at 4 Ohm): 175 W

1/5

Unavailable

Sales and shipping:

Highlights & Details

2-channel studio amplifier with switched-mode power supply, 2 x 175 W / 4 ohm, 2 x 100 W / 8 ohm
Low weight and low overall height thanks to built-in switched-mode power supply
2 modes can be set (stereo or bridge)
2 level controls
This text is machine translated.

User & Safety Instructions 3131317 Omnitronic PKD-352 Stereo headstage RMS power per channel (at 4 Ohm): 175 W

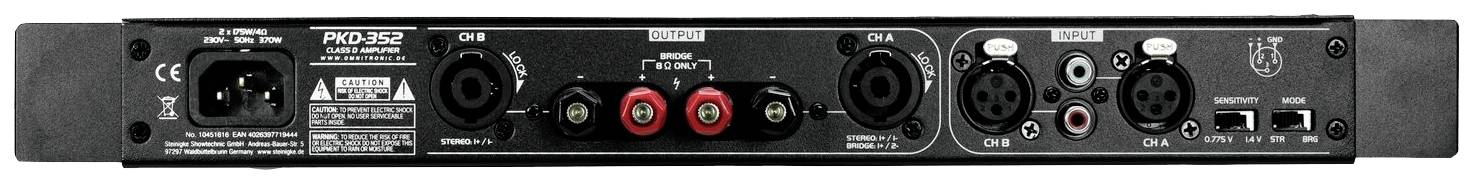

Electronically balanced inputs via XLR panel jack with XLR pass-through outputs
Loudspeaker outputs via locking speaker sockets
The device is cooled by passive convection cooling
(19") 48.3 cm rack installation 1 HE
Power supply 230 V AC 50 Hz
Total connected wattage 70 W 1/8 Power
Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
Frequency range: 20 - 20 000 Hz
Signal-to-noise ratio 105 dB
Harmonic distortion factor: 0.05 % with 1 kHz
Impedance: 20 kOhm , balanced
Input: Line via 2 x cinch (W) mounting version
Gain 38 dB
Controls: Power switch, volume control per channel, power selection switch (stereo/bridge), input sensitivity switch
Status LED: Power, signal, clip
Connections: Line via 2 x 3-pin XLR
Output: Speaker via 2 x screw terminals
Housing design (19") 48.3 cm Rack installation 1 HE
Protection class SK I
Output power 2 x 175 W RMS (4 ohm)
2 x 100 W RMS (8 ohm)
350 W RMS bridged (8 ohm)
Cable length 1 m removable
Device fuse: 4 x 10 mm, T 3.15 A fuse installed permanently (e.g. on circuit board)
Cooling: Passive convection cooling
Housing colour black.
Class D switching
Rise time 20 V/µs
Attenuation factor 300
Protective circuit: Soft start
Direct voltage
VHF / BAND III
Current limiter
Short circuit
Limiter
Overheating
Input sensitivity: 0.775 V.
1.4 V , switchable
