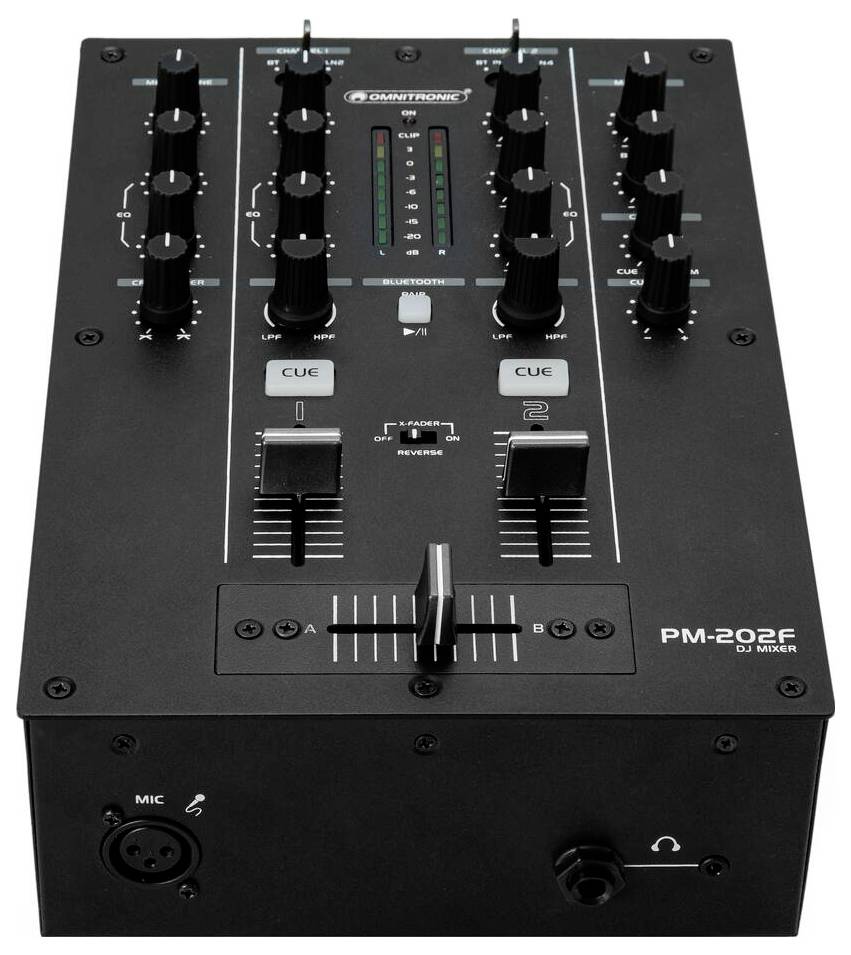

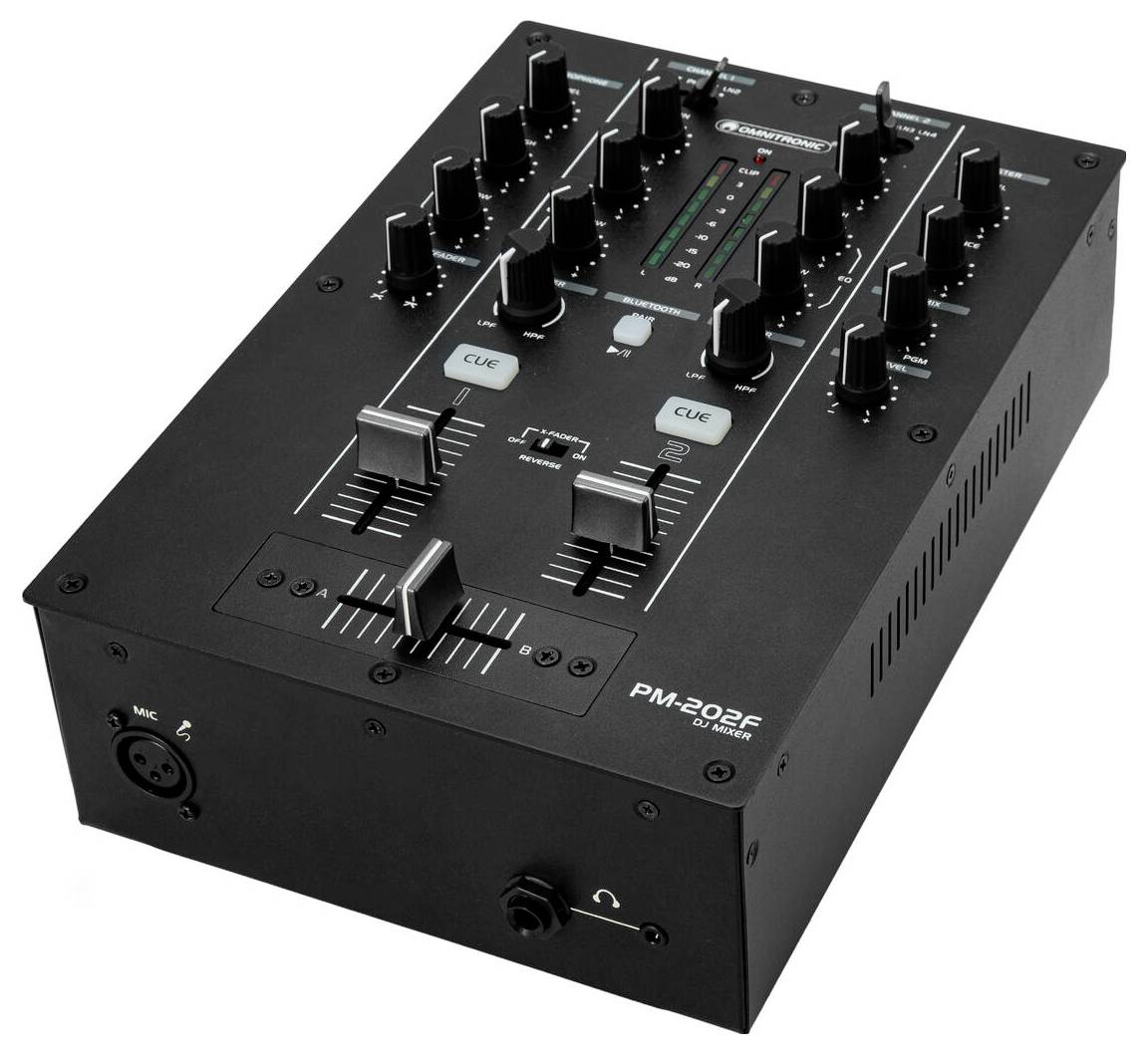

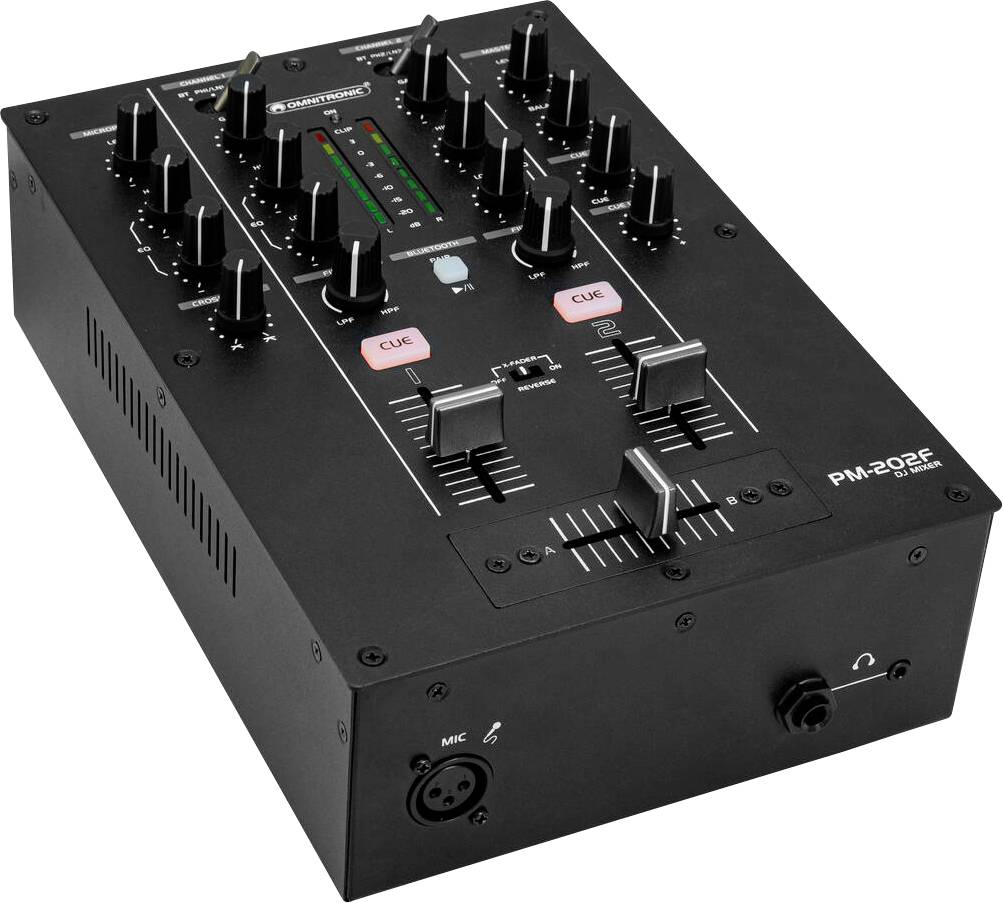

Omnitronic PM-202F 2-channel DJ mixer Black
EAN:
Part number:
Item no:
Technical specifications
- Power supply: 100 - -240 V AC 50/ 60 Hz
- Total connected value: max. 8 W
- Protection class SK II.
- Power connection: Power feed via small devices C8 (M) Razor plug" built-in version power connection cable with Euro plug (included)
- Frequency range: 20 - 20 000 Hz
- Signal-to-noise ratio 80 dB
- Distortion factor: Less than 0.1 % at 1 kHz
- DJ Filter: For each channel: LPF/HPF bipolar
- Bluetooth control
- Bluetooth device name: PM-202F
- Range: Bluetooth: Up to 15 m.
- Cross talk-attenuation 60 dB

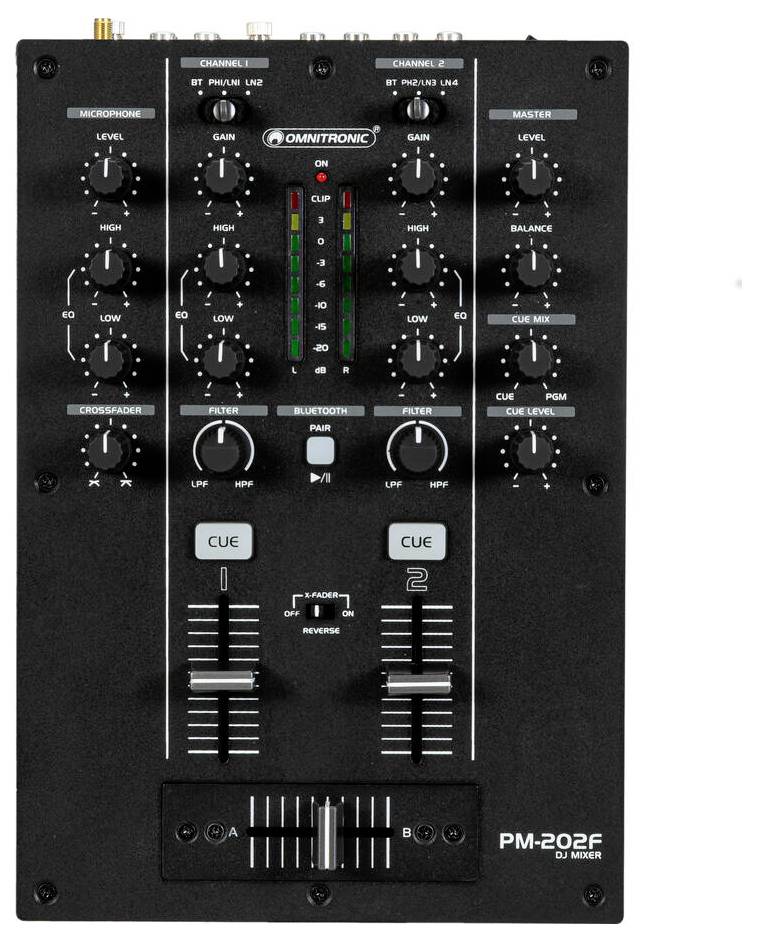

- Controls: Cross fader, cross fade curve controller, cross fade reverse switch, FX parameter controller, power switch
- Status LED: Power, master level display

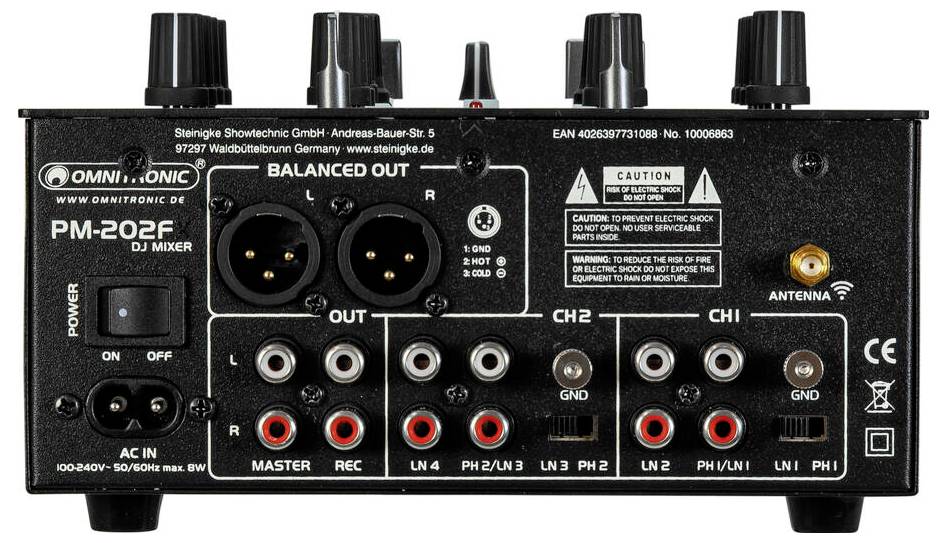

- Connections: Input: Line/phono via 2 x stereo-cinch
- Input line via 2 x stereo cinch
- Input: Microphone via 1 x 3-pin XLR (W) installation version
- Input: Antenna via 1 x SMA (W) installation version
- Input: Earth connection via 2 x screw terminals
- Output: Master via 2 x 3-pin XLR (M) installation version
- Output Master via 1 x stereo-cinch
- Output REC. Via 1 x stereo cinch
- Output: Headphones via 1 x 6.3 mm jack socket (stereo) Installation version
- Output: Headphones via 1 x 3.5 mm jack socket (stereo) Installation version. Channels: Input channel: 2 x stereo with Line/Phono-Bluetooth switch via phono, channel control via 60mm fader, controller 2-band EQ, gain controller, CUE switch
- 1 x mono via XLR, channel control via rotary knob, control 2-band EQ
- Master output: 1 x stereo via XLR or phono, channel control via rotary dial, balance control
- Headphone output: Stereo via jack, channel control via rotary dial, cue mix function
- REC Output: Stereo via phono
- Material: Metallic
- Colour, black
- Housing design: Table stand housing
- Dimensions: Length: 30.5 cm, width: 19.0 cm, height: 11.0 cm
- Weight: 2.18 kg
- Network cable/power cable
- Cable length 2.10 m removable
- No. of channels (details)
2
- Product type
DJ mixer
- Interfaces
XLR in
XLR out
RCA in
RCA out
3.5 mm headphone out
6.35 mm headphone out
- Dim
(W x H x D) 190 x 110 x 305 mm
- Weight
2180 g
- Factory colour
Black
- Principle
2-channel
- Width
190 mm
- Height
110 mm
- Depth
305 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729541 Omnitronic PM-202F 2-channel DJ mixer Black
Description
DJ mixer with Bluetooth connectivity and sound filter. Bluetooth channel 1 and 2 signal can be freely assigned. DJ microphone channel with volume control and 2-band equalizer. Crossfader with adjustable curve and reverse switch. Preview of all input channels and the master total via adjustable stereo headphone output. Master channel with volume control and stereo LED level display. 4 line and 2 phono inputs via phono sockets. Additional record output. DJ LPF/HPF bipolar filter for each channel. Can be controlled via Bluetooth. Bluetooth: Range of up to 15m. Table stand case For application areas like: Party cellar; mobile use; mobile DJ's / solo entertainer.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x mixers
- 1 x Power cable/power cable
- 1 x Antenna
- 1 x phono cables
- 1x user manual
- 1 x declaration of conformity.
