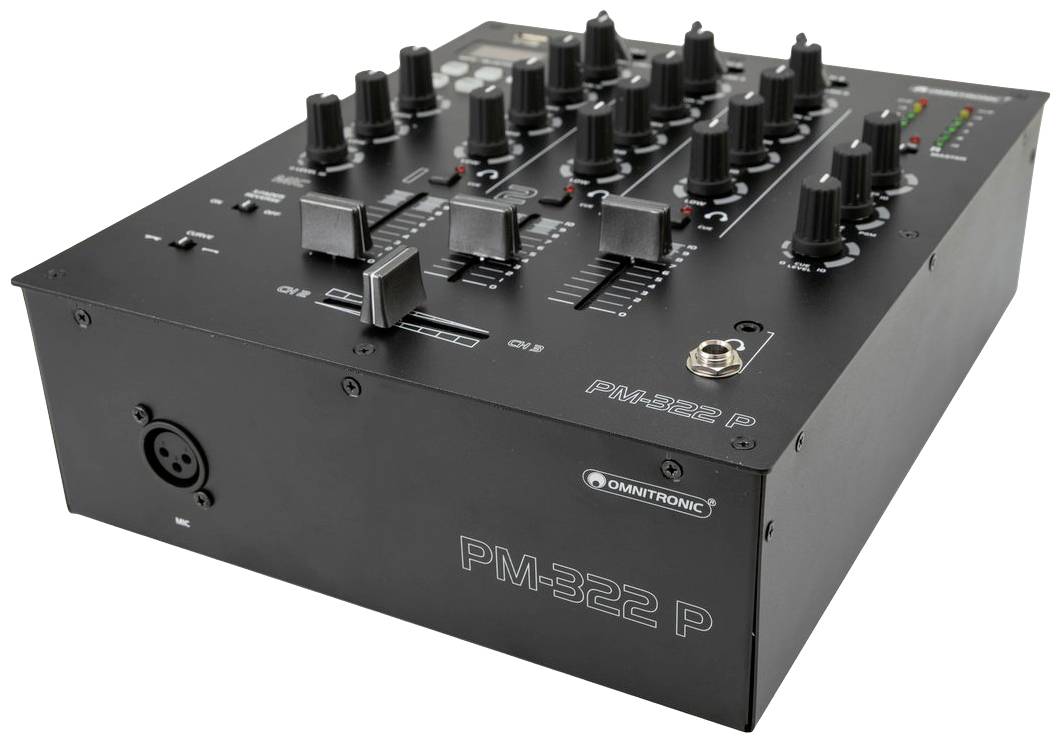

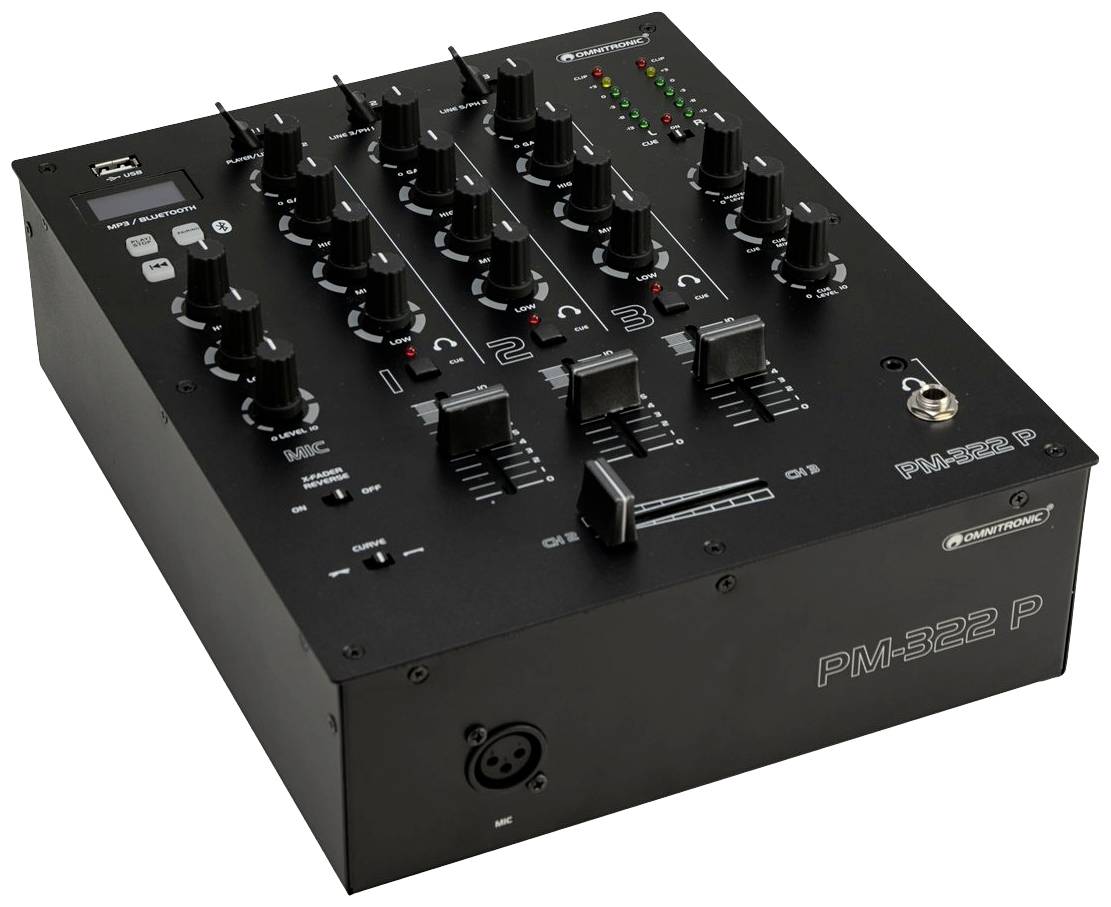

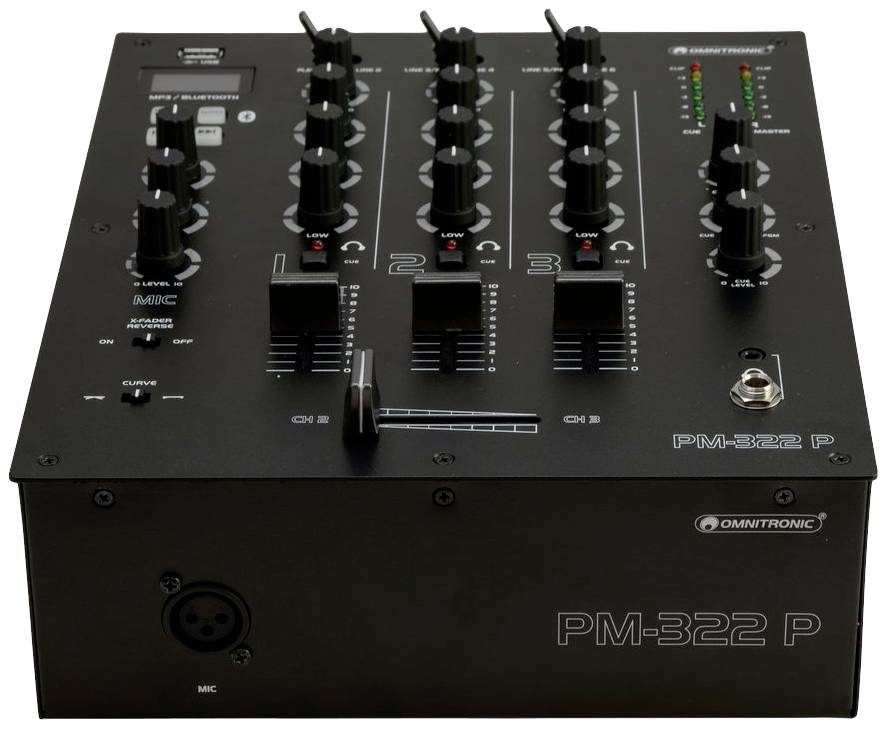

Omnitronic PM-322P DJ mixer
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic PM-322P 3-channel DJ Mixer with Bluetooth and USB player

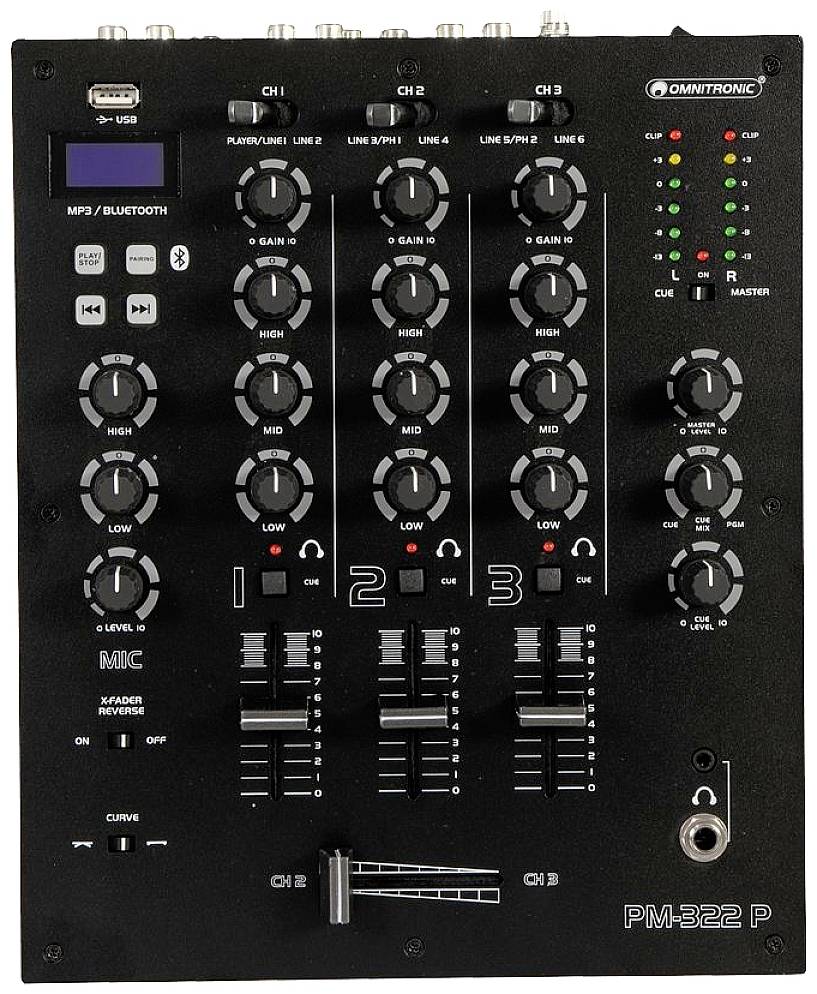

- 3 input channels with gain controller, 3-band equalizer, cue button and channel faderDJ microphone channel with volume control and 2-band equalizerIntegrated Bluetooth audio streaming for wireless music enjoymentMP3 player with USB connection and blue LCD displayPreview of all input channels and the master total via adjustable stereo headphone outputCrossfader with adjustable control characteristics and reverse switchMaster channel with volume control and 6-digit stereo LED level meter, switchable between Master and PFL signal
Technical specifications

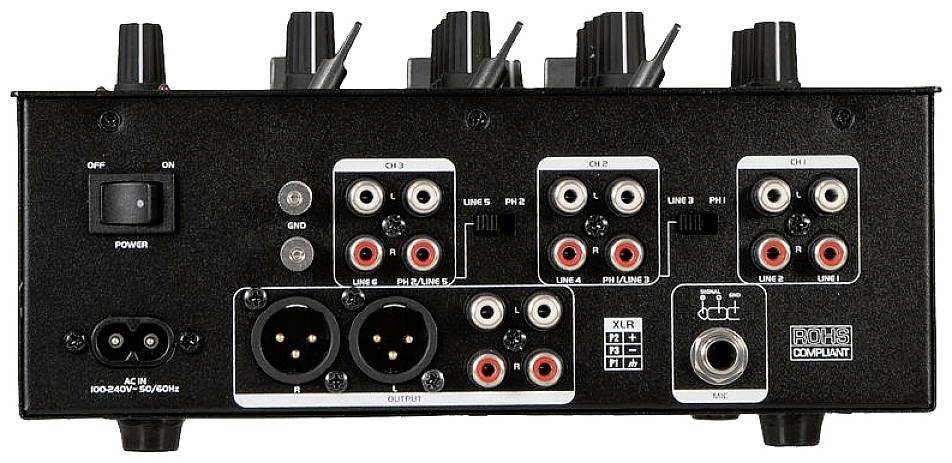

- Power supply 100-240 V AC 50/60 HzTotal connected wattage 25 WProtection class SK II.Power connection: Power feed via small devices (M) "razor plug" installation version power connection cable with Euro plug (supplied)Bluetooth controlBluetooth: Version: 4.2 + EDR; Profile: A2DP, AVRCPUSB + Bluetooth audio player Display type: Single-color LCD displayControls: Audio player, crossfader, cue mix function, source switch, crossfader curve switch; Cross-fade reverse switchStatus LED: Switchable master level display, clip, cue, PowerInputs: Line via 4 x stereo cinch; Line/Phono via 2 x stereo cinch; Audio player via 1 x USB A (W) installation version; Microphone via 1 x 6.3 mm jack socket (mono) installation versionOutput: Master via 2 x 3-pin XLR; Master via 2 x Stereo phono; Headphones via 1 x 6.3 mm jack plug (stereo) installation versionInput channel: 1 x stereo with line player switch via phono or player, channel control via fader, control 3-band EQ, gain control, CUE switch; 2 x stereo with line/phono switch via phono, channel control via fader, control 3-band EQ, gain control, CUE switch1 x mono via jack, channel control via dial, 2-band EQ control, cue mix functionMaster output : 1 x stereo via XLR or phono, channel control via control dialHeadphone output :1 x stereo via jack, channel control via control dialMUSIC FORMAT MP3, WAV; WMACarrier frequency 2.4 GHzUSB-connection type ARange: 10 mHousing design: Table stand housingAudio player - Suitable storage media: USB devices max. 32 GB (FAT 32)
- Product type
DJ mixer
- Interfaces
Phono in
Mic 6.35 mm in
USB type A
XLR out
6.35 mm headphone out
RCA out
RCA in
- Dim
(W x H x D) 230 x 107 x 283 mm
- No of. 6.3 mm microphone inputs
1 x
- Weight
2.58 kg
- Principle
3-channel
- Width
230 mm
- Height
107 mm
- Depth
283 mm
- No. of RCA outputs
2 x
- No. of RCA inputs
6 x
- No. of 6.3 mm headphone outputs
1 x
- No. of USB type A ports
1 x
- No of. XLR outputs
2 x
Description
3-channel DJ mixer with Bluetooth and MP3 player
This text is machine translated.
This text is machine translated.
Features
- 6-digit stereo LED level meter6 line and 2 phono inputs via phono socketsSymmetric XLR outputs and cinch socketsRecord-output, master-independentCan be controlled via BluetoothSingle-color LCD displayRange of up to 10mTable stand case
Scope of delivery
- 1 x mixers
- 1x user manual
- 1 x Power cable/power cable
- 1 x phono cables
- 1 x declaration of conformity
