Omnitronic PM-444Pi DJ mixer
EAN:
Part number:
Item no:
Highlights & Details

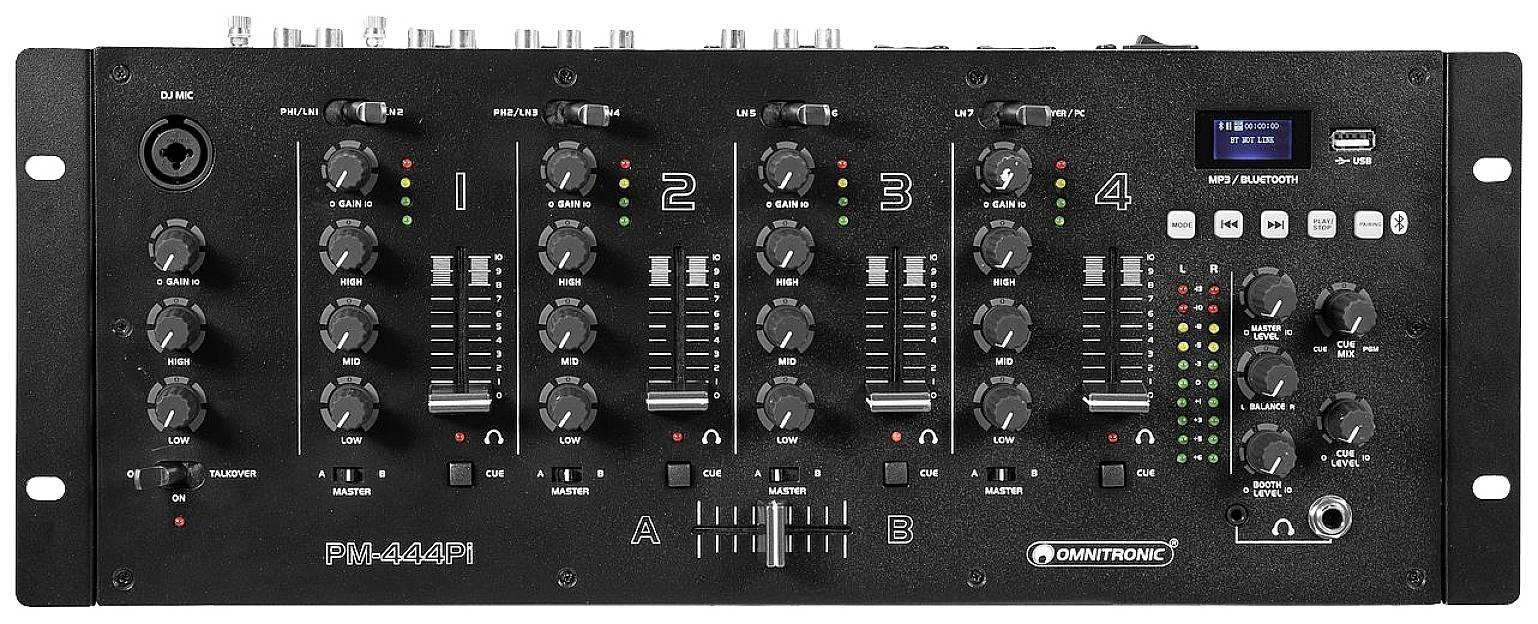

Omnitronic PM-444Pi 4-channel DJ mixer with player & USB interface
- 4 input channels with gain controller, LED level indicator, 3-band equalizer, cue button and channel fader1 DJ microphone channel with volume control, 2-band equalizer, on/off and talkover switchIntegrated Bluetooth audio streaming for wireless music enjoyment from your portable music devicesMP3 player with USB connection and blue LCD displayIntegrated USB audio interface allows recordings and playback on a computer (PC and Mac)Preview of the input channels and the master total via adjustable headphone output with cue mix/split functionCrossfader with assignment switchesMaster channel with volume and balance control
Technical specifications
- Power supply 100-240 V AC 50/60 HzTotal connection value: Max. 10 WProtection class SK II.Power connection: Power feed via small devices (M) "razor plug" installation version power connection cable with Euro plug (supplied)Frequency range: 20 - 20 000 HzSignal-to-noise ratio>60 dBImpedance: Input microphone: 1 ohms; Input line: 1 ohms; Input phono: 1 ohmsGain: Input: VariableBluetooth: Version: 4.2 + EDR; Profile: A2DP, AVRCPDisplay type: Single-color LCD displayControls: Crossfader selection switch, crossfader, source switching, power switchStatus LED: Power, CUE, master level display, channel level displayInputs: Microphone via 1 x 3-pin XLR/6.35 mm jack (W) combined mounting version; Line via 5 x stereo cinch; Phono via 2 x stereo cinchOutput: Master via 2 x 3-pin XLR; Master via 1 x stereo cinch; REC. Via 1 x stereo cinch; REC. Via 1 x USB B (W) mounting version; Headphones via 1 x 6.3 mm jack socket (stereo) installation version 2 x stereo with Line-phono switch via phono, channel control via fader, control 2-band EQ -30 dB to 12 dB at 80 Hz/12 kHz, gain controller; 1 x stereo with line switch via phono, channel control via fader, control 2-band EQ -30 dB to 12 dB at 80 Hz/12 kHz, gain control, CUE switch; 1 x stereo with Line-USB switch via phono or USB, channel control via fader, control 2-band EQ -30 dB to 12 dB at 80 Hz/12 kHz, gain controller1 x mono via 3-pin XLR/6.35 mm jack (W) combined mounting version, channel control via control dial, controller 2-band EQ -30 dB to 12 dB at 70 Hz/13 kHz, cue-mix functionMaster output : 1 x stereo via XLR or phono, channel control via control dialHeadphone output: Stereo via jack, channel control via rotary dialMUSIC FORMAT : MP3, WAV; WAVUSB 2.0, type B connection; type A connection PC Connect: Via USBHousing shape ( 19") 48.3 cm rack installation 4 HEAudio player - Suitable storage media: USB devices max. 32 GB (FAT 32)
- Product type
DJ mixer
- Interfaces
RCA out
6.35 mm headphone out
USB type A
Line in
- Dim
(W x H x D) 483 x 89 x 178 mm
- No of. 6.3 mm microphone inputs
1 x
- Weight
2 kg
- Principle
4-channel
- Width
483 mm
- Height
89 mm
- Depth
178 mm
- No. of RCA outputs
1 x
- No. of RCA inputs
7 x
- No. of 6.3 mm headphone outputs
1 x
- No of. USB type B ports
1 x
- No of. XLR outputs
2 x
Description
4-channel DJ mixer with Bluetooth, MP3 player and USB interface
This text is machine translated.
This text is machine translated.
Features
- 10-digit stereo LED level meterSeparately controllable monitor output (DJ booth)7 line and 2 phono inputs via phono socketsSymmetric XLR outputs and cinch socketsAdditional record outputSingle-color LCD displayThe device can be connected with the PC via USB,(19") 48.3 cm rack installation 4 HE
