Buy Omnitronic ROD-1043 Active PA speaker set 7.62 cm 3 inch 350 W 1 pc(s)

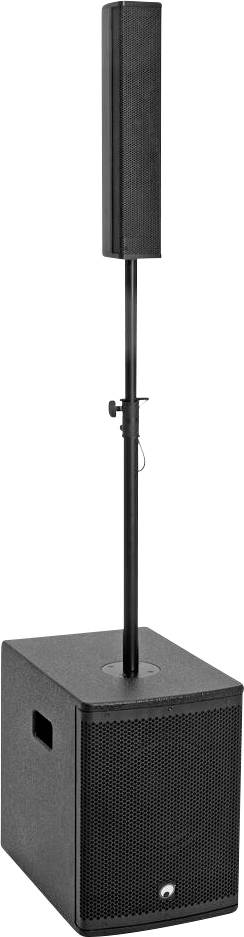

A compact black speaker system with a tall, slim vertical speaker mounted on a pole above a subwoofer base, suitable for events.

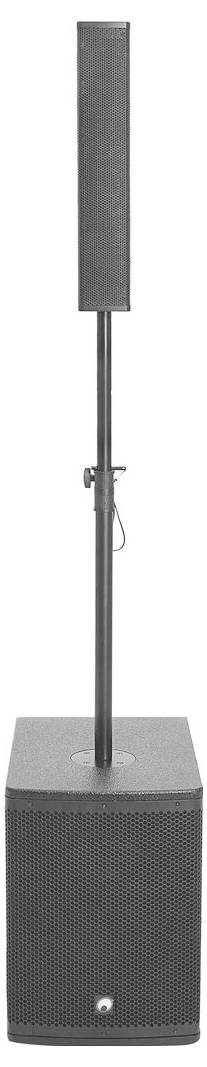

A tall, black portable PA speaker with a vertical column design, mounted on a base unit, suitable for live music or public speaking.

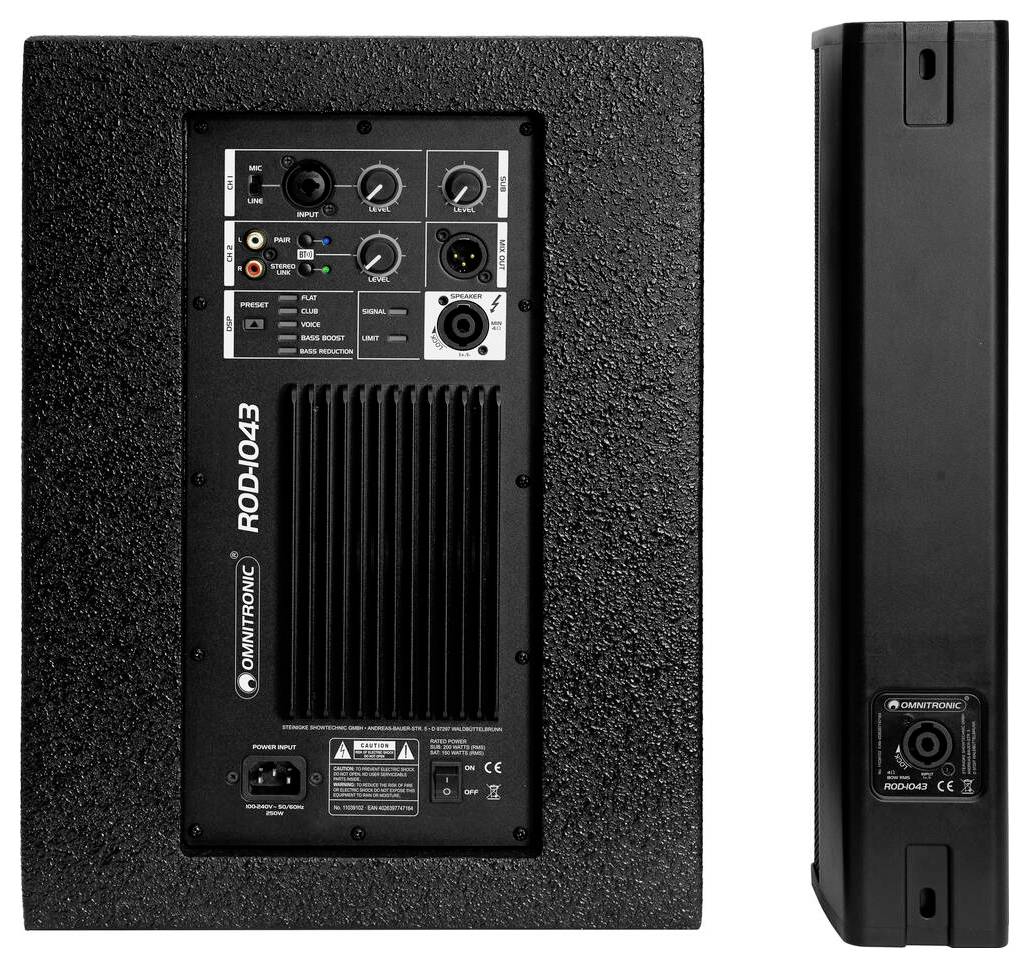

A black electronic device with a control panel, knobs, and ports on one side; model number 'ROD043' is visible.

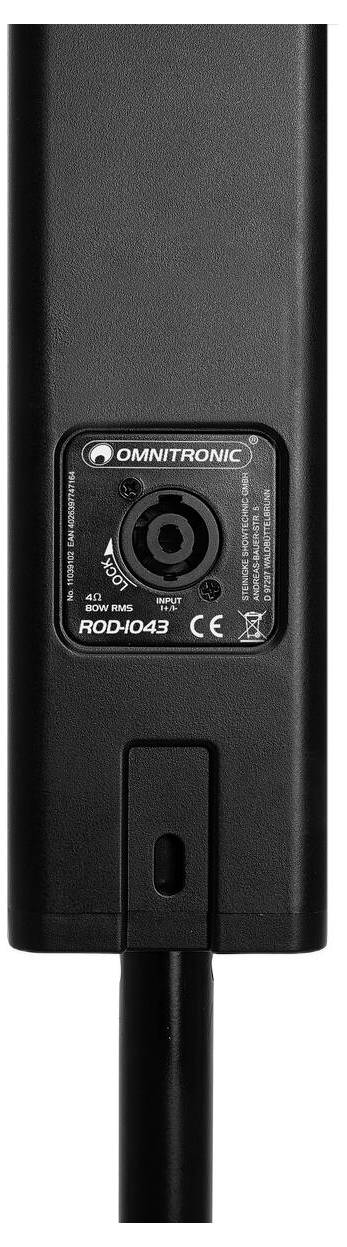

The image shows the rear side of an Omnitronic device featuring an audio input labeled 'INPUT' and model number 'ROD-1043'.

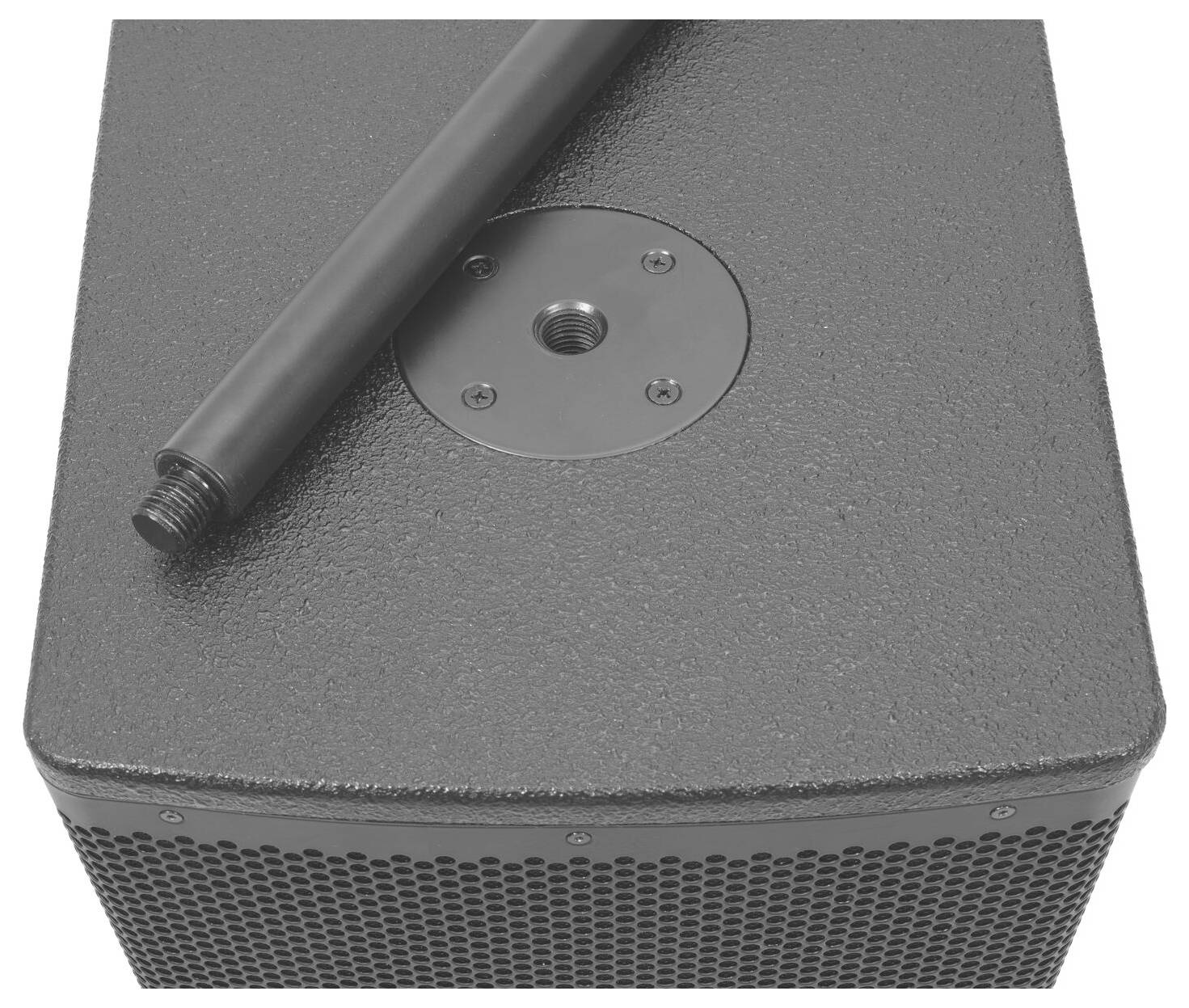

A black speaker with a cylindrical mounting pole lying on top, showing a circular attachment point.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic ROD-1043 active column system

RMS power:350 W
3 inch
125 dB

Technical specifications

Power output 350 W RMS System
Frequency range 42 20000 Hz system
Max. Sound pressure 125 dB system
DSP: Multi-band compressor, multi-step limiter, active phase correction, delay compensation
Weight: 19.20 kg
Bass
Frequency range 42 150 Hz
Mounting system M20 thread
Speakers:
1 x 10" woofer with ferrite magnet
Basket material: Steel
2" moving coil woofer
Conus material: Cardboard / paper
Speaker type: Subwoofer
Bass reflex design
Molded carrying handle:2 items
Transport aid: 4 x plastic feet
Material: MDF (medium density fiber board), 16 mm
Colour: Black, textured surface
Dimensions: Width: 32 cm; depth: 46.5 cm; height: 44.5 cm
Weighs 16.5 kg.
Integrated amplifier module.
Power supply: 100 - -240 V AC 50/ 60 Hz
Total connected value: max. 250 W
Protection class SK I
Output power 1 x 200 W RMS LF; 1 x 150 W RMS (4 Ohm) HF
Power connection: Current feed via cold device (M) Installation version Power connection cable with safety plug included
5 x 20 mm, T 2.5 A fuse to be replaced in service
DSP: Digital signal processor
DSP-PRESETS: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
Bluetooth control
Bluetooth: Version: 5.3 with Stereo Link (TWS)
Bluetooth Device Name: ROD-1043
Range: Bluetooth: Up to 10 m indoors
Carrier frequency 2.4 GHz
Class D switching
Controls: Volume control, power switch, input sensitivity switch
Protection circuit: Short circuit, DC voltage, limiter, overload
Status LED: Signal, limit, DSP presets, pairing, link
Connections:
Input: Mic/line via 1 x 3-pin XLR/6.35-mm jack (W) combo jack bushing
Input line via 1 x stereo cinch
Output:Line via 1 x 3-pin XLR (M) Installation version
Top section via 1 x speaker mounted sockets (W)
Channels Input: 1 x stereo via phono or Bluetooth, channel control via control dial; 1 x mono with mic line switch via combo socket (XLR/JACK), channel control via control dial
Separation frequency 150 Hz
Top section
Rating: Program: 160 W; Nominal: 80 W AES
Frequency range 150 20000 Hz
Sensitivity 90 dB (1W/1m)
Emission ratio 100° x 20°
Impedance 1 x 4 Ohm top part
Support system: Flange: Ø 25 mm
Connections: Input: Top section via 1 x speaker mounted socket (W)
Speakers:
4 x 3" broadband loudspeaker with neodymium magnet
Basket material: Steel; 0.75" voice coil speakers
Conus material: Cardboard / paper
Speaker type: Column loudspeaker
Type: Closed box
Material: Hard plastic
Colour, black
Dimensions: Width: 8.5 cm; depth: 10.5 cm; height: 45 cm
Weight: 1.43 kg
Distance bar:
Height: Maximum: 95 cm; minimum: 59 cm; 4-step adjustable with locking bolts
Support system: M20 thread; pin: Ø 25 mm
Type (tripods general): Hand-out stand/speaker stand
Material: Steel, painted
Weight 0.74 kg
Network cable/power cable
Cable configuration 3 x 0.75 mm² H05VV-F
Cable length 1.80 m.
Speaker cable
Cable configuration: 2 x 0.75 mm² speaker cable
Cable length: 2 m

Product type: Active PA speaker set

RMS power: 350 W

RMS power (subwoofer): 200 W

Speaker size (cm): 7.62 cm

Speaker size (inch): 3 inch

Max. sound pressure: 125 dB

Features: Bluetooth

Dim: (W x H x D) 32 x 44.5 x 46.5 cm

Weight: 19.20 kg

Content: 1 pc(s)

Width: 32 cm

Height: 44.5 cm

Depth: 46.5 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729572 Omnitronic ROD-1043 Active PA speaker set 7.62 cm 3 inch 350 W 1 pc(s)

Description

Mobile column PA system with DSP, mixer, stereo Bluetooth link, 350 W RMS. Multi-band compressor, multi-step limiter, active phase correction, delay compensation. Very good sound quality and high range. Stereo Bluetooth link for wireless stereo operation with 2 linked systems. Metallic grille. Bass 2 container carry handles. 4 x plastic feet. Integrated amplifier module. Digital signal processor. DSP-PRESETS: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION. Can be controlled via Bluetooth. Bluetooth: Range of up to 10m indoors.

This text is machine translated.

Scope of delivery

1 x woofer
1 x top part
1 x distance rod
1 x Power cable/power cable
1x user manual
1 x Loudspeaker cable
2 x cable ties
1 x declaration of conformity.
