Omnitronic ROD-1283 Active PA speaker set 30.48 cm 12 inch 800 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

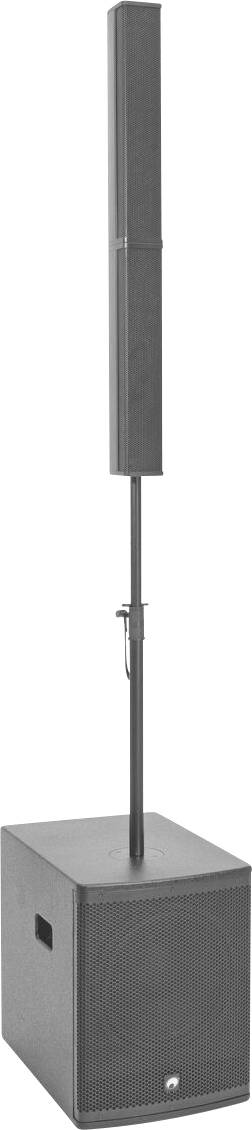

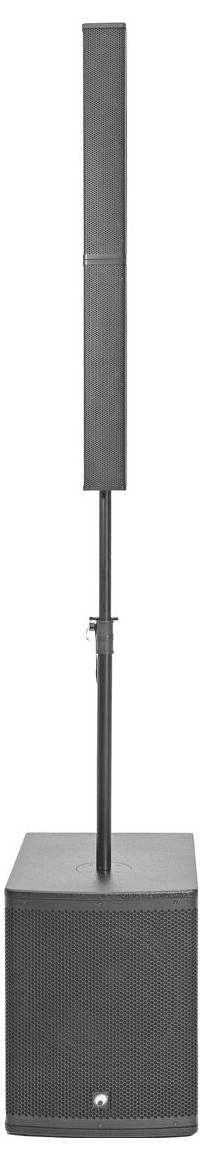

Omnitronic ROD-1283 active column system
- RMS power:800 W
- 12 inch
- 128 dB
Technical specifications
- Power output 800 W RMS System
- Frequency range 40 20000 Hz system
- Max. Sound pressure 128 dB system
- DSP: Multi-band compressor, multi-step limiter, active phase correction, delay compensation, 3-band EQ
- Weight: 25.90 kg
- Bass
- Frequency range 40 150 Hz
- Mounting system M20 thread
- Speakers:
- 1 x 12" woofer with ferrite magnet
- Basket material: Steel
- 2.5" moving coil woofer
- Conus material: Cardboard / paper
- Speaker type: Subwoofer
- Bass reflex design
- Molded carrying handle:2 items
- Transport aid: 4 x plastic feet
- Material: MDF (medium density fiberboard), painted
- Colour: Black, textured surface
- Material thickness 16 mm.
- Dimensions: Width: 37 cm; depth: 52 cm; height: 48 cm
- Weight: 22.5 kg.
- Integrated amplifier module
- Power supply 230 V AC 50 Hz
- Total connected value: max. 400 W
- Output power 1 x 500 W RMS LF; 2 x 150 W RMS (8 Ohm) HF; 1 x 300 W RMS (4 Ohm) HF
- Power connection: Current feed via cold device (M) Installation version Power connection cable with safety plug included
- Device fuse 5 x 20 mm, T 3.15 A fuse can be replaced
- DSP: Digital signal processor
- DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT
- 1 x quiet fan
- Filter low-cut 80 Hz
- Bluetooth control
- Bluetooth: Version: 5.3 with Stereo Link (TWS)
- Bluetooth Device Name: ROD-1283
- Range: Bluetooth: Up to 10 m indoors
- Carrier frequency 2.4 GHz
- Class D switching
- Display type: Multicolor LCD display
- Controls: Power switch, encoder, menu, BACK button
- Protection circuit: Overheating; short circuit; direct voltage; limiter
- Status LED: Limit

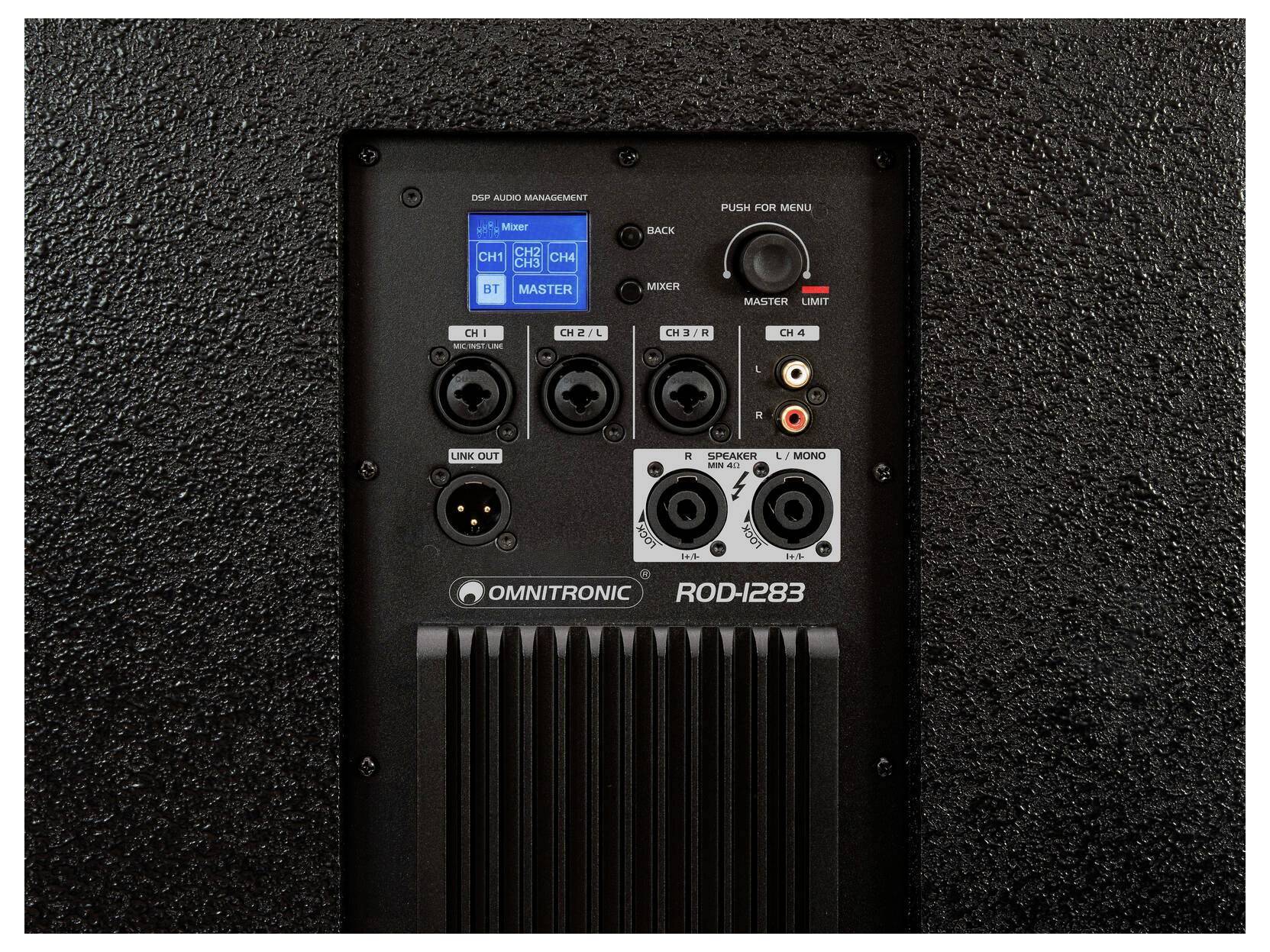

- Connections:
- Input: Mic/line via 1 x 3-pin XLR/6.35-mm jack (W) combo jack bushing
- Input: Line via 2 x 3-pin XLR/6.35mm jack (W) combo jack installation version
- Input line via 1 x stereo cinch
- Output:Line via 1 x 3-pin XLR (M) Installation version
- Top section via 2 x speaker mounted sockets (W)
- Separation frequency 150 Hz
- Top section
- Rating: Program: 160 W; Nominal: 80 W AES
- Frequency range 150 20000 Hz
- Sensitivity 90 dB (1W/1m)
- Emission ratio 100° x 20°
- Impedance 8 Oh
- Top section. Support system: Flange: Ø 25 mm

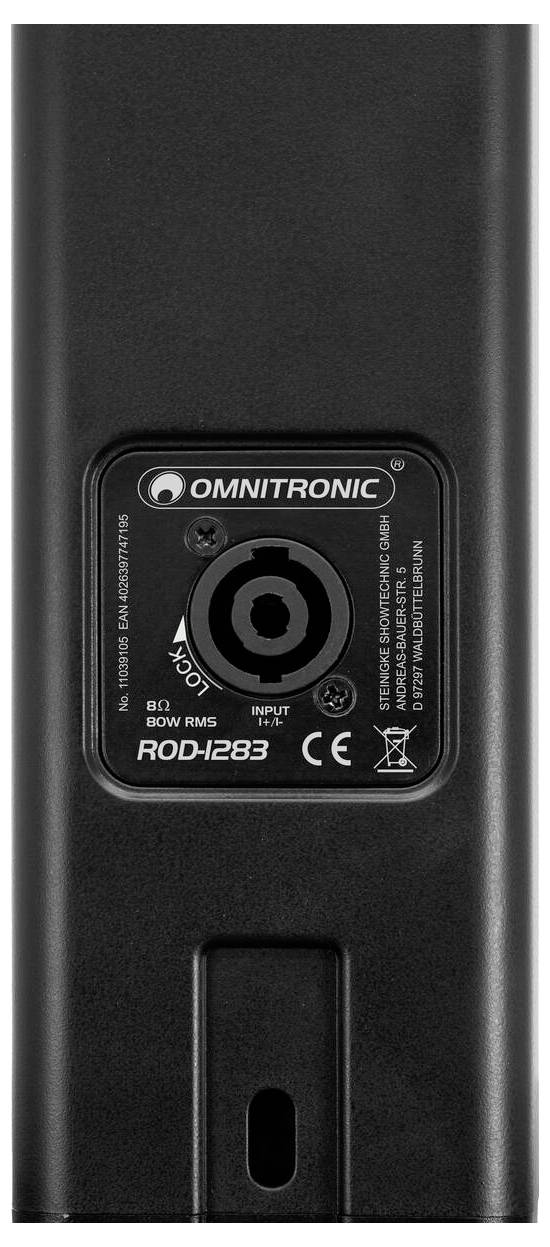

- Connections:
- Input: Top section via 1 x speaker mounted socket (W)
- Link: Special plug connection
- Speakers:
- 4 x 3" broadband loudspeaker with neodymium magnet
- Basket material: Steel
- 0.75" voice coil full-range speaker
- Conus material: Cardboard / paper
- Speaker type: Column loudspeaker
- Type: Closed box
- Material: Hard plastic
- Colour, black
- Dimensions: Width: 8.5 cm; depth: 10.5 cm; height: 45 cm
- Weight: 1.50 kg

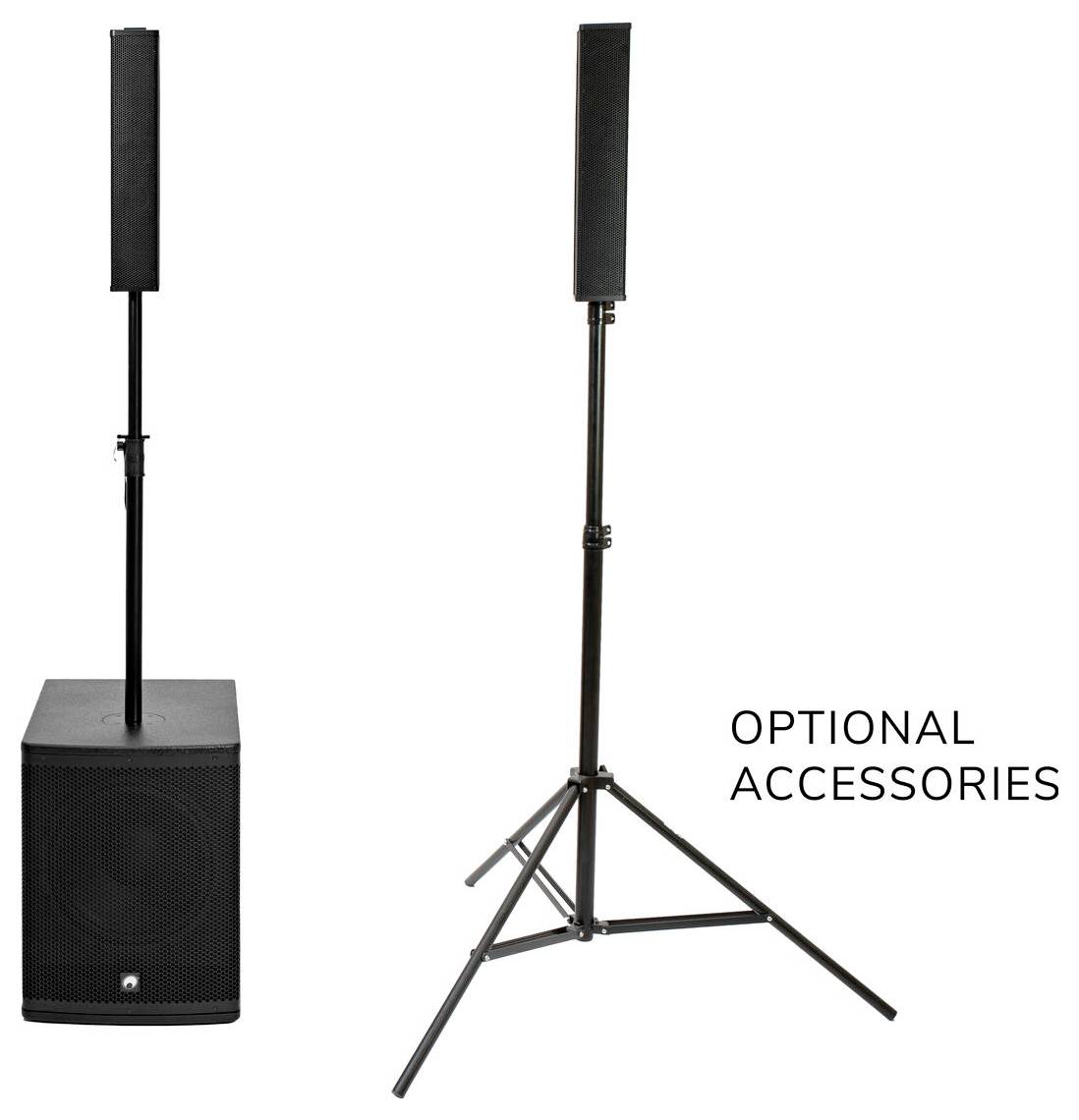

- Distance bar:
- Height: Maximum: 95 cm; minimum: 59 cm; 4-step adjustable with locking bolts
- Type (tripods general): Hand-out stand/speaker stand
- Material: Steel, painted
- Power cable/mains cable:
- Cable configuration 3 x 0.75 mm² H05VV-F
- Cable length: 1,8 m
- Speaker cable:
- Cable configuration: 2 x 0.75 mm² speaker cable
- Cable length 2 m; 5 m
- Product type
Active PA speaker set
- RMS power
800 W
- RMS power (subwoofer)
500 W
- Speaker size (cm)
30.48 cm
- Speaker size (inch)
12 inch
- Max. sound pressure
128 dB
- Features
Bluetooth
- Dim
(W x H x D) 37 x 48 x 52 cm
- Weight
25.9 kg
- Content
1 pc(s)
- Width
37 cm
- Height
48 cm
- Depth
52 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729573 Omnitronic ROD-1283 Active PA speaker set 30.48 cm 12 inch 800 W 1 pc(s)
Description
Mobile column PA system with DSP, mixer, stereo Bluetooth link, 800 W RMS. Multi-band compressor, multi-step limiter, active phase correction, delay compensation, 3-band EQ. 4-channel mixer 2.1 stereo or 1.1 mono operation with stacked modules Stereo Bluetooth link for wireless stereo operation with 2 linked systems. Bass Metal grid in black with acoustic foam. 2 container carry handles. 4 x plastic feet. Integrated amplifier module. Digital signal processor. DSP presets: MUSIC; LIVE; SPEECH; 80 Hz low cut; FLAT. Multi-colored LCD display. Can be controlled via Bluetooth. Bluetooth: Range of up to 10m indoors. The fan ensures that the unit is cooled with minimal noise.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x woofer
- 2 x top part
- 1 x distance rod
- 1 x Power cable/power cable
- 2 x Loudspeaker cable
- 2 x cable ties
- 1x user manual
- 1 x declaration of conformity.
