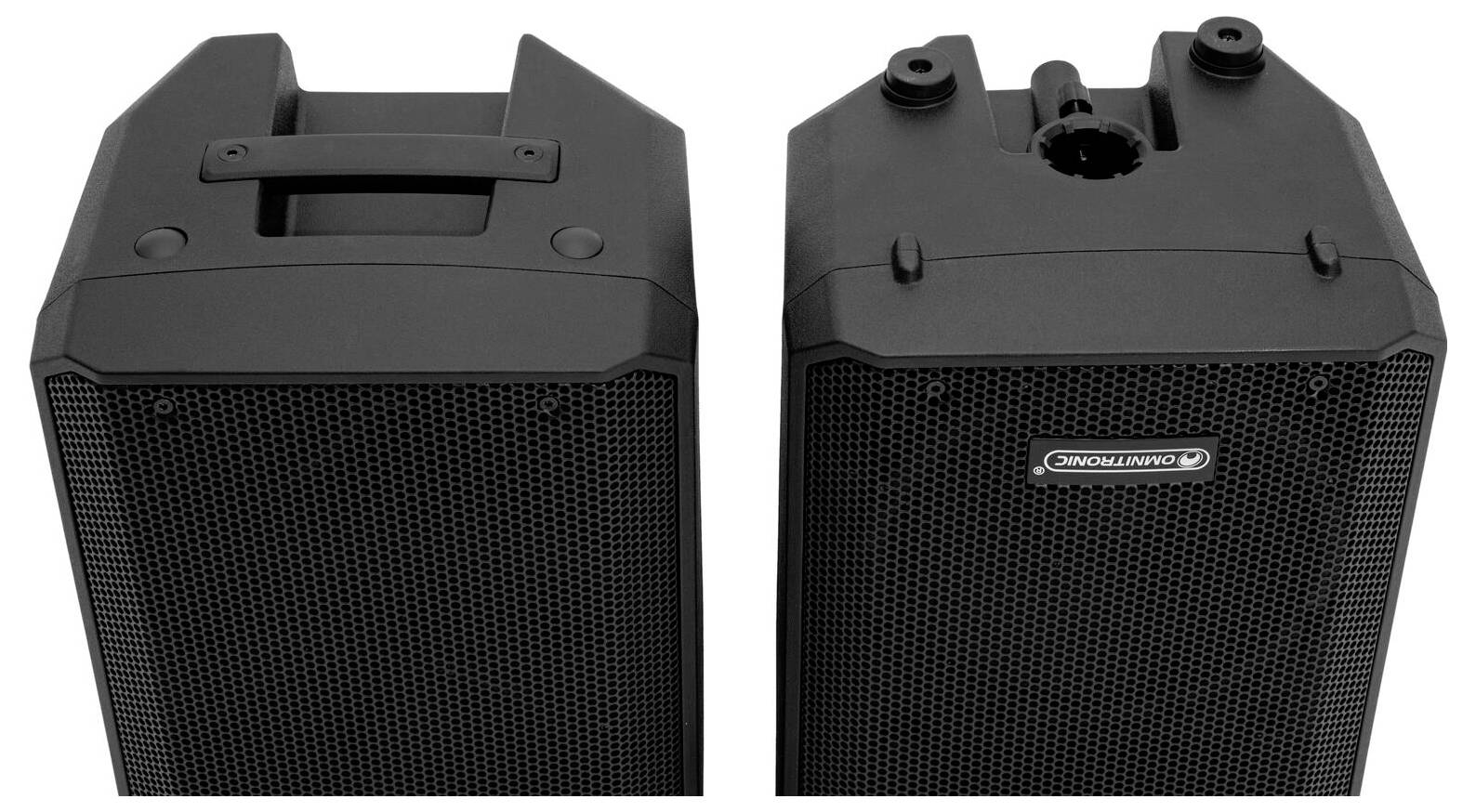

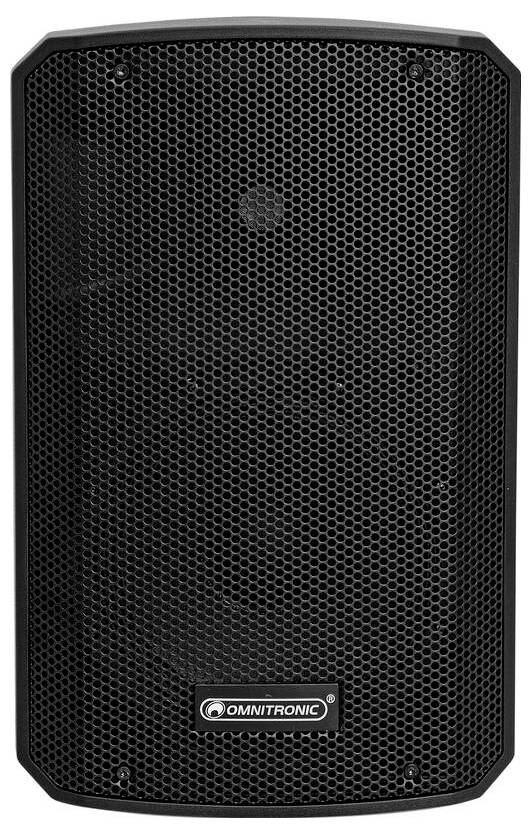

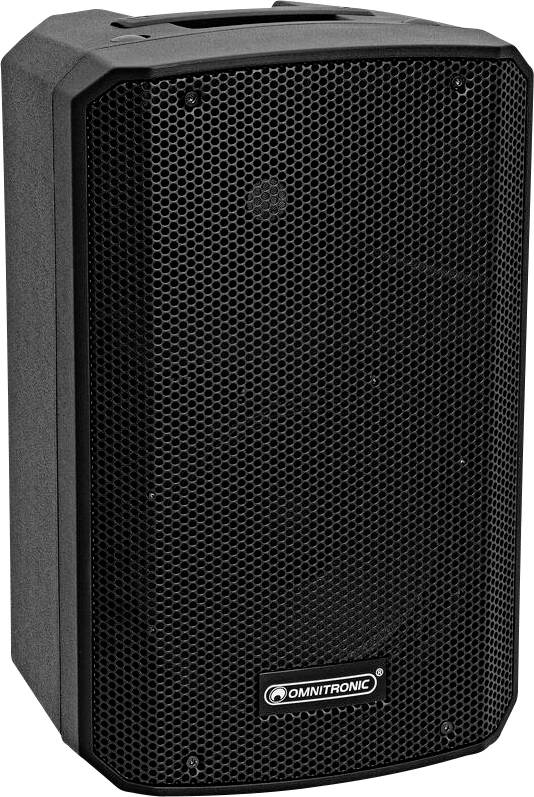

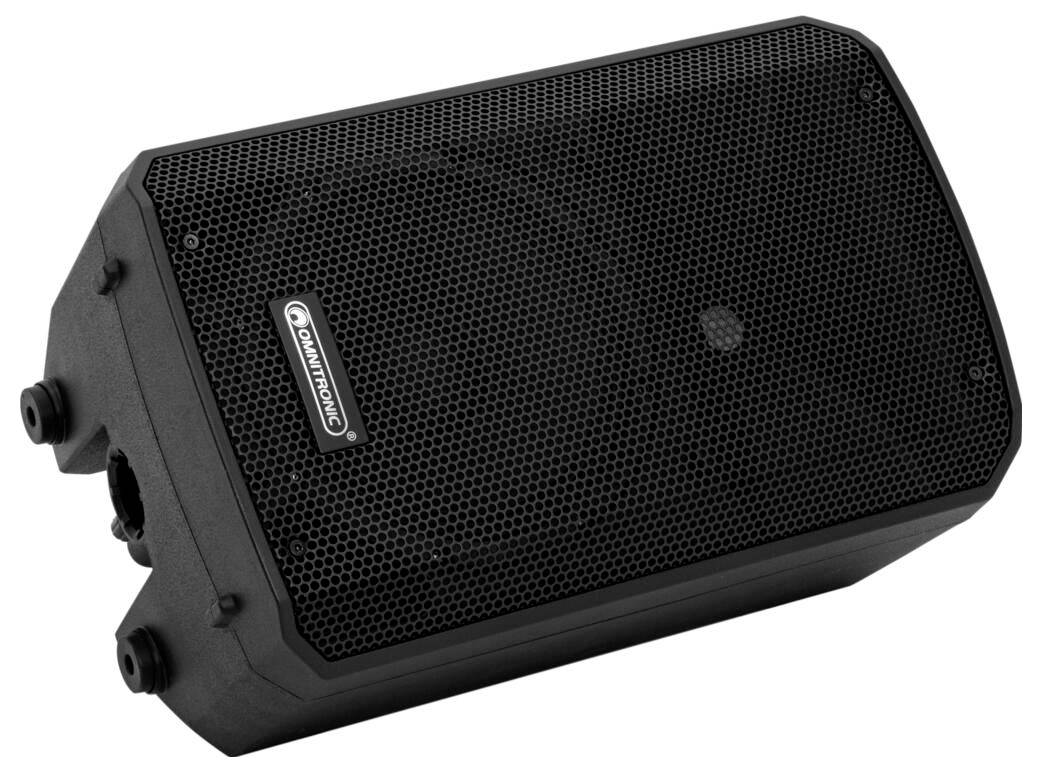

Omnitronic VFM-208AP MK2 Active PA speaker 8 inch 80 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic VFM-208AP MK2 2-way loudspeaker active TBW
- RMS power:80 W
- Max. power:285 W
- 8 inch
- 114 dB
Technical specifications
- Power supply 230 V AC 50 Hz
- Total connected wattage 285 W
- Protection class SK I
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Device fuse 5 x 20 mm, T 1 A fuse can be replaced
- Load capacity: Program 160 W; nominal 80 W RMS
- Frequency range 60 Hz– 20 KHz
- Max. Sound pressure level 114 dB
- Bluetooth control; IR remote control
- Bluetooth: Version: 5 with Stereo Link (TWS)
- Bluetooth device name: Omnitronic
- Audio player USB + SD + Bluetooth
- Support system: Flange: Ø 35 mm

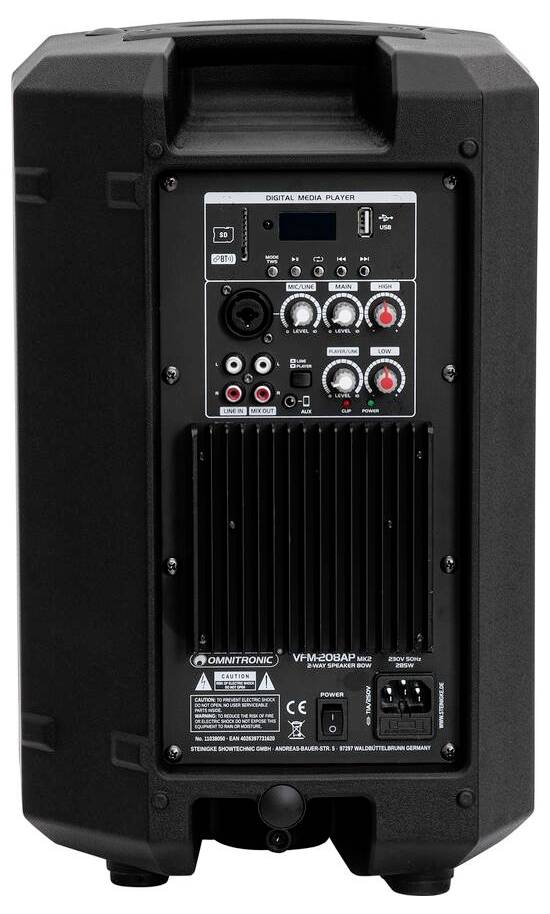

- Controls: Master controller, volume control per channel, power switch, audio player, sound control
- Status LED Power, clip
- Connections:
- Input: Mic/line via 1 x 3-pin XLR/6.35 mm jack (W) combo jack
- Input: Line via 1 x 3.5 mm jack socket (stereo) Installation version
- Input line via 1 x stereo cinch
- Output: Line via stereo cinch
- Channels input: 1 x mono via XLR or jack, channel control via rotary knob; 1 x stereo via phono or jack or player, channel control via rotary knob
- Equaliser Master 1 x 2-band
- Music format MP3, WAV
- Number of files: Max. 999
- Suitable storage media: USB devices/SD cards (FAT 32)
- Speakers:
- 1 x 8" woofer with ferrite magnet
- Basket material: Steel
- Conus material: Cardboard / paper
- 1.5" moving coil woofer
- 1 x 1" compression driver tweeter with ferrite magnet
- 1" moving coil compression driver - high tone
- 1" horn connection opening
- Speaker type: Compact box
- Carrying handle:1 pieces
- Colour, black
- Remote control: Battery: 1 x button cell 3.0 V CR2025 Lithium-Manganese built in
- Product type
Active PA speaker
- RMS power
80 W
- Max. power
285 W
- Speaker size (inch)
8 inch
- Max. sound pressure
114 dB
- Interfaces
Mic 6.35 mm in
XLR in
3.5 mm jack in
RCA out
- Dim
(W x H x D) 274 x 420 x 250 mm
- Frequency range
60 - 20000 Hz
- Weight
6950 g
- Content
1 pc(s)
- Width
274 mm
- Height
420 mm
- Depth
250 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729556 Omnitronic VFM-208AP MK2 Active PA speaker 8 inch 80 W 1 pc(s)
Description
Active 2-way speaker (8") with 80 W RMS for PA and DJ applications with audio player and Bluetooth. 2-way bass reflex system with 20 cm woofer and 2.5 cm tweeter. Class A/B architecture: Optimal sound and strong performance with low weight and compact size. Stereo Bluetooth link for wireless stereo operation with 2 linked systems. SD card slot and USB port 1 adjustable combi input mic/line (XLR/jack). Line input, phono, separately adjustable. 3.5 mm AUX connection. Mixed output for connecting further active boxes. Master controller with 2-band EQ. Can be controlled via Bluetooth; IR remote control. Metallic grille in black. Robust handle For applications such as: Mobile DJ's / solo entertainer. Possible application: Standing; monitoring; on stand.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x compact box
- 1x remote control
- 1 x battery
- 1 x Power cable/power cable
- 1x user manual
- 1 x declaration of conformity.
