Buy Omnitronic VFM-212 MK2 Passive PA speaker 30 cm 12 inch 140 W 1 pc(s)

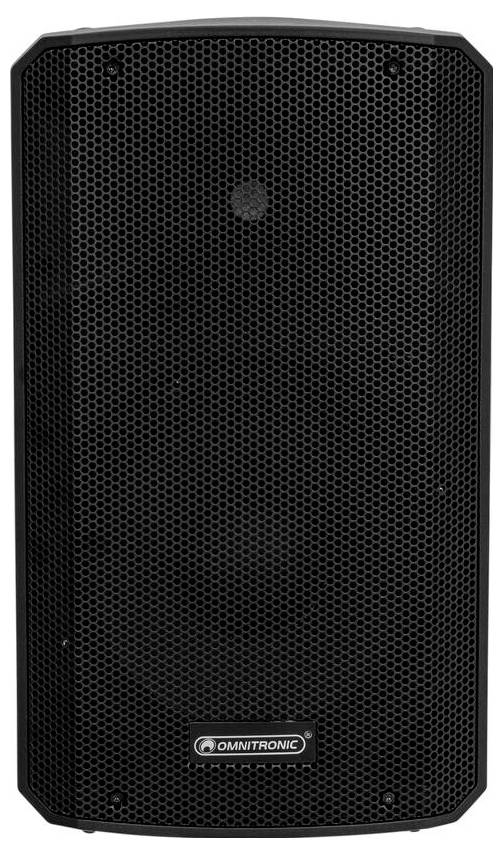

A black Omnitronic speaker with a hexagonal grille front, used for audio output in various sound systems and venues.

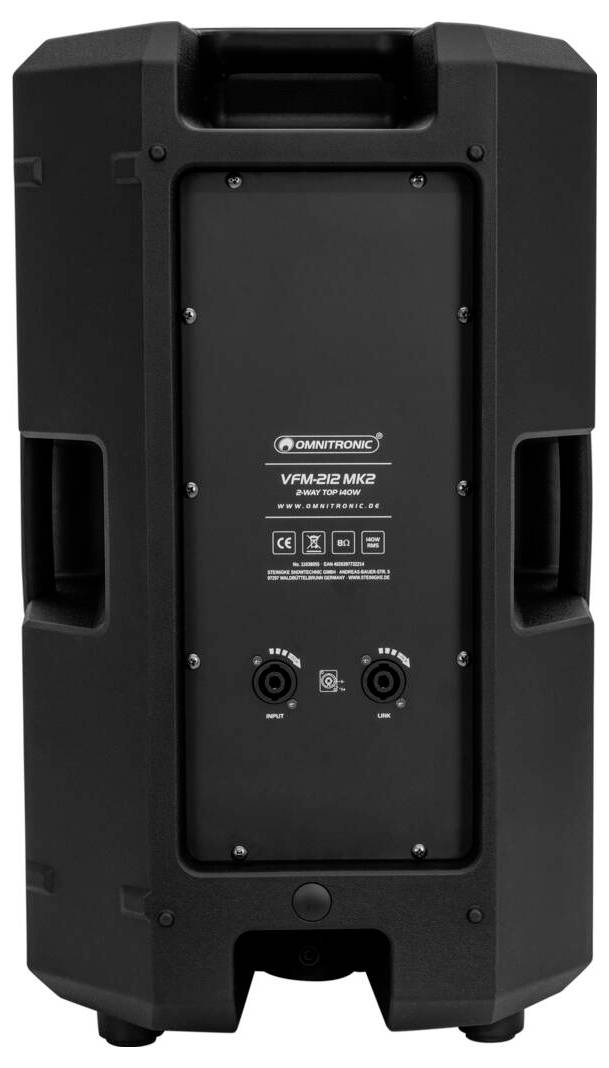

Rear view of a black Omnitronic VFM-212 MK2 speaker, showing connection ports and specifications label at the center.

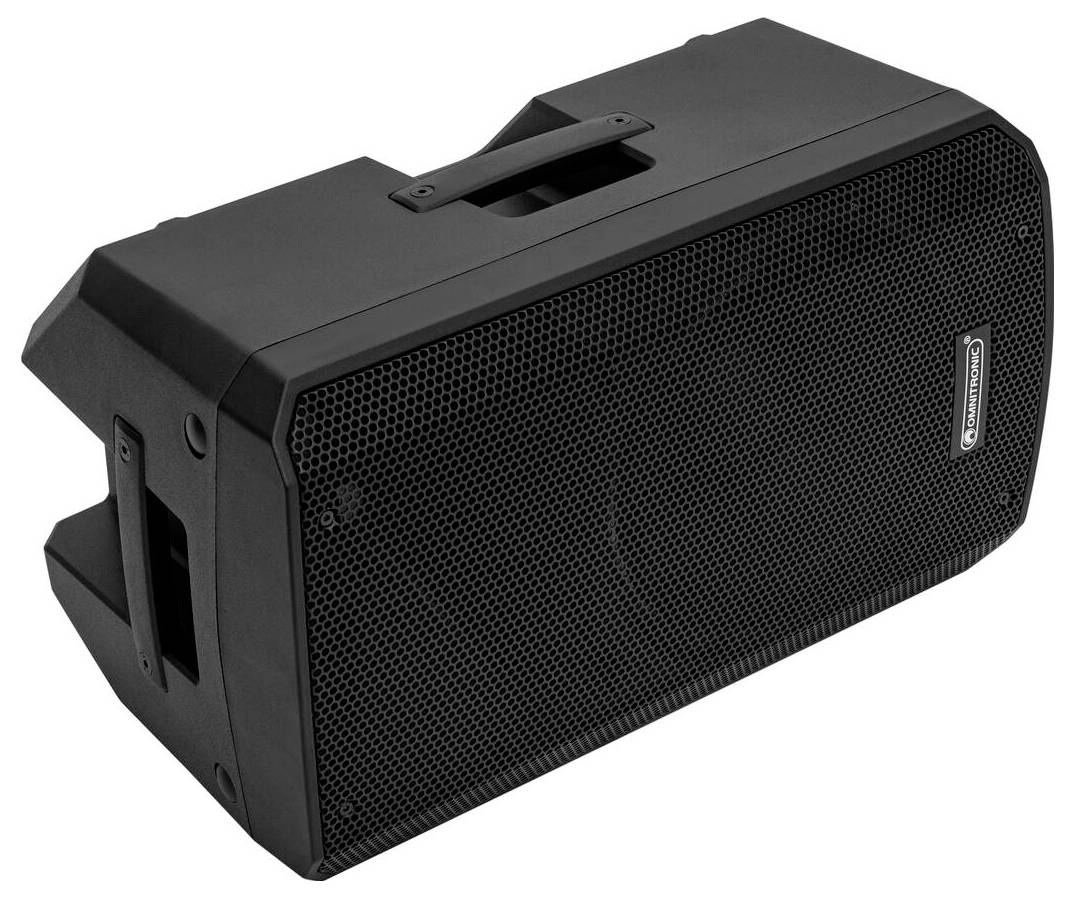

Black portable speaker with a handle on top, angled view showing the speaker grille and casing.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic VFM-212 MK2 2-way loudspeaker

RMS capacity:140 W
Max. load (W):280 W
12 inch
120 dB

Technical specifications

Load capacity: Program 280 W; nominal 140 W RMS
Frequency range 45 20000 Hz
Sensitivity 96 dB
Max. Sound pressure level 120 dB
Impedance 8 Ohm
Support system: Flange: Ø 35 mm
Connections:
Input: Speaker via 1 x speaker mounted socket (W)
Link: Speaker via 1 x speaker mounted socket (W)
Speakers:
1 x 12" woofer with ferrite magnet;
1 x 1" compression driver tweeter with ferrite magnet
1" moving coil compression driver - high tone
1" horn connection opening
1.5" moving coil woofer
Speaker type: Compact box
Bass reflex design
Carrying handle:3 pieces
Material: plastic
Colour, black

Product type: Passive PA speaker

RMS capacity: 140 W

Max. load: 280 W

Speaker size (cm): 30 cm

Speaker size (inch): 12 inch

Interfaces: SPK type socket

Impedance: 8 Ω

Max. sound pressure: 120 dB

Frequency range: 45 - 20000 Hz

Dim: (W x H x D) 352 x 590 x 348 mm

Weight: 10150 g

Content: 1 pc(s)

Width: 352 mm

Height: 590 mm

Depth: 348 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3729561 Omnitronic VFM-212 MK2 Passive PA speaker 30 cm 12 inch 140 W 1 pc(s)

Description

Passive box with 12" woofer, 1" driver and 140 W RMS. 2-way bass reflex system with 30 cm woofer and 2.5 cm tweeter. Metallic grille in black. 3 robust carry handles. For applications such as: Mobile DJ's / solo entertainer.

This text is machine translated.
