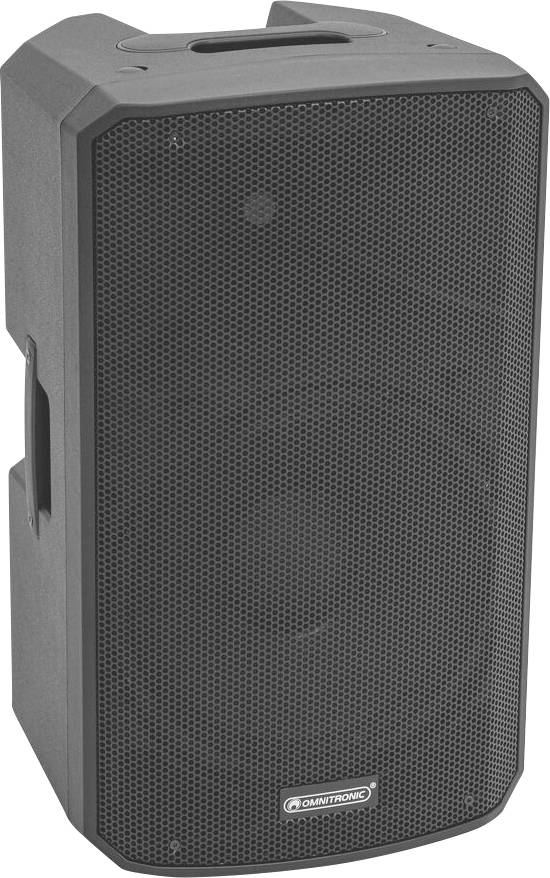

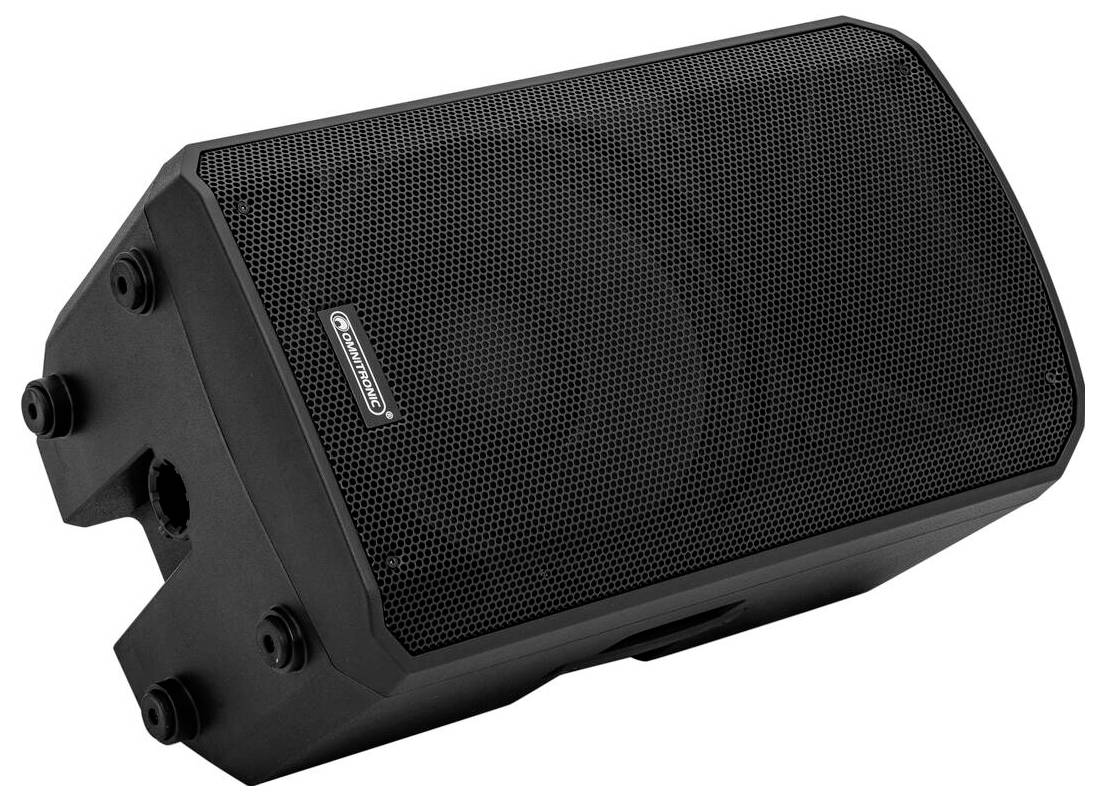

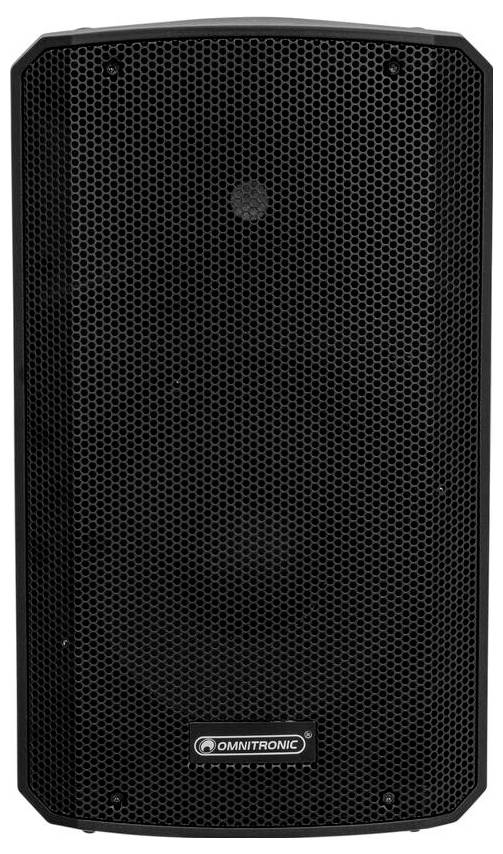

Omnitronic VFM-212AP MK2 Active PA speaker 12 inch 140 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic VFM-212AP MK2 2-way loudspeaker active twin
- RMS power:140 W
- Max. power:420 W
- 12 inch
- 120 dB
Technical specifications
- Power supply 230 V AC 50 Hz
- Total connected wattage 420 W
- Protection class SK I
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Device fuse 5 x 20 mm, T 2 A fuse can be replaced
- Load capacity: Program 280 W; nominal 140 W RMS
- Frequency range 45 20000 Hz
- Max. Sound pressure level 120 dB
- Bluetooth control; IR remote control
- Bluetooth: Version: 5 with Stereo Link (TWS)
- Bluetooth device name: Omnitronic
- Audio player USB + SD + Bluetooth
- Support system: Flange: Ø 35 mm
- Controls: Volume control per channel, master control, power switch, tone control, audio player
- Status LED Power, clip

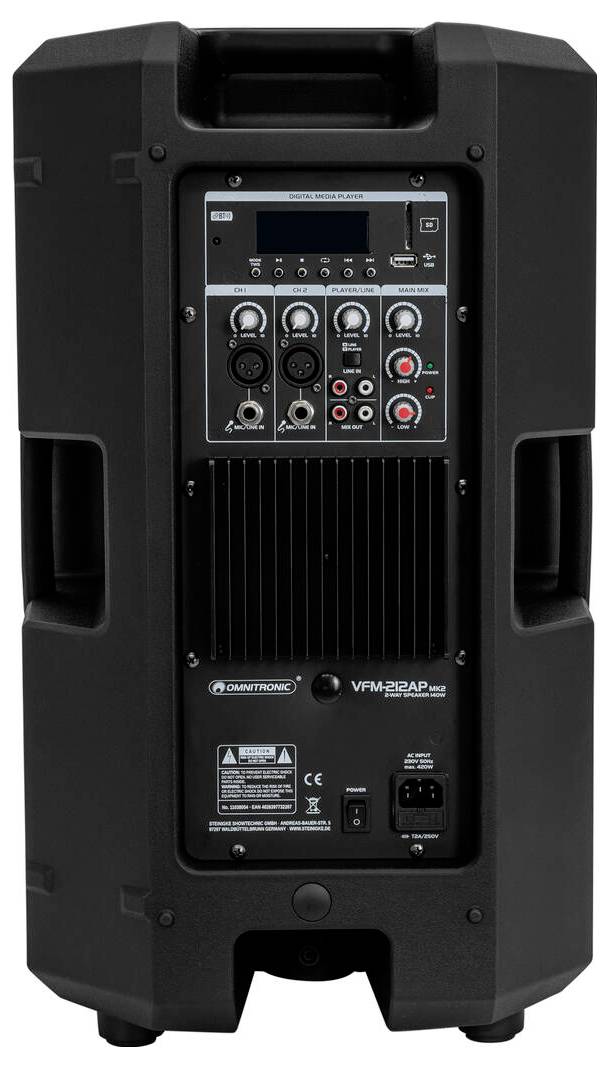

- Connections:
- Input: Mic/line via 2 x 3-pin XLR
- Input: Mic/line via 2 x 6.3-mm jack (unbal.)
- Input line via 1 x stereo cinch
- Output: Line via stereo cinch
- Channel input: 2 x mono via XLR or jack, channel control via rotary knob
- 1 x stereo with line player switch via phono or player, channel control via control dial
- Equaliser Master 1 x 2-band
- Music format MP3, WAV
- Number of files: Max. 999
- Suitable storage media: USB devices/SD cards (FAT 32)
- Speakers:
- 1 x 12" woofers with ferrite magnet
- Basket material: Steel
- Conus material: Cardboard / paper
- 1.5" moving coil woofer
- 1 x 1" compression driver tweeter with ferrite magnet
- 1" moving coil compression driver - high tone
- 1" horn connection opening
- Speaker type: Compact box
- Carrying handle:3 pieces
- Material: plastic
- Colour, black
- Remote control Battery:1 x button cell 3.0 V CR2025 Lithium-Manganese installed
- Product type
Active PA speaker
- RMS power
140 W
- Max. power
420 W
- Speaker size (inch)
12 inch
- Max. sound pressure
120 dB
- Interfaces
Mic 6.35 mm in
XLR in
RCA out
- Dim
(W x H x D) 352 x 590 x 348 mm
- Frequency range
45 - 20000 Hz
- Weight
12200 g
- Content
1 pc(s)
- Width
352 mm
- Height
590 mm
- Depth
348 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729560 Omnitronic VFM-212AP MK2 Active PA speaker 12 inch 140 W 1 pc(s)
Description
Active 2-way speaker (12") with 140 W RMS for PA and DJ applications with audio player and Bluetooth. 2-way bass reflex system with 30 cm woofer and 2.5 cm compression driver. Class A/B architecture: Optimal sound and strong performance with low weight and compact size. Stereo Bluetooth link for wireless stereo operation with 2 linked systems. SD card slot and USB port 2 microphone/line inputs XLR/jack, separately adjustable. Line input, phono, separately adjustable. Mixed output for connecting further active boxes. Master controller with 2-band EQ. Can be controlled via Bluetooth; IR remote control. Metallic grille in black. 3 robust carry handles. For applications such as: Mobile DJ's / solo entertainer. Possible application: Standing; monitoring; on stand.
This text is machine translated.
This text is machine translated.

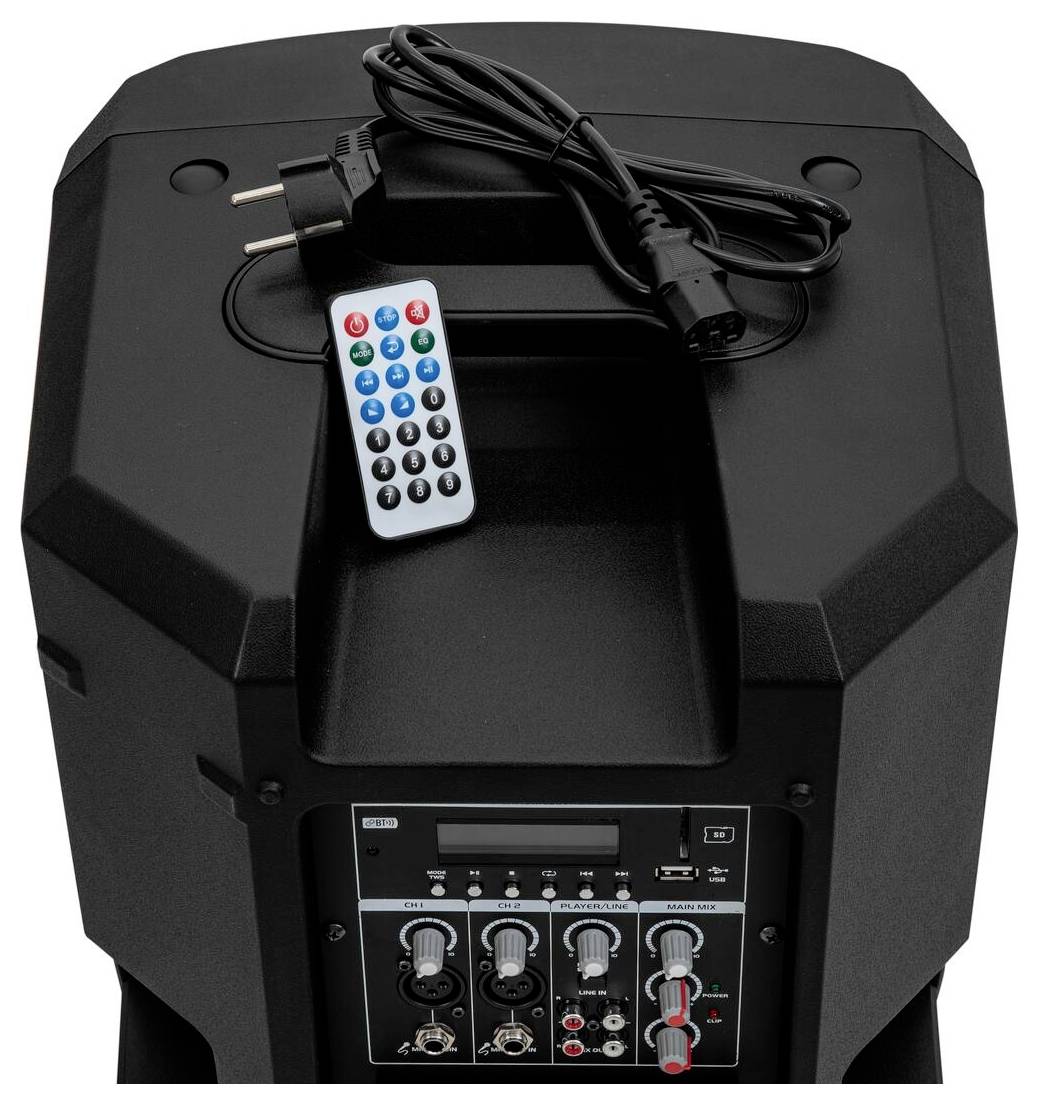

Scope of delivery
- 1 x compact box
- 1x remote control
- 1 x battery
- 1 x Power cable/power cable
- 1x user manual
- 1 x declaration of conformity.
