Omnitronic VFM-215AP MK2 Active PA speaker 15 inch 150 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic VFM-215AP MK2 2-way loudspeaker active TBW
- RMS power:150 W
- Max. power:500 W
- 15 inch
- 122 dB
Technical specifications
- Power supply 230 V AC 50 Hz
- Total connected wattage 500 W
- Protection class SK I
- Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)
- Device fuse 5 x 20 mm, T 2 A fuse can be replaced
- Load capacity: Program 300 W; nominal 150 W RMS
- Frequency range 40 20000 Hz
- Max. sound pressure 122 dB
- Control: IR remote control; Bluetooth
- Bluetooth: Version: 5 with Stereo Link (TWS)
- Bluetooth device name: Omnitronic
- Audio player USB + SD + Bluetooth
- Support system: Flange: Ø 35 mm
- Status LED Power, clip

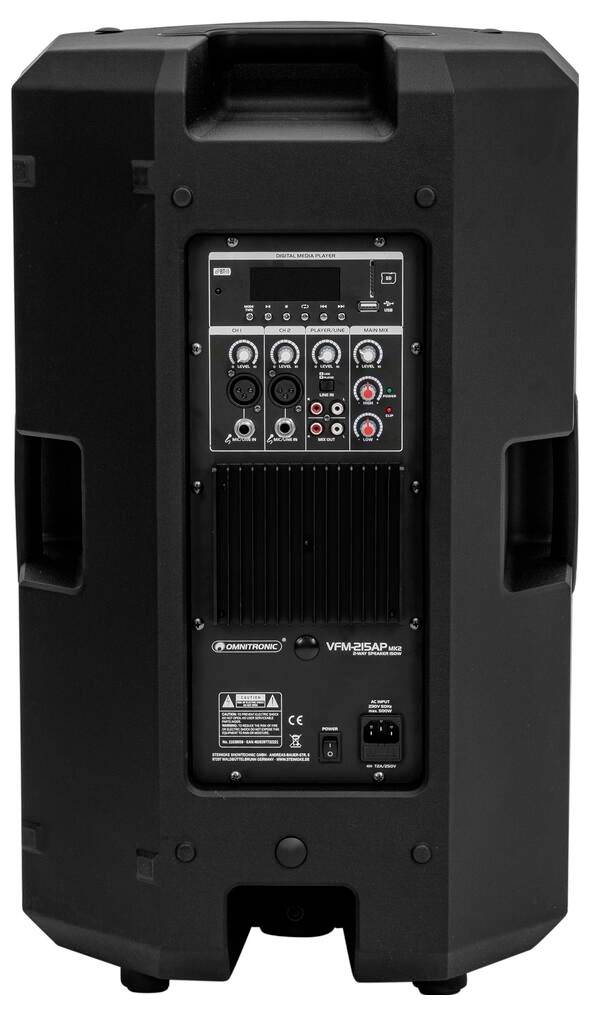

- Connections:
- Input: Mic/line via 2 x 6.3-mm jack (unbal.)
- Input: Mic/line via 2 x 3-pin XLR
- Input line via 1 x stereo cinch
- Output: Line via 1 x stereo-cinch
- Channel input: 2 x mono via XLR or jack, channel control via rotary knob
- 1 x stereo with line player switch via phono or player channel control via control dial
- Equaliser Master 1 x 2-band
- Music format MP3, WAV
- Number of files: Max. 999
- Suitable storage media: USB devices/SD cards (FAT 32)
- Speakers:
- 1 x 15" woofer with ferrite magnet
- 2" moving coil woofer
- 1 x 1" compression driver tweeter with ferrite magnet
- 1 x 1" moving coil compression driver tweeter
- 1" horn connection opening
- Speaker type: Compact box
- Carrying handle:3 pieces
- Material: plastic
- Colour, black
- Remote control Battery:1 x button cell 3.0 V CR2025 Lithium-Manganese installed
- Product type
Active PA speaker
- RMS power
150 W
- Max. power
500 W
- Speaker size (inch)
15 inch
- Max. sound pressure
122 dB
- Interfaces
Mic 6.35 mm in
RCA in
XLR in
RCA out
- Dim
(W x H x D) 470 x 730 x 430 mm
- Frequency range
40 - 20000 Hz
- Weight
14900 g
- Content
1 pc(s)
- Width
470 mm
- Height
730 mm
- Depth
430 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729562 Omnitronic VFM-215AP MK2 Active PA speaker 15 inch 150 W 1 pc(s)
Description
Active 2-way speaker (15") with 150 W RMS for PA and DJ applications with audio player and Bluetooth. 2-way bass reflex system with 38 cm woofer and 2.5 cm compression driver. Class A/B architecture: Optimal sound and strong performance with low weight and compact size. Stereo Bluetooth link for wireless stereo operation with 2 linked systems. SD card slot and USB port 2 microphone/line inputs XLR/jack, separately adjustable. Line input, phono, separately adjustable. Mixed output for connecting further active boxes. Master controller with 2-band EQ. Can be controlled via IR remote control; Bluetooth. Metallic grille in black. 3 robust carry handles. For applications such as: Mobile DJ's / solo entertainer. Possible application: Standing; monitoring; on stand.
This text is machine translated.
This text is machine translated.

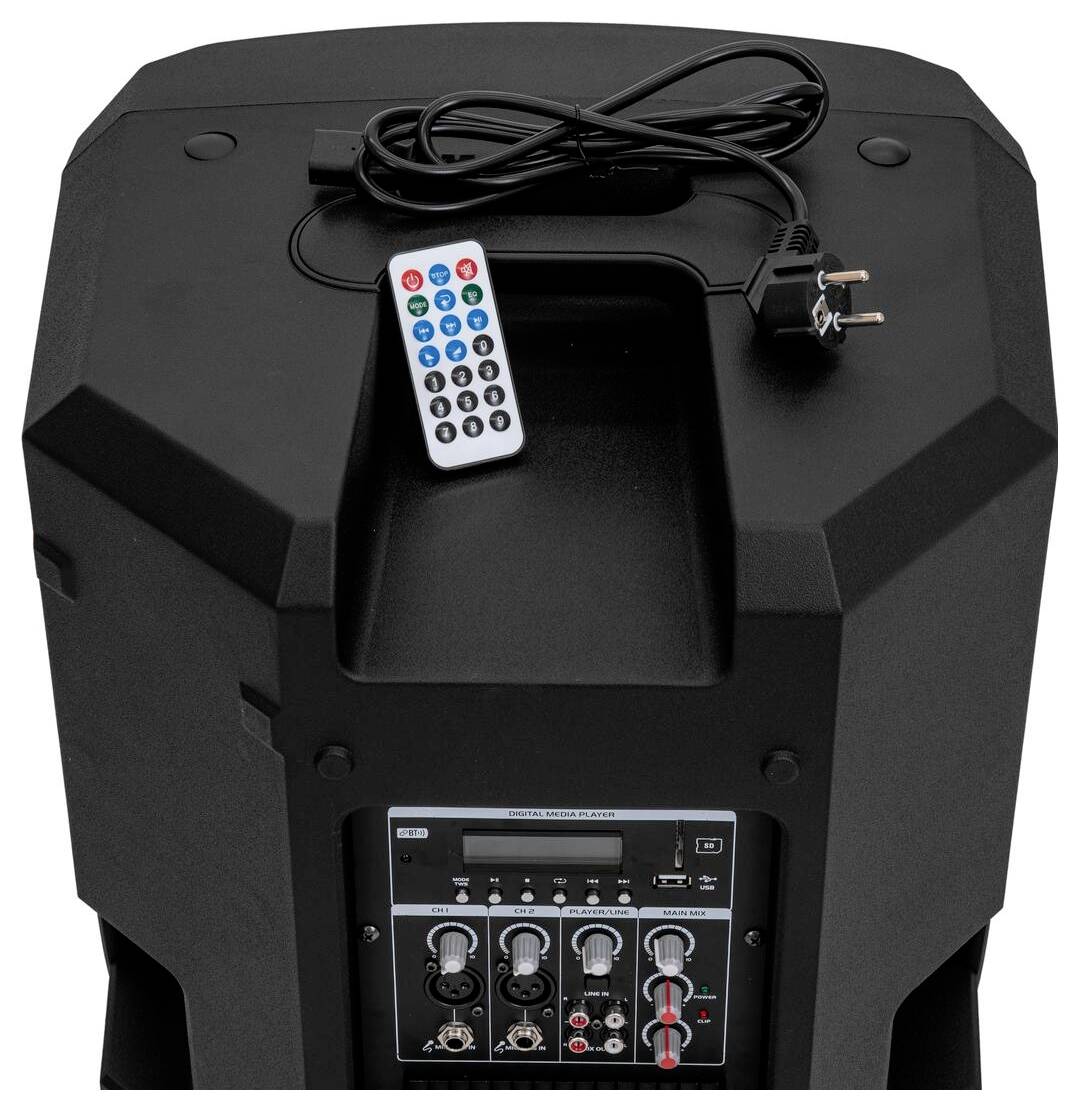

Scope of delivery
- 1 x compact box
- 1x remote control
- 1 x battery
- 1 x Power cable/power cable
- 1x user manual
- 1 x declaration of conformity.
